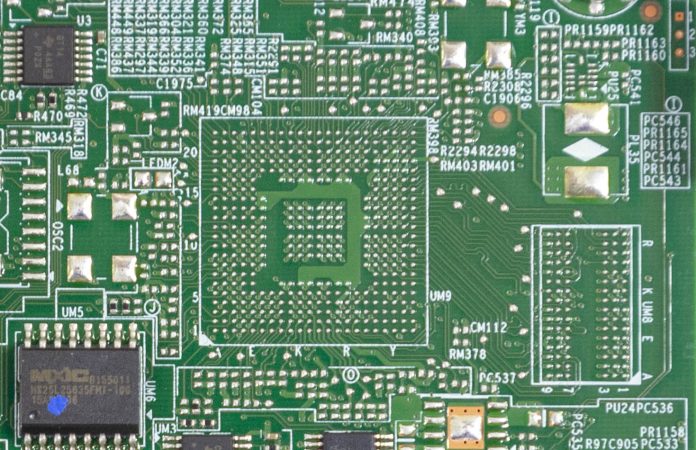

Supermicro Microblade BMC And RAM Packages Not Set
Investigating the Bloomberg Supermicro Chip Evidence

Today we are going to more thoroughly address the Bloomberg Businessweek article alleging that China targeted 30 companies by inserting chips in the manufacturing process of Supermicro servers. Despite denials from named companies and the technology press casting some reasonable doubt on the story, Bloomberg doubled down and posted a follow-up article claiming a different hack took place. In this piece, we are going to present a critical view of Bloomberg’s claims, as supported by anonymous sources, in order to allow our readers to decide for themselves the credibility of Bloomberg’s reporting in this case.

Technical Lightness or Inaccuracy

This is a long article. In the first section, we are going to discuss why there are some fairly astounding plausibility and feasibility gaps in Bloomberg’s description of how the hacks worked. The weakness in this section of the Bloomberg article makes it extremely difficult to navigate and it is light on details. We are going to evaluate some of the parts in isolation, and also discuss some of the logical outcomes. In our first investigative piece, Bloomberg Reports China Infiltrated the Supermicro Supply Chain We Investigate, we went into some detail about why a motherboard and hardware for a motherboard is a very difficult way to hack a BMC. If you have not read our Explaining the Baseboard Management Controller or BMC in Servers that should be a precursor to reading the next section. STH has a relatively technically minded audience, so we are going to assume our audience has at least the knowledge imparted in that article.

The Lynchpin of How Bloomberg’s Device Activates is Not Plausible

We are going to focus on a few key parts of one of the opening paragraphs from the story where functionality is described.

Since the implants were small, the amount of code they contained was small as well. But they were capable of doing two very important things: telling the device to communicate with one of several anonymous computers elsewhere on the internet that were loaded with more complex code; and preparing the device’s operating system to accept this new code. The illicit chips could do all this because they were connected to the baseboard management controller, a kind of superchip that administrators use to remotely log in to problematic servers, giving them access to the most sensitive code even on machines that have crashed or are turned off. (Source: Bloomberg with emphasis added to highlight key points for discussion)

That first part starting with “telling the device…” is nonsensical. If you are in the industry or read our Basic BMC and IPMI Management Security Practices piece, you would know that this is false. If you have an unsophisticated network or a lack of understanding about the topic, you may think that this is how BMC’s are networked:

BMC IPMI Networking Private Network SMB Example
BMC IPMI Networking Private Network SMB Example

Even smaller organizations with a handful of servers generally have segregated BMC networks. That basic starting point, from where large companies take further steps, looks something like this:

BMC IPMI Networking Basic Dedicated Management Network
BMC IPMI Networking Basic Dedicated Management Network

The key here is that the companies named are all sophisticated, and will have better protections than your average small to medium enterprise. Bloomberg’s report describes an attack that is not possible at the companies listed in the article.

Even the notion of being able to switch channels (a basic part of the IPMI interface) is well-known and network administrators will prevent BMC leakage even if a BMC is compromised so it cannot get egress by switching network ports.

Intel IPMI BMC Select Channel And Failover IPv4
Intel IPMI BMC Select Channel And Failover IPv4

One of the biggest reasons people in the server management industry doubt the Bloomberg report is that it is not plausible for these chips to function in the networks of their intended targets, allegedly “30 companies.” Amazon AWS noted as much in their rebuttal response to this article when they said: “The remaining two non-critical issues with the web application were determined to be fully mitigated by the auditors if customers used the appliances as intended, without exposing them to the public internet.” (Source: Bloomberg)

We are going to get to how hard it is to pull this type of hack off later in this article. For now, the important piece is that the attack, as described in the passage above, would not work at its intended targets. Standard industry practice guards against this attack vector.

Impossible Access to Code on Crashed or Turned Off Servers

The next inaccuracy to this paragraph is the line describing BMCs as “giving them access to the most sensitive code even on machines that have crashed or are turned off.” That is not how this technology works.

Baseboard management controllers or BMCs are active on crashed or turned off servers. They allow one to, for example, power cycle servers remotely. If you read our piece Explaining the Baseboard Management Controller or BMC in Servers BMCs are superchips. They replace a physical administrator working on a server in a data center for most tasks other than physical service (e.g. changing failed hard drives.)

Intel SATA SSD Needs Power to Function

At the same time, the sensitive data on a system is in the main server complex, not the BMC. When the BMC is powered on, hard drives, solid state drives, the server’s CPU (for decrypting data) and memory are not turned on. If you read our embedded systems reviews, such as the Supermicro A2SDi-16C-HLN4F 16-core Intel Atom C3955 mITX Motherboard Review, we actually publish power figures for when a system is on versus when the BMC only is active. In that review, the BMC powered on utilizes 4.9W of power. SSDs each have idle power consumption generally above 1W and hard drives use considerably more even at idle. The point here is that when the server’s BMC is turned on, and the server is powered off, it is trivially easy to measure that the attached storage is not powered on and accessible.

When a server is powered off it is not possible to access a server’s “most sensitive code.” OS boot devices are powered off. Local storage is powered off for the main server. Further encrypted sensitive code pushed from network storage is not accessible, and a BMC would not authenticate.

This line from the Bloomberg is technically inaccurate because a powered off server’s storage with its sensitive code has no power and cannot be accessed.

We have discussed two patently false technical details in the Bloomberg article. Anyone involved in the server industry will know this as they are common foundational elements regarding how servers work. Beyond the false points in the Bloomberg article, there are a number of other elements that are at best implausible.


  1. These Bloomberg guys are shady. I know this isn’t STH’s focus, but you’re doing a great job on this line and you’re the server expert. That first page was completely damning. There’s no way you can look at their statements dissected like that and say their story is completely true.

    If I wanted to read a fictional novel, the Bloomberg guys are better writers than you so there’s that.

  2. It’s refreshing to see a competent analysis. Bloomberg’s story is total BS and is a smear campaign.

    I design chips for a living. Your list of leading process companies that could do this should be shortened. Only TSMC, Intel, Samsung, and GloFo can be the sources of these chips for leading nodes. You’re right, they don’t have the die area in those packages to make these chips on 14nm+. You left out the critical element that they also need to cut the wafer, package the die so it can be used in manufacturing. That takes space that Bloomberg’s representation fails. Maybe you mention it, but there’s no way to make something that small today in 7nm let alone in 2015 in 14nm.

  3. I wouldn’t call this riveting, but your technical parts are spot on. I now think there’s no way Bloomberg is right here. An investigation must happen and heads at Bloomberg need to roll. Your first page alone shows that their editorial staff whiffed since you’re right. Drives aren’t on if the server is off. I didn’t catch that when I read theirs but it’s a good catch. Your BMC networking is simplistic, but it gets the point across. Every admin should know this.

  4. GREAT

    The TL;DR since this is forever long:

    p. 1 – Bloomberg got basic technical details flat wrong in its piece.
    p. 2 – Bloomberg f*d up simple stuff like keeping the BMC and CPU straight in their article.
    p. 3 – Bloomberg’s chip functionality, size, and rationale don’t make sense and there’s only 4 companies that could have produced the chip.
    p. 4 – Anyone Bloomberg has publicly relied on says they’re a bunch of confused individuals. The ex-Supermicro employees are used to paint an almost racist picture of the company. — I’m reading between the lines here but that’s the impression I got on my first read of the Bloomberg article too.
    p. 5 – SEC needs to investigate. Lawsuits need to happen. Bloomberg may end up as an Apple brand after this is over because they’re standing by a false piece.


  5. We’re only running about 100 servers. Setting up a dedicated management network is the first thing we do and everyone blocks egress on their management network. That’s spot on.

  6. Is coming from a different viewpoint or am I not reading this right? Their premise is that in order for the article to be correct, it must be 100% correct. I think Bloomberg has a collection of half truths.

  7. I didn’t see you include any verbiage on the BMC’s PECI connectivity to the cpu– that might be an interesting way of injecting code. For the record I do not believe this hardware hack is real, but the PECI angle is interesting.

  8. It sounded to me like Bloomberg were maybe referring to an attack on the boot code stored in a QSPI flash package. This would be something the BMC has access to in order to update (right?), and the CPU also has access in order to boot from. The limited number of pins and slower speed of SPI drastically reduces the HW requirements for an implant.

    I *know* that preventing attacks against firmware is a major concern amongst hyper-scale/cloud companies. See the recent NIST 800-193 “Platform Firmware Resiliency” spec.

    I’m not saying Bloomberg is right, just curious if the SPI boot ROM angle has been looked at.

  9. Seph I’ve done this on smaller boards. If you put something in a PCIE path you’ve got to reroute the PCB traces potentially through layers and moving other wires as well. PCIE traces have length requirements. So do RAM traces. There’s a picture of the RAM traces in the cover image to the article. If you’re looking at the zig zag pattern that’s to get the right trace lengths. This article could have done more explaining how hard it is to change anything in PCB. These server boards have many layers and are large. Signal integrity is a challenge.

    Isn’t ROM persistent not temporary memory? If it was a ROM attack, the Bberg article wouldn’t say temporary memory. I think they’re constraining themselves to the article’s description. Their first article on this says they believe hacks exist so I’m reading this one as only related to what’s described in the article.

  10. Also, if I were doing this the chip would not have flash, just a mask ROM with code and internal SRAM for data. Heck it might not even be a processor, it could just be a state machine primed to trigger on seeing a certain pattern. The payload would then be delivered from the on-chip ROM. Nothing about this requires a highly advanced node.

    FWIW I find Bloomberg’s reporting highly suspect, but this is an area of security that interests me.

  11. Too much reading after 5 pages Evan. PECI this is a better reference since they’ve showed Xeon systems of an unknown vintage

    It’d be a wild hack if that’s it as it doesn’t really sound like what Bloomberg’s saying. If it were, you’d say it was in the environmental control right? I’d have to think what’s possible there as I thought PECI even has ECC for signal integrity.

    This article touched on the issue with a simple hardware altering storage with low processing power. If you’re altering the flash chip it’s still storage not memory.

    It’s intriguing, but it isn’t what they described. I’d like to think we can all conceptualize types of hacks, but once they put it in writing, the time for concepts is over.

  12. Herein lies the issue. You’re trying to use logic and technical reasoning against a story that’s make to be anti-China and made for people that think being techno savvy means operating Face Time.

  13. I disagree with your analysis of Bloomberg’s inaccuracies, your analysis being inaccurate as well :
    – Assuming the BMC is compromised, you cannot prevent it from using the shared NIC. So if the shared NIC has egress connectivity, a compromised BMC can get egress connectivity. The BMC can also mimic the normal traffic to evade any kind of pattern-based detection. The only way to make sure BMC has no connectivity is to cut egress connectivity on the dedicated port AND the shared network port, period. Still, I assume those 30 companies would never give egress connectivity to any server.
    – Your point about accessing storage on “turned off” devices is moot. BMC can power the server on, do its thing, then turn the server off. No one will notice.

    You’re right about physical interception of the “temporary memory”. However, the BMC being connected to PCI-E, it can use DMA to e.g. change boot code in memory right after it was loaded from disk and before it gets executed.

    In the end, I believe you’re under-estimating the impact of a compromised BMC.

  14. Olivier if the server is off it is not on. You’re changing parameters if you say the BMC is turning it on. You’re also right that if Bloomberg had written their article differently, they may have been right, but it’s not clear. Once it is on, it isn’t off.

    We use Microblades and they’ve for 1G and 10G ports along with management. Nobody is using the onboard 1G ports for anything other than provisioning networks that don’t need egress either.

    Compromised BMC’s are an industry problem. I’d agree with you there. The more functions that you’d assume the hacking chip has, the more storage and processing power it needs making it less likely to be small.

  15. @Trevor Dedicated network cards won’t necessarily protect you because the BMC chip has DMA capability.

    It can also pre-empt firmware loading on the main CPU or modify ring 0/SMM/ME memory after boot so any traditional security (including. IOMMU) can be bypassed.

    The only commercially-available way I can think of is by combining a signed firmware image with TPM metrics and RAM encryption (AMD SEV/Intel SGX). Though the BMC can probably still intercept the traffic to TPM.

  16. “The implant was placed on the board in a way that allowed it to effectively edit this information queue, injecting its own code or altering the order of the instructions the CPU was meant to follow.”

    I’m not saying a BMC hack isn’t bad. The verbiage says that the implant itself not the BMC is doing the work in this line. This doesn’t say that the implant compromised the BMC which then works on the CPU.

    BMC hacks have been around for over a decade so it isn’t like people are failing to take precautions.

    If you’re doing BMC hack, you’re better off putting it on a USB and having it installed after manufacturing when it’s going through logistics to installation.

  17. Don’t know if Bloomberg’s article is fake or if the journalist didn’t get it, but if I wanted to do such attack, I would target the small (Q)SPI memory which stores the BIOS (it’s usually 1-8MB). Intercepting the BIOS loading and injecting couple of KB of memory in the microcode memory would be possible with a chip the size described in Bloomberg’s article.
    And once you are in the microcode, I don’t think there is anything you can’t do or access… but I’m no expert.
    A quick search shows it’s possible to fit 128KB in 1.5×1.5mm package:

  18. A direct system BIOS attack through SPI isn’t really going to happen right? They’re “capable of doing two very important things: telling the device to communicate with one of several anonymous computers elsewhere on the internet that were loaded with more complex code”
    Hitting the system BIOS to stop authentication checking, maybe that works, but you’re now going at the CPU not BMC. You’ve still got to go after the BMC first.

    Attacking the BMC’s flash storage might work, but you’ve also got to contend with the software images changing as new firmware gets released, signaling changes if you’re in the traces, and others. That USON8 is only 1.5mm but you’ve got to add in networking, a controller, and processing power. The linked USON8 is 1.5mm in 2018, not in 2015 and you’re talking about having more functionality not less in older generation manufacturing.

    This article missed the point that it’s going after the Linux OS on the CPU and the BMC. It’s also needing to download additional payload right? The more complexity you’ve got the less I can see this being made.

    Only way this works is if someone made a chip that attacked the BMC that would not get stuck after a firmware update. I know at least some companies have their own custom firmware, so if you’re attacking the firmware at a low level you’ve also got to get the firmware image. Cloud guys usually don’t use the full stock Supermicro or other firmware since they gut what they don’t need. You’ve also got to evade any firmware and OS checks that the cloud guys have. This article missed those points.
    They’d then need to get around typical egress issues. Then they’d hit a C&C server that would bring back code to push to the main server. For the DMA vector they’d need the server to boot after the C&C payload hit to attack the rest of the to get to a low level of access.

    You’re still better off with a USB drive that can just attack the flash at the end of factory testing or into logistics since there isn’t a trace and it’s faster to react to systems changes.

    If you go hardware, and some software part is altered, you’ve got sitting duck hardware for someone to investigate and that hardware can be obsolete. You’d then need to update your chips or re-fab. Motherboards also go through spins so you’d need to find a way to make it all work with different components.

    I don’t think this analysis is perfect, but it at least lets us all define just how narrow the opportunity to pull this off. If we’re thinking of this now, then the companies and government officials who Bloomberg says have known for years it’d be easy to find. If it was easy to find the recent post investigation Apple-Amazon-Supermicro statements are false.

    They still can’t read the most sensitive data on a server that’s turned off since SSD’s don’t have power. So the story’s still buggered there and the rest relies upon some really big leaps of faith of things going right for it to even work. Even putting on my tinfoil cap for this I’m wincing at how crazy those leaps are.

  19. For a server review site, and not a site that does this sort of content, pages 1,3-5 are pure gold. 2 you could have gone the SPI route but Bloomberg didn’t call it out so we’re all “just guessin’TM” here. I take pg.2 as it’s narrowing possibilities.

    Enough here that there’s no way Bloomberg is 100% right. I think they heard of some different attacks and tried piecing something together. There’s something to be said that they couldn’t write about it clearly enough or with keywords like DMA or SPI that we’re all not sure how it really worked.


  21. Great job STH. Excellent article, everything is nicely explained, even non-technical persons can understand what’s going on.
    I am actually really, really mad about all this. This is not the first time that Bloomberg is hurting other companies with bullshit stories. They should be shutdown immediately and thorough investigation should be carried out. Supermicro, Apple, Amazon and other companies that are suffering from this should sue Bloomberg and take everything from them.
    I am really pissed off!!! Isn’t it enough that we have real threats in IT world? We really don’t need this kind of stories going around.

  22. Who would have a financial or political interest in seeing technology stocks suddenly drop in value?

  23. Unlike the others, I like your analysis on 4 of the sources. Someone will trace and do better perhaps. Here’s my takeaway. If the Apple sources come forward, they’re going to have to contend with the investigation they know is going on now. Maybe the random web host can come forward. The only sources they’re using to support are government sources. They even cite an intelligence official who studied SM’s business model. What’s that job? Water cooler jockey?

    If it’s all supported by government officials leaking classified data, they go to jail if they’re named without air cover. That air cover from senior FBI and NSA says it isn’t real. So their bosses won’t give air cover. If someone comes forward now admitting to leaking classified data, that’s jail or a dig at their boss or both.

    You’ve also left out another salient point, there’s another 27 companies who were notified and not named. Where are their people coming out to support this?

    There’s too little detail in their article and they’re now on an island. We can all say it’s maybe possible, but Bloomberg said it happened and there’s some human side holes to fill now not just the technical parts.

  24. Only need this one question answered: Since it caused the SMCI stock to drop more than 40% in one day, is the related still hibernating with their paychecks automatically, directly deposited?

  25. While the original Bloomberg article isn’t great on details, I believe this chip as described is actually something that could exist and would actually be cheaper and easier to implement than most people think. While I have zero knowledge of the actual exploit as implemented, here is how I would implement it:

    The trick is to make the chip do as little as possible and be just a first stage bootloader for the exploit. All heavy processing and IO can be provided by the BMC. The BMC controller stores it’s firmware in an external SPI flash chip. Placing a custom chip on this SPI interface would allow for code injection to the BMC. While the firmware does change, the BMC really runs a full blown embedded Linux install. The boot process for Linux is fairly stable so rewriting a function or two early in the boot process to add additional functionality and changing the program’s vector table wouldn’t be that difficult and would have a very high chance of not changing for future firmware revisions.

    The injected code would really only need to serve one purpose. That would be to connect over the BMC’s network connection to the remote C&C to download a larger payload. While the dedicated BMC network port would be connected to a separate management network, the BMC has access to share one or more additional network interfaces on the server. This is used so IPMI can be used even if a separate network connection is not used. This is something that you can not get with a software IPMI exploit and the entire reason this attack would be worth doing in hardware.

    Once the BMC is taken over, it is possible to take over the rest of the system. Since the server is not designed to treat the BMC as a threat, it is able to essentially take complete control of the server. One of the interfaces provided by the BMC is a PCIe connection to the system. PCIe has built in DMI access. This would allow rewriting program data that the article referred to.

    Now how much would something like this cost to implement? A few hundred thousand dollars. By limiting the actual hardware to just being a bootloader for the rest of the exploit and hanging it off of a relatively speed and low pin count interface like SPI, it is possible to build the chip in an older cheaper process. Something like a 180nm process would be cheap to build the chip in and would allow adding enough logic and ROM storage for the exploit in a 1mm^2 package. Compared to the exploits listed in the leaked NSA’s ANT catalog, this really does not seem to be that far fetched and considering the capabilities afforded, the exploit actually seems very realistic.

  26. Andrew we’ve done work trying the same method and you’re greatly oversimplifying it. If you’re targeting these guys, there’s a whole host of custom things they do that you’d need access to their production HW+SW+FW before you’d be able to do the attack and it’ll be different for each customer. You’ve also missed the networking claimed and there’s no way you’re going to do this on 180nm in a 1mm^2 with all of the functions Bloomberg lists. Sorry.

    I think this story was a plant by Bloomberg to crowd source their way out of the problem. They’re trying to reach for anything to help them in litigation.

  27. Yes, I agree there is no way this chip implements it’s own hardware network connection. There is no chip you could build that small with integrated networking. The article stated “networking capability”. I don’t think this means hardware networking, but using the BMC’s existing network access to network with the C&C.

    There is also zero reason for the hardware to care about actual software running on the system. The exploit is entirely built into the BMC, so the only software that can change to defeat the chip is the BMC’s firmware. How many companies are writing their own BMC firmware for off the shelf Supermicro motherboards? Once the connection is established with the C&C, that is when a remote attacker can then exploit the rest of the system. Since they have full 2-way communication at this point, analyzing the running software on the server and exploiting it is much simpler.

  28. A tin-foil hat wearing coworker of mine suggested this chip could have “some other way of getting out without TCP/ never know, state-funded attacks can be very elaborate” and let’s say for a second that makes any sense. Everything comes down to pulses at some point. Couldn’t someone throw an oscilloscope or some other means of analysis on a network port and look for /some/ kind of activity? If this chip were real…in reality, it’d have to be reaching out to something via TCP/IP and any number of network traffic monitoring tools would have caught strange behavior, right?

  29. Comments based on what’s in the replies here:
    – supermicro has a feature for BIOS flashing (system off) via BMC
    – flashing the BIOS allows replacing the microcode
    – 1g interfaces are often connected.
    – supermicro is known to fall back to “shared mode” (plus, it’s configurable via OS)
    – OS can also re-flash the BMC (if one has the endurance to deal with the shitty tools)
    – BMCs crashes occur non-rarely once you got 1000s of systems. simply by normal bugs and issues. no way to detect malicious ones.
    – BMC networks might not have egress to the internet, but are usually routed somewhere (C&C internal)
    – BMC networks normally don’t surpress crosstalk, so side-stepping is not impossible.
    – In the Bloomberg illustration the implant sat on a pin of the SPI flash socket (empty in illustration) for the BMC. Since most non-crazy theories here lean towards modifying SPI flash (i barely know how a BMC boots, will not try to make it sound otherwise) just nudging the BMC boot would be sufficient.

    I forgot the rest I wrote before some ad triggered a page reload.

  30. Blather on all you like about what is possible and what is not when you don’t know the attack mechanism in detail. You can criticize others for being vague but you can’t fill it all in when the alternatives are nearly infinite.

    True hardware level attacks render all software and protocol defenses open to subversion. On the software side that is what makes root kits so difficult. Any fool who tries to say what are the limits of a root kit would be well advised to study the meaning of decidability (Halting Theorem). Hardware is interchangeable with software in frozen form until the electricity starts to flow in which case it is logically indistinguishable. Information and information processing is abstract not limited to only one physical embodiment. The rules remain the same for all cases.

    I attended an RSA lecture over a decade ago where it was shown a seemingly random one bit arithmetic error not likely to be detected could be used to defeat large key encryption. Once you can compromise at the hardware level the floodgates are open, including defeating all the means to detect it in software.

    What Bloomberg did not speculate on was the potential to tamper with CPU, GPU, and controller masks and resultant physical chips at the point of manufacturing. The threat is real and defenses virtually non-existent once the opponent has prior physical possession of the digital equipment. In China you have by far the most sophisticated and advanced cyber adversary on the planet. Americans including the NSA are drastically out matched. And the insiders know it.

    That should be pause for thought rather than trying to show how clever you can be in what didn’t happen without knowing what did happen.

  31. Rob DuWors, Andrew, Olivier, Evan, Seph – all spot on. This sth article views the matter as a server or network attack. Seen from an information view, or systems/knowledge/social/electronic/physical view, a hack such as the one described in Bloomberg’s story is par for a course in cyberwars.

    Apple, Amazon and others have rightly called the story untrue – because they, the hack party and everyone else knows that the target is not the consumer/business data that is stored/transacted in the servers of these cloud service providers; the target is the belief of consumers and businesses that tcp/ip and all that it has begotten today is secure/private. All nations have all the incentive to get the networked world to subside a bit. This particular case was probably an amateur/trial shot. We live in information times, constructed using hard and soft wares, and everything wonderful and obnoxious is possible cross-border as long as there is tcp/ip and transistors.

  32. What if there was a proof-of-concept board that the security experts were referring to and then Bloomberg exaggerated the story to say that the exploit was in actual retail products. I could see the Chinese creating a one-off board.

  33. At least one article I read alleged that the chip might manipulate the actual BMC firmware via I2C or JTAG, which are both low-pincount access methods. This would resolve the size and pin issue, but would probably make the chip much more detectable, since it would most likely screw up operations after the first BMC firmware update.

  34. …are registered Dimms connected to the BMC ? Why wouldn’t a memory controller be built into the buffer, to read contents of the memory and transfer back over the SMbus ?
    The Bloomerg article is full of incredible detail and still missing the obvious….Maybe its a waste of time to imagine how to interpret the fantasy into something practical…
