The Gigabyte ME33-AR0 is the company’s single-socket AMD EPYC 8004 motherboard. We have started our EPYC 8004 “Siena” series and this is an understated, or under-hyped platform that a lot of folks could be taking advantage of. Gigabyte’s platform for a Siena server is unique compared to others in the market. Let us get into it.

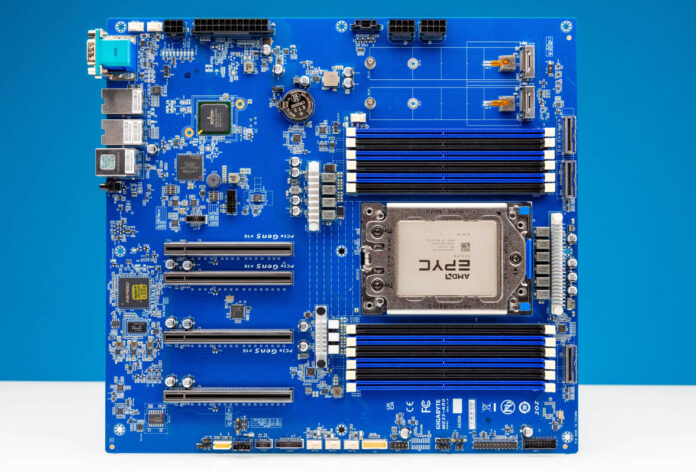

Gigabyte ME33-AR0 Hardware Overview
The motherboard is going to look very different, but the size is EATX 12″ x 13″. That means it will integrate into many different chassis. If you are reading this, and doing a double-take on the motherboard, we will go through why it looks the way it does in this article.
The new motherboard uses the AMD SP6 socket. One could be excused for thinking it looks a lot like the Naples through Milan (and Threadripper) SP3 socket. An easy way to tell is that there are six memory channels and up to two DIMMs per channel for twelve DIMM slots total.
In the socket are the AMD EPYC 8004 CPUs that scale up to 64 cores using Zen 4c cores, the same that are in “Bergamo“. One way to think about this is that it is like half a Bergamo from a maximum core count and DDR5 memory channel perspective.
Putting the CPU at the front of the motherboard allows for the system to direct airflow over the CPU heatsink. It also allows for all of the memory channels to be present alongside a number of PCIe slots.
Just showing an example of this, we can see the Gigabyte G242-Z10 or the Gigabyte MZ32-AR0 as previous generation examples of how this works. Now, Gigabyte is bringing a similar style platform using a newer technology.
Next to the DIMM slots on the top of the motherboard are two PCie Gen5 x4 M.2 slots.
Gigabyte also has three x8 MCIO connectors on the leading edge of the motherboard. Two are on the top side.
The other is on the bottom. These give a total of 24 lanes or enough for six NVMe drives. Gigabyte also includes a MCIO to SATA cable for those who want to use SATA drives. Two of the MCIO connectors can be used for SATA giving a total of 16 drives.
There are four PCIe x16 slots. Three are PCIe Gen5 x16. The fourth, or the top slot in this photo is a PCIe Gen4 x16 slot.
For management, there is an ASPEED AST2600 BMC.
Networking is handled by a Broadcom BCM5720. This is a dual port 1GbE NIC chip.
The top of the motherboard has the ATX power connector and the CPU power connectors on the motherboard.
Next, let us get to how this is all connected.
