Dell VEP4600 Topology

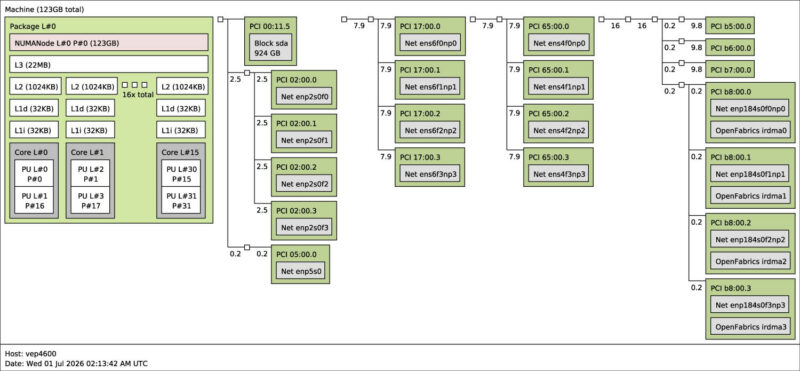

We could not find an official block diagram for this, but we were able to pull the topology. Frankly, with only 16 cores and almost as many network ports, this one was interesting.
Dell VEP4600 Management

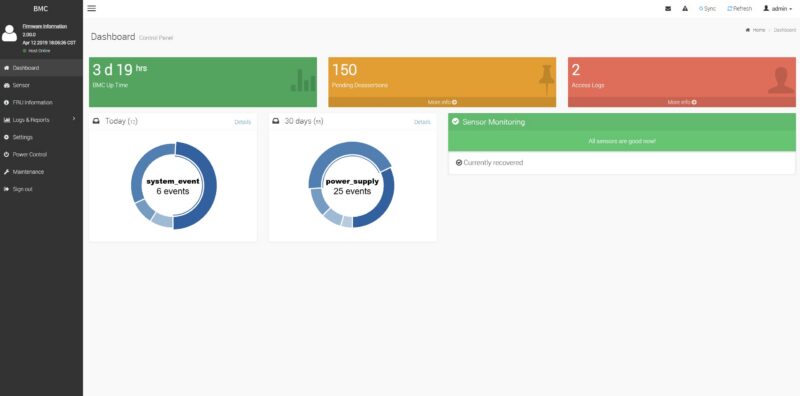

In terms of management, the Dell VEP4600 has an ASPEED BMC instead of an iDRAC controller. As a result, this appears to be using MegaRAC instead of iDRAC.
You get most of the basic features you would want like power control. The one we did not have active in ours was a HTML5 iKVM. That is something that was common in Supermicro ASPEED BMC servers of this class and era, so it was a bummer not to have it here.

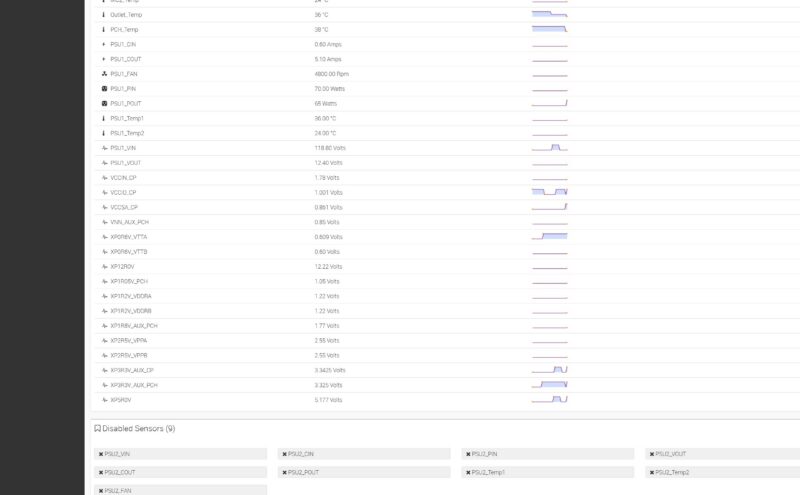

Still, having IPMI management and plenty of sensors is always nice.

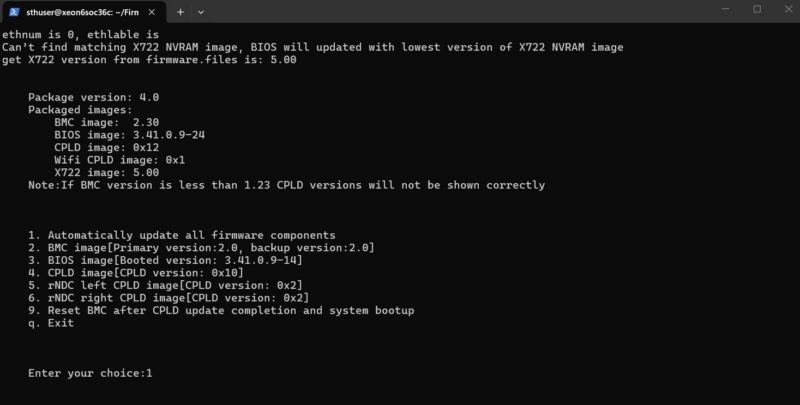

A quick tip is that ours had an older firmware version. We ended up using the local serial console connection and the BMC’s Serial-over-LAN (SOL) feature to do the big package upgrades.
Overall, it is nice to have out-of-band management of some sort, but it would have been better to have an HTML5 iKVM option.
Next, let us get to performance.
