ASUS RS720A-E11-RS24U Review AMD EPYC 7763 and NVIDIA A100 in 2U

6

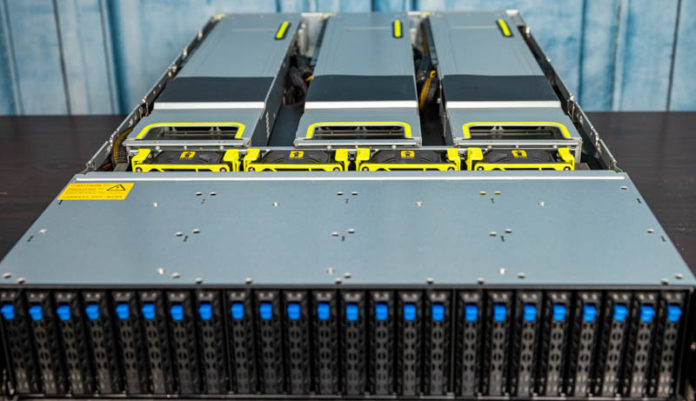

ASUS RS720A E11 RS24U Front To Rear
ASUS RS720A E11 RS24U Front To Rear

Today we have a review of an exciting system. The ASUS RS720A-E11-RS24U combines top-end NVIDIA A100 PCIe GPUs with two top-end AMD EPYC 7763 CPUs to provide a platform that highlights some of the best hardware on the market today. To that end, the 2U server also adopts a number of server design principles that showcase changes we are seeing in the market. In our review, we are going to look at this high-end hardware, and show some of these server design trends that the platform adopts.

ASUS RS720A-E11-RS24U Hardware Overview

Something that we have been doing lately is splitting our hardware overview section into two distinct parts. We are first going to cover the external portion of the chassis. We are then going to cover the internal portion.

As with many of the new reviews we are doing, this review has an accompanying video. We always suggest opening the video in a YouTube tab for a better experience. We know some prefer to listen to content, so this should help.

ASUS RS720A-E11-RS24U External Overview

The system itself is a 2U system that measures only 840mm or just over 33″ deep. The importance of this is that the server will fit in a number of existing racks assuming power budgets can keep pace.

ASUS RS720A E11 RS24U Front
ASUS RS720A E11 RS24U Front

On the front of the system, we have a customizable 2.5″ drive bay solution. Sixteen of the drive bays can be utilized through NVMe and eight can be SAS/ SATA as well. ASUS uses a flexible backplane option and has options for its PIKE II SAS3 controllers so there are customization options here as well. These drive bays also utilize a tool-less drive bay solution that we demonstrate with a Kioxia CD6 NVMe SSD in the accompanying video.

While the USB 3 ports on the front of the system we see on many servers, along with power buttons and status LEDs, a less common feature is the handle. ASUS has a small handle that can be used to pull or push a unit for removal/ installation. These handles can then be turned so that the rack doors can be closed without having a large forward protrusion in the way.

ASUS RS720A E11 RS24U Handle
ASUS RS720A E11 RS24U Handle

The rear of the system has three basic functions. There are power supplies, I/O expansion slots, and then the standard I/O block for the server.

ASUS RS720A E11 RS24U Rear
ASUS RS720A E11 RS24U Rear

On the power supplies, we get redundant 2.4kW 80Plus Titanium units. This is a high-end system so having high-power and high-efficiency power supplies are required.

ASUS RS720A E11 RS24U Power Supplies
ASUS RS720A E11 RS24U Power Supplies

We are going to discuss the PCIe I/O subsystem in greater detail later still the rear I/O panel is worth some discussion at this juncture. We have a fairly standard I/O panel with two USB ports and a VGA port.

ASUS RS720A E11 RS24U Rear IO
ASUS RS720A E11 RS24U Rear IO

ASUS also has its Q-Code feature which shows the BIOS POST code on the rear of the chassis. This is handy to quickly identify a system that is having an issue when you are in data center racks. This system worked for us, but we have used it on some Xeon E5 V4 servers that we had in the lab and it was probably more useful than we would have thought before having needed it.

Above the USB ports we have an out-of-band IPMI management port. This is interesting since, as we can see as we flip to the internal view, the BMC powering this is anĀ Aspeed AST2600. This is a newer faster BMC that we are just starting to see replace the AST2500 which was a very popular BMC.

ASUS RS720A E11 RS24U ASPEED AST2600
ASUS RS720A E11 RS24U ASPEED AST2600

The onboard networking is powered via a proprietary module. This server has dual 10Gbase-T via an Intel X710 NIC, but there are quad 1GbE (Intel i350) options as well.

ASUS RS720A E11 RS24U Dual 10Gbase T Networking
ASUS RS720A E11 RS24U Dual 10Gbase T Networking

One other feature that we wanted to point out was the fan unit. This fan is to cool a section of the chassis with two NVIDIA A100 GPUs that we will see in our internal overview.

ASUS RS720A E11 RS24U Rear Fan GPU
ASUS RS720A E11 RS24U Rear Fan GPU

We are going to quickly note that ASUS has a number of configurable options for its risers. Here is what the full configuration looks like with nine slots when it is not in the configuration we are showing with four double-width GPUs:

ASUS RS720A E11 RS24U Riser Options
ASUS RS720A E11 RS24U Riser Options

Speaking of those four double-width GPUs, let us get inside the system and see how ASUS designed the server to cool these units.

ASUS RS720A E11 RS24U 4x NVIDIA A100 Stack 2
ASUS RS720A E11 RS24U 4x NVIDIA A100 Stack 2

Next, we are going to take a look inside the server to see how this system is constructed.
