Supermicro AS-2115HV-TNRT Block Diagram and Topology

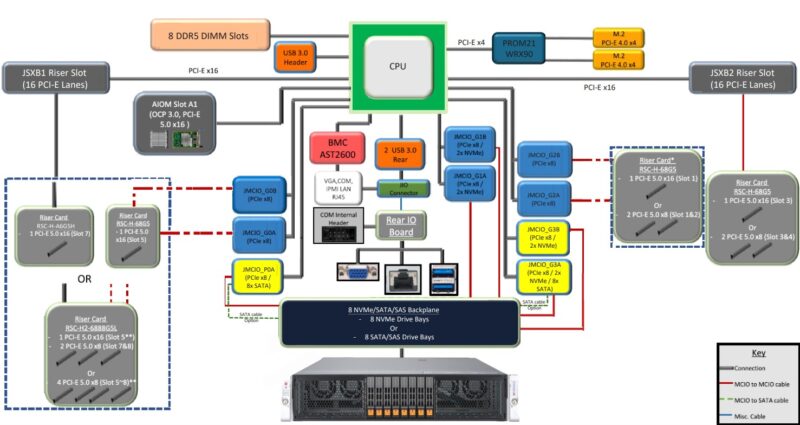

Here is the block diagram for this system:
Something you notice right away is that there is not a lot going on with the WRX90 chipset. This feels a lot like it could do without the chipset.

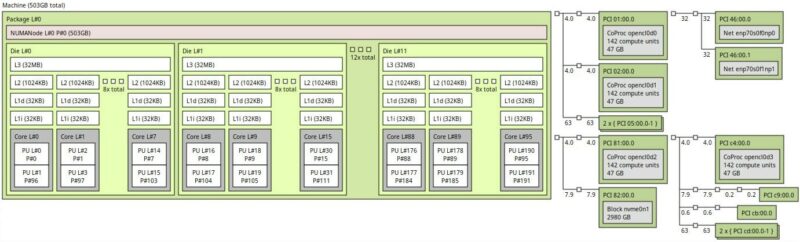

Here is the system setup with the 96 core AMD Ryzen Threadripper Pro 7995WX, 512GB of RAM, the dual port Broadcom 100GbE NIC, and the four NVIDIA RTX 6000 Ada GPUs.
This is certainly a big workstation platform. Some look at these 2U workstations and assume that you instead need a 3U-5U converted tower workstation to get a lot of density. That is not the case here. We have a lot of components in this system and the picture could have been even more full with more storage devices installed.
Supermicro AS-2115HV-TNRT Management

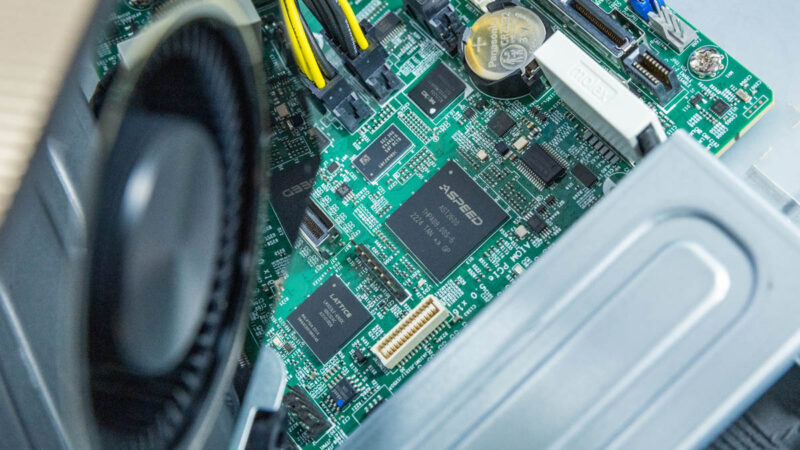

The workstation/ server uses an ASPEED AST2600 BMC for its out-of-band IPMI management functions.

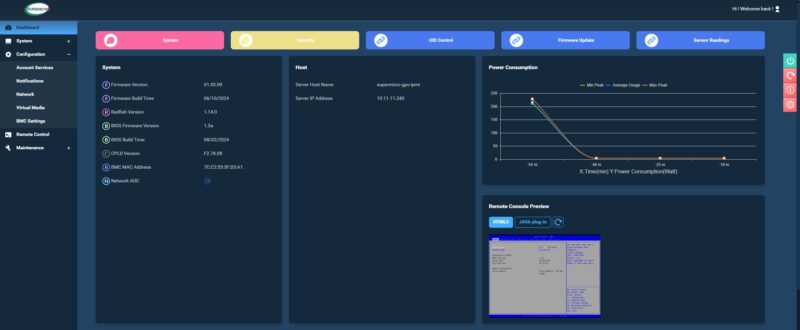

In the interest of brevity, the Supermicro IPMI/ Redfish web management interface is what we would expect from a Supermicro server at this point.
Of course, there are features like the HTML5 iKVM as we would expect, along with a randomized password. You can learn more about why this is required so the old ADMIN/ ADMIN credentials will not work in Why Your Favorite Default Passwords Are Changing.
Next, let us talk about performance.
Supermicro AS-2115HV-TNRT Performance

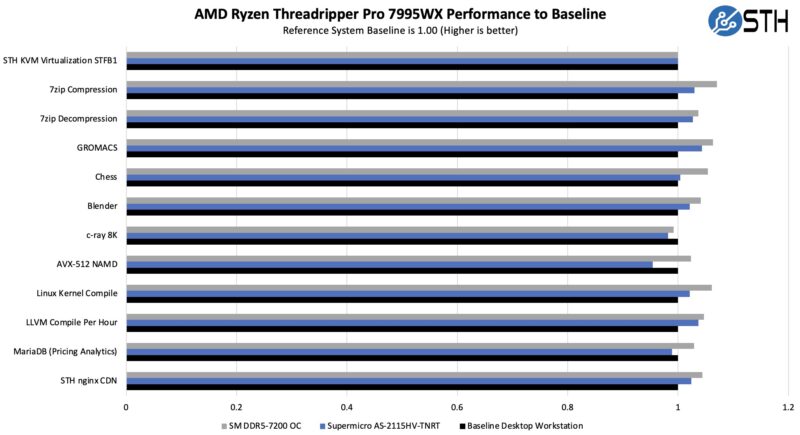

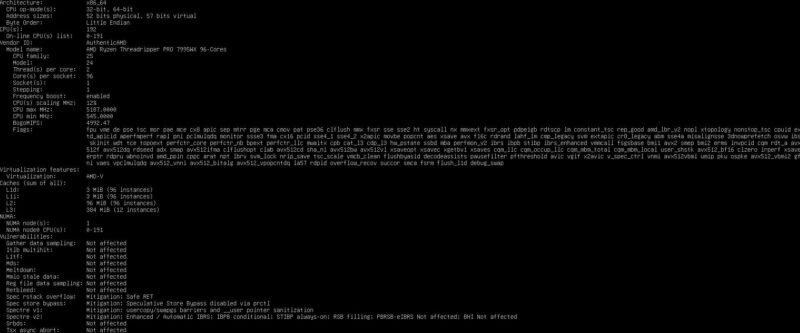

The AMD Ryzen Threadripper Pro 7995WX is currently the top workstation CPU with 96 cores and 192 threads.
When we tested this, we wanted to see how it compared to a standard workstation. Putting the CPU into a server chassis ideally would not have any negative impact.
What we saw here was exactly what we would want. Performance was within the margin of error. Even with a smaller looking heatsink, a single 350W TDP CPU is not a notable task to cool in a 2U server chassis these days.
Something we also tried was doing a bit of memory overclocking using the V-Color DDR5-7200 ECC RDIMMs. We saw some decent results here just by using the higher speed memory.

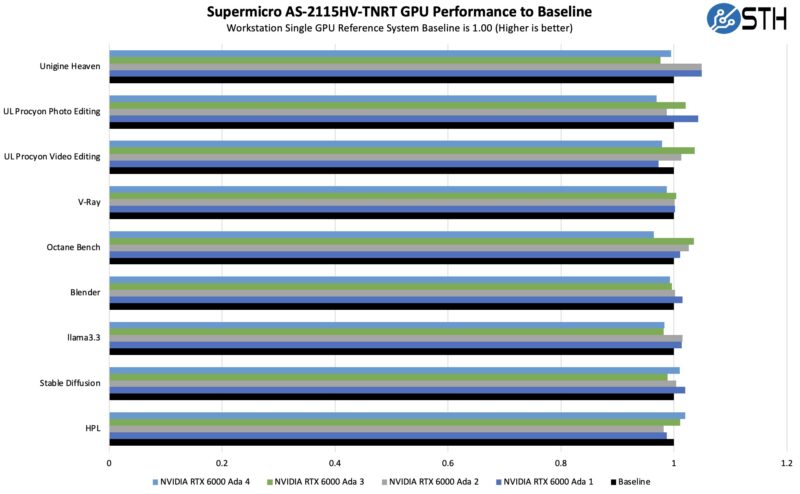

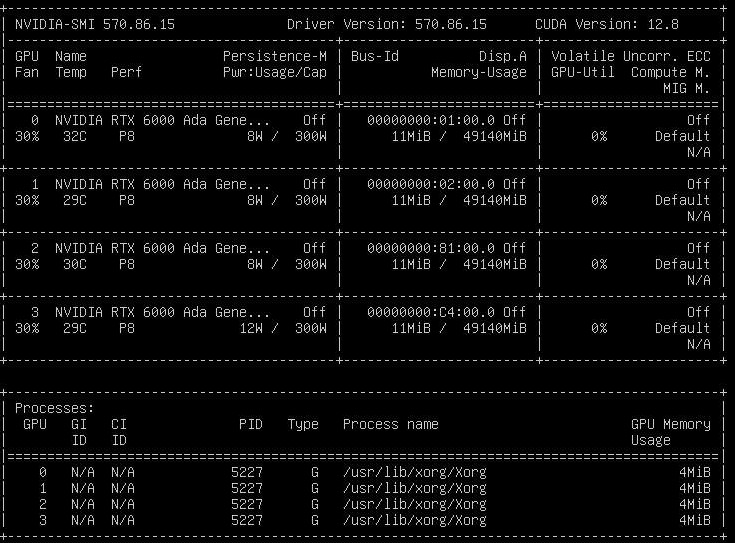

The next question was whether the system could handle the four NVIDIA RTX 6000 Ada GPUs.
We just ran through a few of our GPU workloads for both rendering in Windows and AI in Ubuntu Linux:
Overall, it seems like the four GPUs are each being well cooled as they are within test variation margins to the single GPU baseline Threadripper Pro workstation. Next, let us get to the overclocking.
