Supermicro AS-2115HV-TNRT Internal Hardware Overview
Looking inside the system, we are going to start from front to back here.

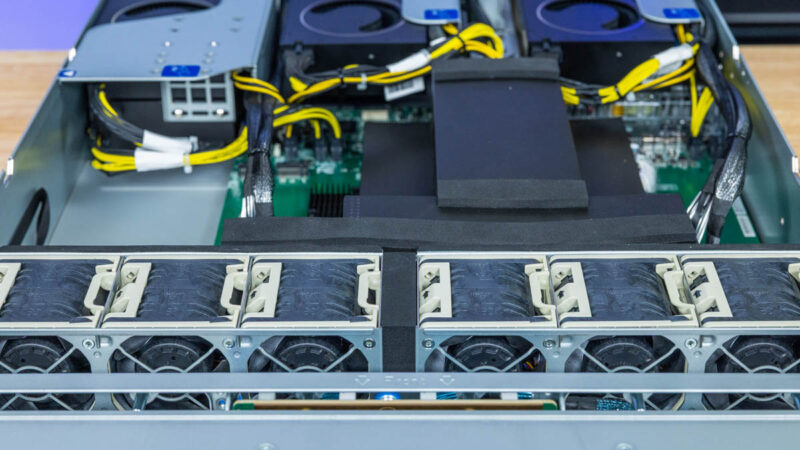

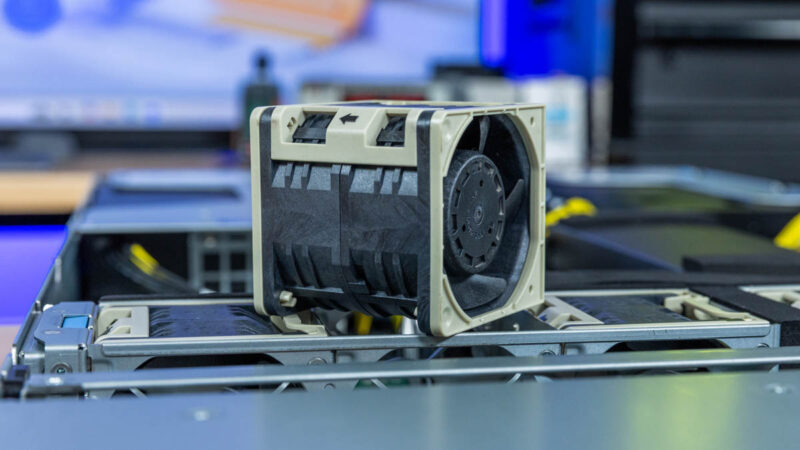

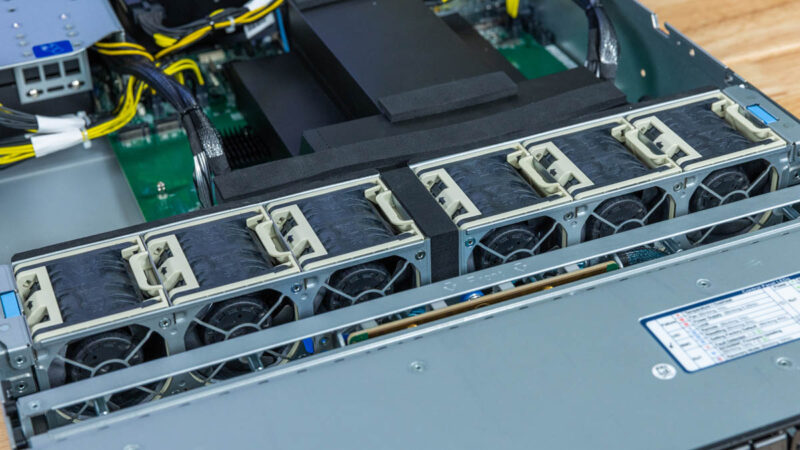

Starting off, we have a set of six fan modules providing the massive cooling needed by this system.
We have seen this chassis with four fan modules, so this is a bit different.

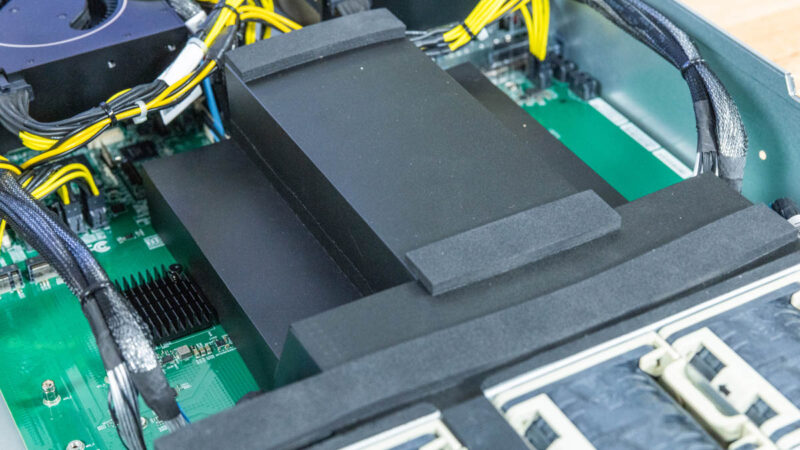

Behidn the fans is an airflow guide.
Usually, I am not a fan of these flexible airflow guides because they are harder to seat properly. Still, this one was relatively easy to fit and stayed in place.

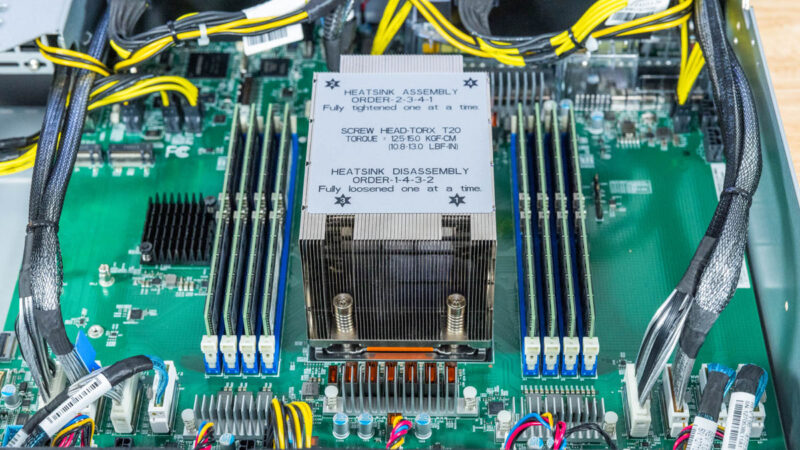

Underneath, we get the AMD Ryzen Threadripper Pro LGA4844 socket and DDR5 memory.

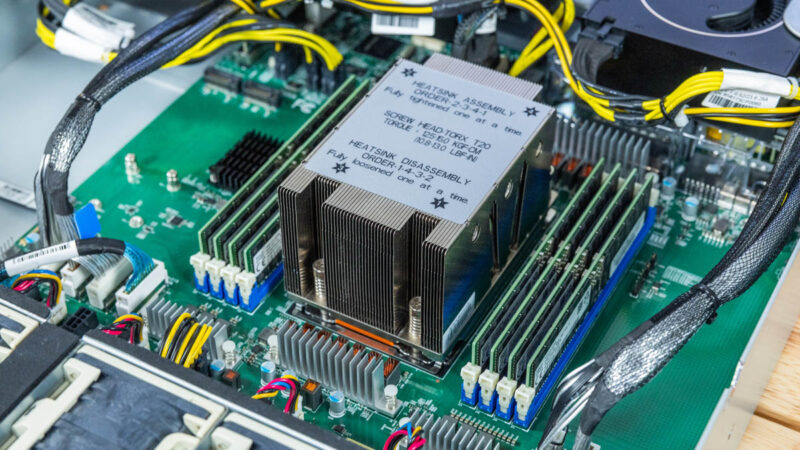

The AMD Ryzen Threadripper Pro 7995WX headlines the lineup that goes in this system with 96 cores and 192 threads.

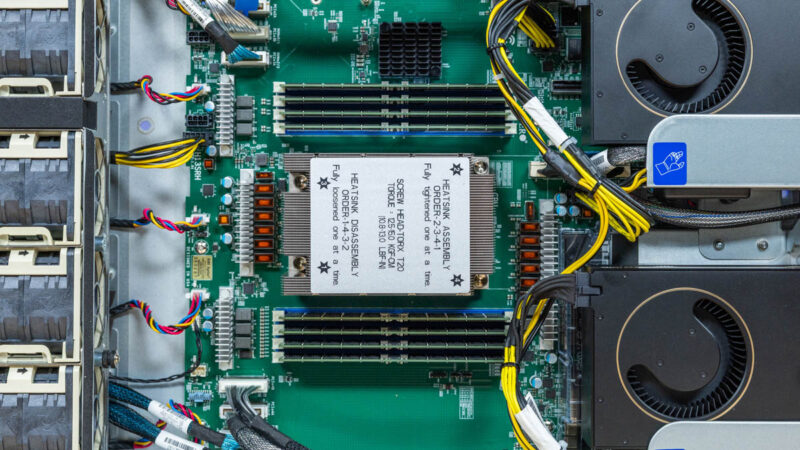

There are also eight DDR5 memory slots for eight channel memory in 1DPC configuration. We also get ECC RDIMM memory support. While this is a workstation platform, make no mistake, this platform has AMD EPYC server heritage. Something else neat, that we will cover later is that this allows for overclocking.

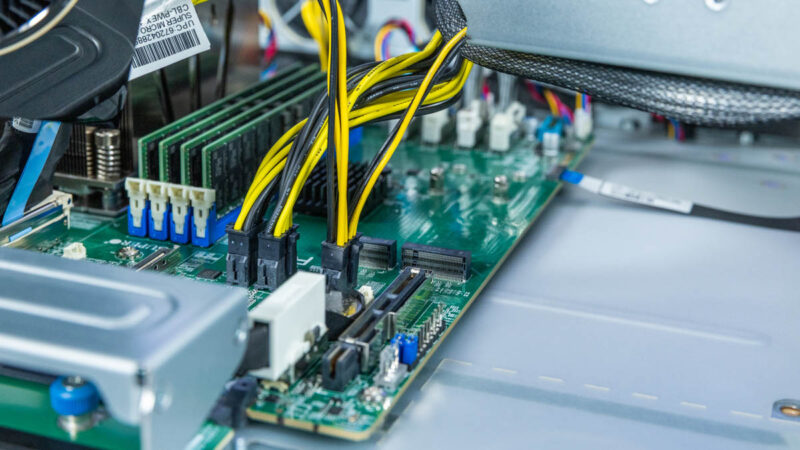

Something that might have caught attention of our readers is that the motherboard has vast expanses of green PCB without components placed on it. On the right side there are MCIO connections for PCIe Gen5 on the front, and power supply inputs with the GPU power connectors on the rear. There is not a lot between those.

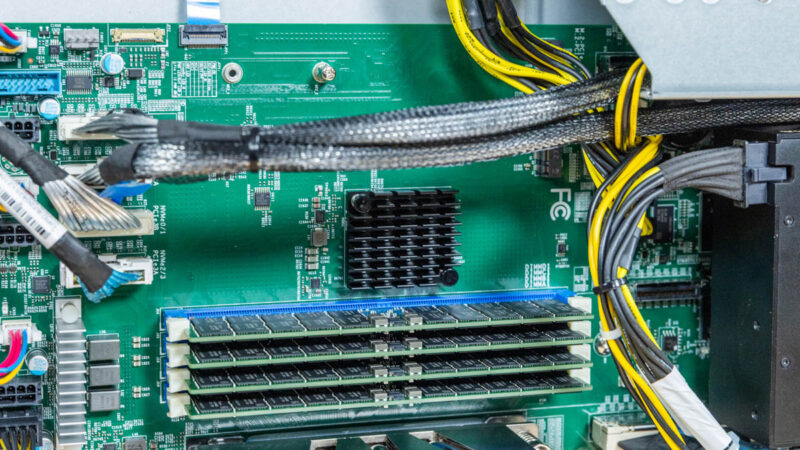

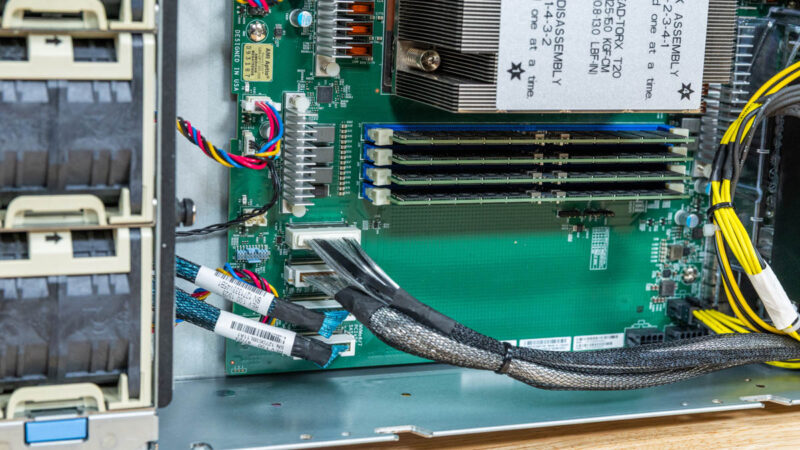

On the other side, we get slightly more. Here is the WRX90 chipset, and both front MCIO and rear power connections. There is, however, one other neat feature.

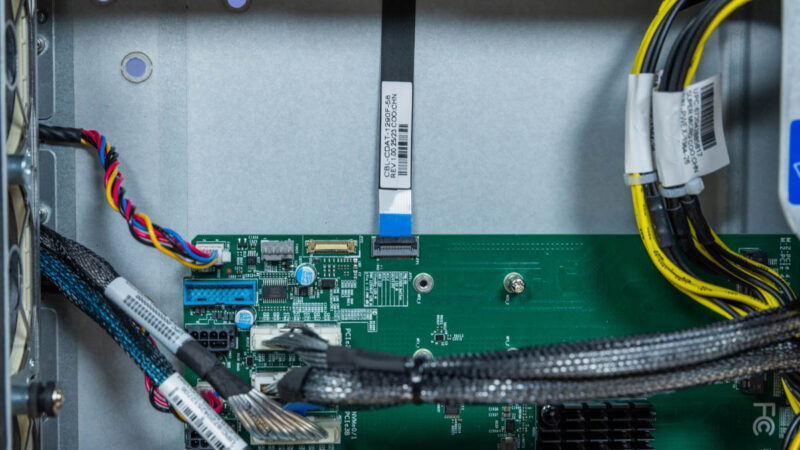

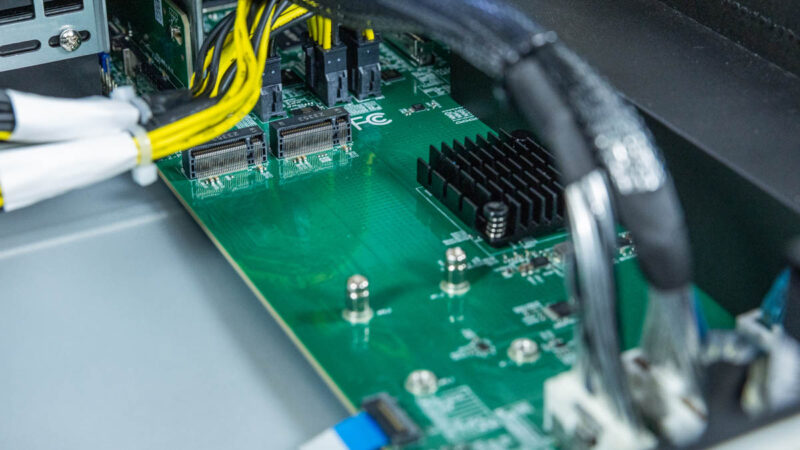

That cool feature is the two M.2 slots sitting on this side of the motherboard.
Those sit just in front of the GPU power headers and riser slot.

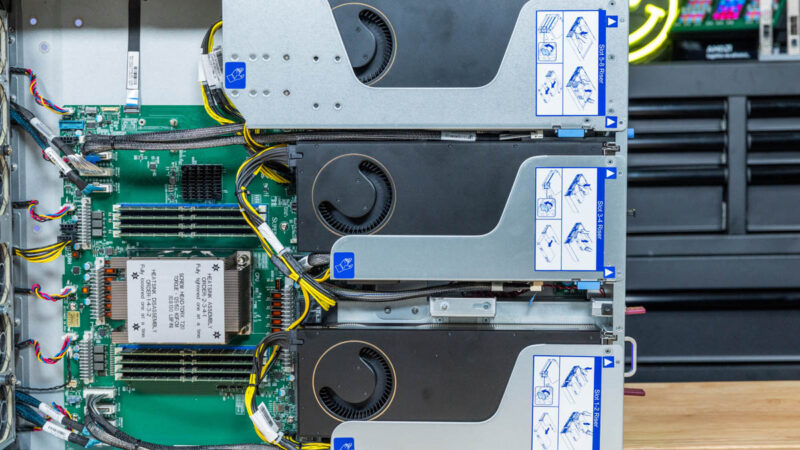

We already showed the risers in the external overview, but four double-width GPUs and an additional NIC would even be a lot for a standard tower workstation. Perhaps this is the reason the fans are so dense even on the single socket platform. The power density at the rear of the system is very high compared to the front half.

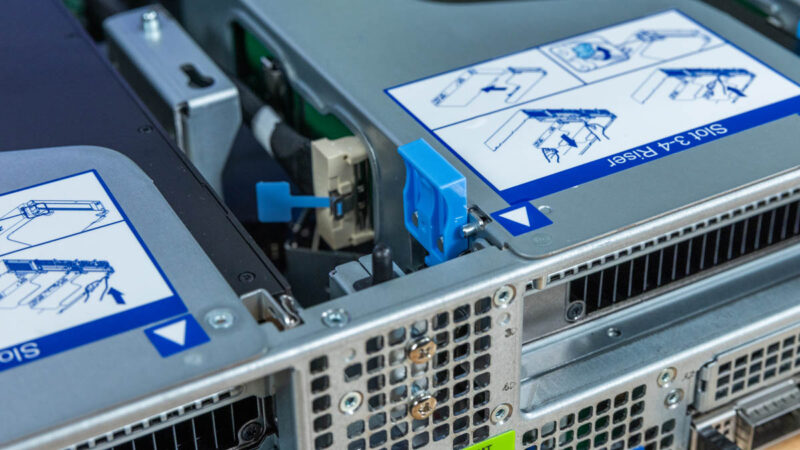

A small feature, but a nice one is the blue tabs to pop out the risers. A decade ago, we would not expect these on high-end Supermicro servers, but now they are even found in this type of platform.
Even though this is a workstation, there is an ASPEED AST2600 BMC for management, just like a standard server.

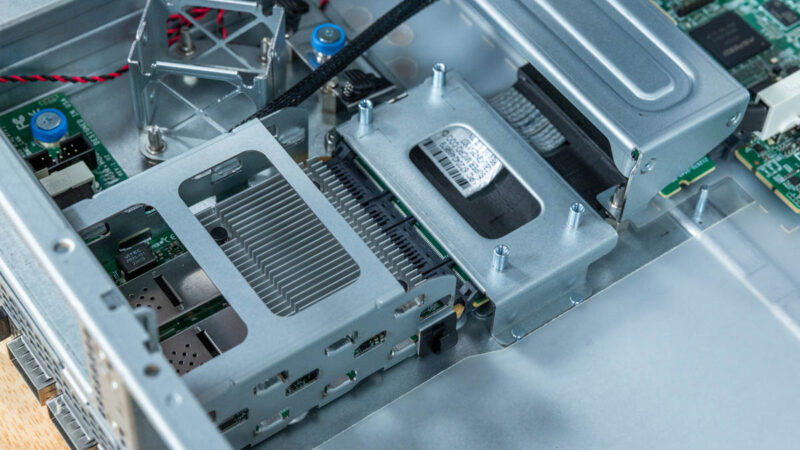

Here is the AIOM extension cable and slot. The various metal bits around this are there for Supermicro’s Hyper servers that can have two of these AIOM slots stacked at the rear.

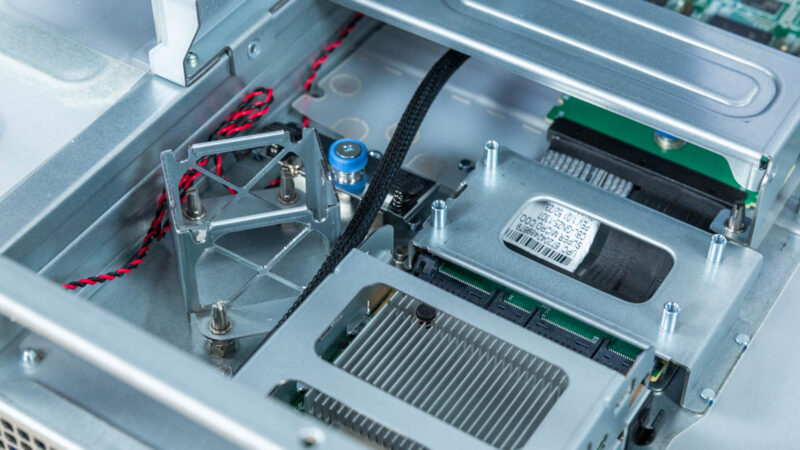

Also fun here is that there is a fan holder spot as well as the retention bar for two M.2 SSDs that is used in the Supermicro Hyper platforms.
As a single socket motherboard with only 1 DIMM per channel and 8 channel memory, there is a lot of extra room in the chassis.
Next, let us get to the block diagram and topology.
