For as popular as small form factor PCs have and continue to be, one of the more surprising aspects of the PC market is that we are seeing fewer and fewer low-profile video cards released for them. Once a mainstay of a complete video card lineup, these days, low-profile cards are few and far between. A good deal of this is admittedly being driven by the laws of physics – TDPs for NVIDIA’s GeForce RTX 50 series cards start at 130 Watts, but the drop-off in availability of low-profile cards has been precipitous all the same.
The good news is that low-profile cards are an endangered species, not an extinct one. As such, they can still be found with a bit of effort. In the professional visualization market, NVIDIA and partner PNY still offer dedicated RTX PRO SKUs with the RTX PRO 2000 Blackwell and RTX PRO 4000 Blackwell SFF Edition, but these parts come with both NVIDIA’s professional feature set and their professional pricing, which is currently about $800 for the entry-level RTX PRO 2000 Blackwell.
So, where does that leave SFF owners who need a more traditional consumer card at consumer prices? Thankfully, a couple of NVIDIA’s partners have opted to develop low-profile GeForce RTX 5060 cards, most notably Gigabyte. The company was one of the first to offer a low-profile card with their GeForce RTX 5060 OC Low Profile 8G, and it remains the most readily available low-profile RTX 5060 to this day. As a result, Gigabyte finds itself serving a niche in the larger video card market, one it has a great deal of control over.
| Gigabyte GeForce RTX 5060 OC Low Profile 8G Key Specs | |
| GPU | NVIDIA GB206 (Blackwell) |
| CUDA Cores | 3840 |
| Tensor Cores | 120 |
| Boost Clock | 2512MHz |
| Memory | 8GB GDDR7 |
| Memory Bandwidth | 448GB/sec (28Gbps x 128-bits) |
| Tensor Throughput (FP8) | 77.2 TFLOPS |
| TDP | 145W (1x8pin PCIe Req) |
| Dimensions | 182mm x 69mm x 36mm (7.2 x 2.7 x 1.4in) |
| Cooler | Triple Fan |
| Ports | 3x DP 2.1, 1x HDMI 2.1 |
So how does Gigabyte’s limbo-ready low-profile card fare? For today’s mini-review, we are putting the card through its paces to see just what kind of experience Gigabyte can deliver in a compact video card.
If you wanted to find the Gigabyte GeForce RTX 5060 OC Low Profile 8G online, here is an Amazon Affiliate link.
Gigabyte GeForce RTX 5060 OC Low Profile 8G Hardware Overview

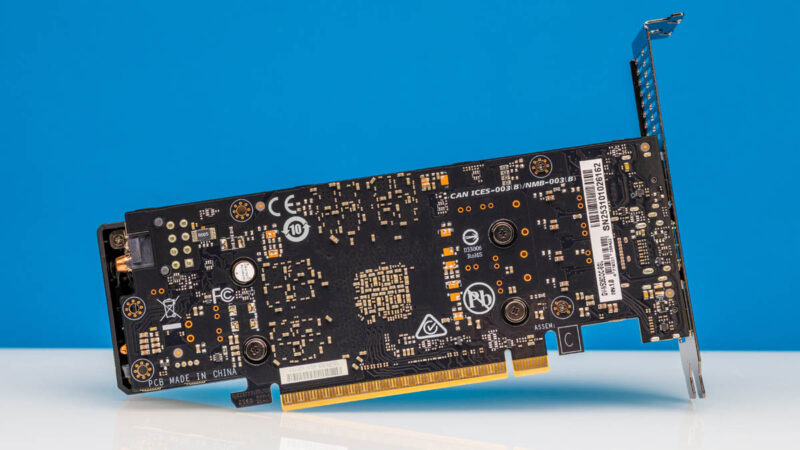

Digging right in to Gigabyte’s card, the claim to fame for the GeForce RTX 5060 OC Low Profile 8G (or as we will just call it from here, the RTX 5060 LP) is its size. Where most video card partners are shipping full-height, oversized RTX 5060 cards, the RTX 5060 LP stands out for its diminutive size. This allows it to be installed in SFF systems that cannot take a full-size card, such as the Minisforum MS-02 Ultra, giving it a role that few other RTX 5060 cards can fill.
The GPU at the heart of all GeForce RTX 5060 cards, the GB206, is relatively small, with a die size of just 181mm2. Still, that does not leave a ton of room to build a low-profile video card around, especially after also placing GDDR7 memory.
Notably, unlike NVIDIA’s heavily underclocked RTX PRO SFF cards, Gigabyte’s RTX 5060 LP card does not make any overt performance compromises. It is designed to offer the full performance of a full-size RTX 5060 card. That means not only running it at the RTX 5060’s normal clockspeeds – and better still, this is a slightly overclocked model running at 2512MHz – but it means running it with the same 145 Watt TDP as a regular RTX 5060 card. As a result, cooling performance is imperative to dissipate all that heat on the dual-slot low-profile card’s smaller heatsink.

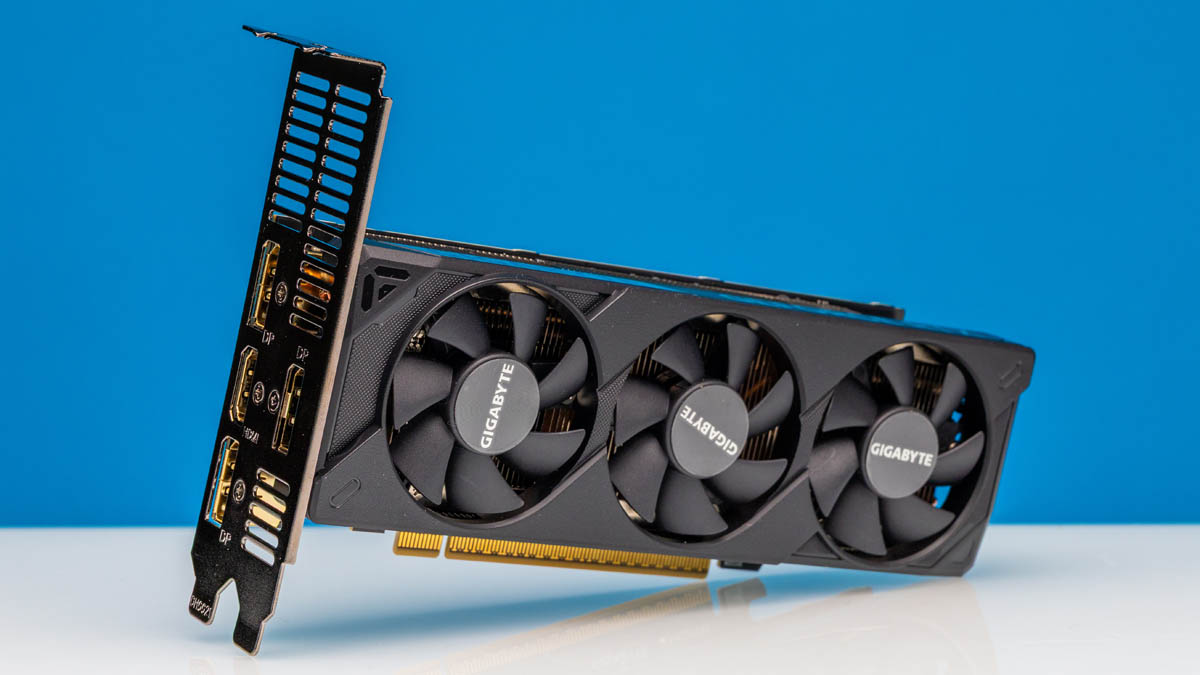

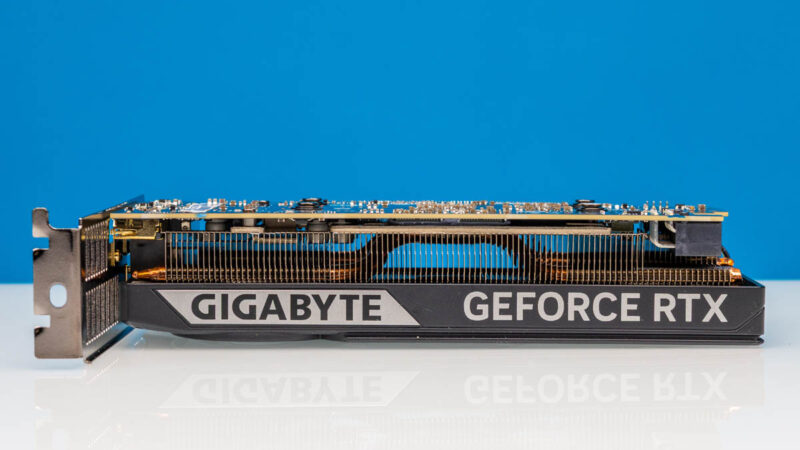

To accomplish this, Gigabyte is using a triple-fan cooler that combines a card-length aluminum heatsink with copper base plates and heat pipes. The base plate covers the GPU and memory, while a pair of copper heat pipes running along the card distribute that heat throughout the heatsink. It is a tried-and-true design, with the heat pipes helping to compensate for the heatsink’s smaller overall size.

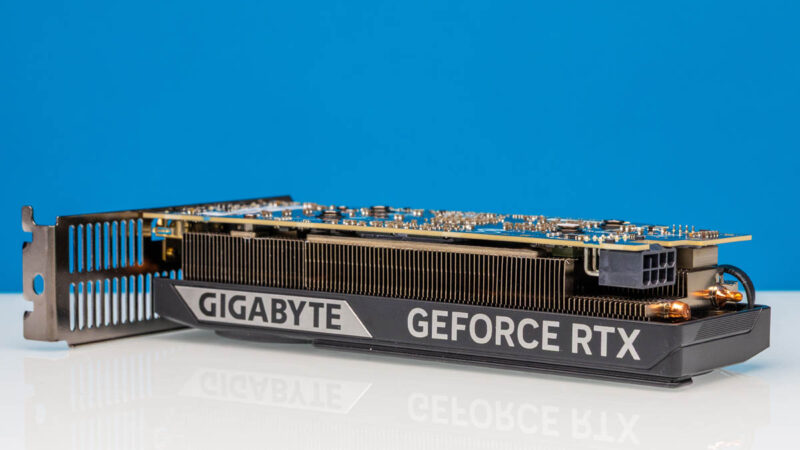

The card is powered by a combination of energy from the PCIe slot and a single 8-pin PCIe power connector. The use of an 8-pin power connector is somewhat dated when most other GeForce RTX 50 series cards use the newer 12V-2×6 connector, but a single 8-pin connector is already overkill for an RTX 5060 card, and it ensures maximum compatibility, as 12V-2×6 connectors are still a rarity in a lot of SFF PCs. Notably, Gigabyte has the 8-pin connector facing backward here, so in true low-profile setups, it will not get in the way.
Out of the box, the RTX 5060 LP ships with a full-height bracket installed. However, Gigabyte also includes the necessary low-profile bracket with the card.

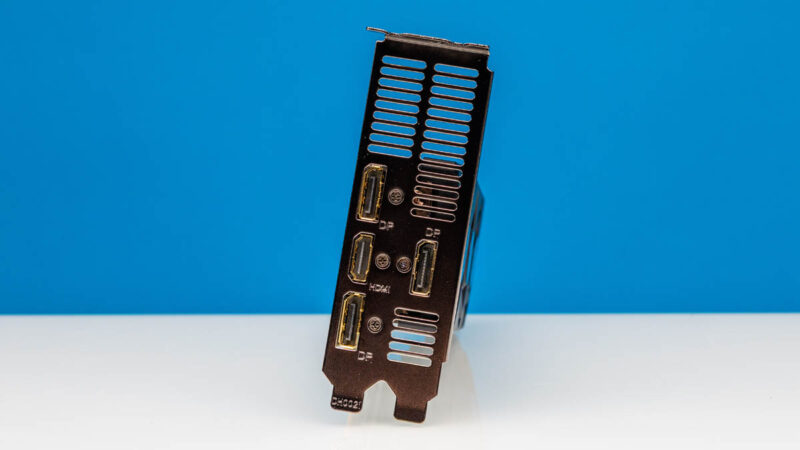

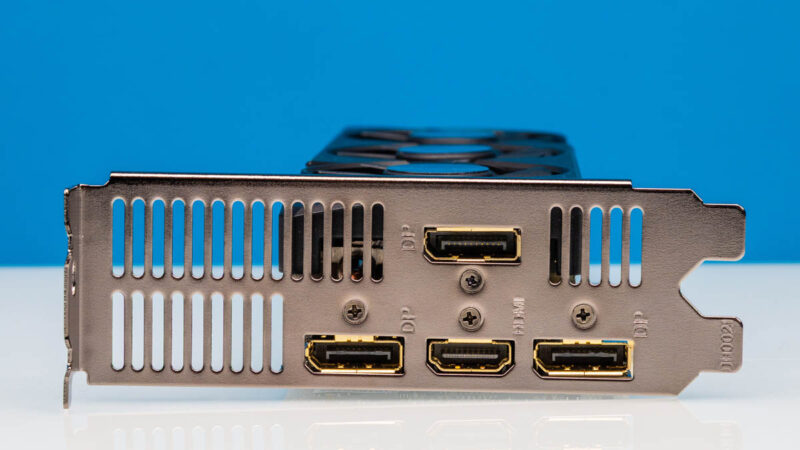

Regardless of which one you use, the experience is the same as far as cooling and display connectivity go. The standard for RTX 5060 cards is to offer 4 outputs – a trio of DisplayPort 2.1 ports and a single HDMI 2.1 port – and Gigabyte has stuck to that for their low-profile card, placing one of the DisplayPorts on the second row in order to make this all fit.
The card’s cooler design means that it vents very little hot air through the I/O bracket to begin with, so Gigabyte is able to use most of that space for display outputs instead.
Finally, for silent SFF enthusiasts, it should be noted that Gigabyte does not offer any kind of zero-fan-speed idle mode here, so the card is not capable of turning off its fans, even when idling. So while a relatively quiet card at idle, it is not a silent card.
Now, let us go ahead and take a quick look at the card’s performance.
