Supermicro AS-2115HV-TNRT Overclocking

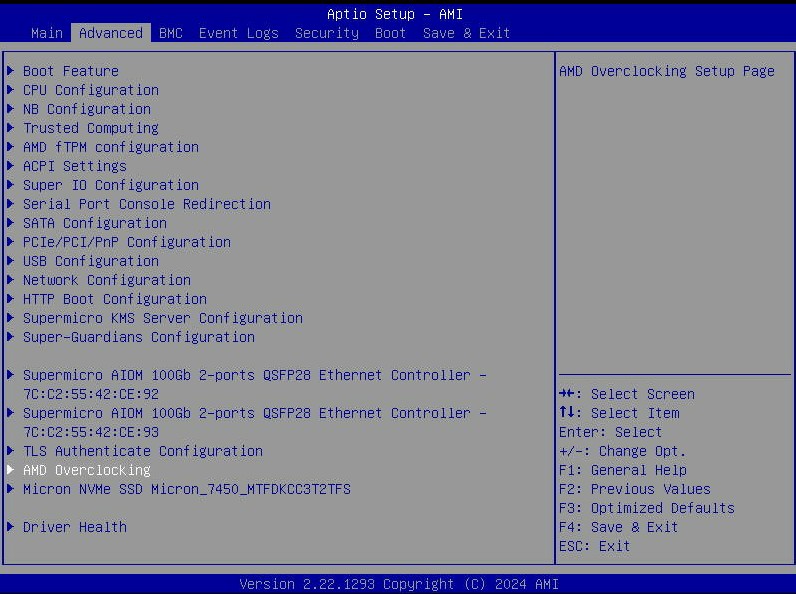

Many years ago (2012) we looked at Supermicro Hyper-Speed Servers that were 2U servers supporting overclocking. Now, we have a workstation/ server that supports overclocking as well. Instead of a flashy consumer BIOS, we have a fairly standard Supermicro AMI Aptio setup, except if you look for it, there is an AMD Overclocking option that would be very easy to miss.

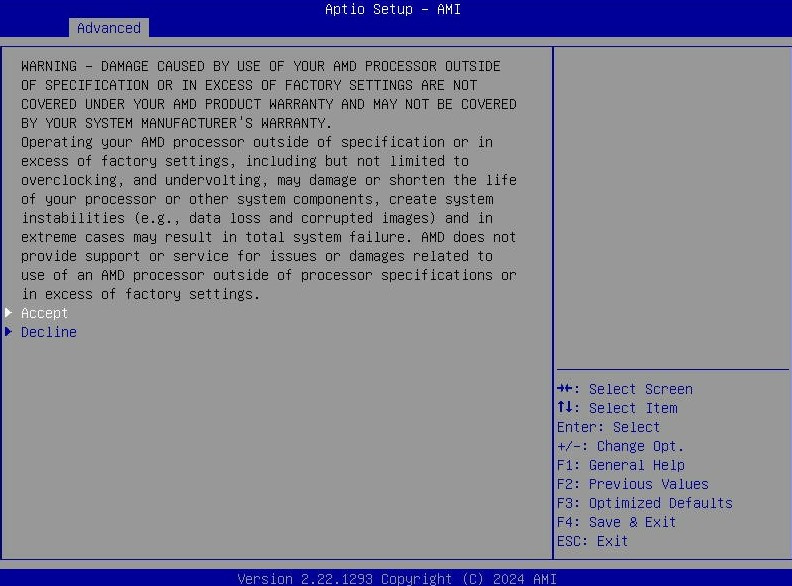

Clicking into that menu gets you to a disclaimer.

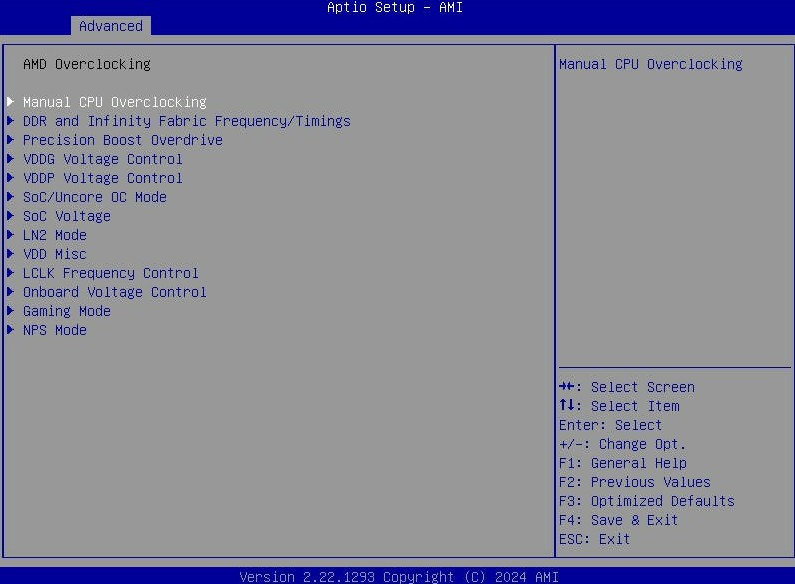

Once past that, there are a surprising number of overclocking options.

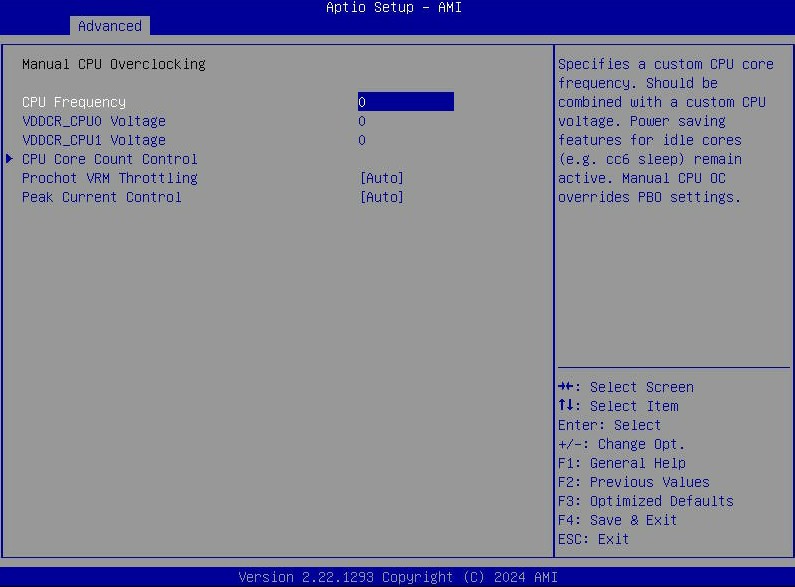

Here is the CPU OC settings.

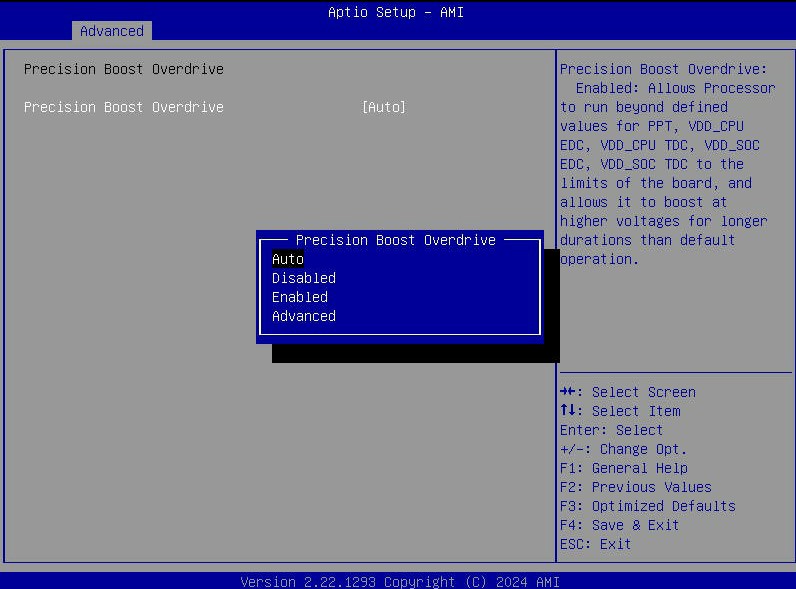

There are the AMD Precision Boost Overdrive settings.

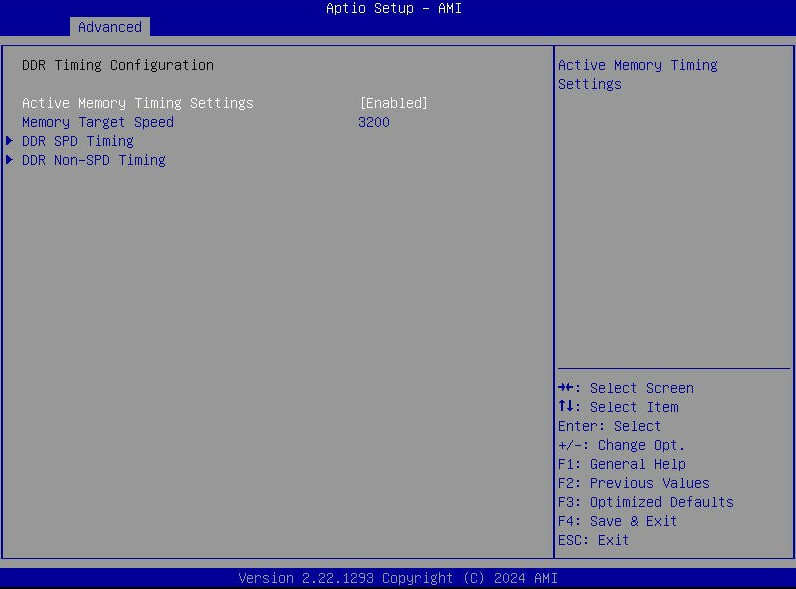

On the memory side, you can change the timing.
We ended up using this to use the V-Color DDR5-7200 ECC RDIMM kits.
Overall, that is a lot going on here but it is a way to get a few more percent out of your hardware.
Supermicro AS-2115HV-TNRT Power Consumption

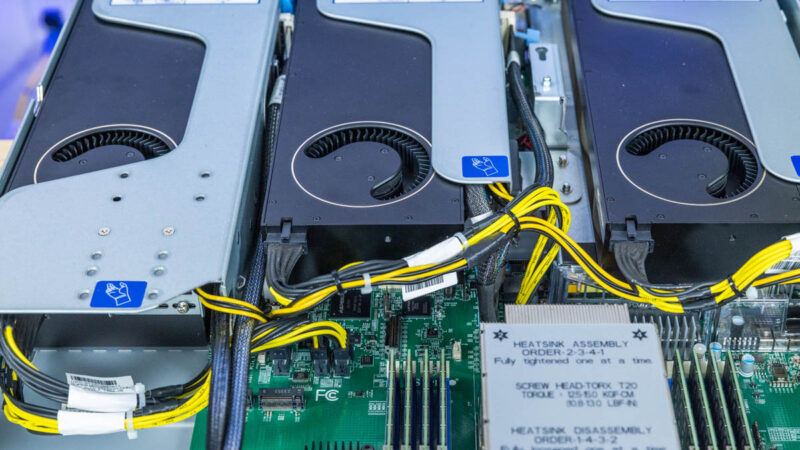

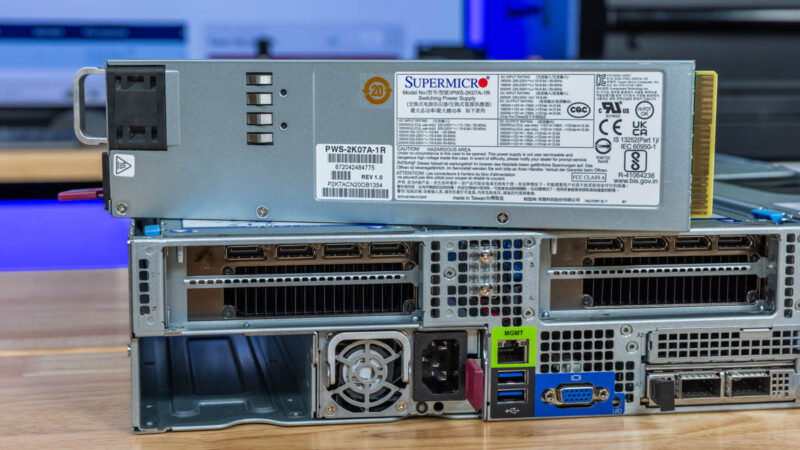

When it comes to power consumption, this is a 96 core 350W TDP CPU with 4x 300W GPUs, and eight DDR5 DIMMs. That is around 1600W of components excluding NICs, SSDs, and most importantly, cooling. Supermicro has two 2kW Titanium level efficiency power supplies and options for 2.6kW and 1.6kW options.

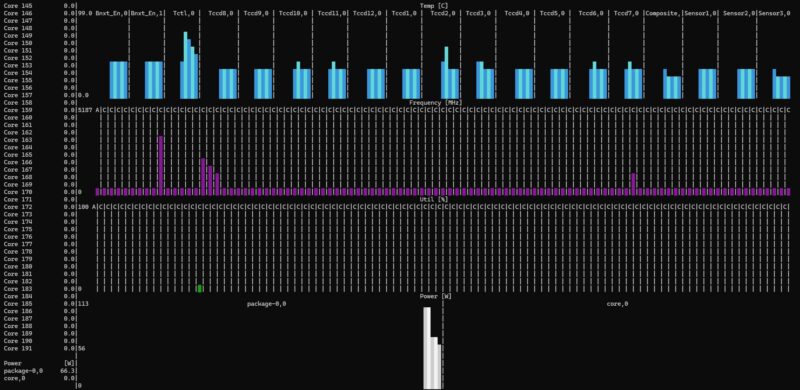

These are important since we were in the 1800-2000W range with this configuration.
Even at idle we were in the 225-275W range. AMD’s CPUs and NVIDIA’s GPUs generally do well at idle. If you have a rack full of these configured with four GPUs, that there will be a large variance between idle and load on each system.
Final Words
The AMD Ryzen Threadripper Pro 7995WX is great. Paired with four GPUs and high-speed networking, this can be a great rackmounted workstation.
At this point in the review, you are probably wondering why you cannot use this as an AI server. Spending weeks with the system, I cannot tell you the answer other than that Supermicro has denser AI servers. Although this is billed as a workstation, I think it is actually a great server.
Overall, the Supermicro AS-2115HV-TNRT is a great rackmount workstation (or server) if you need a machine that can range from doing graphical tasks like rendering and video edition, engineering tasks, and even AI. There is a lot to like in this system.
