Qotom 10Gbase-T Mini PC Power Consumption and Noise

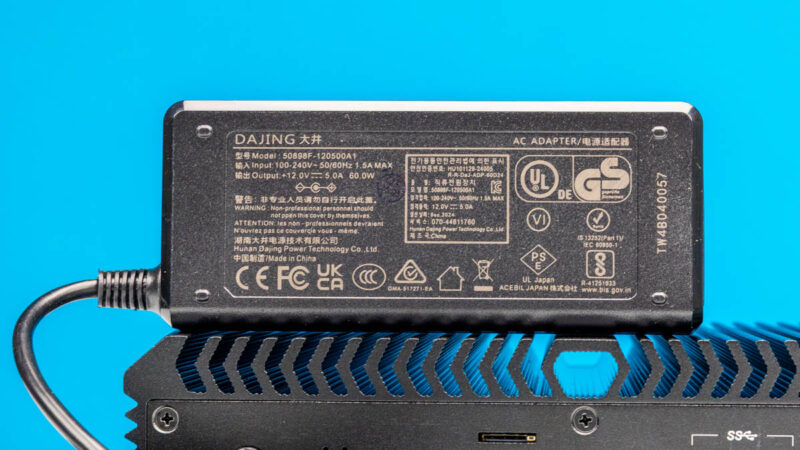

Despite a low power SoC, we get a 60W Dajing DC power supply.
At idle the package power consumption was reported in the 0.6-1.1W range in the OS and at the system level we were at 13-15W. Under load, we saw 3GHz maximum CPU frequency. That pushes our package power consumption to 9.5W to 10W. At the system level under load we were in the 38-40W range.
On the subject of noise, at idle in our 34dba noise floor studio we were at 39-41dba. This is not a silent unit. Under load, it went up to 40-42dba.
I wish this was either a fully fanless system or was running nearly silently. We had it running while doing the video, and I could hear it running next to me even at idle.
Key Lessons Learned
There is a lot to like in this system, but there are a few things I wish were different. The NIC enumeration was just strange and they should all show up matching the OS order and the physical NIC order.

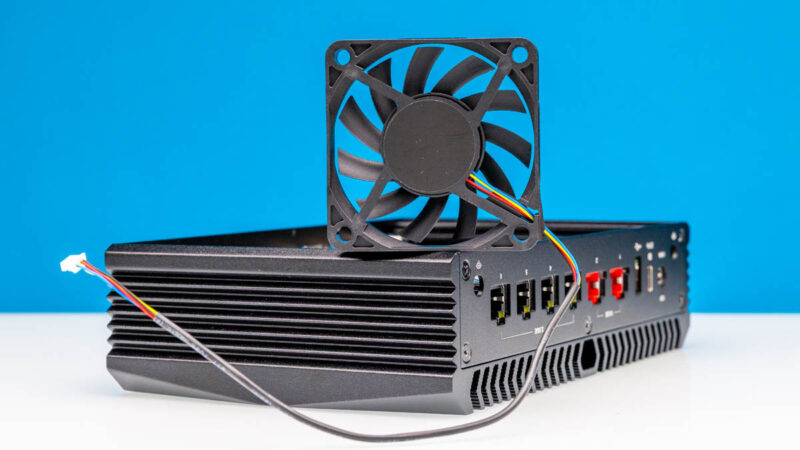

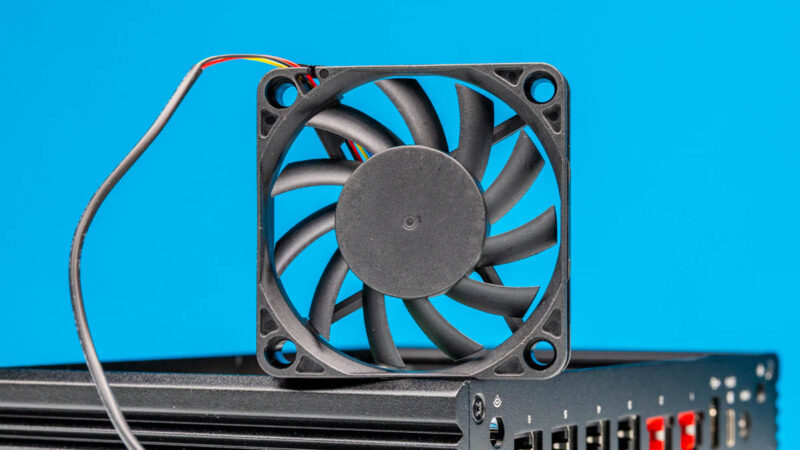

As mentioned, the fan is one where I feel mixed on. It is not cooling the CPUs or NICs. Instead, it is there for the memory, storage, and a WWAN option. It is a bummer since I would have preferred this as a fanless system. The benefit, is that I would rather have a fan than having cooling issues. I wish this had a standard fan header so it could be swapped for something quieter, or really that it was just silent.
The Intel Core 3 N355 is such a minor performance upgrade that I am not really sure why this refresh happened. On these systems, if there was availability or a lower cost on the N305 version, I would just get that and not look back.

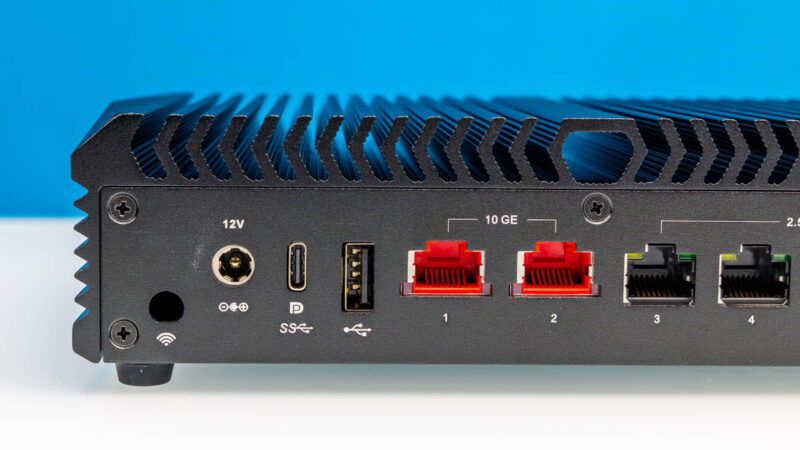

I think the 10Gbase-T is a solid addition. For a storage or higher-end networking box, I actually prefer the C3758R version we looked at previously. It is a slower CPU but with QAT acceleration and more I/O. Still, when we reviewed that, many wanted 10Gbase-T and a faster CPU, and this new Qotom system checks both those boxes.
We also had some folks look at that previous system and lament that the ASPEED graphics were slow for a desktop, as was the CPU. I still greatly prefer P-cores for desktop usage, but the combination of the newer generation E-cores, having 8 cores, and the Intel iGPU makes for a very usable desktop use case with this iteration.
Final Words
I have to say, I really like this box. It has a lot to offer, but there are also obvious limitations. Having only 9 PCIe lanes on the platform means we do not get high-speed storage, and with only one SODIMM memory capacity it limited. On the other hand, I know many of our readers just want something with 10GbE networking and with two 10Gbase-T ports storage can be delivered over the network instead of locally. I get that. The N355 while a big upgrade over Denverton, was a refresh cycle let down over the N305, but it is still a very capable CPU.
Price wise, the N355 barebones system often sells for $292-306 depending on where you look. We are going to call it $300 plus tax and shipping. There are also versions with the N305, N150, and N100. The N100 version can sometimes be found for around $200 so if you just want a virtualized OPNsense or pfSense NAT box, then the N100 is probably a decent option.
Overall though, we have had this system running Proxmox VE for the last 3 weeks and we have ended up using it much more often than I would have thought over that time. I can certainly see why folks wanted a configuration like this when we reviewed the previous generation system.
Where to Buy
We found the N355 version on Amazon (affiliate link) with options ranging from barebones to configured. Usually the N305 is easier to get and offers almost the same performance at a few dollars less. (Amazon affiliate link.)
For those looking for a less expensive option, the N100 quad core version is usually around 2/3rds the price of the N355. Here is an Amazon Affiliate link to that one. The N150 is usually a few dollars more (Amazon Affiliate link.)
