Today we have an update to a class of systems that frankly checks a lot of boxes of feedback we received on our previous review. Qotom, makers of The Everything Fanless Home Server, Firewall Router, and NAS Appliance, took the feedback from that article and video and made a new system with 10Gbase-T networking instead of SFP+ and is using the new Intel Core 3 N355 processor for notably more CPU performance. The system is called the Qotom Q11032H6, as the company has rough naming conventions. Still, we have been using this box for over a month, and it has performed very well for us. Of course, there are a few quirks that we will get into as well.
Of course, we have a video for this one:
We always suggest opening this video in its own tab or app for the best viewing experience.
Qotom 10Gbase-T Mini PC External Hardware Overview

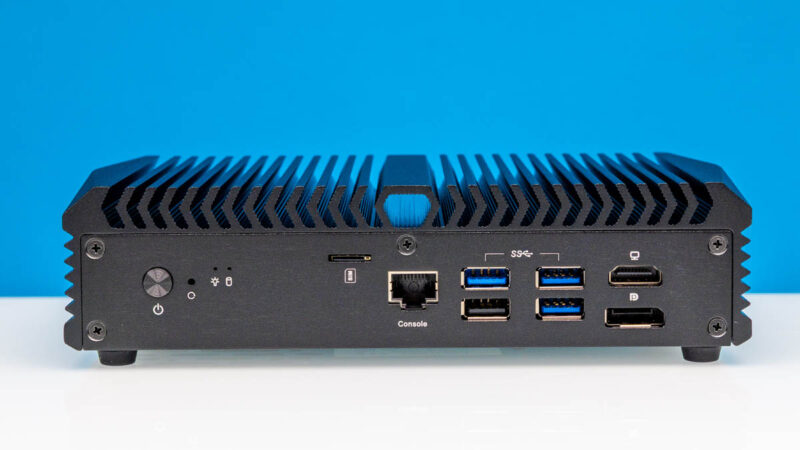

This is a bit of personal preference, but the chassis Qotom is using looks cool with the giant heatsink fins on the top. We have lots of these fanless boxes in the studio, and this one stands out. It is also on the heavier side because this top area is all relatively thick metal.

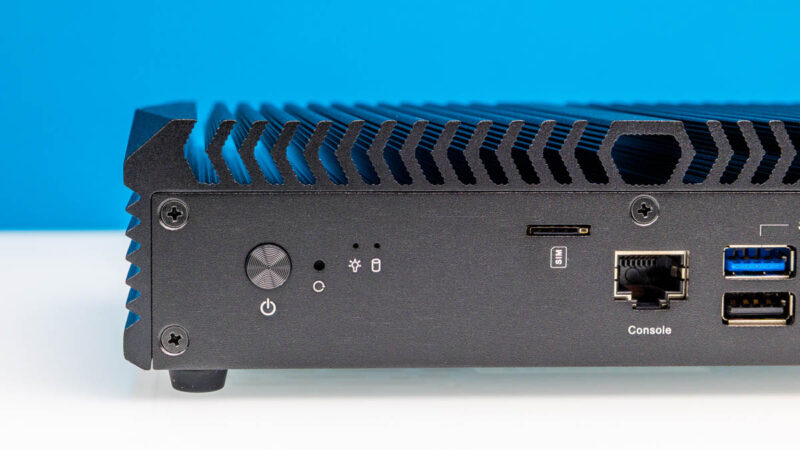

On the front left, we get a power button, and status LEDs.

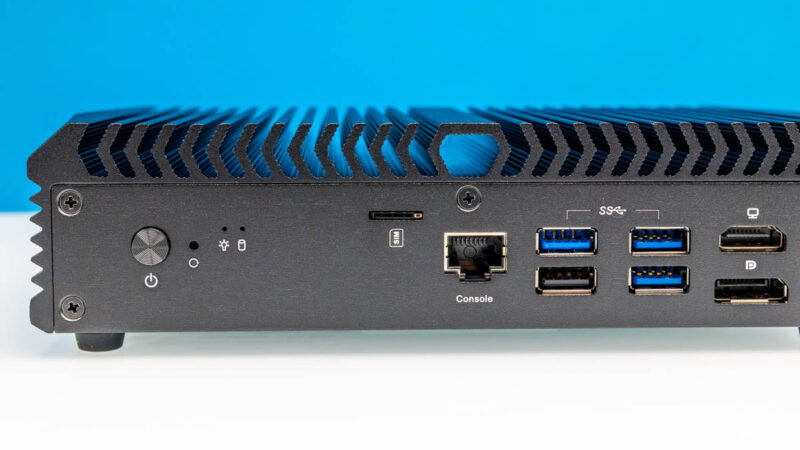

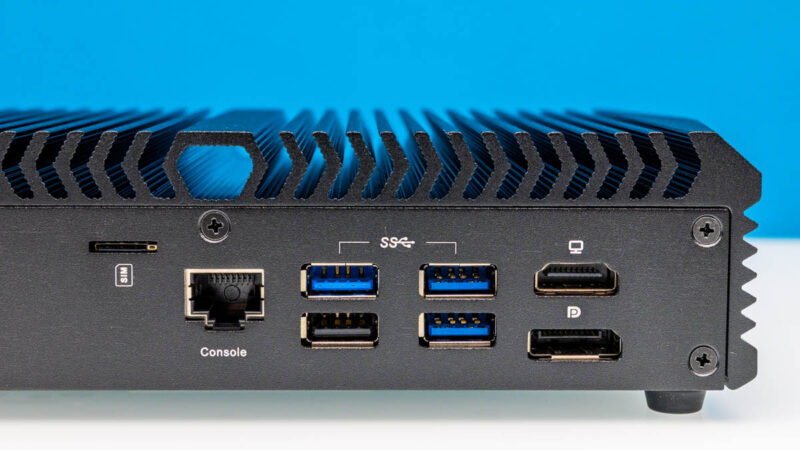

Next is a SIM card slot and a console port. We did not have a 5G modem installed so we did not get to test this SIM card slot.
There are then three USB 3 ports, a USB 2 port (all Type-A) and two display outputs. We have both DisplayPort and HDMI here as two of the three video outputs on the system. Something that this is much better at versus the C3758R version we looked at previously is that this can drive three displays, has more USB, and can certainly be used as a desktop with faster cores and an iGPU.
On the subject of that chassis, your initial assumption is probably as wrong as mine was.

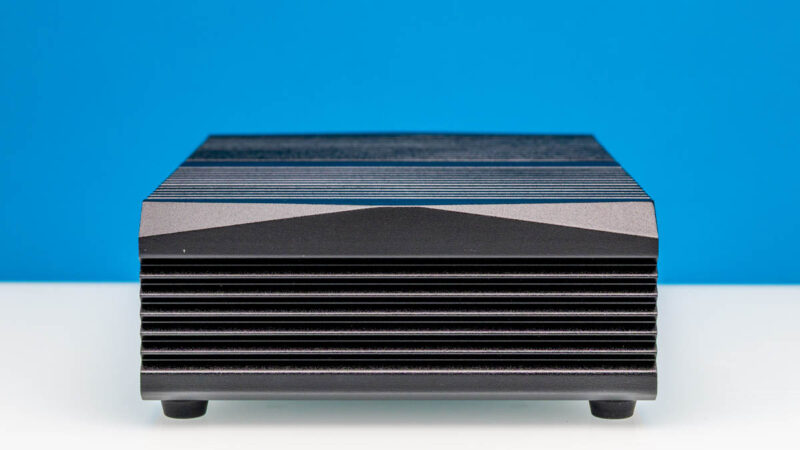

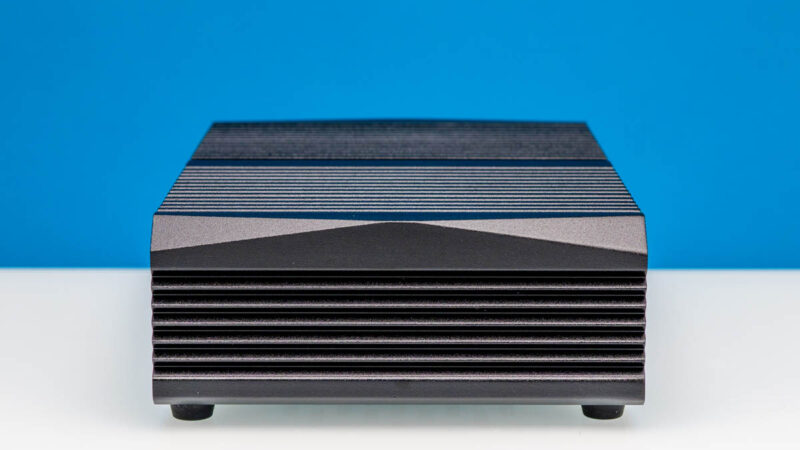

On the side, we get more fins.
On the other side, it looks the same.
On the top, it looks like we just have some big fins, but you actually cannot see the angled design of the fins easily from this view.

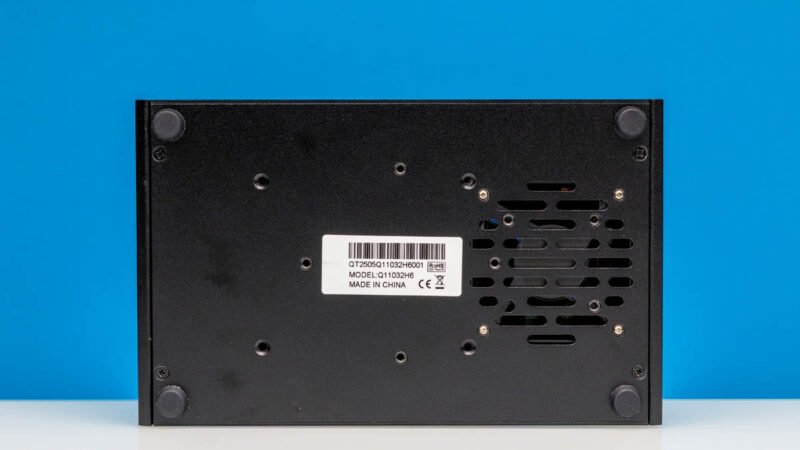

Then we get to the bottom, and you probably see it. There is a fan in this system. It is not completely silent. What is even stranger is that this fan is there to cool the memory and storage, not the CPU and NICs. More on that when we get inside.

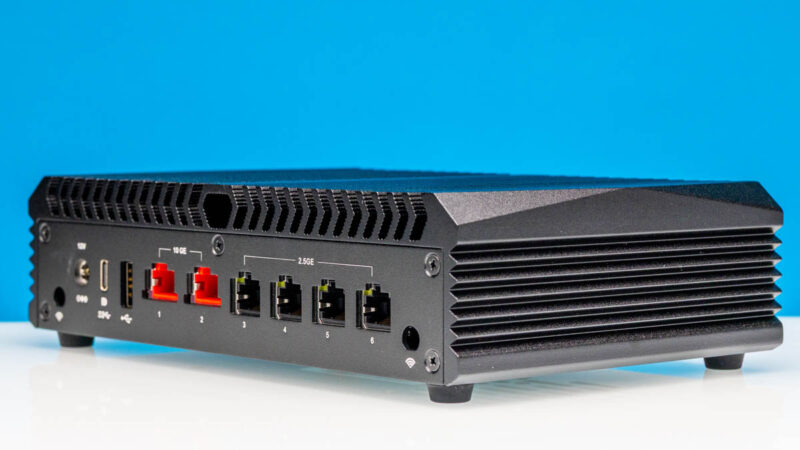

On the other faceplate, we get the exciting bits.

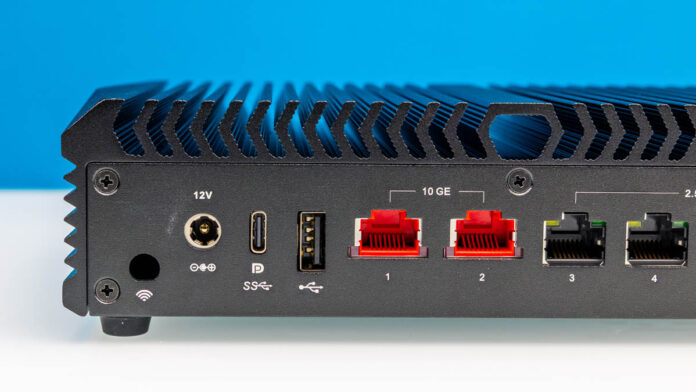

First, we get a 12V power input, followed by a USB Type-C port that has an alt DisplayPort mode. There is also another USB 2 port.
The 10GbE ports are perhaps the big story. These are Marvell Aquantia AQC113C ports, so they are low power and newer NIC IP.

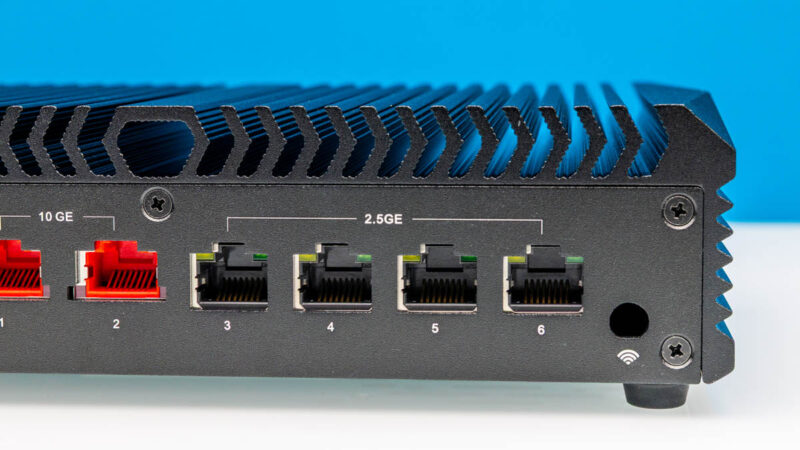

The right side is the quad 2.5GbE port configuration. These are all Intel i226-V ports.
Next, let us get inside the system to see how it works.
