Qotom 10Gbase-T Mini PC Topology

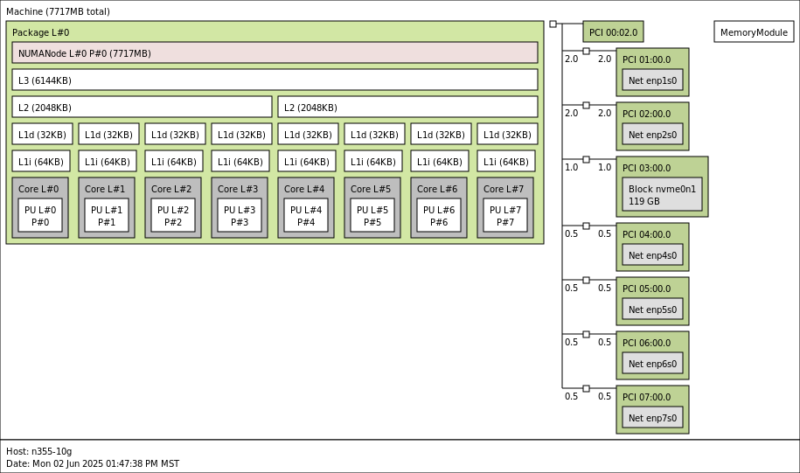

In terms of the topology, this is a fairly simple system since there is not a lot going on.

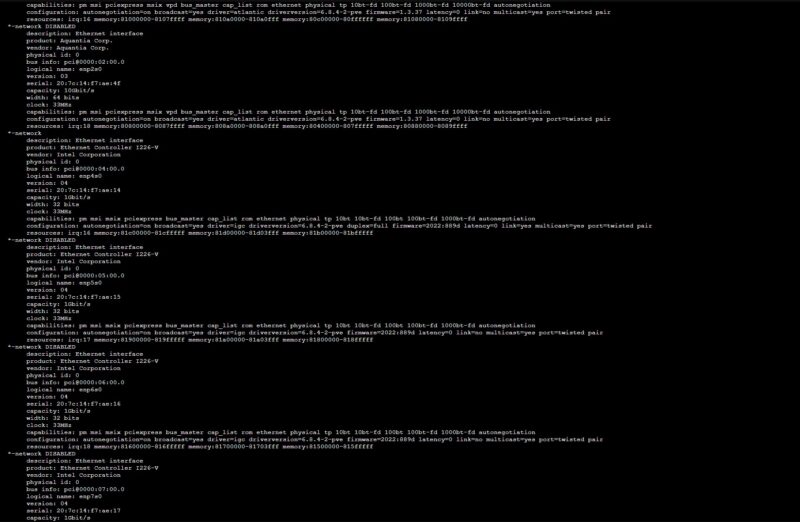

Something you can see in that diagram, and in the various hardware reports is perhaps more interesting. The enp1s0 and enp2s0 are the two Marvell AQC113C 10GbE NICs. On the 2.5GbE side, enp4s0 to enp7s0 are the Intel i226-V NICs.

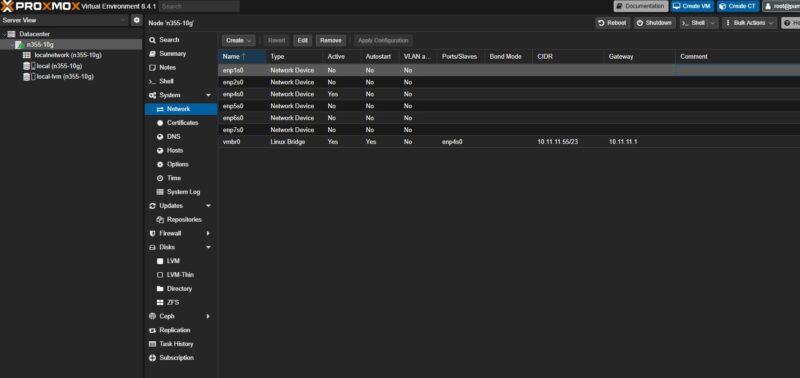

There was, however, something strange. We used enp4s0, the low end of the 2.5GbE NIC range, as a Proxmox VE management NIC so that our management port would fall on one end of the block of four 2.5GbE NICs.

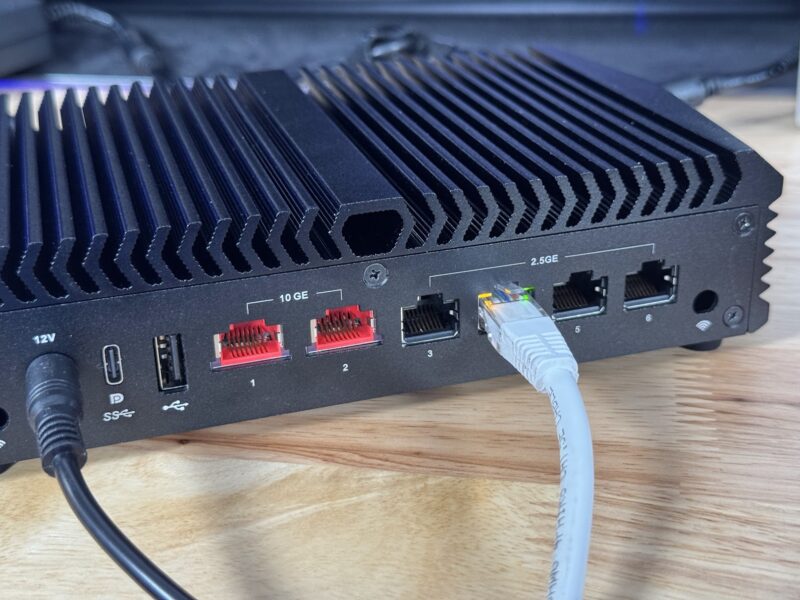

When we rebooted the system, it did not show up on the network. We realized that the reason is that the first 2.5GbE port in the OS, enp4s0 did not tie to the physical port and NIC on either end of the 2.5GbE NIC block on the system (3 or 6.) Instead, it was one of the middle ports, port 4.
This is a huge pain because it makes it hard to tie the physical device to what we see in the OS. Supermicro actually had a lower-end line that did something similar around 10 years ago, and customers demanded that future platform generations fixed this. I think Qotom needs to fix this as the NICs should enumerate in Linux in the same order that they physically appear on the chassis.
Especially with the AQC113C challenges with FreeBSD, we typically ended up virtualizing firewalls on the device using 10GbE NICs for storage and the 2.5GbE NICs for virtualized OPNsense. That made the enumeration challenges even worse. That overall model, however, of using the 2.5GbE for a WAN/LAN port and then using the 10GbE for accessing capacity storage over the network seemed to be a winner. That helps fix the constraints of lacking of local storage.
Next, we are going to get to the performance.
Qotom 10Gbase-T Mini PC Performance

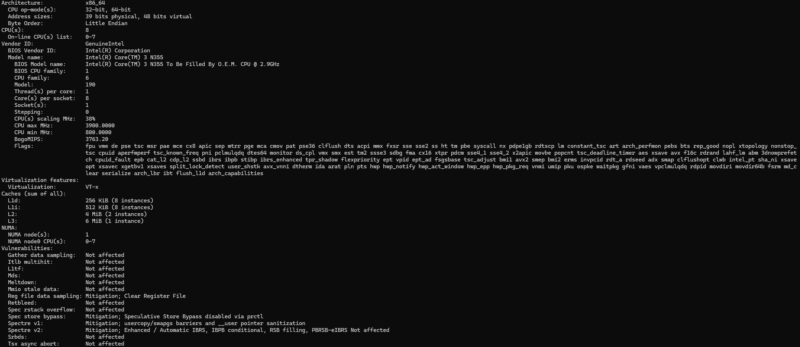

This new system is using the Intel Core 3 N355. This is supposed to be the update to the 2023 era Intel Core i3 N305 with both having 8 cores and low power consumption.

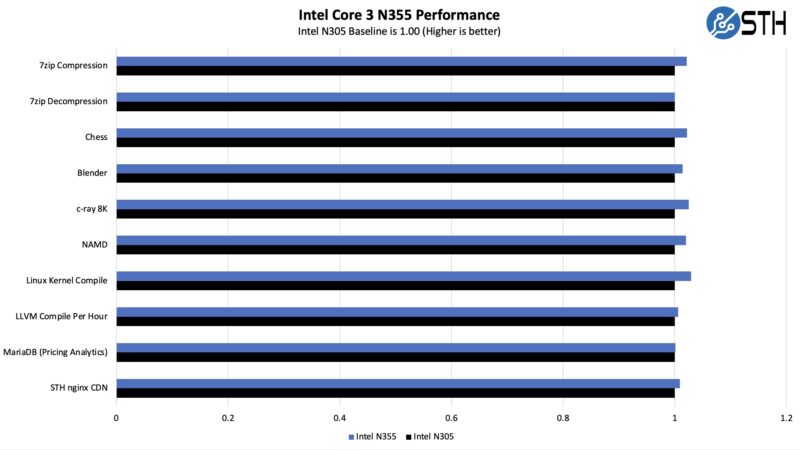

To make what we saw a bit more clear, we thought it was worthwhile just to show the N355 to N305 comparsion across a number of workloads.
Are these CPUs the same? It appears not as we got perhaps 1-3% higher performance out of the N355. More performance is more performance. On the other hand, as an updated CPU almost two years later, this is a really weak refresh performance gain.
Geekbench 5 Comparisons

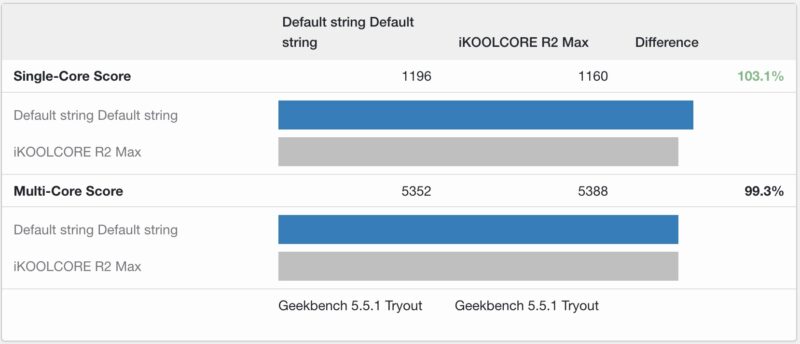

Since these are generally lower performance per core, but many core architectures, Geekbench 5 tends to show performance a bit better. When we did the N355 and N305 comparison, this is what we saw (Default string is the Qotom N355 box):

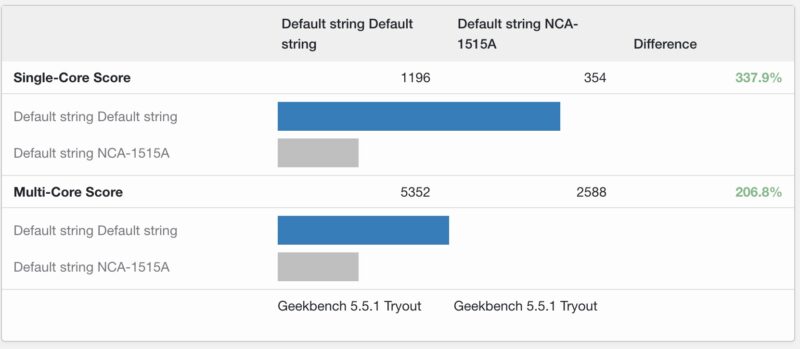

That is not a huge improvement like we saw in other workloads. When we compred it to the Intel Atom C3758 in the Lanner NCA-1515A that offers similar performance to the Qotom C3758 SFP+ boxes we have reviewed previously, we see just how far these 8-core CPUs have come.
It is a bit strange. Compared to the two year old N305, it is hard to make a recommendation for the N355 or N305 because they are so close. Going back to the now 8 year old C3758, 8 cores gets you a lot more CPU performance. I just wish that when Intel refreshed these SoCs, that they added a bit more performance. It feels strange to get 1-3% on a two year refresh part.
Next, we are going to get to the power consumption and noise.
