Intel ISC 2023 Big AI Update and More on Aurora

3
Intel ISC23 Aurora Specs
Intel ISC23 Aurora Specs

Intel has a number of announcements at ISC 2023. We want to cover some of the key highlights. Among them, we have a range of updates, but perhaps the two most impactful are that Aurora did not submit a HPL Top500 run but we have more specs and its Max GPU will be shipping. Falcon Shores appears as though it is going to bring Habana on board.

Intel ISC 2023 Not Yet For Aurora and an Upcoming Falcon Shores Habana Merge

Intel went over a lot that it disclosed during the Intel DCAI 2023 Update a few weeks ago. We are going to focus on the incremental disclosures. before we get to those, there were a few ones that were very interesting. Perhaps the most interesting was that, although dual CPU-only systems still make up the majority of the Top500, the Top100 has been trending towards having different CPU and accelerator ratios.

Intel ISC23 Top100 Taxonomy
Intel ISC23 Top100 Taxonomy

Intel had a bit about how that ratio has evolved, but perhaps the most interesting is what it put as its converged HPC and AI CPU to GPU and AI ratios. While Intel is not trying to convey exact numbers, it seems to suggest that CPU only will shrink, 1-4 GPU will be smaller in terms of overall acceleration, and that >4 GPUs per node will be common.

Intel ISC23 Top100 Taxonomy In The Future With Converged HPC And AI
Intel ISC23 Top100 Taxonomy In The Future With Converged HPC And AI

That is still a future-looking guess, but it is telling that Intel is focused on the GPU and AI accelerator being the most common components.

Aurora Update

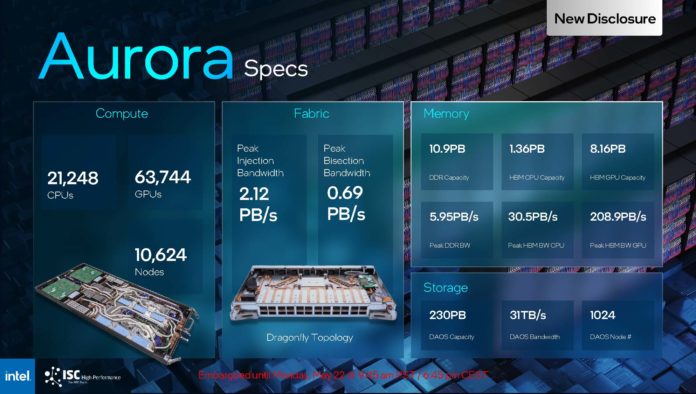

At the last ISC in 2022, folks were eagerly awaiting Aurora numbers. A year later, Intel said there has been progress, but we do not have a Top500 entry. Still, Intel gave us new specs on the machines including the fabric, memory and storage specs.

Intel ISC23 Aurora Specs
Intel ISC23 Aurora Specs

Intel says it has now delivered over 10,000 blades and that 75% of the blades have been upgraded to Xeon Max CPUs that were originally shipped with non-HBM parts.

The other Ponte Vecchio/ Intel Data Center GPU Max series announcement is around a x8 UBB. Intel tagged this as a new disclosure. We knew that Ponte Vecchio was OAM so I had assumed this was already part of the plan. We first looked at Inspur 8x OAM UBB almost four years ago. Now Inspur and Supermicro we are expecting will be the first two with the 8x GPU Max systems.

Intel ISC23 Intel Data Center GPU Max X8 UBB
Intel ISC23 Intel Data Center GPU Max X8 UBB

The vision of UBB is that it can fit different accelerators from different vendors. The AMD MI250X uses UBB as does the Intel Habana Gaudi 2 AI accelerator.

Here is the expected availability of the new GPU Max series.

Intel ISC23 Intel Data Center GPU Max Availability
Intel ISC23 Intel Data Center GPU Max Availability

It looks like we will start to see it more outside of Aurora deliveries soon.

Intel Xeon / Intel Xeon Max Updates

On the Xeon Max series, there were a lot of Genoa and Milan-X comparisons. The challenge Intel has is that with Genoa-X AMD is going to get 50% more cores, the microarchitecture/ memory update, and then the cache update, and AMD has said that is coming soon. Still, there will be many applications where the capacity of onboard HBM memory will be a major driver of performance.

Intel ISC23 Intel Xeon Max Versus Milan X
Intel ISC23 Intel Xeon Max Versus Milan X

We are going to leave that one until later this summer to discuss it from a comparative perspective. We are hoping to get to Xeon Max soon though.

Intel also discussed its upcoming Xeons, and again discussed MCR DIMMs. We covered that in the March 2023 update linked above.

Intel ISC23 5th Gen Intel Xeon Scalable And Granite
Intel ISC23 5th Gen Intel Xeon Scalable And Granite

While that is the current Max series, Falcon Shores is coming.

Intel Falcon Shores Update

Intel discussed that it thinks it is too early to integrate CPU and GPU like NVIDIA and AMD are doing. Instead, that will be a product past Falcon Shores. We covered that Intel announcement previously. Intel at ISC was talking about how the GPU will use HBM3, have Ethernet connectivity, and CXL.

Intel ISC23 Falcon Shores
Intel ISC23 Falcon Shores

It also made a minor roadmap tweak, and this did not get marked as a new disclosure because it was part of the recent earnings package. Intel shared that past Habana Gaudi 3, it will have AI accelerator integration options with Falcon Shores.

Intel ISC23 Data Center Roadmap Update
Intel ISC23 Data Center Roadmap Update

Intel knows it needs to continue pushing on its AI capabilities as that market is growing rapidly while traditional HPC is not on as big of a growth curve.

Final Words

Overall, we have some good updates on a number of HPC and AI fronts from ISC 2023. We will update this article during the keynote if there are more disclosures made. The key messages were clear in the pre-brief. Intel is serious about expanding its AI portfolio in the data center and the Intel Max series will be a big focus this year.
