4th Gen Intel Xeon Scalable Sapphire Rapids Leaps Forward

34

4th Gen Intel Xeon Scalable Sapphire Rapids: What Acceleration is Available?

Since there are two different die configurations, XCC for the larger 4-tile chips and MCC for the lower core count parts, there are also differences in maximum onboard accelerators.

  • Each XCC compute tile (each 1 of the 4 total) has a QAT, DLB, DSA, and IAA accelerator available. That means the maximum is four of each. That $17,000 Xeon Platinum 8490H is an example of this.
  • Each MCC die (the monolithic one), has 2x QAT and DLB, and 1x DSA and IAA accelerator.

That means the XCC-based parts can have more acceleration, even if it is not enabled by default. Intel’s goal eventually will be to make disabled accelerators enabled via Intel On Demand. More on that after this. Instead, let us look at the SKU stack, and which are XCC, MCC, and just how many have enabled accelerators. 28 of the chips use MCC, while 24 are using XCC.

4th Gen Intel Xeon Scalable Sapphire Rapids Launch SKU List
4th Gen Intel Xeon Scalable Sapphire Rapids Launch SKU List

There are a lot of red boxes in the acceleration section. What we wanted to parse was how many Sapphire Rapids SKUs actually have the accelerators enabled.

4th Gen Intel Xeon Scalable Sapphire Rapids Acceleration Integrated IP
4th Gen Intel Xeon Scalable Sapphire Rapids Acceleration Integrated IP

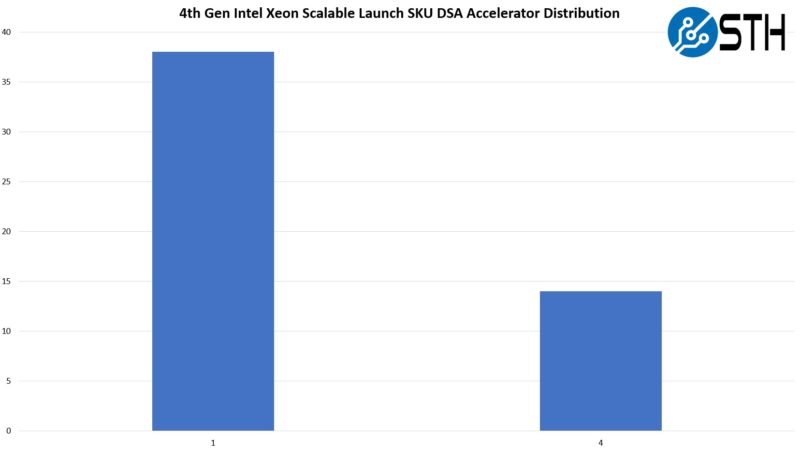

One accelerator each chip has is the DSA. 73% of the chips only have one instance, but 27% of the SKUs have four. Only 58% of the XCC-based parts have all four active.

4th Gen Intel Xeon Scalable Sapphire Rapids DSA Accelerator Distribution
4th Gen Intel Xeon Scalable Sapphire Rapids DSA Accelerator Distribution

QickAssist Technology or QAT, has been around for over a decade. One of the challenges is keeping track of where the accelerators are, and which parts have them active. We have an entireย Intel QuickAssist Parts and Cards by QAT Generation guide. We originally heard about QAT integration and thought this would finally take the technology mainstream. Instead of making QAT ubiquitous, 56% of the SKUs do not have active QAT accelerators.

4th Gen Intel Xeon Scalable Sapphire Rapids QAT Accelerator Distribution
4th Gen Intel Xeon Scalable Sapphire Rapids QAT Accelerator Distribution

The new Intel Dynamic Load Balancer functionality mirrors QAT with only 44% of SKUs having it enabled.

4th Gen Intel Xeon Scalable Sapphire Rapids DLB Distribution
4th Gen Intel Xeon Scalable Sapphire Rapids DLB Distribution

The Intel In-memory analytics accelerator or IAA is a bit different due to the MCC capabilities. Here, we see 60% of the SKUs without IAA enabled.

4th Gen Intel Xeon Scalable Sapphire Rapids IAA Accelerator Distribution
4th Gen Intel Xeon Scalable Sapphire Rapids IAA Accelerator Distribution

So this is where things start to feel strange. We know that Intel generally has lower clock speeds and fewer cores per socket than AMD, so it is touting its acceleration technologies as the key differentiator. At the same time, when we look at the SKU stack, the majority of processors do not have accelerators turned on.

Intel’s answer to that is novel. It is selling its chips with accelerators built-in, but disabled. Using select OEMs, and on most SKUs, the hope is that in the future, as the accelerators see more adoption, companies will pay for the accelerators that they want to use.

4th Gen Intel Xeon Scalable Sapphire Rapids On Demand Available Distribution
4th Gen Intel Xeon Scalable Sapphire Rapids On Demand Available Distribution

Although not exactly acceleration, another feature that Intel has is Intel SGX, part of the company’s secure enclave solution for confidential computing. Intel has limits to how large the enclaves can be, up to 512GB. It has been de-rating lower-end SKUs to have smaller SGX limits. Only 37% of SKUs have the maximum enclave size. 128GB per CPU is closer to a minimum RAM capacity in this generation as 16GB DIMMs we expect to be replaced by 32GB at the lower end. We would expect most virtualization host that are running advanced features like SGX to also have at least 8x 32GB DIMMs in this generation for 256GB. While that means a 512GB limit would be too much at the lower end, it also means that 128GB might be too little.

4th Gen Intel Xeon Scalable Sapphire Rapids Launch Max SGX Enclave Size Distribution
4th Gen Intel Xeon Scalable Sapphire Rapids Launch Max SGX Enclave Size Distribution

We mentioned Intel On Demand. We asked Intel for an official explanation on what it is, and how it works. That is worth getting to next.
