4th Gen Intel Xeon Scalable Sapphire Rapids: Acceleration

This is one of the more interesting ones for me. At STH, we have been working to show some of the acceleration benefits by better utilizing Intel’s instructions and accelerators for around five quarters. Make no mistake, when accelerators are used, Intel has a huge advantage in terms of performance, performance per watt, and performance per core. The challenge is that the accelerators are actually not enabled on many of the SKUs.

Still, there are actually two types of acceleration that Intel employs. The first is new instructions and accelerated paths within the cores themselves. The second is the dedicated accelerators that we have discussed a bit already.

4th Gen Intel Xeon Scalable Sapphire Rapids Acceleration Engines Enablement
4th Gen Intel Xeon Scalable Sapphire Rapids Acceleration Engines Enablement

Acceleration is very interesting because there is an adoption curve. In the beginning, there is a hardware accelerator, and software must be made to work with that hardware feature. As acceleration gets more mature, it becomes transparent. My favorite example of this is AES-NI. When one goes to a HTTPS website, they are not setting flags to utilize AES-NI. Instead, the browser and system detect capable hardware and utilize it. Intel has been working with new instructions like Intel AMX for machine learning and getting transparent support into frameworks like TensorFlow. For other acceleration, other software needs to be used entirely. The important thing to remember is that as accelerators become more pervasive, adoption tends to increase, and we get to the AES-NI case.

Here is a list of the accelerator engines in the new Sapphire Rapids processors:

4th Gen Intel Xeon Scalable Sapphire Rapids Accelerator And Feature List
4th Gen Intel Xeon Scalable Sapphire Rapids Accelerator And Feature List

Many of these are not necessarily new. Some, like bfloat16 were enabled in Cooper Lake. Others, like the Crypto Acceleration, were in Ice Lake.

4th Gen Intel Xeon Scalable Sapphire Rapids Accelerator And Feature List By Generation
4th Gen Intel Xeon Scalable Sapphire Rapids Accelerator And Feature List By Generation

Using acceleration technologies generally increases the amount of work that is done per watt, often reducing how many general-purpose cores are needed.

4th Gen Intel Xeon Scalable Sapphire Rapids Acceleration Performance Uplift 2 Energy
4th Gen Intel Xeon Scalable Sapphire Rapids Acceleration Performance Uplift 2 Energy

One type of new acceleration is AMX. Intel AMX helps with matrix math and when we tested this on a pre-production Intel Xeon 8490H, we saw substantial improvements over both using general-purpose cores, and over VNNI that was present in Ice Lake.

Intel Pre Production Sapphire Rapids Preview AMX TF BS16 Throughput Performance Preview
Intel Pre Production Sapphire Rapids Preview AMX TF BS16 Throughput Performance Preview

This is fairly easy to do since Intel has spent a lot of effort on its TensorFlow integration.

Intel Pre Production Sapphire Rapids Preview AMX TF BS1 Throughput Performance Preview
Intel Pre Production Sapphire Rapids Preview AMX TF BS1 Throughput Performance Preview

Not only can we get more throughput, but we also get lower inference latencies. Many workloads do not need the peak performance of a PCIe accelerator. Instead, they need basic inferencing for portions of a workload. This is really an ideal situation for acceleration that happens due to new instructions in cores.

Intel Pre Production Sapphire Rapids Preview AMX TF BS1 Latency Performance Preview
Intel Pre Production Sapphire Rapids Preview AMX TF BS1 Latency Performance Preview

Intel put a lot of effort into messaging acceleration because of results like these.

4th Gen Intel Xeon Scalable Sapphire Rapids Acceleration Performance Uplift
4th Gen Intel Xeon Scalable Sapphire Rapids Acceleration Performance Uplift

Did we mention a lot of effort into discussing acceleration?

4th Gen Intel Xeon Scalable Sapphire Rapids Acceleration Performance Uplift 2
4th Gen Intel Xeon Scalable Sapphire Rapids Acceleration Performance Uplift 2

There were even TCO models of how acceleration helps.

4th Gen Intel Xeon Scalable Sapphire Rapids Acceleration Performance Uplift 2 Energy TCO
4th Gen Intel Xeon Scalable Sapphire Rapids Acceleration Performance Uplift 2 Energy TCO

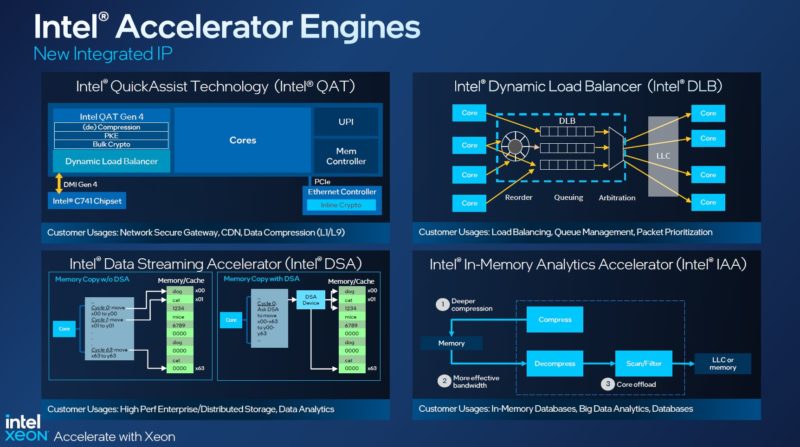

While features such as AMX and AVX-512 are interesting, the major new feature is the Intel Accelerator engines. On the larger XCC package, each of the four dies has its own accelerator block that is on the same mesh as the fifteen physical cores (unless it is the 60 core part, not all are enabled.) Each acceleration block has a QAT, DLB, DSA, and IAA acceleration engine. Although the chips have these accelerators that can share LLC and memory controllers, not all are active. That is part of the Intel On Demand feature.

4th Gen Intel Xeon Scalable Sapphire Rapids Acceleration Integrated IP
4th Gen Intel Xeon Scalable Sapphire Rapids Acceleration Integrated IP

We tested the QAT performance using the Intel Xeon Platinum 8490H, and we saw solid performance. We will note that the Xeon core-based crypto acceleration that is used with the QAT engine helps a lot as well. That acceleration level is “free” so long as it is being used by software.

Intel Pre Production Sapphire Rapids Preview QAT Nginx HTTPS Performance Preview
Intel Pre Production Sapphire Rapids Preview QAT Nginx HTTPS Performance Preview

Adding the hardware QAT acceleration helps a lot. Something that we see is that there is a massive jump in performance using the acceleration technologies when doing fundamental transactions like a HTTPS TLS handshake.

Intel Pre Production Sapphire Rapids Preview QAT Nginx HTTPS Performance Per Thread Preview
Intel Pre Production Sapphire Rapids Preview QAT Nginx HTTPS Performance Per Thread Preview

We also looked at the QAT hardware accelerated performance. One of the interesting prospects is that using the QAT hardware accelerators, we are pushing almost 180Gbps of IPsec traffic using only four threads.

Intel Pre Production Sapphire Rapids Preview QAT IPSec Performance Preview
Intel Pre Production Sapphire Rapids Preview QAT IPSec Performance Preview

Again, there is a big uplift by just using the VAES instructions on the cores, but the accelerator performance makes IPsec VPN directly from cores without PCIe accelerators possible.

Intel Pre Production Sapphire Rapids Preview QAT IPSec Performance Per Thread Preview
Intel Pre Production Sapphire Rapids Preview QAT IPSec Performance Per Thread Preview

That has an added benefit of using fewer PCIe devices in a server, freeing up PCIe lanes.

If you want to learn more about acceleration, see our Hands-on Benchmarking with Intel Sapphire Rapids Xeon Accelerators. We also discussed it a bit in our Ice Lake-D acceleration video:

Acceleration is great, but it is enabled to a much lower extent on Sapphire Rapids than one might expect given how much Intel is touting the capability. Let us take a look at what is enabled next.
