4th Gen Intel Xeon Scalable Sapphire Rapids: CXL Overview

CXL, or Compute Express Link, is a hot new technology. Servers in 2023 will have the first generation of the technology, but in a few years with CXL 3.0, we expect much higher adoption. Still, the Sapphire Rapids platforms have been out for over a year (see Intel Sapphire Rapids CXL with Emmitsburg PCH Shown at SC21) and were the platform we saw at almost every demo. With that said, CXL support on Sapphire Rapids is going to surprise some folks.

4th Gen Intel Xeon Scalable Sapphire Rapids Platform Updates
4th Gen Intel Xeon Scalable Sapphire Rapids Platform Updates

We covered how Intel can run up to 4x CXL devices per CPU and x16 mode on its PCIe Gen5/ CXL roots. The CXL support is a bit different than we might expect, however.

One will notice that Intel supports CXL 1.1 Type 1 devices with CXL.io and CXL.cache. It also supports CXL 1.1 Type-2 devices with CXL.io, CXL.cache, and CXL.mem.

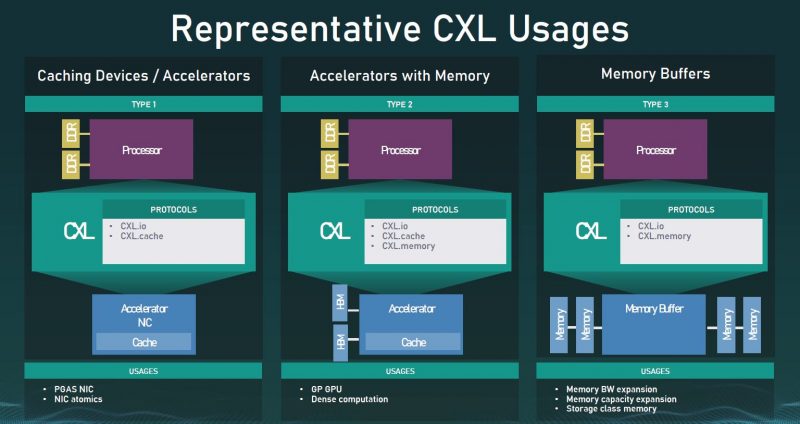

CXL 1.0 And 1.1 Usages
CXL 1.0 And 1.1 Usages

What is going to surprise or shock folks is that Type-3 memory buffers are technically not supported. This is even though the CPU supports CXL.io and CXL.memory as part of Type 2 device support.

This is especially strange since Type 3 devices are perhaps the most common ones we see. Indeed, the first CXL devices we started testing in the STH lab are the Astera Labs Leo CXL memory expanders. These devices allow one to add four DDR5 DIMMs to a CXL x16 card and then address memory as a remote NUMA node without cores attached.

Astera Labs Leo CXL Memory Expansion Card With DIMMs In STH Studio Cover
Astera Labs Leo CXL Memory Expansion Card With DIMMs In STH Studio Cover

These devices are just about everywhere at places like OCP Summit, SC22, and more shows. What is more, at all of these shows, we have seen development happen on theΒ  Intel Eagle Stream platform at various shows for over a year.

Intel Eagle Stream Sapphire Rapids Development Platform CXL Front
Intel Eagle Stream Sapphire Rapids Development Platform SC21 CXL Demo Front

It is hard to count how many companies we saw demoing CXL on Eagle Stream at trade shows, but we mentioned the Microchip example in our SC22 video. That one we watched go from barely working to continue moving up the PCIe speed tiers until, finally, Gen5 speeds at SC22. All of this has been on Intel’s Sapphire Rapids development platform.

Wiwynn At OCP Summit 2022 CXL Memory Expander Prototype
Wiwynn At OCP Summit 2022 CXL Memory Expander Prototype

There is a question of whether we should show the Intel Xeon Sapphire Rapids with the Astera Labs Leo boards. That would be similar to the QCT Astera Labs Leo CXL Memory Expansion demo on Intel Sapphire Rapids at SC22. Here is the strange part, it is actually easier to get the CXL Type 3 devices working on Intel platforms, yet they are not supported.

4th Generation Intel Xeon Scalable Sapphire Rapids 3
4th Generation Intel Xeon Scalable Sapphire Rapids 3

The best answer we have gotten on this is along the lines of:

  1. We are still in the early days of CXL and Type 3 devices. It is still a few months until production devices are really ready
  2. Intel is very conservative in terms of the validation steps before something is considered “supported”
  3. The primitives are all there for memory expansion modules.

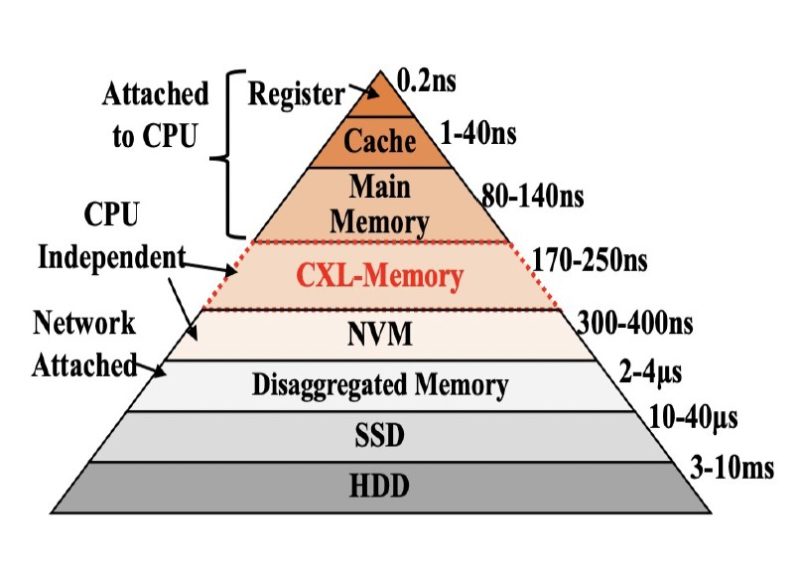

HC34 Compute Express Link CXL Stack Latencies Cover
HC34 Compute Express Link CXL Stack Latencies Cover

CXL memory expansion is really interesting for Intel’s platform though. Adding effectively two more memory channels with latency similar to a remote socket, per x16, means that Intel can get to memory bandwidth figures similar to an AMD EPYC 9004 Genoa part using these CXL devices. If only it supported them.

It is still early days of CXL. This is one where I have no knowledge if it is going to be the case, but I suspect we will see Emmitsburg platforms supporting CXL 1.1 Type 3 devices in a few quarters. In most cases it already works, and is easier than AMD, it is just not supported.

With that philosophical aspect covered, let us get to something more exciting, the Sapphire Rapids platforms.
