4th Gen Intel Xeon Scalable Sapphire Rapids Leaps Forward

34

4th Gen Intel Xeon Scalable Sapphire Rapids: Performance

We are in a transition period between benchmarking CPUs. We still have some single instance workloads, but realistically, there are increasingly fewer CPUs that run single workloads across 60 or 96-core processors. HPC may be an example, but in virtualization, a majority of VMs are 8 vCPUs or less. Containers and microservices have further increased diversity. Later in 2023, we will switch over to a more mixed environment than we even have today, as scaling single workloads is a challenge as they get more complex.

Supermicro SYS 111C NR 1U Intel SPR CPU And Memory 2
Supermicro SYS 111C NR 1U Intel SPR CPU And Memory 2

Intel is highlighting a lot of accelerated workloads in its marketing materials for Sapphire Rapids. We wanted to see what the performance looks like on our existing workloads since the majority of workloads that will transition to Sapphire Rapids in the next 24 months will not take full advantage of new instructions and accelerators.

Python Linux 4.4.2 Kernel Compile Benchmark

This is one of the most requested benchmarks for STH over the past few years. The task was simple, we have a standard configuration file, the Linux 4.4.2 kernel from kernel.org, and make the standard auto-generated configuration utilizing every thread in the system. We are expressing results in terms of compiles per hour to make the results easier to read.

Intel Xeon Platinum 8490H And Platinum 8480 Linux Kernel Compile Benchmark
Intel Xeon Platinum 8490H And Platinum 8480 Linux Kernel Compile Benchmark

Here, the DDR5 transition, along with the newer core architectures, are helping Intel a lot. This is a workload where we were a bit surprised with how well the Intel parts fared. Something that is going to be a theme is that we have the dual 96-core AMD EPYC 9654 figures in our charts. This is a benchmark example of where we had to split the workload up above 64 cores into two instances because huge portions of the chip were sitting idle. That goes back to the need to run a mix of workloads on modern chips to really show what they can do.

c-ray 1.1 Performance

We have been using c-ray for our performance testing for years now. It is a ray tracing benchmark that is extremely popular to show differences in processors under multi-threaded workloads. Here are the 8K results:

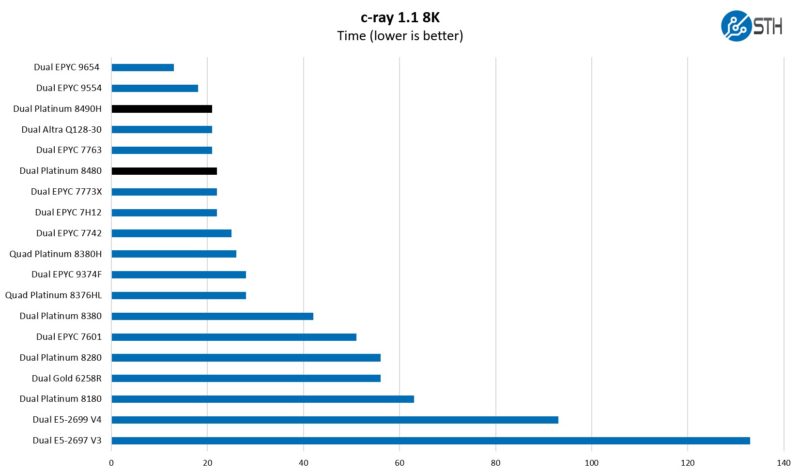

Intel Xeon Platinum 8490H And Platinum 8480 C Ray 8K Benchmark
Intel Xeon Platinum 8490H And Platinum 8480 C Ray 8K Benchmark

Our c-ray 8K benchmark behaves much like a Cinebench on Windows. AMD typically performs very well here due to the way its cache is structured. The new Intel P-cores seem to be handling this slightly better.

7-zip Compression Performance

7-zip is a widely used compression/ decompression program that works cross-platform. We started using the program during our early days with Windows testing. It is now part of Linux-Bench. We are using our legacy runs here to show scaling even without hitting accelerators.

Intel Xeon Platinum 8490H And Platinum 8480 7zip Compression Benchmark
Intel Xeon Platinum 8490H And Platinum 8480 7zip Compression Benchmark

One area that is fun is that we have some quad CPU benchmarks in these charts. One of Intel’s main areas for selling new Xeons is to its existing Xeon installed base. For those with even quad 3rd Generation Intel Xeon Scalable “Cooper Lake” systems, one can get 2:1 consolidation ratios. That is very powerful.

SPEC CPU2017 Results

First, we are going to show the most commonly used enterprise and cloud benchmark, SPEC CPU2017’s integer rate performance.

Intel Xeon Platinum 8490H And Platinum 8480 SPECrate2017_int_base Estimated Result List
Intel Xeon Platinum 8490H And Platinum 8480 SPECrate2017_int_base Estimated Result List

Here, Intel is trailing AMD by quite a bit, even in the 60-64 core range. Our estimated figures tend to be lower than server OEMs that post official numbers because OEMs have teams that spend more time optimizing. Our tested numbers are directionally in-line with what we have seen previously. Published dual-socket numbers are 1790 for the EPYC 9654’s and 991 for the Platimum 8490H. That has Intel at about 55-56% of AMD in officially published SPEC results on an integer side.

Here is the floating point chart:

Intel Xeon Platinum 8490H And Platinum 8480 SPECrate2017_fp_base Estimated Result List
Intel Xeon Platinum 8490H And Platinum 8480 SPECrate2017_fp_base Estimated Result List

Something really interesting is just how close the Platinum 8490H and Platinum 8480 are on both SPECrate2017_int_base and SPECrate2017_fp_base. On the floating point side, Intel can close the gap significantly between its 60-core part and AMD’s 64-core part in this generation. Again, we see more performance from 2x 56 = 112 cores of Platinum 8480 than we did with 4x 28 = 112 cores of Platinum 8380H “Cooper Lake” parts here, at a net lower TDP and system power.

While Intel is saying its customer workloads no longer mirror SPEC CPU2017, these are still important figures. In the enterprise and government space, this is a common RFP metric. While Intel may be pushing away from this metric, it is also one that is widely used.

Just as a quick note, we had been running systems 24×7, but given how long the benchmark scripts take to run after warming up servers, this chart was not in the article when it was published. We had to update the article with these numbers several hours after the piece went live once the runs were complete.

STH nginx CDN Performance

On the nginx CDN test, we are using an old snapshot and access patterns from the STH website, with DRAM caching disabled, to show what the performance looks like fetching data from disks. This requires low latency nginx operation but an additional step of low-latency I/O access, which makes it interesting at a server level. Here is a quick look at the distribution:

Intel Xeon Platinum 8490H And Platinum 8480 STH Nginx CDN Performance
Intel Xeon Platinum 8490H And Platinum 8480 STH Nginx CDN Performance

Transitioning to a more real-world workload, this is one that hits home for us. We are using STH’s actual website data to see how new chips perform. With this test, we can see the impact of DDR5 and the newer architecture. Intel is moving far ahead of its previous generation.

MariaDB Pricing Analytics

This is a personally very interesting one for me. The origin of this test is that we have a workload that runs deal management pricing analytics on a set of data that has been anonymized from a major data center OEM. The application effectively is looking for pricing trends across product lines, regions, and channels to determine good deal/ bad deal guidance based on market trends to inform real-time BOM configurations. If this seems very specific, the big difference between this and something deployed at a major vendor is the data we are using. This is the kind of application that has moved to AI inference methodologies, but it is a great real-world example of something a business may run in the cloud.

Intel Xeon Platinum 8490H And Platinum 8480 MariaDB Pricing Analytics
Intel Xeon Platinum 8490H And Platinum 8480 MariaDB Pricing Analytics

Here is a really interesting view. Intel is doing very well against AMD in this example, with one outlier: Milan-X. The enormous caches of the AMD EPYC 7773X really help that part in this test.

Something to keep in mind here is that in 2017 when Skylake came out and EPYC 7001 Naples also arrived, AMD was expecting to launch the EPYC 7003 series “Milan” against a Sapphire Rapids generation. That is one of the big reasons the parts look closer than one may expect.

STH STFB KVM Virtualization Testing

One of the other workloads we wanted to share is from one of our DemoEval customers. We have permission to publish the results, but the application itself being tested is closed source. This is a KVM virtualization-based workload where our client is testing how many VMs it can have online at a given time while completing work under the target SLA. Each VM is a self-contained worker. This is very akin to a VMware VMark in terms of what it is doing, just using KVM to be more general.

Intel Xeon Platinum 8490H And Platinum 8480 STH KVM STFB Virtualization 1
Intel Xeon Platinum 8490H And Platinum 8480 STH KVM STFB Virtualization 1

Many of the larger VM sizes are actually memory bound. Since we fill all memory channels for each platform, Intel is at a disadvantage on the larger VM sizes simply due to having 1TB of memory using 64GB DIMMs (8 channels, 2 processors, 64GB per channel), whereas AMD has 1.5TB in 12 channels.

When we get to the smaller VM sizes, Intel actually performs quite well, to the point that we can consolidate sockets at a >2:1 clip over quad 3rd Generation “Cooper Lake” platforms even at the same core count with the Xeon Platinum 8480. That result alone is quite astonishing.

Intel Xeon Platinum 8490H And Platinum 8480 STH KVM STFB Virtualization 1 Small
Intel Xeon Platinum 8490H And Platinum 8480 STH KVM STFB Virtualization 1 Small VMs

The gap between the Platinum 8380 and the Platinum 8480H is enormous in many of these, owing to 50% more cores, an updated microarchitecture, and the DDR5 transition.

Intel Xeon Platinum 8490H And Platinum 8480 STH KVM STFB Virtualization 1 Medium
Intel Xeon Platinum 8490H And Platinum 8480 STH KVM STFB Virtualization 1 Medium VMs

The 96-core EPYC 9654 we are leaving on the chart because it is a modern CPU, but it is distorting the view of these chips. The Platinum 8480H with 60 cores is outpacing the EPYC 7773X and EPYC 7763 64 core parts. Remember, Intel is focused more on per-core performance.

At this point, some are probably wondering what is going on with the Xeon Platinum 8490H and EPYC 9554 not just here, but as an overall theme. Here is the easy explanation:

  • The EPYC 9554 has 4 more cores for 6.7% more than the Platinum 8490H
  • The EPYC 9554’s base clock is 3.1GHz. The Platinum 8490H is a 1.9GHz base CPU with an all-core turbo of 2.9GHz. AMD is running its cores at a substantially higher frequency. We validated this trend on three different OEM platforms for both Intel and AMD just to ensure it was not a platform-specific feature
  • The EPYC 9554 has 10W more TDP headroom. We are using the default 360W TDP, but if a server supports it, the EPYC can go up to 400W for a ~3% performance increase over what we are showing here
  • The EPYC 9554 has 12x DDR5-4800 memory channels versus 8x for the Platinum 8490H
  • AMD still has 2x the L3 cache of Intel, but that is also helping increase its IPC a lot

The sum of all of those parts is that while the EPYC 9554 may seem like it is “only” a four-core upgrade over the Platinum 8490H, there is a lot more going on than a 6.7% core count increase.

PCIe Gen4 NVMe SSD Performance

In 2023, we expect most SSDs on new servers to be PCIe Gen4. While PCIe Gen5 is supported, most vendors are telling us that PCIe Gen4 will be the dominant NVMe SSD platform still. Since we had data from several other platforms and we tested this with Genoa, we wanted to test Sapphire Rapids as well.

Kioxia CM6 PCIe Gen4 NVMe SSD Four Corners Performance
Kioxia CM6 PCIe Gen4 NVMe SSD Four Corners Performance

Intel seems to have done a good job here. We are getting slightly better performance with our Kioxia CM6 NVMe SSD on the Intel platform. Intel spends a lot of time on its PCIe validation, so this should perhaps be expected. On the other hand, it was good to see that we did not lose a lot of performance here with the Gen5 lanes clocking down to Gen4.

Kioxia CM6 Cover
Kioxia CM6 Cover

That brings us to the next section, acceleration.
