Supermicro X11SPA-T Motherboard AIDA64 CPU Benchmarks

Benchmark pages of AIDA64 Extreme provide several methods to measure system performance. These benchmarks are synthetic, so their results show only the theoretical (maximum) performance of the system.

CPU and FPU benchmarks of AIDA64 Extreme are built on the multi-threaded AIDA64 Benchmark Engine that supports up to 1280 simultaneous processing threads. It also supports multi-processor, multi-core and HyperThreading enabled systems. More information about these benchmarks can be found here.

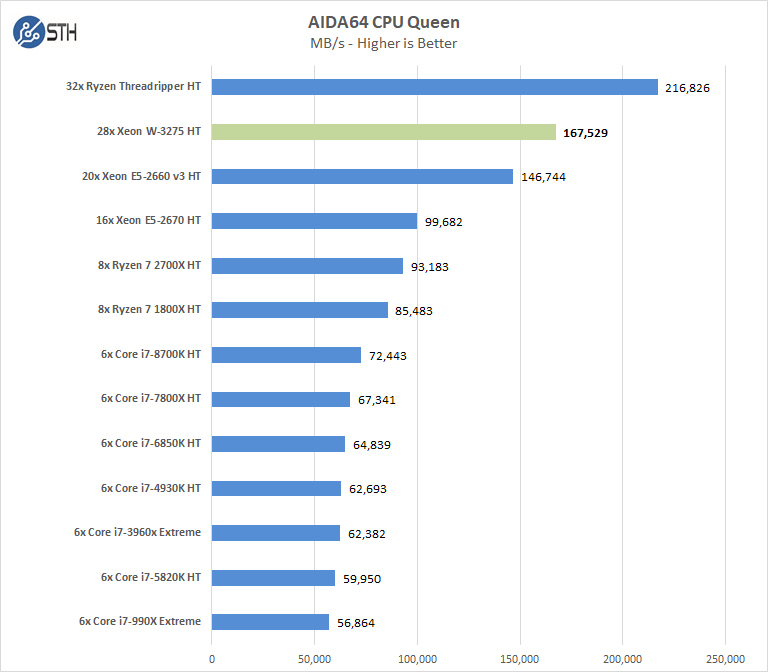

Supermicro X11SPA T AIDA64 CPU Queen
Supermicro X11SPA T AIDA64 CPU Queen
Supermicro X11SPA T AIDA64 CPU PhotoWorxx
Supermicro X11SPA T AIDA64 CPU PhotoWorxx
Supermicro X11SPA T AIDA64 CPU ZLib
Supermicro X11SPA T AIDA64 CPU ZLib
Supermicro X11SPA T AIDA64 CPU AES
Supermicro X11SPA T AIDA64 CPU AES

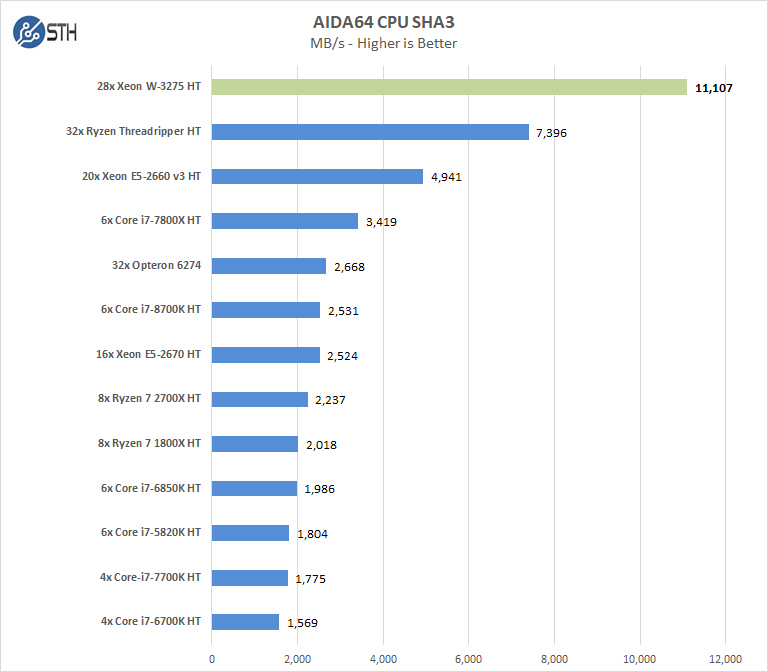

Supermicro X11SPA T AIDA64 CPU SHA3
Supermicro X11SPA T AIDA64 CPU SHA3
Supermicro X11SPA T AIDA64 FPU Julia
Supermicro X11SPA T AIDA64 FPU Julia

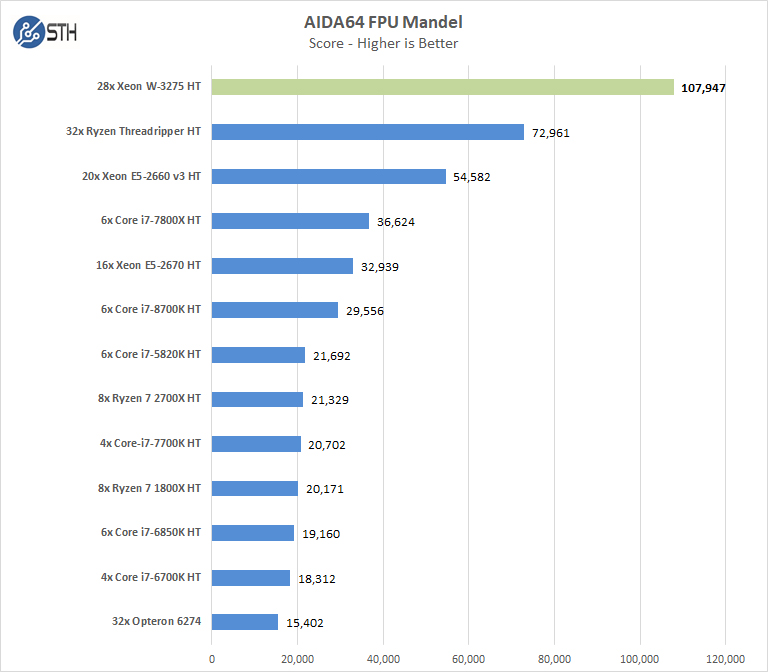

Supermicro X11SPA T AIDA64 FPU Mandel
Supermicro X11SPA T AIDA64 FPU Mandel
Supermicro X11SPA T AIDA64 FPU SinJulia
Supermicro X11SPA T AIDA64 FPU SinJulia

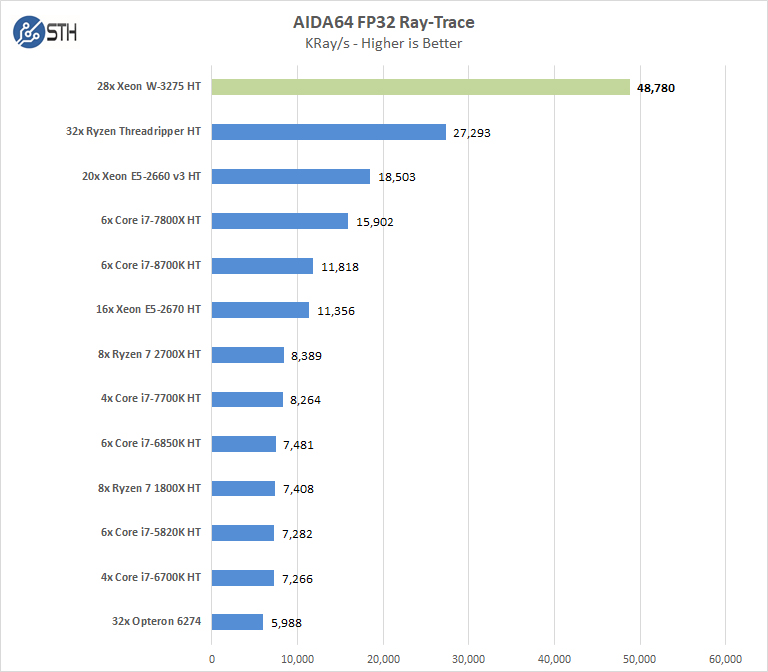

Supermicro X11SPA T AIDA64 FP32 Ray Trace
Supermicro X11SPA T AIDA64 FP32 Ray Trace

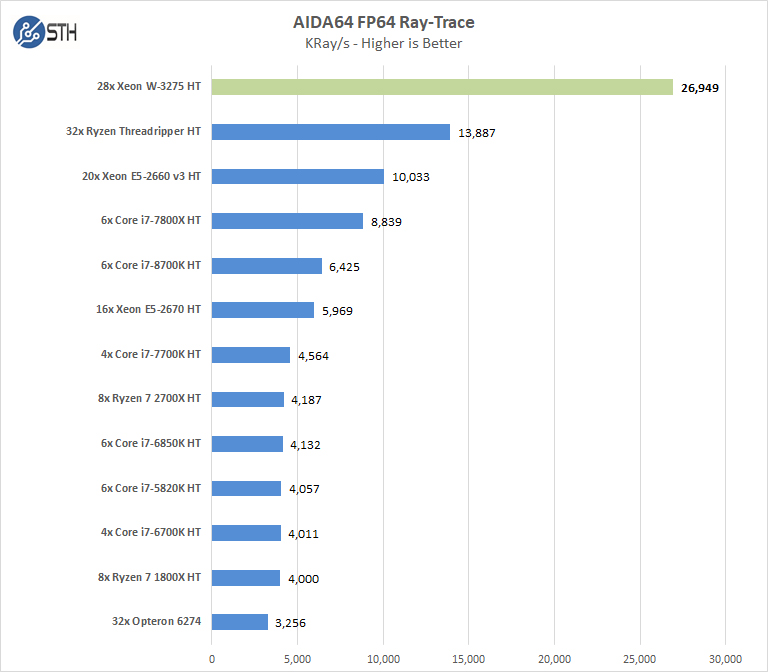

Supermicro X11SPA T AIDA64 FP64 Ray Trace
Supermicro X11SPA T AIDA64 FP64 Ray Trace

In some cases, the 32 core Ryzen Threadripper head the top scores, but often the W-3275 28 core processor had clear advantages even using fewer cores.

Next, we are going to look at the power consumption before getting to our final thoughts.
