Heart of the Spark: NVIDIA GB10
Given our limited timeline, not wanting to break our system, and the fact that we already had motherboard shots, we are going to use some from earlier on STH. Here is the motherboard in all of its glory.
At the heart of the system is the NVIDIA GB10 (Grace Blackwell) package that combines a 20-core Arm CPU with a Blackwell generation GPU connected via C2C NVLink. We also see these are flanked by 128GB of LPDDR5X memory.
We will show that unified memory later, but that is a significant feature because it means we have one large memory pool to work with.
The NVIDIA GB10 is a collaboration with Mediatek and the Arm CPU side comes from Mediatek IP. It is then married with the NVIDIA Blackwell GPU side using the C2C link. This is conceptually similar to a higher-end Grace Blackwell part, but it is like a smaller version that could also be used in desktops and notebooks one day.
Here is a bit on the 140W TDP of the SoC (that is not system power) and how the GPU and Arm SoC are connected. If you want to learn more, you can see Ryan’s NVIDIA Outlines GB10 SoC Architecture at Hot Chips 2025.
Here are the key specs including the TSMC 3nm process technology, and 2.5D packaging and more.
On the GPU side, we can see that the Blackwell GPU has 24MB of graphics L2 cache, and 600GB/s of aggregate bandwidth even though the LPDDR5X bandwidth is less than half of that.

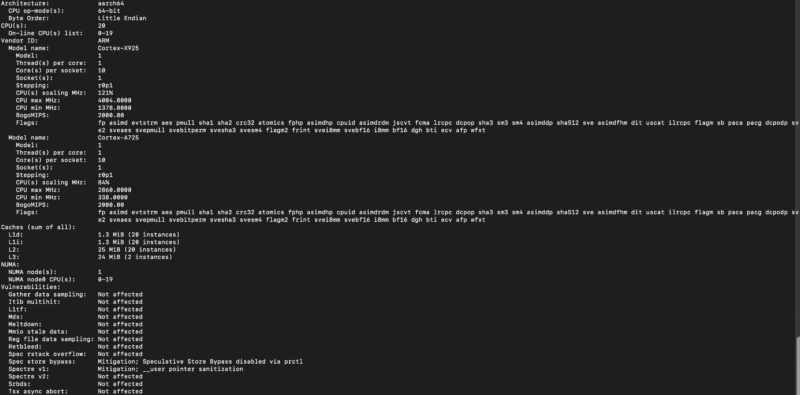

Here is a quick look at the 20-core Arm CPU’s lscpu output:
Here is the NVIDIA Blackwell GPU’s nvidia-smi output.
If you see the motherboard, something that should stick out is that the ConnectX-7 is not a small feature. This is roughly a NVIDIA ConnectX-7 OCP NIC 3.0 we reviewed as a 2-port 200GbE network adapter. Even on eBay used, ConnectX-7 NICs sell for $900+.
When folks talk about the cost of the GB10 systems, make no mistake, the ConnectX-7 is a large portion of the overall value proposition.

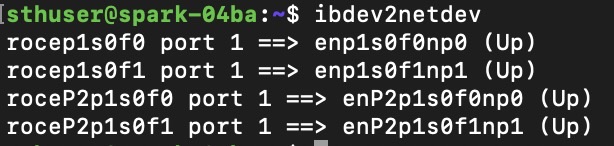

In the event that you were wondering if the NIC actually supports RDMA and RoCE, here you go:

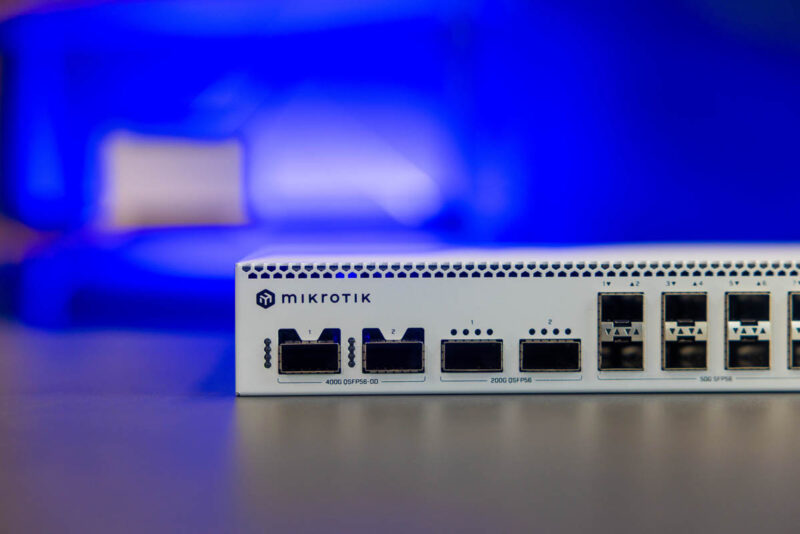

What may also make folks excited is that we can get the same output going over the MikroTik CRS812 DDQ / CRS812-8DS-2DQ-2DDQ. I told NVIDIA that I had a switch that could easily give six ports of 200GbE with eight ports of 50GbE left over. The QSFP56-DD ports split into 2x 200GbE ports and there are two QSFP56 ports here.

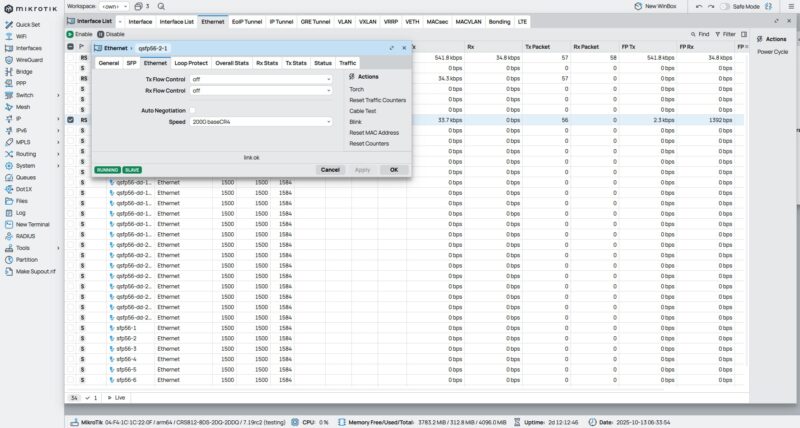

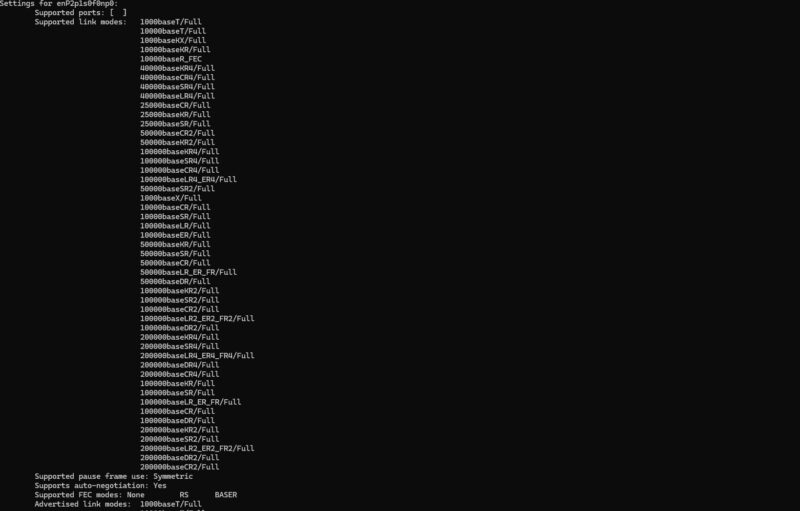

One small item we should note is that the direct attach method seems to auto negotiate 200GbE speeds. Going through this new MikroTik switch requires manually setting 200Gbps port speeds.
It seems likely that since these have high-end RDMA networking, folks are going to start clustering them.

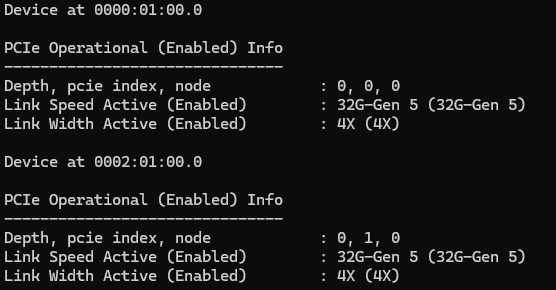

When we look at the ConnectX-7, however, we see that we only have a 32GT/s PCIe x4 link on the CX7 NICs.

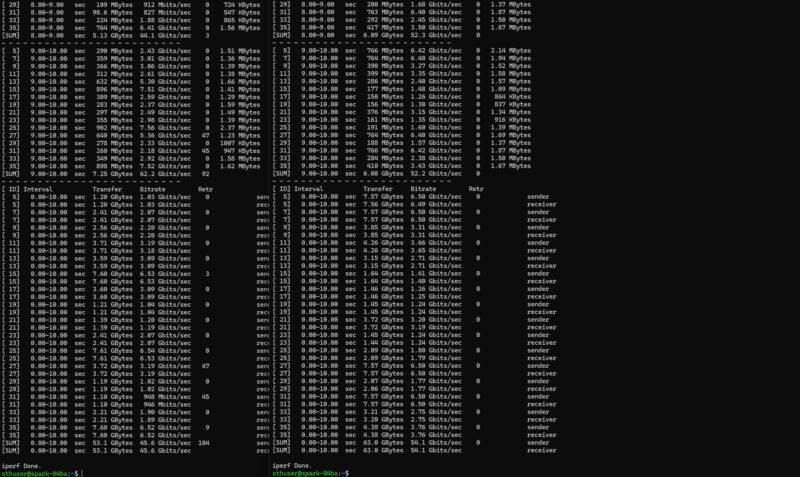

The PCIe Gen5 x4 is notable since a Gen5 x4 link is roughly a 100Gbps NIC. When we push simple iperf3 traffic across both ports, we get the same ~96Gbps of traffic that we get going over a single port when they are linked.

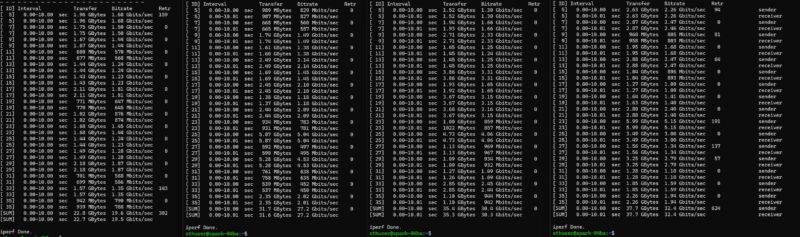

Since the ConnectX-7 shows up as four devices, we ran iperf3 binding the NICs to do four end-to-end tests, both using DACs and through the MikroTik CRS812 DDQ:

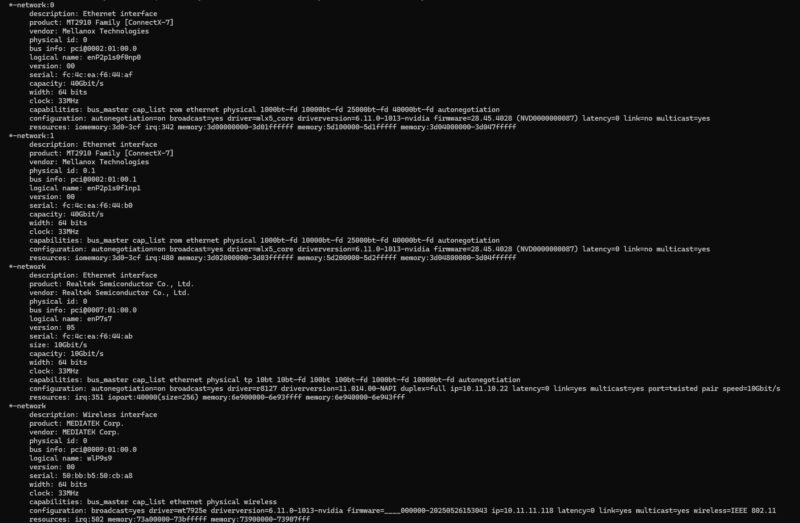

A quick also-note is that we have Realtek 10Gbase-T networking and Mediatek WiFi 7 as well. That WiFi 7 can be used for the initial setup as well.
Next, let us get to the topology.
