Lenovo ThinkSystem ST45 V3 Internal Hardware Overview

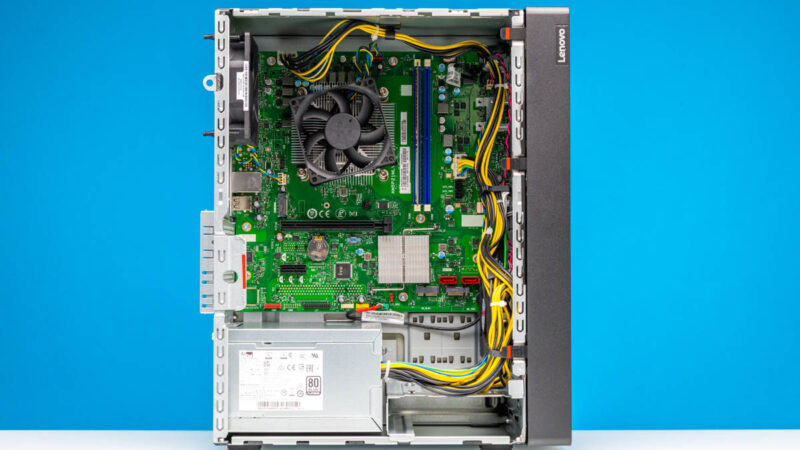

Looking inside the system, we see a fairly standard Lenovo layout. Something that we do not have in this system is all of the metal brackets for 3.5″ drives since we did not add those to the configuration.

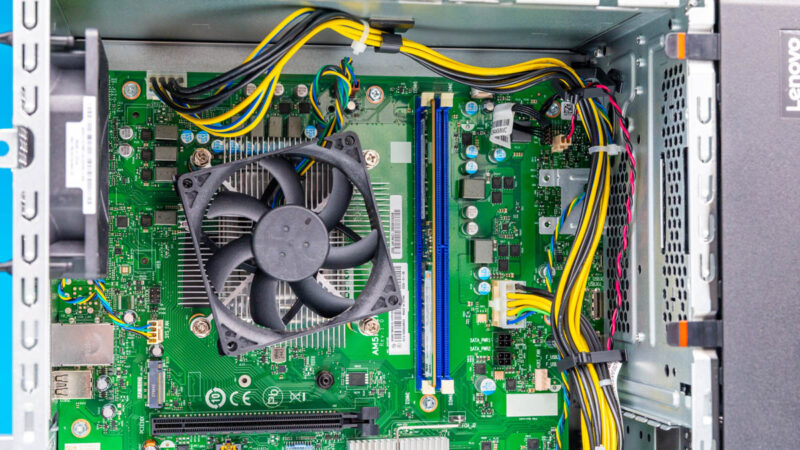

Looking at the top, we see the motherboard power inputs, but also the CPU and memory.

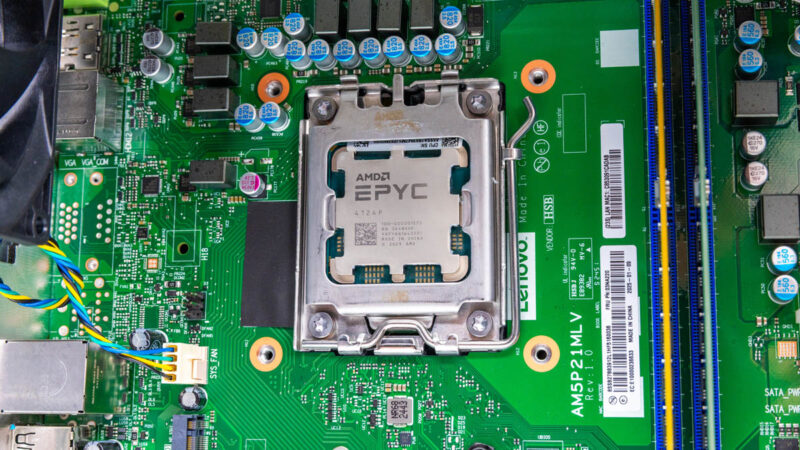

Under the heatsink, we had the AMD EPYC 4124P a 4 core, 8 thread processor. On the ST50 V3 in this price range we got the Intel Xeon E-2414 a 4 core, 4 thread processor. Those extra threads have a big impact on performance as we discussed in The Key Feature for Server CPUs is Still Two Threads Per Core.
Lenovo only supports up to 65W TDP CPUs, so the highest-end processor we can get is the 12-core/ 24 thread EPYC 4464P. In our recent Mapping Licensing for Virtualization is Cool Now piece, we showed why that is a much better processor than the Xeon E-2488 that comes in the ST50 V3 for Microsoft Windows Server. Thanks to AMD, we were able to upgrade the system to test both ends of the spectrum.

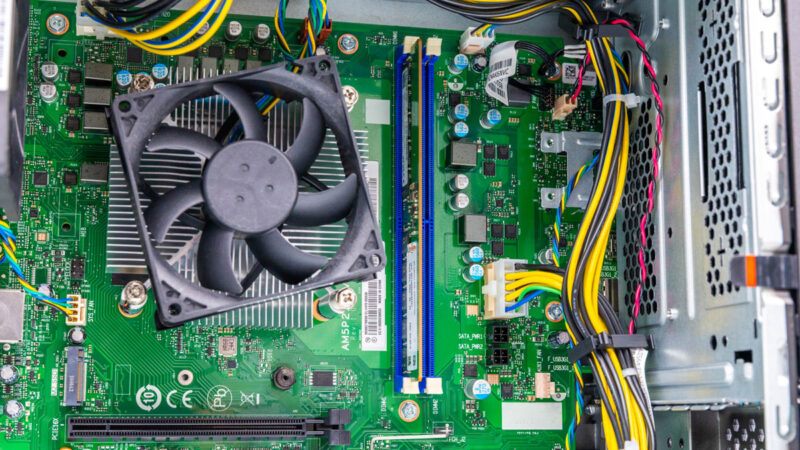

One area we wish Lenovo would change is to give the system four DDR5 DIMM slots. The EPYC 4004 series uses higher-speed DDR5 memory than the Xeon E-2400 series so we get mroe memory bandwidth. With only two slots, we are a bit more limited on the capacity side. Lenovo says the maximum capacity is 2x 32GB DDR5 ECC UDIMMs, for 64GB total. We upgraded the system both with Generic 48GB DDR5-5600 ECC UDIMMs and the V-Color 96GB DDR5-5600 48GB x2 ECC UDIMM Kit and we were able to get 96GB working. You do that at your own risk, but it worked for us with two different kits.

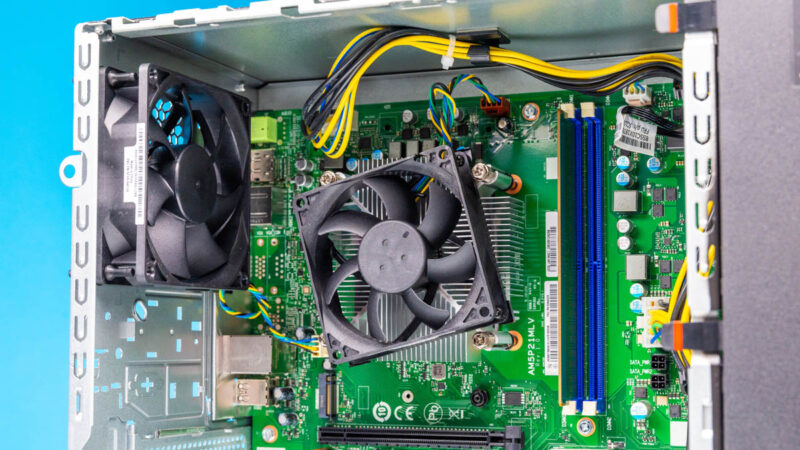

There is also a fan at the top of the chassis moving air.

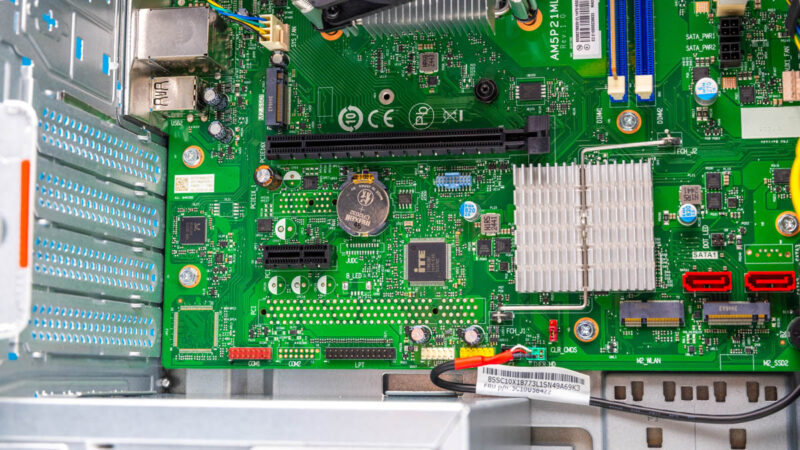

On the bottom of the motherboard, we have our PCIe slots, and even SATA connections.
There is a M.2 slot between the CPU and the PCIe x16 slot. That may not seem like a big deal, but our ST50 V3 does not have an onboard M.2 slot. We had to use the Sabrent M.2 NVMe SSD to PCIe Gen5 x16 AIC just to get a M.2 SSD installed on the ST50 V3 making this M.2 slot on the ST45 V3 great.

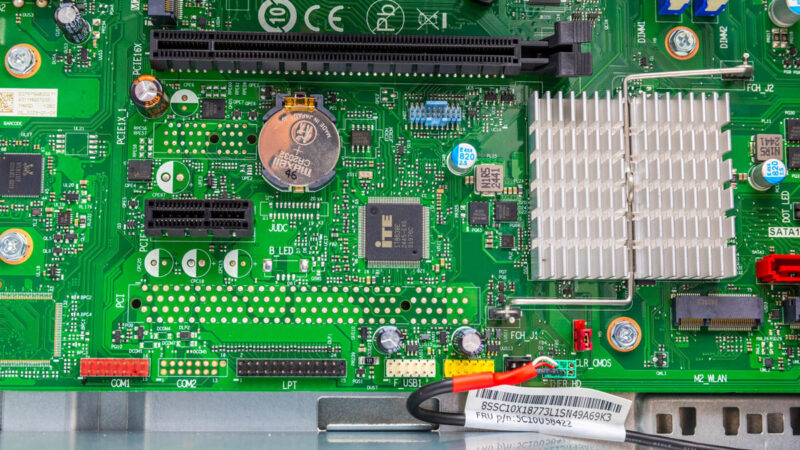

Below that we have two more slots, an x16 and a x1. We ended up putting a Syba Dual 2.5 Gigabit Ethernet Adapter (Amazon Affiliate link) in the x1 slot, and a Sonnet McFiver (Amazon Affiliate link) in the x16 slot. That added two 2.5GbE ports, a 10Gbase-T port, two USB Type-C ports, and two M.2 SSDs to the configuration. Of course, that was just our option, but there are plenty of other configuration options out there.

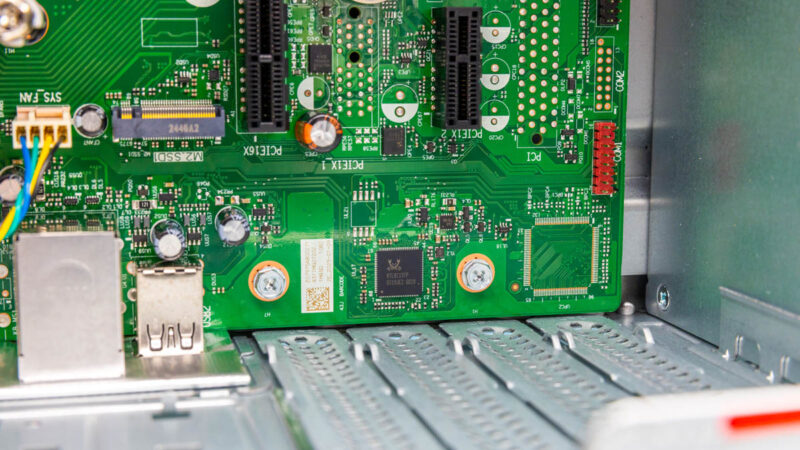

Onboard, we have the Realtek RTL8111FP NIC for our rear 1GbE networking.

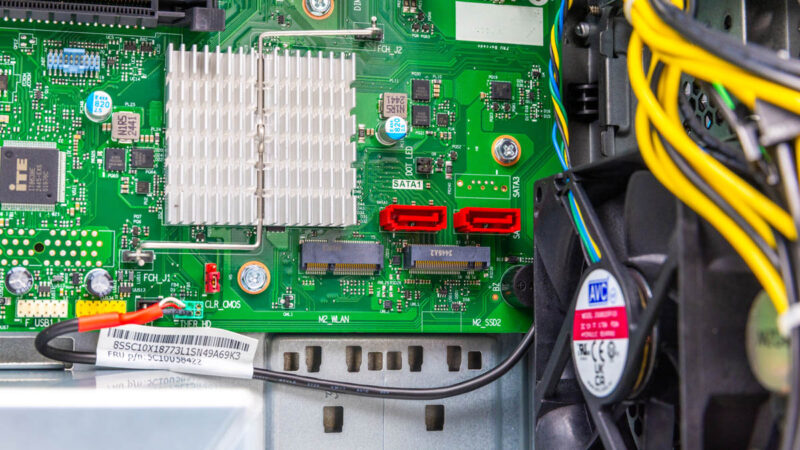

This system only has two SATA ports. 3.5″ disks are still used sometimes at the edge, but we are seeing an overall reduction in SATA ports as M.2 SSDs have taken over due to decreasing costs and having an order of magnitude better reliability.

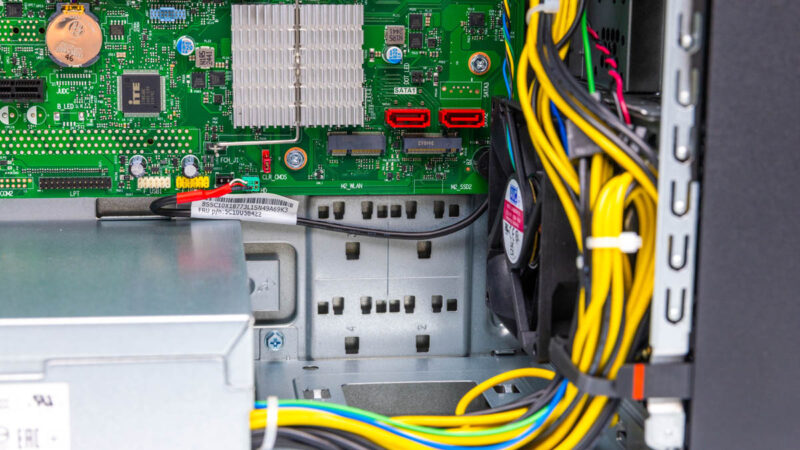

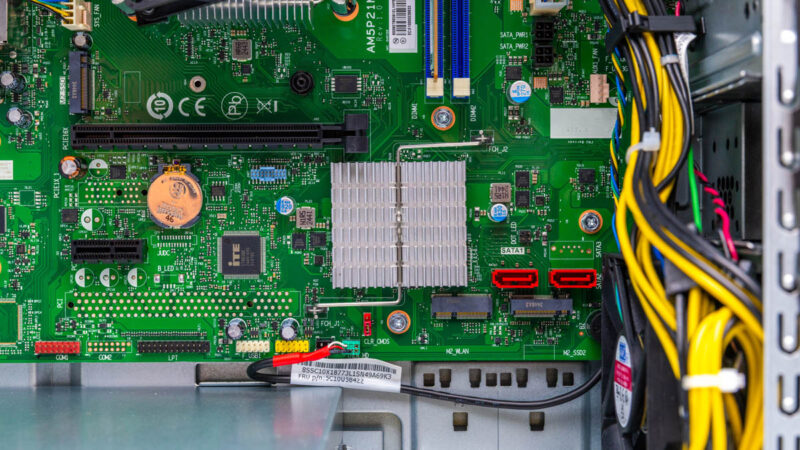

On the bottom edge of the motherboard, we get another M.2 slot and a WiFi card slot. The WiFi card slot is not on the spec sheet, but it is there and clearly labeled. The M.2 slot is on the spec sheet and extends past the motherboard to mounting points on the chassis. If you do not order a second M.2 SSD, your system will look like ours without the standoffs, but it does not take much creativity to figure this out. Again, our ST50 V3 did not have any onboard M.2 slots.

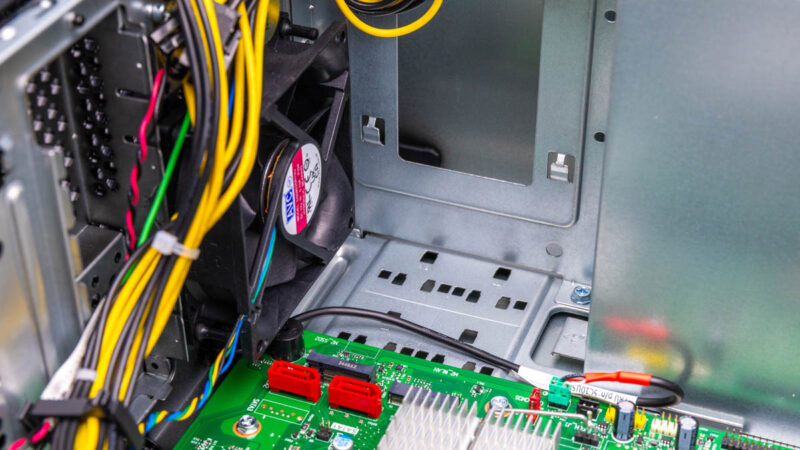

The M.2 down in this area is also next to a front fan so it gets plenty of cooling.
The power supply is fixed. Since I knew we would be customizing the system, we ordered the 500W 80Plus Platinum power supply. We would have been fine with the base 300W PSU though.
