Sometimes you just need to add a SSD. The Sabrent M.2 NVMe SSD to PCIe Gen5 x16 AIC is designed to do just that, add a M.2 SSD to a PCIe slot. We originally purchased this adapter for a use that it almost worked in, but it has been performing well, so it is time for a mini-review of this lower-cost $20 adapter with two really nice features that lower-cost adapters lack.

Note: If you want to check current pricing or find the unit, here is an Amazon Affiliate link to what we purchased.

Sabrent M.2 NVMe SSD to PCIe Gen5 x16 AIC Mini-Review

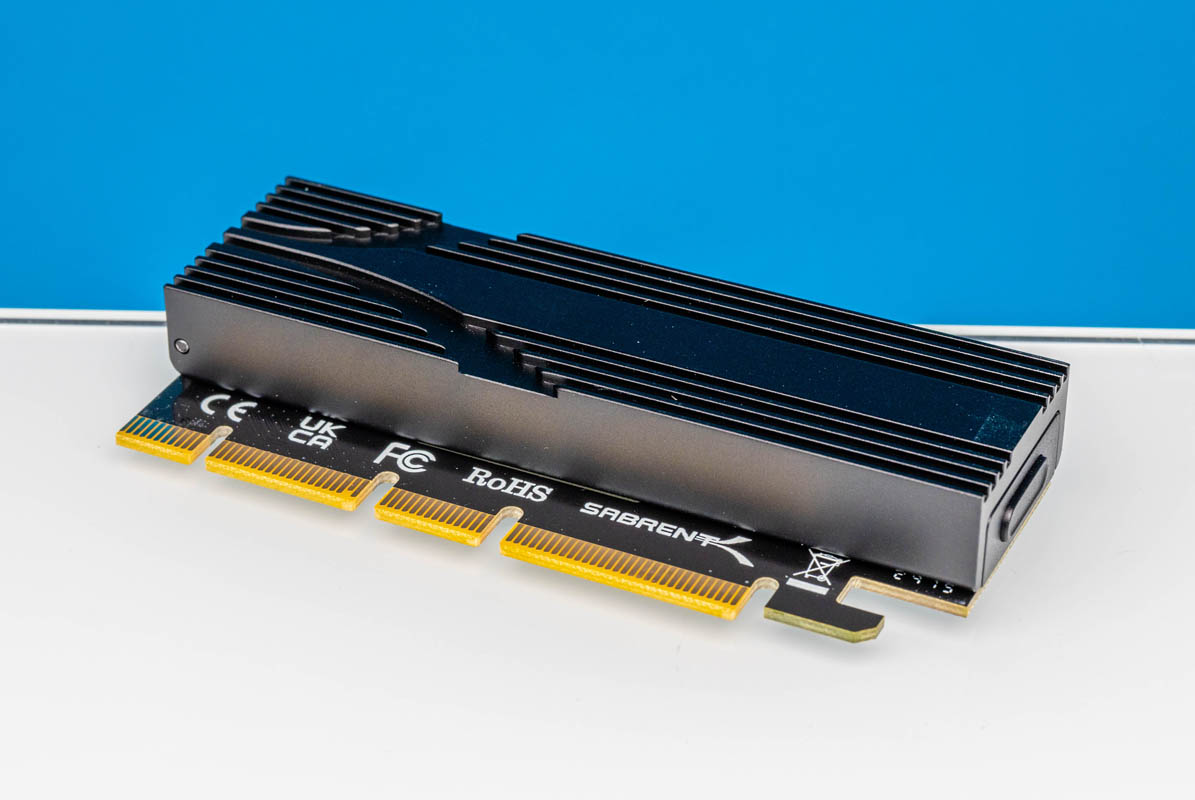

Looking at the unit, it is a short PCIe x16 card with a heatsink for the mounted SSD. Being PCIe x16 means that we can get a locking tab at the end of the slot. It also makes it a bit more challenging to use in smaller slots as we will show later when we install the card.

Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Top View
Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Top View

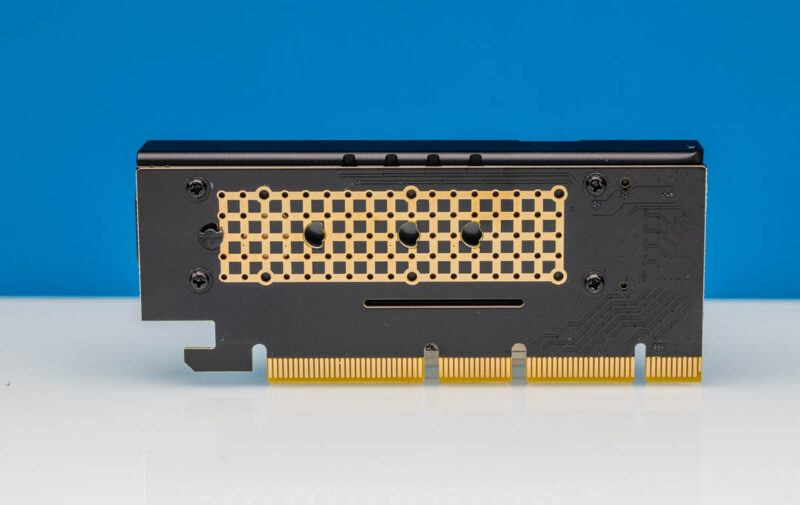

On the back, we get our mounting holes for various M.2 lengths, but ours came pre-fitted for a M.2 2280 (80mm) drive.

Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Back View
Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Back View

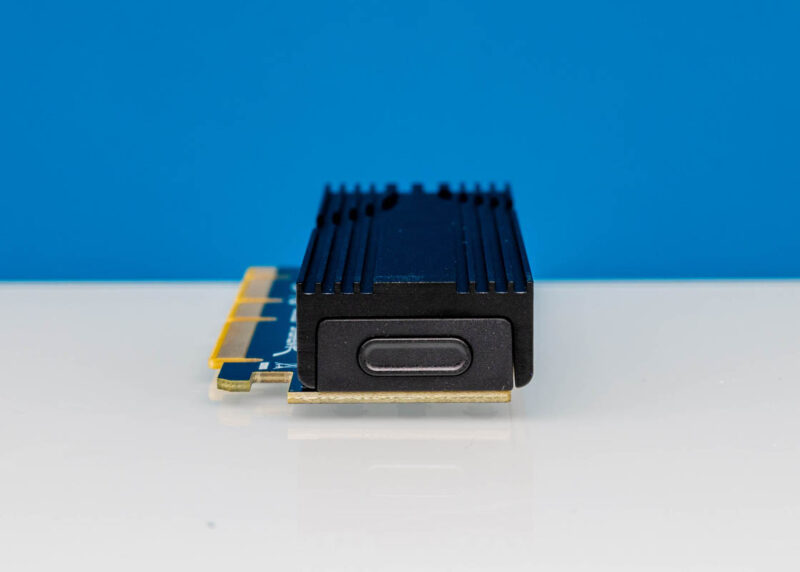

This is the button that unlatches the heatsink.

Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Front To Rear
Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Front To Rear

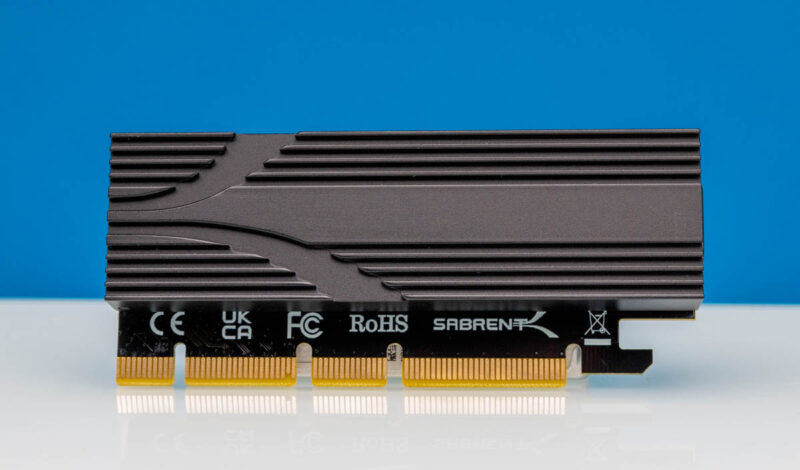

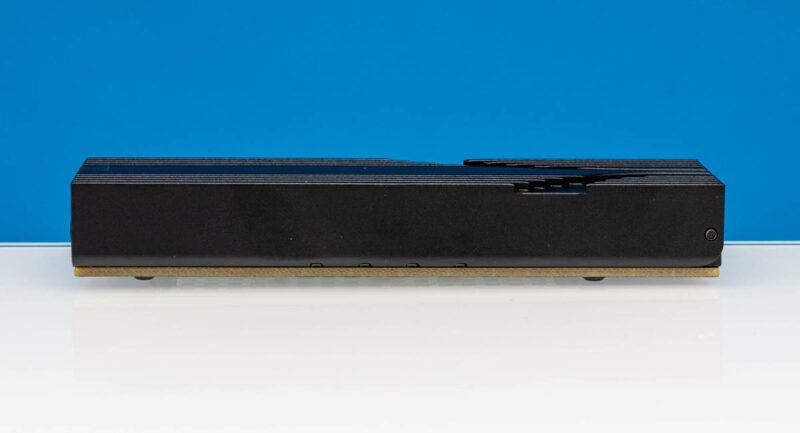

Here is the top.

Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Top
Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Top

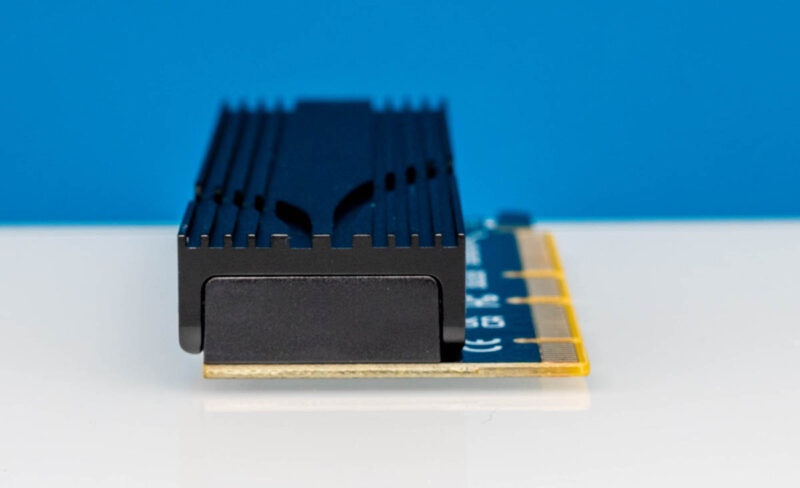

Here is the hinge side which faces towards the chassis I/O slot.

Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Rear To Front
Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Rear To Front

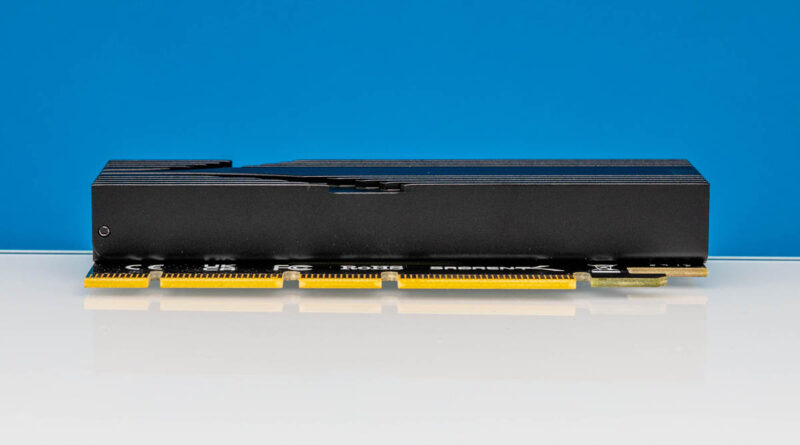

Here is a view from the PCIe connector.

Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC PCIe Connector
Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC PCIe Connector

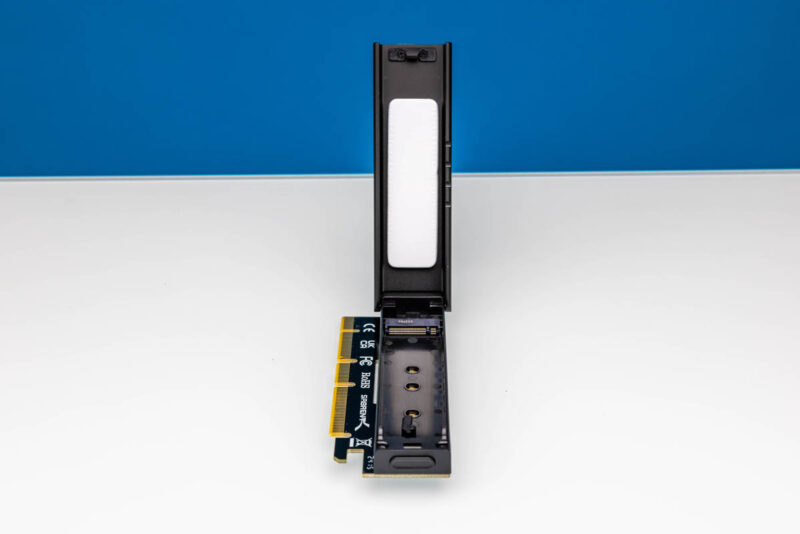

Pressing the latch button allows us to open the heatsink and we can see a good sized thermal pad there.

Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Open
Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Open

Here is where the M.2 SSD goes and you can see the different mounting lengths. Note, this only goes to M.2 2280, not M.2 22110.

Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Open 2
Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Open 2

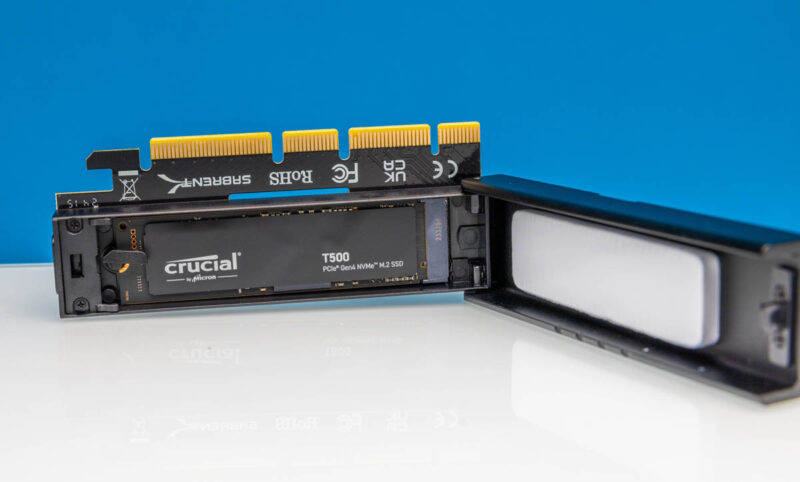

Here we installed a Crucial T500 2TB PCIe Gen4 NVMe SSD. In hindsight, we probably should have bought a Sabrent drive to put in there, but this is roughly a Rocket 4 Plus levle drive.

Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Open With Crucial T500
Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Open With Crucial T500

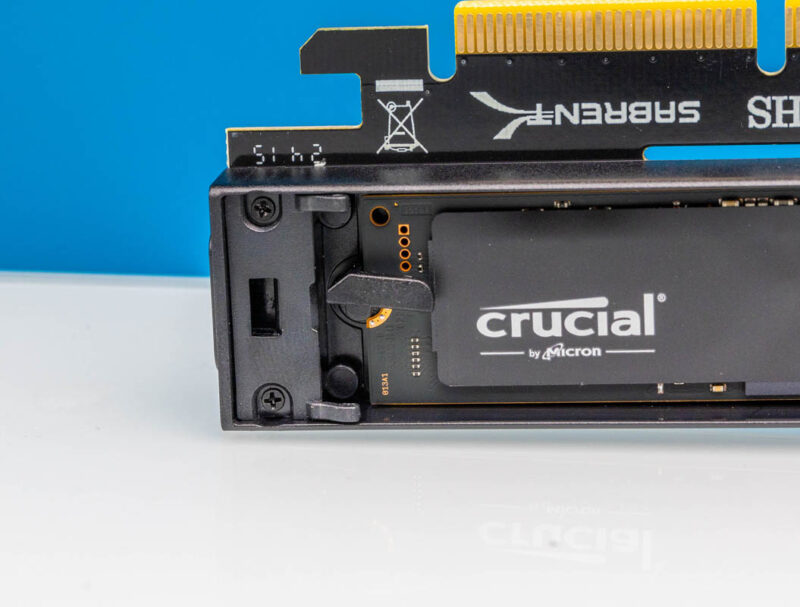

Here is the M.2 latching mechanism. This is tool-less. If you have ever used one of the $10 M.2 SSD adapters and had to deal with screws, this is the easy version.

Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Tool Less Latch
Sabrent M.2 NVMe SSD To PCIe Gen5 X16 AIC Tool Less Latch

Something this did not come with is a full-height or low-profile bracket. Instead, the idea seems to be that you lock it into a x16 slot.

Next, let us get to our application to see how it was very close to what we needed.
