Lenovo has finally done it. For the past 15 years, Intel Xeon E systems have dominated the entry server market. Now, Lenovo has become the first traditional server maker to offer its entry server in AMD EPYC 4000. While numerically lower, the Lenovo ThinkSystem ST45 V3 offers significantly more performance than the Xeon-based ST50 V3. In our 2024 piece The AMD EPYC 4004 is Finally Here and Intel Xeon E Needs an Overhaul we showed how much faster the EPYC 4004 chips were, and we were able to show that here.
Of course, for this one we have a video:
We always suggest watching this in its own browser, tab, or app for the best viewing experience. Also, we are going to say AMD is sponsoring this. They helped with both the chips and funds to purchase the Lenovo server. Also, some of the components we used are from the sponsorship of the STH YouTube members so we need to say thank you to them as well.
Lenovo ThinkSystem ST45 V3 External Hardware Overview

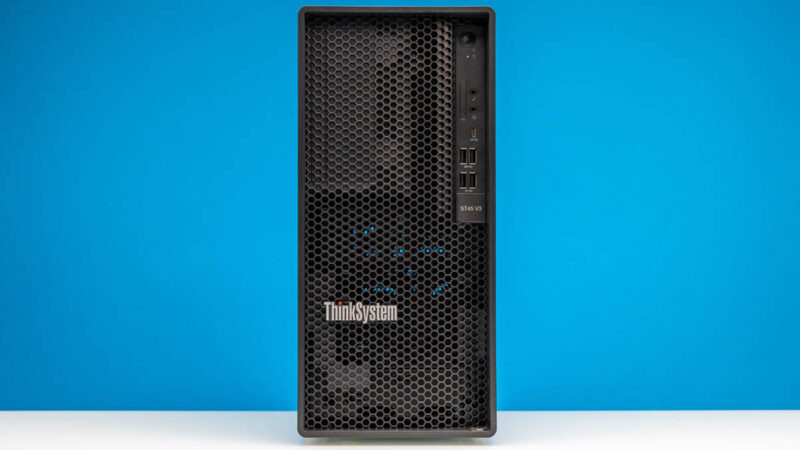

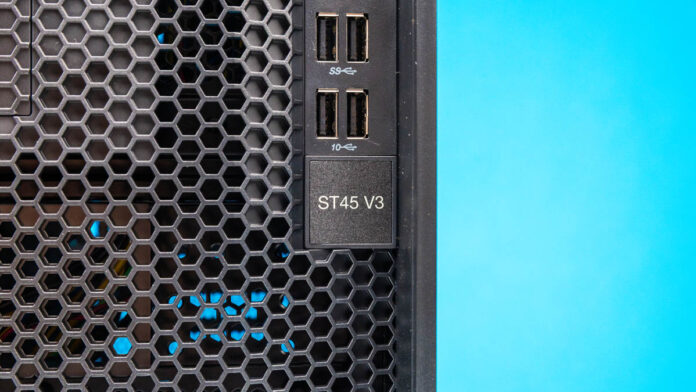

If you took a quick glance at the ThinkSystem ST45 V3, and did not see the label, you might mistake it for the ST50 V3. They are both 17L chassis measuring around 170 x 376 x 316 mm or 6.7 x 14.8 x 12.4 inches. It is clear Lenovo intends to offer options in this form factor.

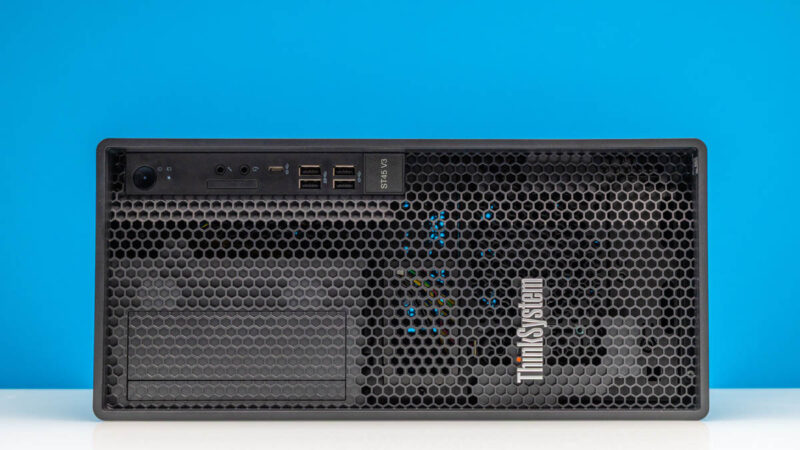

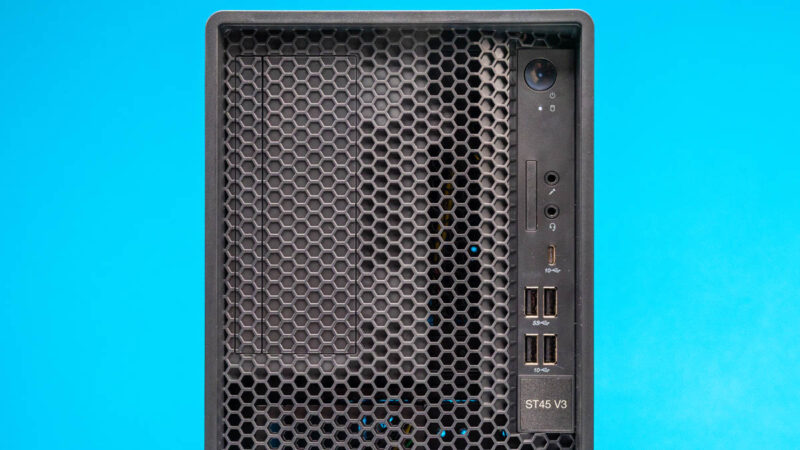

On the top, we have five USB 3 ports, including one USB Type-C port. There is also a microphone input and a combo audio jack. This is a lot of connectivity for an average server, and part of us wonders how many folks will use these for external USB hard drives.
Hopefully this view helps, but there are also front optical drive bays that we do not have populated.
Optical drive bays are still a common feature in this segment while we have seen them largely disappear from rackmount servers.

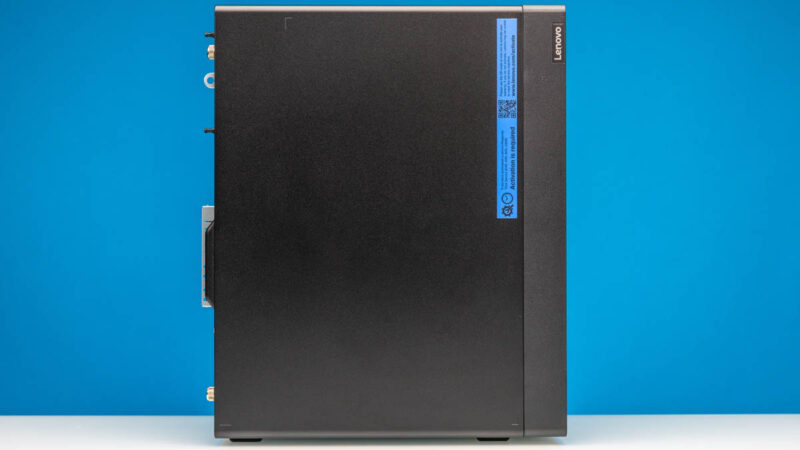

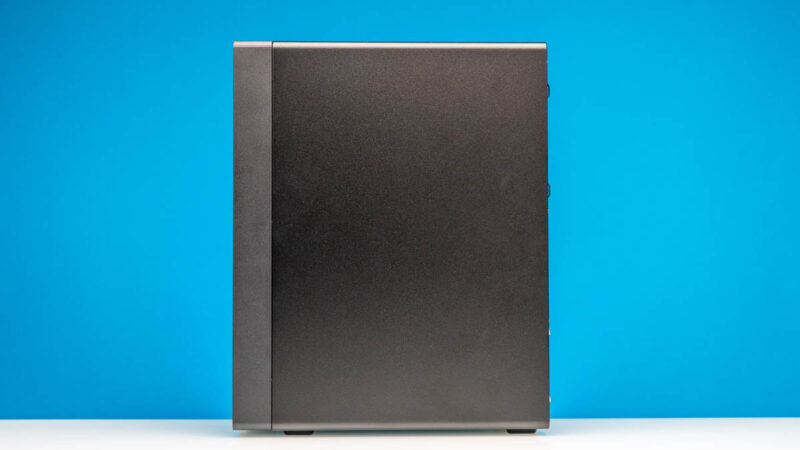

The sides are fairly unremarkable metal sheets.

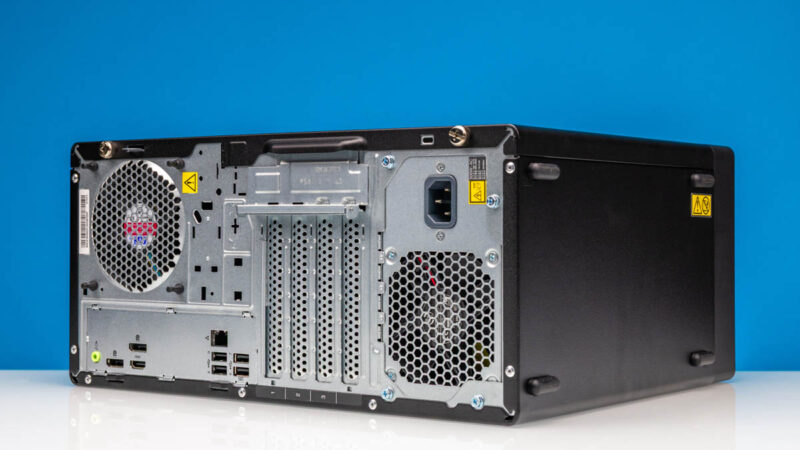

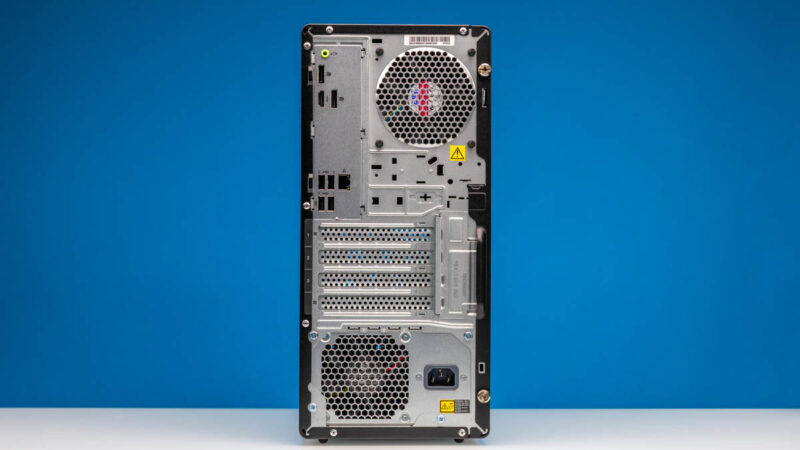

Moving to the rear, things get more interesting.
At first, the layout looks very similar to the ST50 V3, but there are a few key differences.

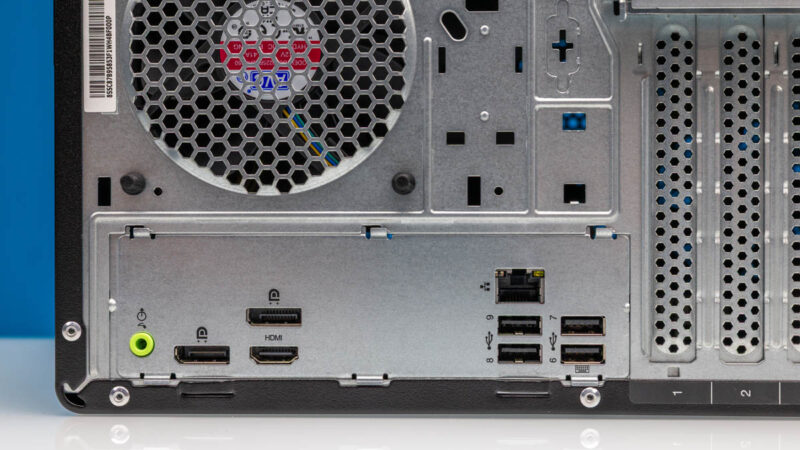

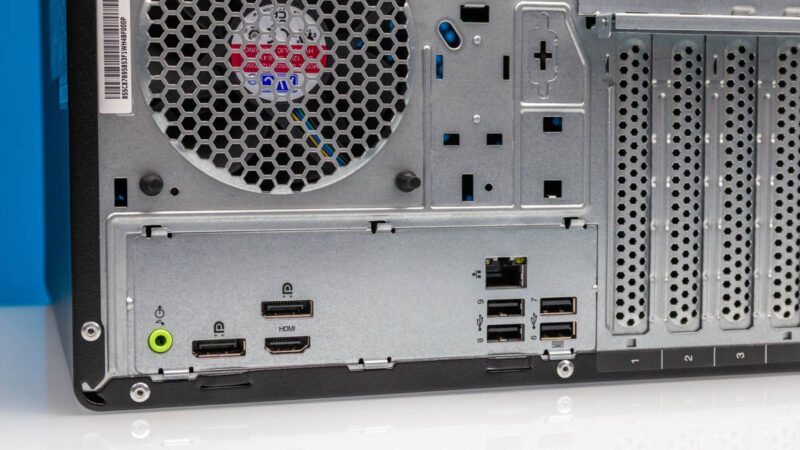

Easily one of the biggest differences comes in the form of display outputs. Here we get a HDMI 2.1 port and two DisplayPort 1.4 ports. We get an audio line out jack as well, albeit this is not as isolated as we see on consumer boards. In contrast, the ST50 V3 only has a VGA port.
The other big change is the networking and USB. On the rear, we get four USB 2.0 ports. That means the ST45 V3 has nine total USB ports while the ST50 V3 has six. On the networking side, we get a single 1GbE Realtek RTL8111-based NIC. The ST50 V3 in contrast has a 1GbE dual port Broadcom NIC and an out-of-band NIC for XClarity.
At this point, you have probably figured out the differentiation that Lenovo is doing. The ST50 V3 with the Intel Xeon has the BMC and multiple 1GbE NICs. In contrast, the ST45 V3 has USB ports, and display outputs for local management. Generally, I wish that Lenovo had the BMC on the ST45 V3, but in the low-cost edge tower server market a number of those machines are administered locally, and thus a DisplayPort and HDMI port are preferable. The display outputs can also be used for running digital signage which is common in small business servers.

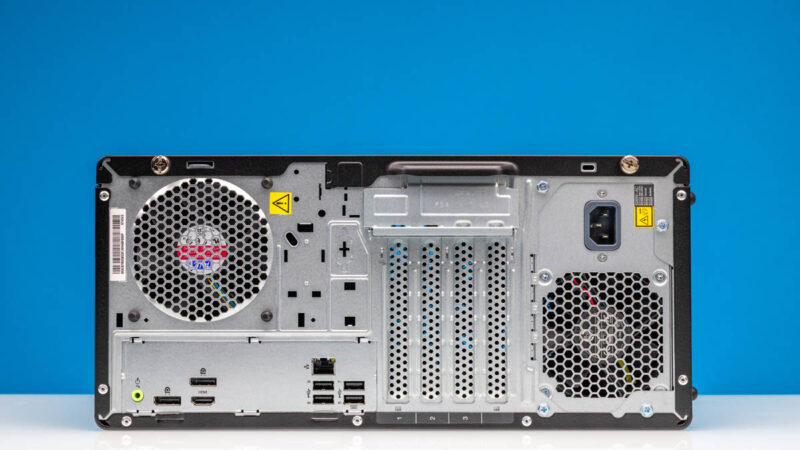

Beyond the rear I/O, we get our AC power input as well as four expansion slots. The storage differences are also stark, so more on that as we get inside the system.
