Lenovo AMD EPYC 7002 Servers Make a Splash

14

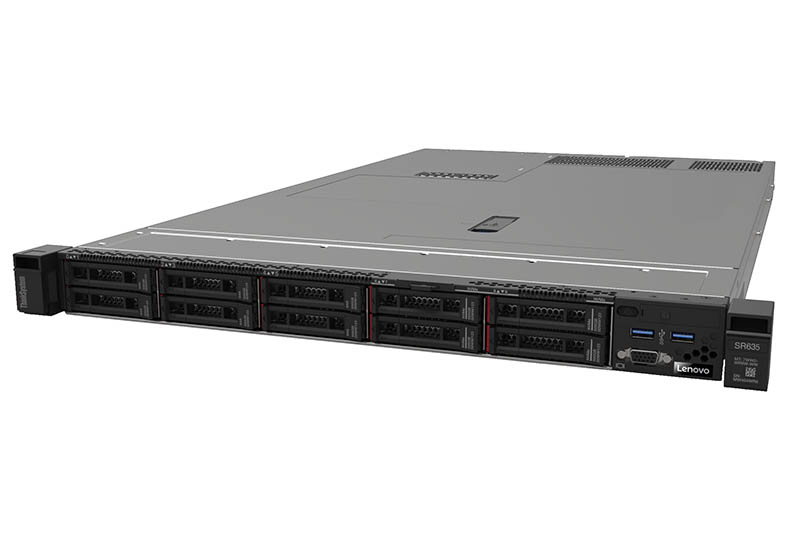

Lenovo ThinkSystem SR635 Front
Lenovo ThinkSystem SR635 Front

For anyone who read STH’s in-depth AMD EPYC 7002 review piece, one thought will be clear: the AMD EPYC 7702P represents what may be an insane value in the market. AMD has been using lower-cost “P” series single-socket parts pushing an agenda of making single-socket servers viable, if not preferred. Lenovo was notably quiet on the first generation of AMD EPYC 7001, but with the second generation, it is making quite the splash. Two new single-socket AMD EPYC 7002 servers are going to provide customers with unique takes on the single-socket platforms.

Lenovo AMD EPYC 7002 Servers Make a Splash

Lenovo has two new AMD EPYC 7002 platforms for this generation. The Lenovo ThinkSystem SR635 is the company’s 1U offering while the SR655 is the 2U offering.

Lenovo ThinkServer SR635

The Lenovo ThinkServer SR635 is a 1U server, with a twist. Powered by the new AMD EPYC 7002 series, the SR635 offers something we have not seen yet from other servers. Up to 16x 2.5″ U.2 NVMe SSDs. Most 1U servers have between 8 and 12 U.2 NVMe SSDs which makes this a huge differentiator. Lenovo uses 10x hot-swap front panel drives, 2x rear drives, and up to 4x mid-chassis drives.

Lenovo ThinkSystem SR635 Internal Diagram
Lenovo ThinkSystem SR635 Internal Diagram

There are other options Lenovo offers to have SATA/ SAS and 3.5″ drives mixed into the chassis. That makes the server one of the most versatile 1U platforms on the market. Beyond that, one can get up to four PCIe Gen4 slots (one RAID, three expansion) and even fit up to three 75W GPUs in the chassis. We also like the use of the OCP networking slot as that is driving towards more open standards. This is a very positive step for the platform.

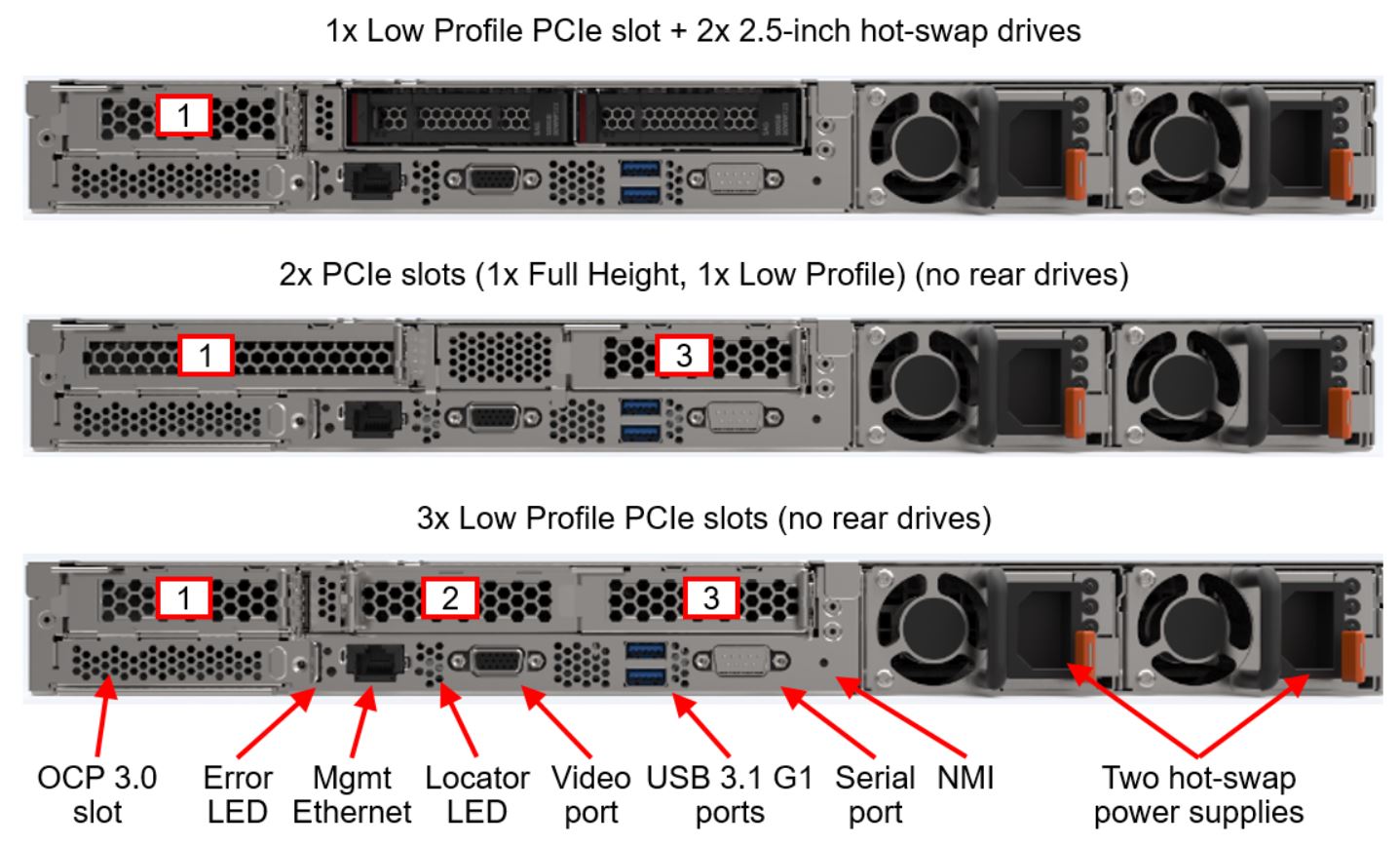

Lenovo ThinkSystem SR635 Rear Options
Lenovo ThinkSystem SR635 Rear Options

Lenovo is taking advantage of the newer 2nd generation architecture. One can see the more modern design than first-generation EPYC products like the Dell EMC PowerEdge R6415 and HPE ProLiant DL325 Gen10. You can see the BMC is using the PCIe Gen2 WAFL link new in the AMD EPYC 7002 generation:

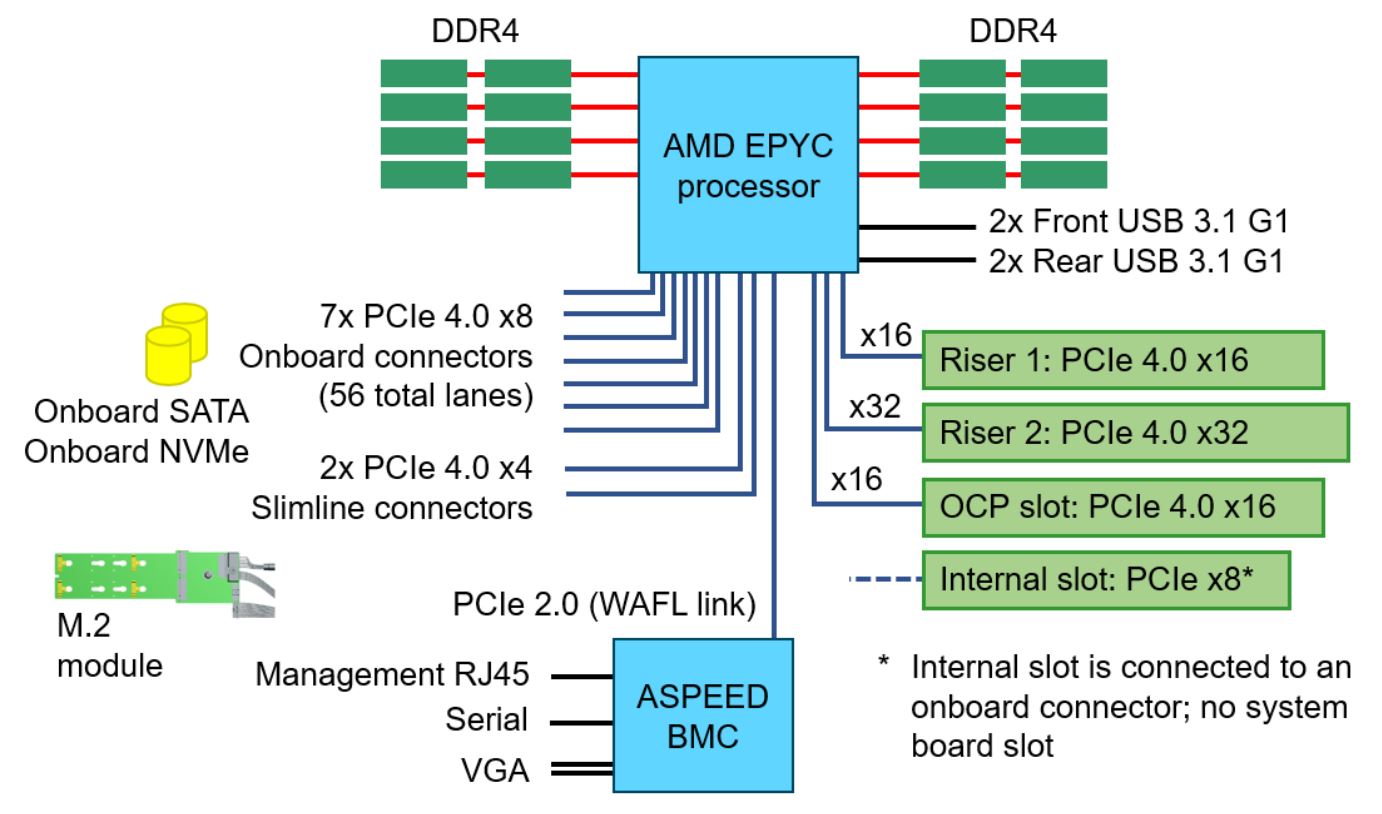

Lenovo ThinkSystem SR635 Diagram
Lenovo ThinkSystem SR635 Diagram

Here is a video walkthrough of the Lenovo ThinkServer SR635:

Lenovo ThinkServer SR655 2U EPYC Server

The Lenovo ThinkServer SR655 2U AMD EPYC 7002 series server is very impressive. We see the 24x 2.5″ front storage is an option but Lenovo has a variety of 2.5″ and 3.5″ drive options.

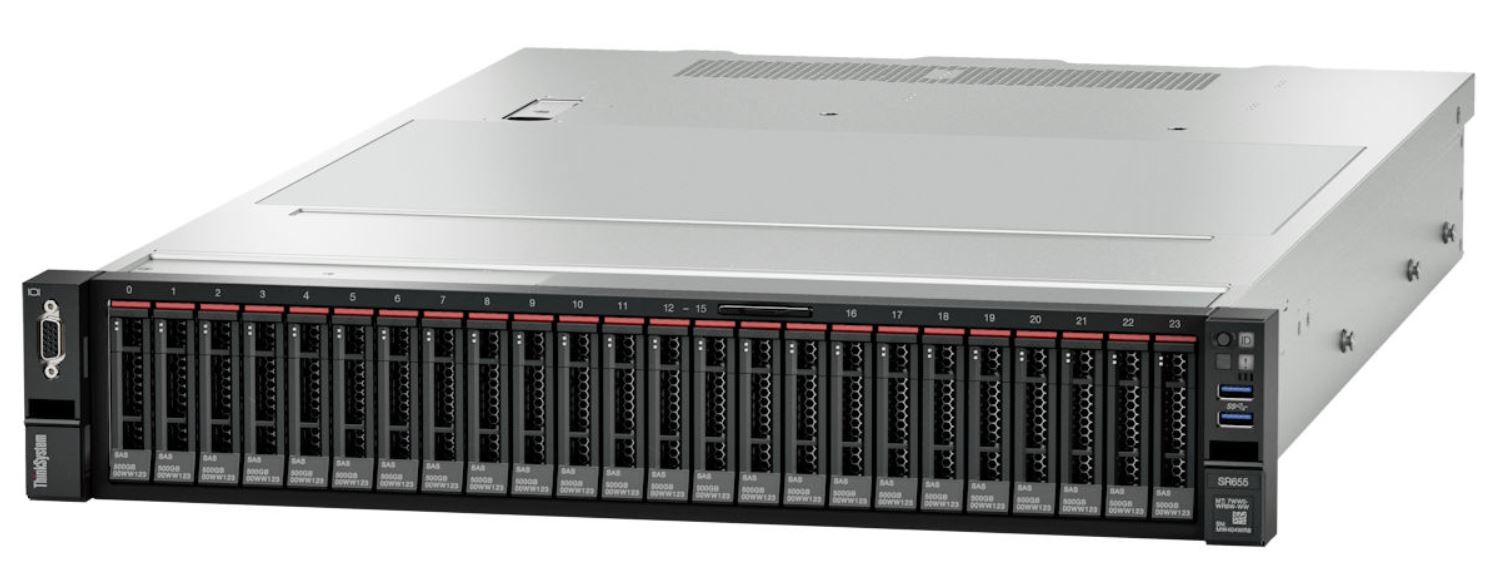

Lenovo ThinkSystem SR655 Front
Lenovo ThinkSystem SR655 Front

Inside, one can place even more expansion cards due to the extra U of height over the SR635. The solution we saw at the launch event actually had an array of internal drives to bring the total possible up to 36x SSDs in the chassis.

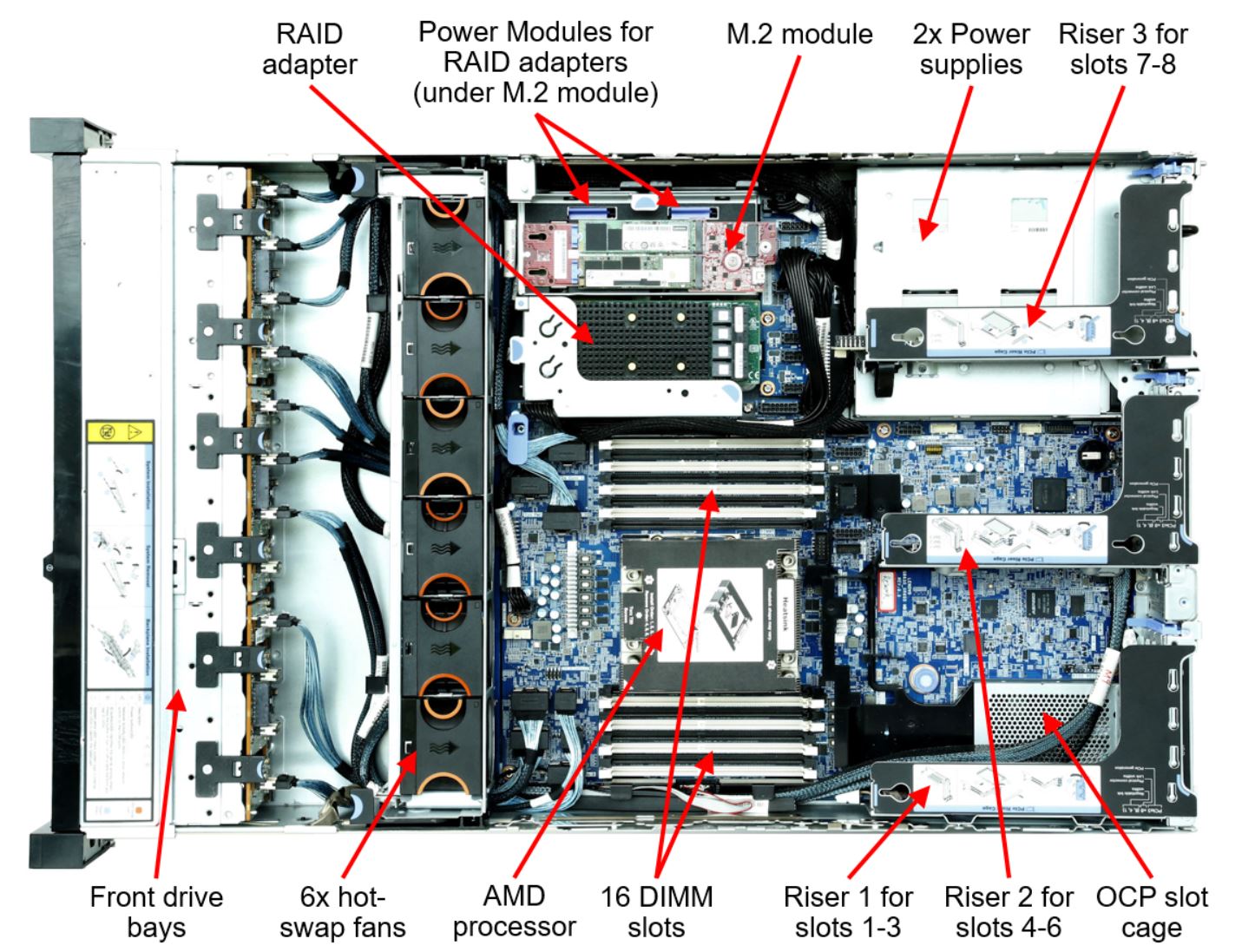

Lenovo ThinkSystem SR655 Internal Diagram
Lenovo ThinkSystem SR655 Internal Diagram

Lenovo can add different riser configurations as well as different 2.5″ and 3.5″ storage configurations to the rear of the chassis. This makes the Lenovo ThinkSystem SR655 extremely versatile. It can handle up to 225W AMD EPYC 7742 processors along with GPUs for AI inferencing. Overall, this is an extremely flexible platform.

Lenovo ThinkSystem SR655 Rear Options
Lenovo ThinkSystem SR655 Rear Options

We again wanted to point to the OCP 3.0 networking slot. This can take the newest Open Compute Project networking modules like the dual 100GbE module we saw at OCP Summit 2019.

Intel 100GbE OCP 3.0 NIC
Intel 100GbE OCP 3.0 NIC

Also showing its modern roots, like the SR635, the Lenovo ThinkSystem SR655 uses the newer AMD EPYC topology with the PCIe Gen2 WAFL link for the BMC. This makes the server more expandable and modern than servers like we saw in our Ultimate Dell EMC PowerEdge R7415 Review.

Lenovo ThinkSystem SR655 Diagram
Lenovo ThinkSystem SR655 Diagram

Here is a video walkthrough of the Lenovo ThinkServer SR655:

Final Words

Lenovo beat HPE and Dell EMC to get PCIe Gen4 capable AMD EPYC 7002 servers online. We heard these servers will be shipping by the end of August 2019. The impact is important. Not only did AMD add another tier 1 vendor to its stable, but Lenovo added a significant new capability. By taking advantage of the more scalable AMD EPYC 7002 platform, Lenovo told us they are hoping to help their customers and channel partners solve problems in a unique way that was not possible with Intel Xeon CPUs.

If you are a Lenovo channel partner reading STH and have been waiting for Lenovo to offer an EPYC platform, you now have two platforms that offer PCIe Gen4 before HPE and Dell EMC. Those will allow you to create higher-end NVMe configurations and virtualization servers that were not possible in the Lenovo portfolio before these servers were announced.
