In-depth Dell EMC PowerEdge MX Review Hands-on with a Woweredge


Dell EMC PowerEdge MX Fabric

Fabric and networking is what will set the Dell EMC PowerEdge MX apart from many of its competitors. At launch, the PowerEdge MX is designed to use 25GbE as the base, although it supports 32Gb Fibre Channel I/O as well.

Dell EMC PowerEdge MX Ethernet And Fibre Channel Modules
Dell EMC PowerEdge MX Ethernet And Fibre Channel Modules

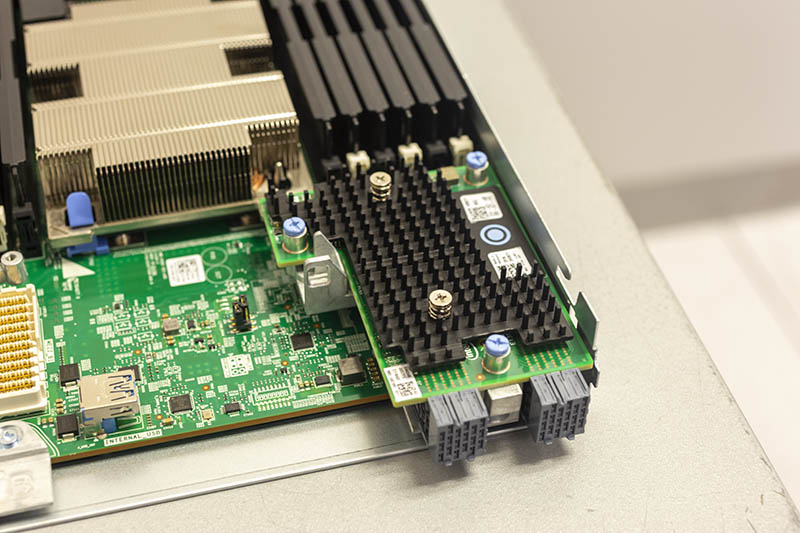

Internally the PowerEdge MX7000 I/O subsystem has redundant fabrics called A and B. Each sled has mezzanine slots that align with A and B fabrics. In this example, we can see the A fabric mezzanine is populated, while the B mezzanine connector is not populated.

Dell EMC PowerEdge MX740c Fabric
Dell EMC PowerEdge MX740c Fabric

Each fabric can be different, for example, one can have fabric A be 25GbE while fabric B is fibre channel. Since the fabric cards are dual port, each fabric can have two I/O modules for redundancy (four in total.)

Our test system only had fabric A populated. Here there is a PowerEdge MX9116n fabric switching engine on top with the PowerEdge MX7116n fabric expander module below.

Dell EMC PowerEdge MX In Rack
Dell EMC PowerEdge MX In Rack

In this configuration, each of the eight blades connects to the top MX9116n. That MX9116n handles all of the switching logic. The MX7116n is there to connect to the other Dell EMC PowerEdge MX in Dell’s Santa Clara Customer Solution Center. Using the MX7116n fabric extender, one can uplink to a switch in a different chassis. Although there are only two ports on the MX7116n, each is a QSFP28-DD cage, capable of 200Gbps operation. If you are doing the math, 200Gbps * 2 ports = 400Gbps. 400Gbps/ 25Gbps = 8 or a 25GbE connection for each of the blades in the chassis.

Using these fabric extender modules, one can have switchless PowerEdge MX chassis instead using fabric extenders to link to the switching elements in other PowerEdge MX chassis. That is a great design that can help lower costs and complexity of PowerEdge MX deployments.

There Will be More Fabric Modules

I have been a big proponent that despite what Dell EMC publicly acknowledges, the PowerEdge MX is ready for completely new paradigms such as Gen-Z. If you contemplate a Gen-Z or 400GbE future, the PowerEdge MX makes a lot of sense. If you do not want to support either and both, then the PowerEdge MX may be overkill.

From the slide above and the company’s product page as of this review’s publication, these are the officially supported modules:

  • PowerEdge MX9116n optimum performance 25G fabric switching engine
  • PowerEdge MX5108n high-performance, low-latency 25G Ethernet switch
  • PowerEdge MX7116n low latency 25G fabric expander module
  • PowerEdge MXG610s high-performance, non-blocking 32G Fibre Channel switch

Our test unit has the PowerEdge MX9116n and MX7116N modules installed. At the same time, you may have seen the PowerEdge MX from VMworld 2018 in Las Vegas, Nevada. There we were treated to this configuration:

Dell EMC PowerEdge MX Rear
Dell EMC PowerEdge MX Rear

The top unit looks like the PowerEdge MX9116n. The three horizontal network I/O modules each have sixteen RJ-45 connectors. Those are likely 10Gbase-T pass-through I/O (non-switched) modules. While Dell EMC may officially say there are four modules, there are certainly others at least in some stage of development out there. Future modules with 50GbE-400GbE, Gen-Z, and etc. are possible with the PowerEdge MX design without needing to swap the midplane.

Next, we are going to look at storage for the PowerEdge MX.
