ASUS ESC8000A-E11 Internal Hardware Overview

We are generally going to go through the system from front to back, and show some key items along the way, and we are going to pause around the fans since that is a big story here.

ASUS ESC8000A E11 Chassis Internal Overview
ASUS ESC8000A E11 Chassis Internal Overview

Before we get too far, we did want to mention a few items since there are many configuration options here. For example, this is a stock photo of the machine without a PIKE SAS card in front, but a dual M.2 slot option instead. Also, on the GPU side of this chassis, we have the eight PCIe Gen4 x16 slots and can see their cables with fans for the bottom expansion cards underneath. What is different here is that one can see that ASUS has covers between the top and bottom sets of fans to blank off slots when a card is not installed. This helps ensure there is airflow if one has fewer than eight double-width GPUs. We did not have these blanks but wanted to show them.

ASUS ESC8000A E11 Internal Overview Top Down
ASUS ESC8000A E11 Internal Overview Top Down

In terms of CPUs, there are two AMD EPYC CPUs along with a full set of DIMM slots between the front section and the fan partition. These sit on the bottom U of the chassis while the GPUs occupy the top 3U of the 4U chassis.

ASUS ESC8000A E11 Dual AMD EPYC And 32 DIMM Slots 1
ASUS ESC8000A E11 Dual AMD EPYC And 32 DIMM Slots 1

Along with the two AMD EPYC CPUs, we get 32x DIMM slots. We have 16x 32GB DIMMs here, but one can fit up to 32x 256GB of memory for 8TB total.

ASUS ESC8000A E11 Dual AMD EPYC And 32 DIMM Slots 2
ASUS ESC8000A E11 Dual AMD EPYC And 32 DIMM Slots 2

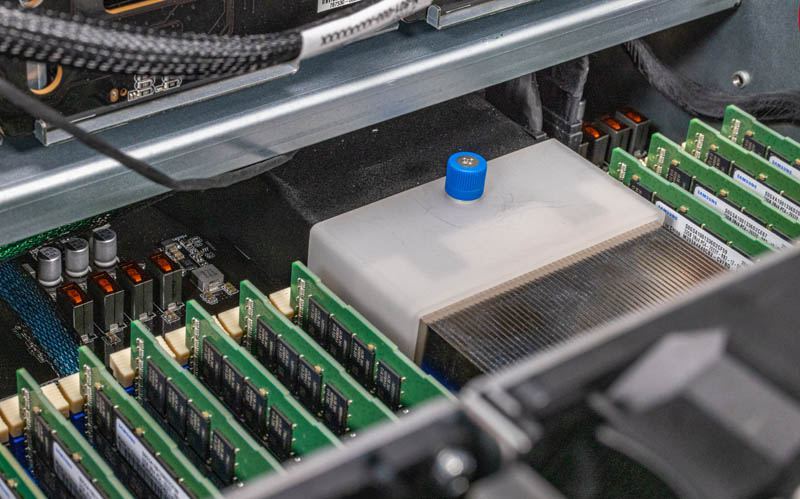

The system supports dual AMD EPYC 7003 CPUs. If you recall, on the front bottom of the system, there were two fans on each side. These fans have ducting to direct airflow over each CPU and are secured with a thumbscrew retention gasket. This design looked strange at first, but it is actually a very unique design that we ended up liking.

ASUS ESC8000A E11 CPU Fan Shroud 1
ASUS ESC8000A E11 CPU Fan Shroud 1

The impact of this is that the system can cool not just eight GPUs, but also two 280W TDP AMD EPYC 7003 Milan CPUs. Some systems have been limited to 225W or 205W TDP CPUs in these dense GPU servers, but this cooling design helps keep these CPUs cool with a 1U heatsink. That is also important because it allows for more airflow to the GPU area by keeping the CPU heatsink shorter and cooled only via the dual fan inlet portion of the front of the chassis.

ASUS ESC8000A E11 CPU Fan Shroud 2
ASUS ESC8000A E11 CPU Fan Shroud 2

In terms of features, you may not expect to see, there is a quite hard-to-access MicroSD card slot on the motherboard behind the DIMMs.

ASUS ESC8000A E11 MicroSD Card Slot
ASUS ESC8000A E11 MicroSD Card Slot

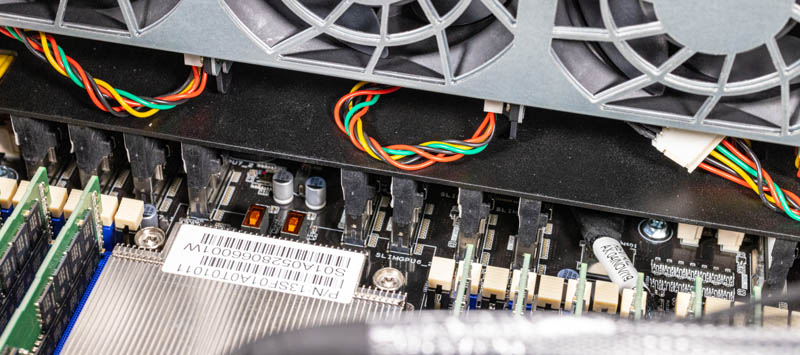

All of the PCIe slots, both for the GPUs and also for NICs/ storage are handled via cabling. So behind the CPUs and memory, we have a large number of PCIe cable headers.

ASUS ESC8000A E11 PCIe Cables
ASUS ESC8000A E11 PCIe Cables

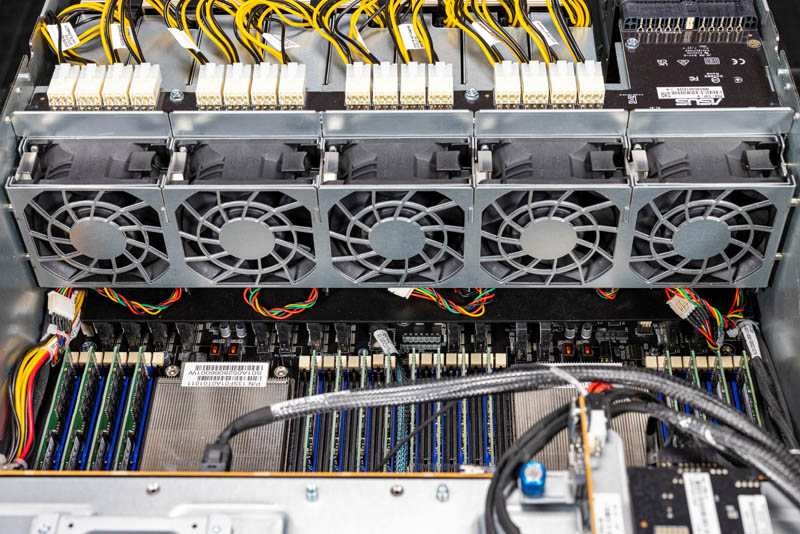

ASUS actually partitions off the chassis into a bottom 1U and a top 3U just behind the CPUs and memory. If one recalls from the overview picture above, the rear PCIe slots are cooled via fans that sit in this bottom 1U of space after some cool air is mixed with the warmed air from the CPUs. That is a very interesting design.

ASUS ESC8000A E11 Area Under Fans
ASUS ESC8000A E11 Area Under Fans

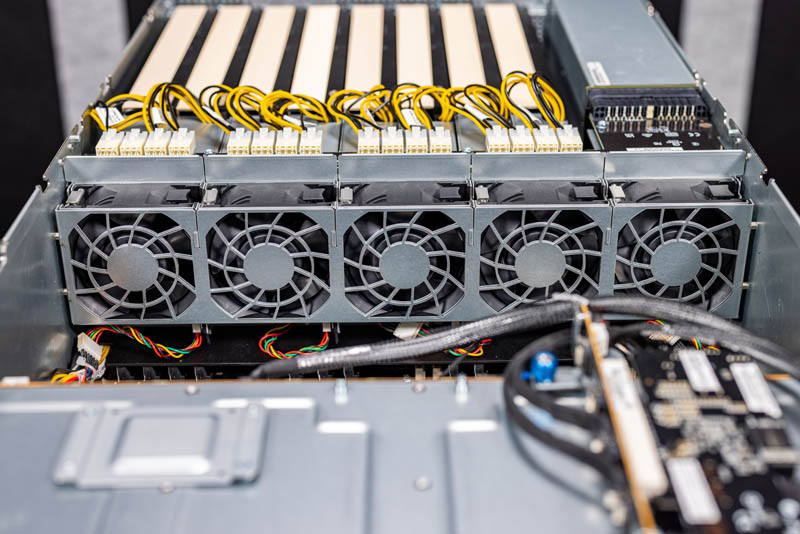

It also leaves four fans to cool the GPUs and a fifth fan primarily cooling the power supplies, but also adding some GPU cooling.

ASUS ESC8000A E11 Fans 1
ASUS ESC8000A E11 Fans 1

These fans are hot-swappable. It may seem like a small design point, but cooling in these systems is a big deal. Using this 1U on the bottom for non GPUs, and the top 3U mostly for GPUs allows ASUS to use a single 3U row of fans to cool the GPUs. We often see fan assemblies in this class of system that have two fans stacked atop each other extending through the 4U of the chassis. This is a truly interesting design.

ASUS ESC8000A E11 Hot Swap Fan
ASUS ESC8000A E11 Hot Swap Fan

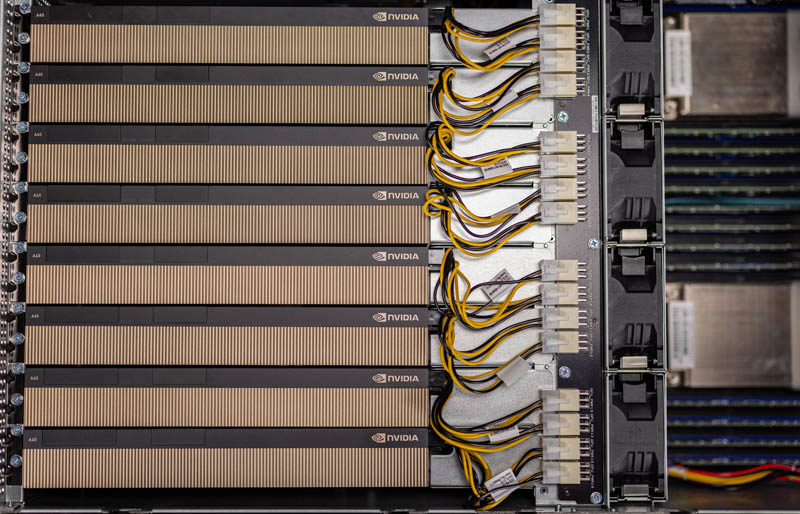

These fans push air through GPUs. Each of the GPUs has a retention plate that both secures the GPU with the third point of contact as well as ducts air from the fans through passive GPU heatsinks.

ASUS ESC8000A E11 8x NVIDIA A40 Top Shot
ASUS ESC8000A E11 8x NVIDIA A40 Top Shot

Power is provided by a pair of power cables. One can change these cables depending on the GPUs that one uses. A nice feature is that by being on this bar at the top of the chassis, these are very easy to swap out.

ASUS ESC8000A E11 GPU Power
ASUS ESC8000A E11 GPU Power

Here we have eight GPUs installed. One will notice there is very little room between them.

ASUS ESC8000A E11 8x NVIDIA A40 1
ASUS ESC8000A E11 8x NVIDIA A40 1

These are NVIDIA A40 GPUs. As 300W 48GB Ampere GPUs, they would have been part of the Quadro line in years past. Now, they are simply marketed as the NVIDIA A40, but that is why these are passively cooled GPUs with display outputs.

ASUS ESC8000A E11 8x NVIDIA A40 4
ASUS ESC8000A E11 8x NVIDIA A40 4

We did not have NVLink bridges, but one could, in theory, get bridges to connect GPUs via NVLink here instead of just using PCIe.
