ZOTAC GeForce RTX 2070 Super Twin Fan Review

3
ZOTAC RTX 2070 SUPER
ZOTAC RTX 2070 SUPER

As we continue our series running compute benchmarks on the new “SUPER” line of NVIDIA graphics cards we have a ZOTAC GeForce RTX 2070 Super Twin Fan in for review. The GeForce RTX 2070 Super increases clock speeds which should yield faster performance.  Additionally, the GeForce RTX 2070 Super gives a slight bump of Stream Processors from 2,176 and 136 Texture Units found on the RTX 2060 Super to 2,560 and to 160 on the GeForce RTX 2070 Super. RT cores also get a bump from 34 to 40. All is not upgraded as we still have 8GB of installed GDDR6 memory that we saw in the RTX 2070. We wanted to see how the new NVIDIA GeForce RTX 2070 Super fares compared to the updated GPU stack for those looking for a compute related card.

At the time of our writing this review, AMD still has not released their compute drivers that would allow us to finish our review of those GPUs as we noted in July’s STH AMD Radeon RX 5700 XT and RX 5700 Review Update. If you need to get a compute-focused GPU, NVIDIA is doing a better job of bringing compute drivers to their desktop-class GPUs.

Zotac GeForce RTX 2070 SUPER Twin Fan Overview

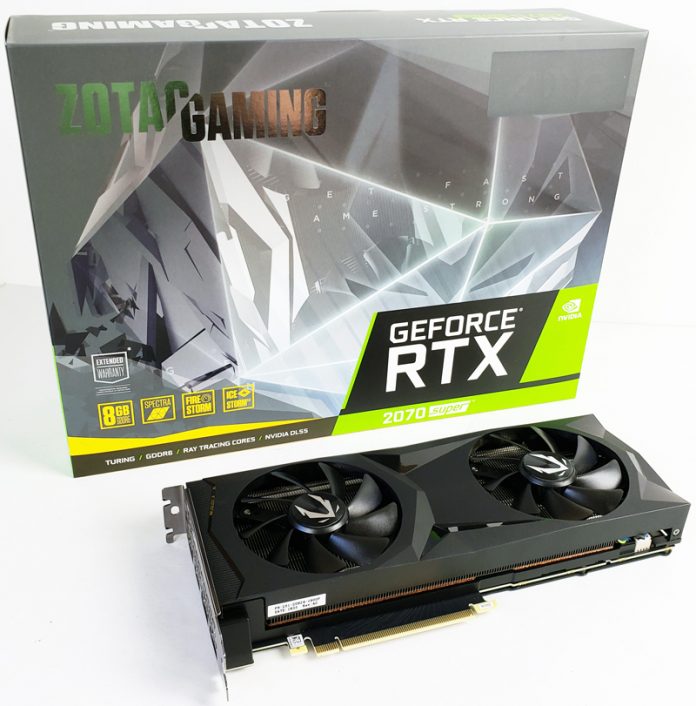

The retail box for our test Zotac GeForce RTX 2070 Super Twin Fan looks almost identical to the non-SUPER version so we will just give the main pictures. The main difference is the nomenclature for the word “SUPER” in the bottom green bar.

ZOTAC RTX 2070 SUPER Box Front
ZOTAC RTX 2070 SUPER Box Front
ZOTAC RTX 2070 SUPER Box Back
ZOTAC RTX 2070 SUPER Box Back

The front and back of the Zotac GeForce RTX 2070 Super Twin Fan looks very much like the ZOTAC GeForce RTX 2080 Ti Twin Fan which we reviewed earlier.

ZOTAC RTX 2070 SUPER Front
ZOTAC RTX 2070 SUPER Front
ZOTAC RTX 2070 SUPER Back
ZOTAC RTX 2070 SUPER Back

With the Zotac GeForce RTX 2070 Super Twin Fan we see 1x 8-Pin and 1x 6-Pin power connector vs the 2x 8-Pin power connectors on the RTX 2080 Ti. The lower-end card does not use as much power.

ZOTAC RTX 2070 SUPER Top
ZOTAC RTX 2070 SUPER Top

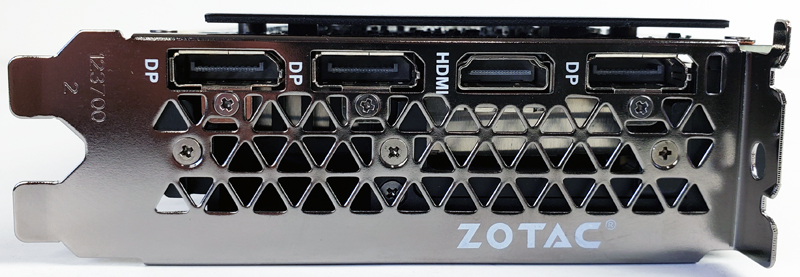

Video outputs include 3x DisplayPort 1.4, and one HDMI 2.0.

ZOTAC RTX 2070 SUPER IO
ZOTAC RTX 2070 SUPER IO

Next, let us take a look at the Zotac GeForce RTX 2070 Super Twin Fan key specifications and continue on with our performance testing.

3 COMMENTS

  1. I can downclock this card’s GPU. For example, limiting the maximum GPU frequency to 1000MHz? In this case I will use it for neural network training that can last several days on a 24 hour basis.

  2. This is really a good graphic card. It was much awaited. I have already ordered one and it’s on the way.
    Thank you for providing the detailed review. You’ve covered every aspect, much appreciated.

  3. where are the gaming benchmarks and how loud is the card.

    This review answers none of the questions games want to see 🙁
