Crazy Small Router Firewall and Virtualization Node iKoolCore R1 Review 4x 2.5GbE

13

iKoolCore R1 Internal Hardware Overview

The top is just held in place by four pins and pops off.

IKoolCore R1 Top
IKoolCore R1 Top

Under that top, there is a NVMe M.2 2242 SSD slot.

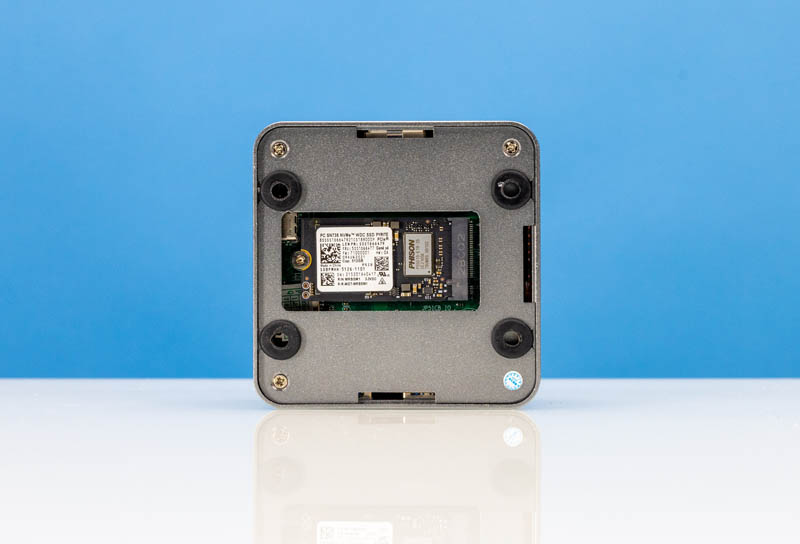

IKoolCore R1 512GB M.2 2242 NVMe SSD In Top
IKoolCore R1 512GB M.2 2242 NVMe SSD In Top

Here we have a 512GB NVMe SSD. The other options are no SSD and a 128GB SSD.

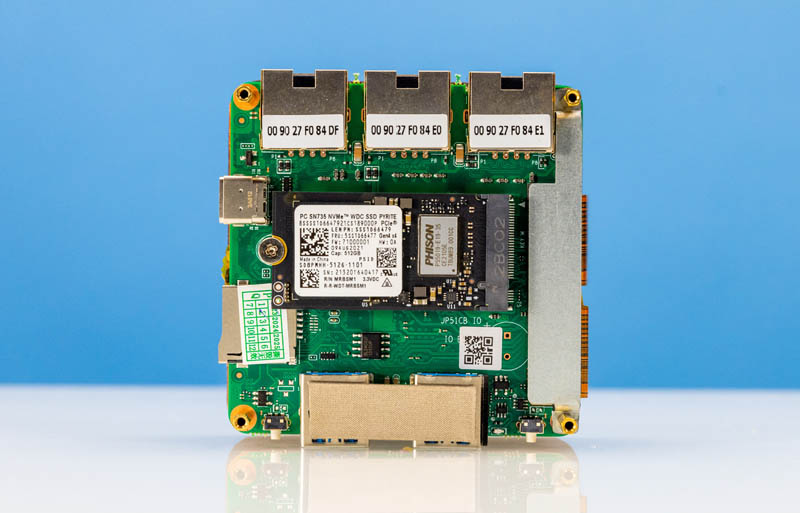

IKoolCore R1 512GB M.2 2242 NVMe SSD In Top Chassis Removed
IKoolCore R1 512GB M.2 2242 NVMe SSD In Top Chassis Removed

That 512GB 42mm m.2 NVMe SSD sits atop a double-decker internal PCB structure.

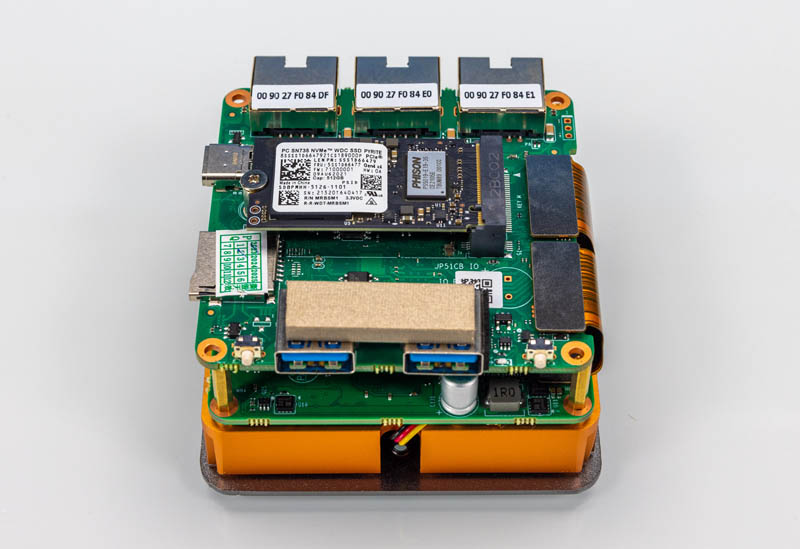

IKoolCore R1 Top With SSD Installed Chassis Removed
IKoolCore R1 Top With SSD Installed Chassis Removed

The set of three network ports are on the top PCB while the fourth is on the bottom.

IKoolCore R1 Assembled Ports
IKoolCore R1 Assembled Ports

The two USB Type-A ports are on the top PCB.

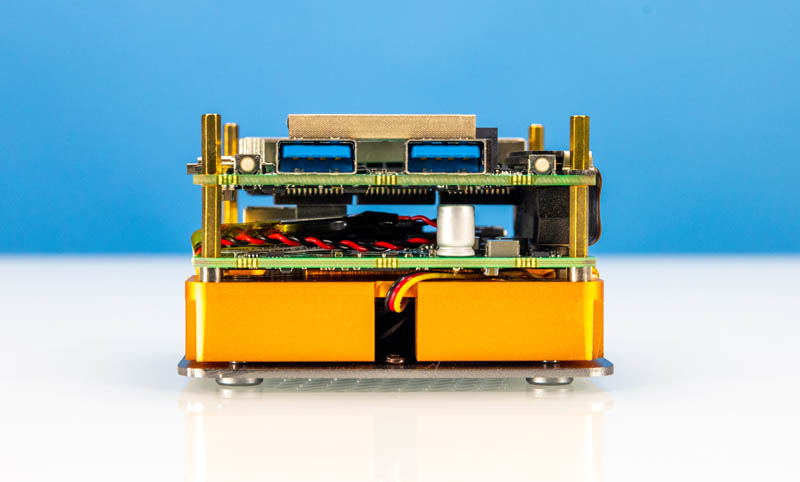

IKoolCore R1 Assembled Side 1
IKoolCore R1 Assembled Side 1

The USB-C and TF (microSD) ports are also on that top PCB.

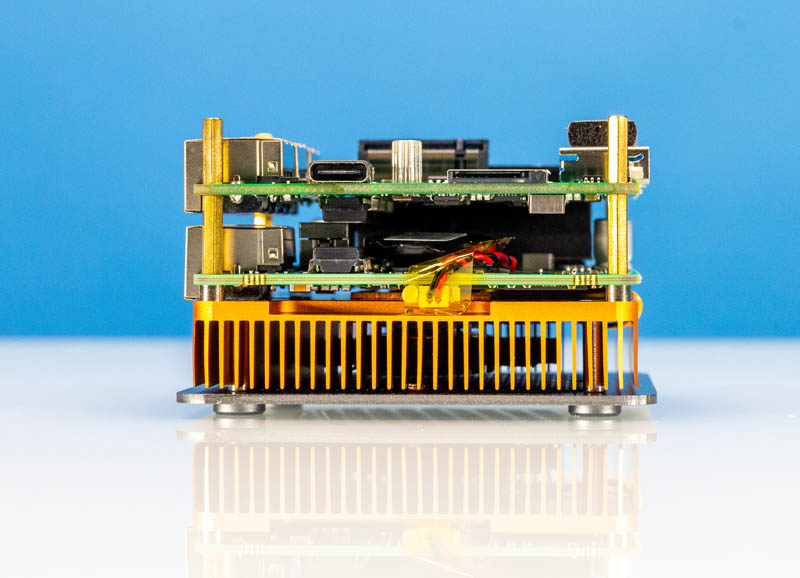

IKoolCore R1 Assembled Side 2
IKoolCore R1 Assembled Side 2

The top PCB and bottom PCB are connected via two cables.

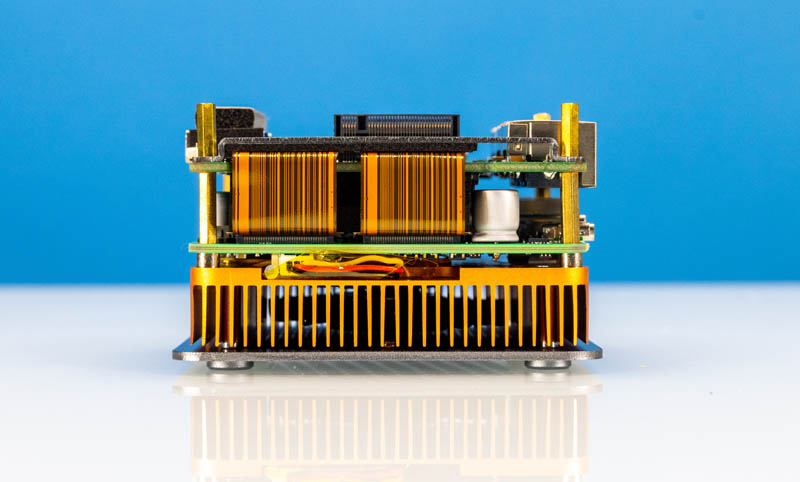

IKoolCore R1 Assembled Side 3
IKoolCore R1 Assembled Side 3

Here is the bottom side of the top PCB. Here we can see the three Intel i226-V controllers.

IKoolCore R1 512GB M.2 2242 Top PCB Bottom Side 3x Intel I226 V
IKoolCore R1 512GB M.2 2242 Top PCB Bottom Side 3x Intel I226 V

Undoing the screws around the standoffs allows one to open the stack.

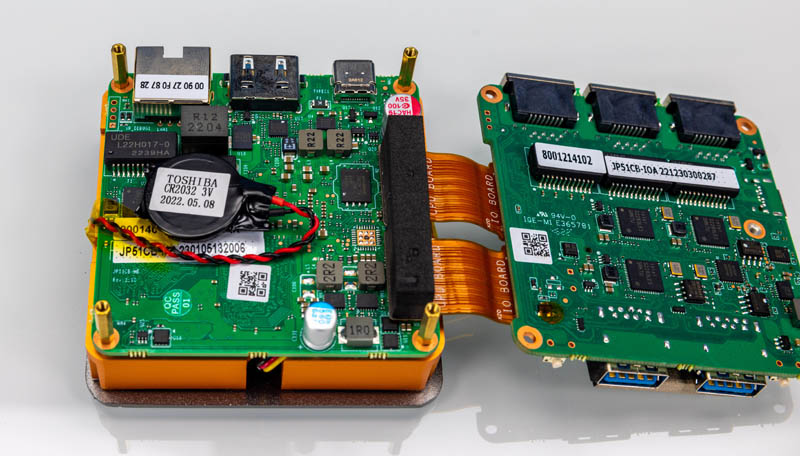

IKoolCore R1 Top And Bottom PCB Apart
IKoolCore R1 Top And Bottom PCB Apart

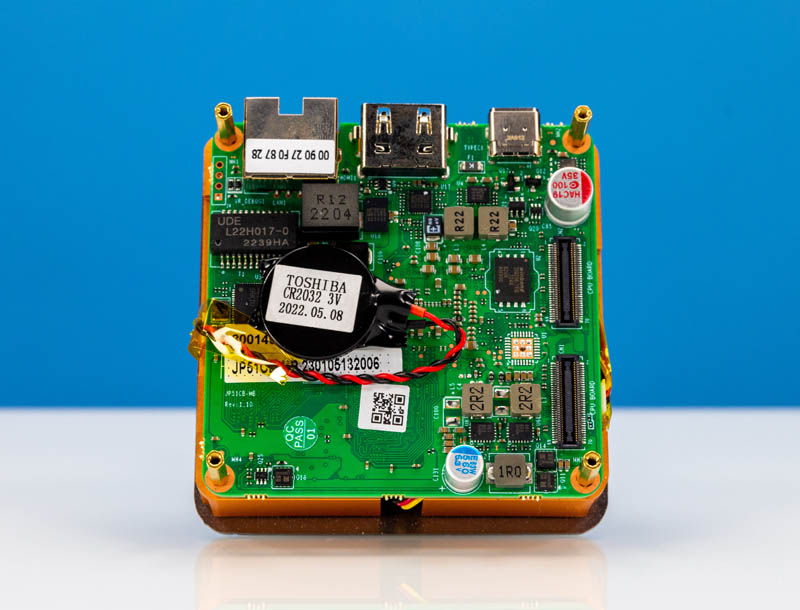

In the middle is the CR2032 battery. The connectors on the right of the below photo are for the cables to the top PCB. Under the battery is the fourth i226-V controller.

IKoolCore R1 Bottom PCB Top Side
IKoolCore R1 Bottom PCB Top Side

On the other side, we can take off the heat pipe copper cooler. We can also see some of the main chips.

IKoolCore R1 Intel N6005 And LPDDR4 DRAM
IKoolCore R1 Intel N6005 And LPDDR4 DRAM

The cooler was contacting the Intel N6005 CPU. There are also two LPDDR4 DRAM chips. The 16GB is soldered so it is not upgradeable.

Next, let us look at the performance.
