Netgear MS305 5-port 2.5GbE Switch Review

6

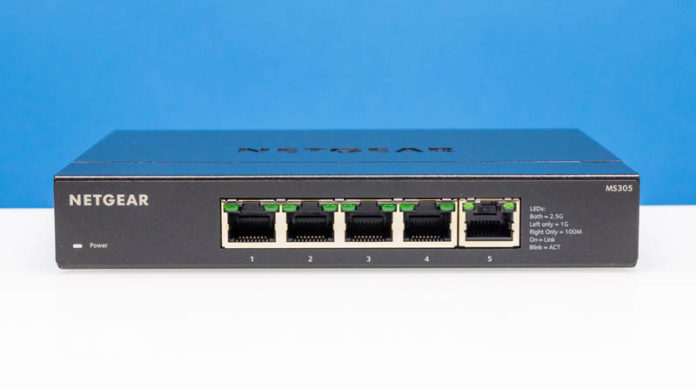

Netgear MS305 Front
Netgear MS305 Front

The Netgear MS305 or MS305-100NA is a basic 5-port 2.5GbE switch. Indeed, through a few paint options and a different warranty, Netgear has managed to create a second model from what appears to be the same hardware. We previously reviewed the Netgear MS105 and when we were ordering these two switches, we did not know how they were different. When we tested the switches, we could not figure out how they were different. Then we realized it is a price and warranty difference. With that, let us get to our review.

Ultimate Fanless 2.5GbE Switch Roundup

You may have seen that we published the Ultimate Cheap Fanless 2.5GbE Switch Mega Round-Up. Here is the video for that one where this switch appeared.

We decided to do the round-up first and will be filling in with reviews that we had not published at that point, including this one.

Netgear MS305-100NA Hardware Overview

The front of the switch is very similar to what we saw on the MS105. There are simply five ports. Above each of the 2.5GbE ports, we have a set of status LEDs associated with each port and a key shown to the right.

Netgear MS305 Front
Netgear MS305 Front

For some reference, here is the Netgear MS105 where the main difference is paint.

Netgear MS105 Front
Netgear MS105 Front

There is also a power LED.

On the rear of the switch, we get the 12V 1A DC input and a Kensington lock port.

Netgear MS305 Rear
Netgear MS305 Rear

On one side of the switch, we get vents along a portion of the chassis.

Netgear MS305 Side 2
Netgear MS305 Side 2

On the other side of the switch, we get similar vents. This chassis is certainly not the low-cost small plastic-type that we see on very cheap switches. Still, we do not have mounting points for rack mounting. The best feature, perhaps, is simply being metal, not plastic.

Netgear MS305 Side 1
Netgear MS305 Side 1

On the bottom of the unit, we get perhaps what will be viewed as the best mounting solution in our roundup with either spots for rubber feet or two mounting points for wall, conference room table, or desk mounting.

Netgear MS305 Bottom
Netgear MS305 Bottom

Taking off the top involves simply removing a few screws.

Netgear MS305 Front Without Top
Netgear MS305 Front Without Top

Underneath, we get two switch chips, but as a low-port count switch, it is a simple design.

Netgear MS305 Internal Chips And Heatsinks
Netgear MS305 Internal Chips And Heatsinks

That is a good thing since it also means that it does not have fans making this a quiet unit without moving parts to make noise or fail.

Netgear MS305 Internal
Netgear MS305 Internal

We tested all of these units for PoE. This unit did not have PoE capabilities as we would guess from the internals.

Let us check that out with our performance and power consumption testing.
