MikroTik RDS2216-2XG-4S+4XS-2XQ Power Consumption and Noise

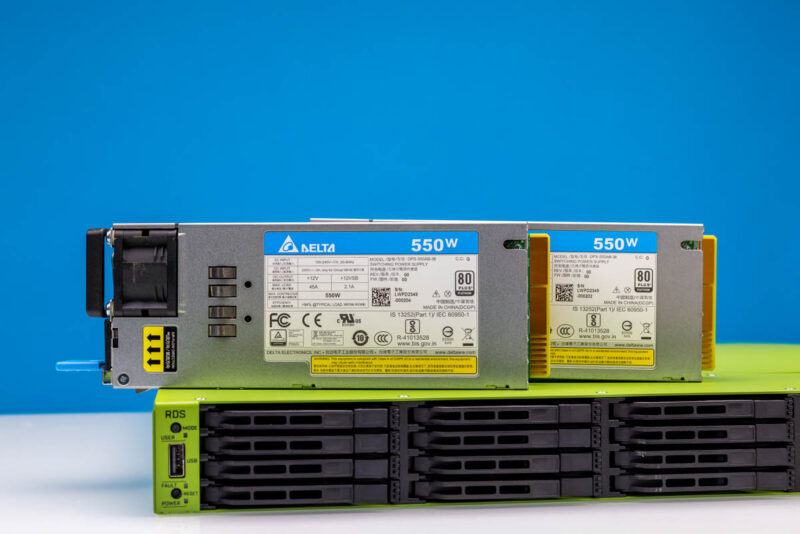

Powered by two excellent Delta 550W power supplies, we would not change a thing about the power setup in this system.
At idle without drives, we were in the 73-77W range. When we had 20x Samsung PM983 960GB drives, we were closer to 130-140W at idle. MikroTik says the maximum power without attachments is 105W. The total maximum is 286W.

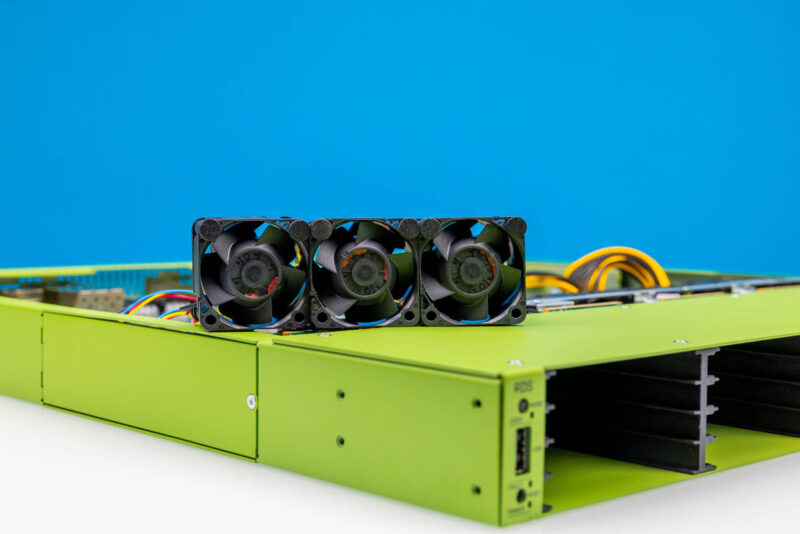

In terms of noise we were generally in the 42-47dba range with the system. It is a bit of a bummer that it could not be a sub-38dba system since that would make this great for an office. Still, we were able to record the video with this on set.
Key Lessons Learned
Our Key Lessons Learned fall into two categories. The one that you can see my live reaction to testing on the video and then some areas for improvement. First, the one that is in the video chapter marked “The OH NO Moment with the MikroTik”, and one that reviews that were fast to come out generally missed: This does not seem to support NVMe hot swap! You can see me test this live with Sam in the studio and the realization that the Annapurna Labs processor was not handling the hot swap.
For those who do not know, the NVMe spec was done at a time when the Sandy Bridge Xeon E5 V1 completely changed the market and AMD went into its winter prior to EPYC. As a result, the hot swap, especially hot plug feature of adding a NVMe device back into the system was developed over the years on Intel Xeon E5. Drive makers tested their drives on Xeon and if they worked, they were set since Intel had 95%+ of the market. Then in 2017 the AMD EPYC 7001 came out, and we realized it did not have working NVMe hot-plug at first because while the EPYC 7001 was NVMe compliant, there are bits that go beyond compliance that the industry developed on Intel Xeon E5. That is why in 2018 we had the piece Dell EMC PowerEdge R7415 NVMe Hot Swap AMD EPYC in Action because it took quite some time for folks to develop that feature. You can see in the video the management interface go down every time I removed or inserted a drive.
For storage, that is not what you want. It might be OK for some basic file shares or as a target for IP cameras if you do not mind infrequently missing a few seconds. On the other hand, that is not ideal and not what you would want for virtual machine storage. Hopefully MikroTik can add this in the PCIe switch, but who knows.
That brings us to the 7mm SSDs. I would much rather have 8x or 10x 15mm SSDs instead. If you do not have NVMe hot swap/ hot plug, then you want fewer points of failure, not more. This is 20 drives that can fail and take storage offline. Even if that gets fixed in future firmware, 15mm drives are cheap to get second hand an come in wide arrays of capacities because they are the enterprise standard. We Bought 1347 Used Data Center SSDs to Look at SSD Endurance and for the market this system is targeted at, used enterprise SSDs are perfect.

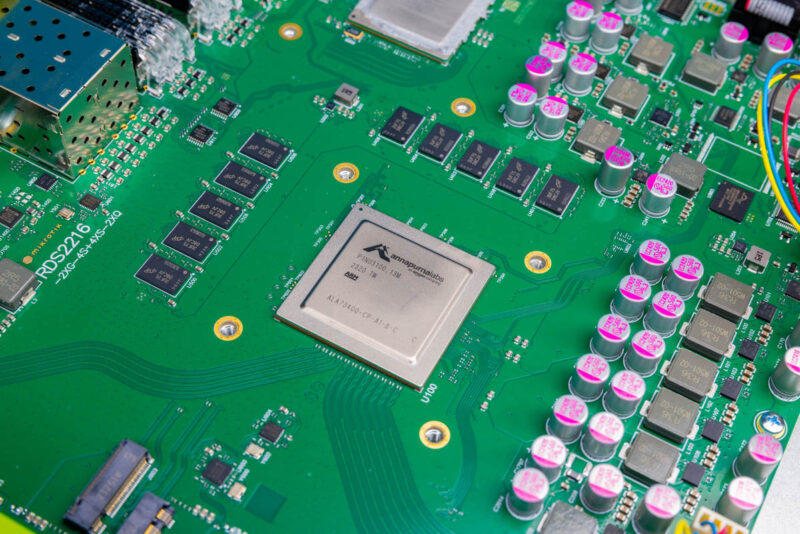

The Annapurna Labs chip is great. 16 Arm cores at 2.0GHz is great for networking and storage services. Still, I kept wanting to add more memory and do things like run more containers to use extra CPU capacity, but this had soldered memory.
Software wise, MikroTik needs to up its game if it wants to displace Synology and QNAP. If you are accustomed to those interfaces, you get GUIs with contextual help menus that explain what everything does and help guide you through creating RAID arrays and managing shares. MikroTik’s answer is go to the online documentation and then use the CLI. That is not as good.
Likewise, if you want to run containers for Minio or something else, then there needs to be an easy GUI way to do this or most SMB customers will not go that far. Many folks are scared of CLI’s, especially if they are accustomed to using Windows or macOS.
I know this is some hard feedback on the product, but let us face it, if we do not give it, then the product will not improve. This is a product that is so close to doing everything for a SMB that it almost hurts to see it need a little work. Luckily, a lot of this is a software lift.
Final Words

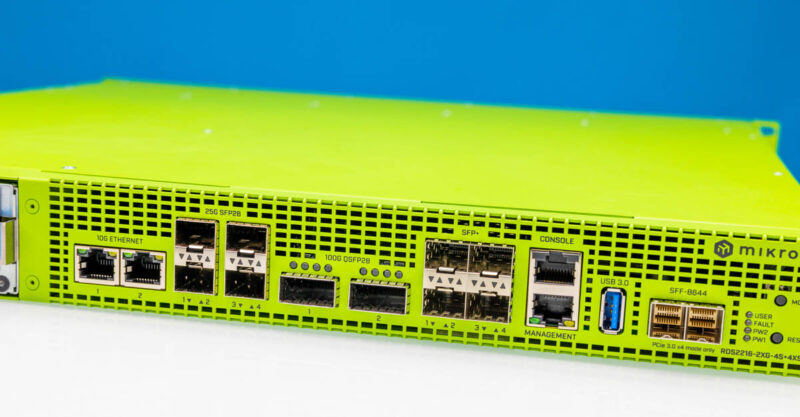

Street pricing for these might end up being in the $1600 or less. With the switch port array and the high-end processor, at that price just as a network switch it would be one of the best priced options on the market assuming you wanted this port configuration. One valid way to view this is that the storage side is just gravy.
Still, this is one of those platforms that I hope MikroTik continues to develop. Having a fast switch, with easy-to-use RAID, sharing via OwnCloud/ NextCloud, VPN capabilities, firewall capabilities, and more can make this an awesome setup for so many SMB deployments. Our 2500 sq ft studio would be a perfect example of this (if we did not run a server/ storage/ and networking review site.) I really like this machine, and I can follow the documentation and get the storage side working. So for power users, there is already a lot here.
