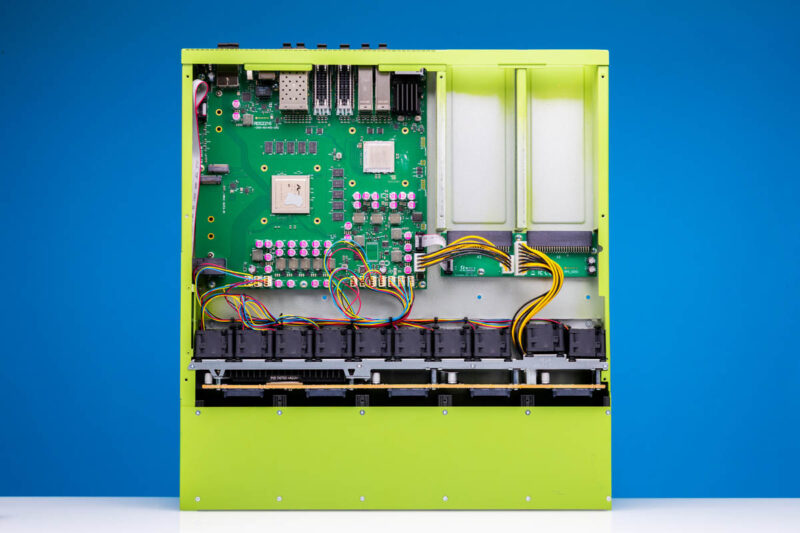

MikroTik RDS2216-2XG-4S+4XS-2XQ Internal Overview
There is a lot going on in here.
First, on the NVMe backplane, we get a PCIe switch. This again takes a PCIe Gen3 x16 link from the Annapurna Labs CPU and breaks out to 20x PCIe Gen3 x2 links for the front drives.

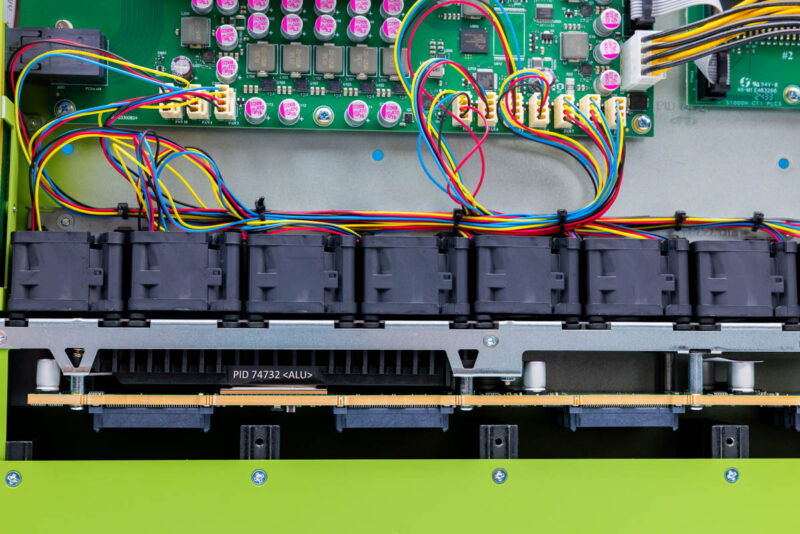

There are ten 1U fan modules across the middle of the chassis to keep air moving.

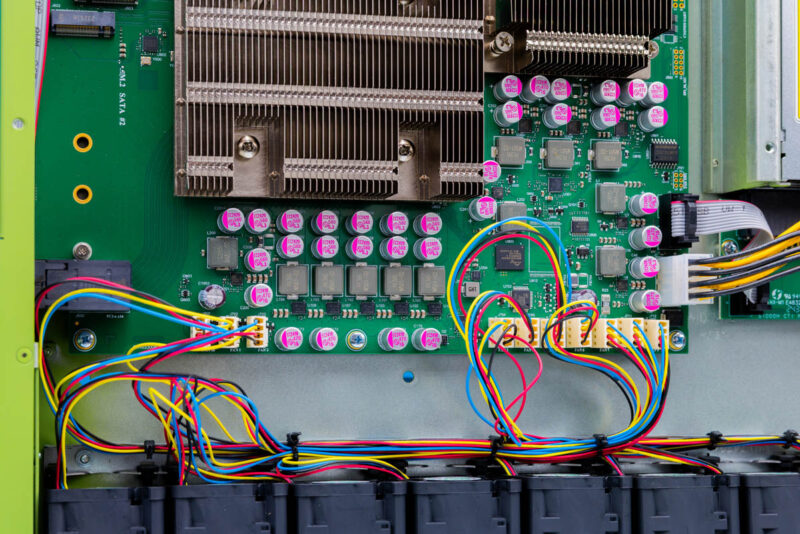

These fans use standard 4-pin power connections, which is great.
On the left side of the photo below, you can see the two M.2 SATA II (3Gbps) ports. We put cheap SSDs in there to give us 22 SSDs in this system.

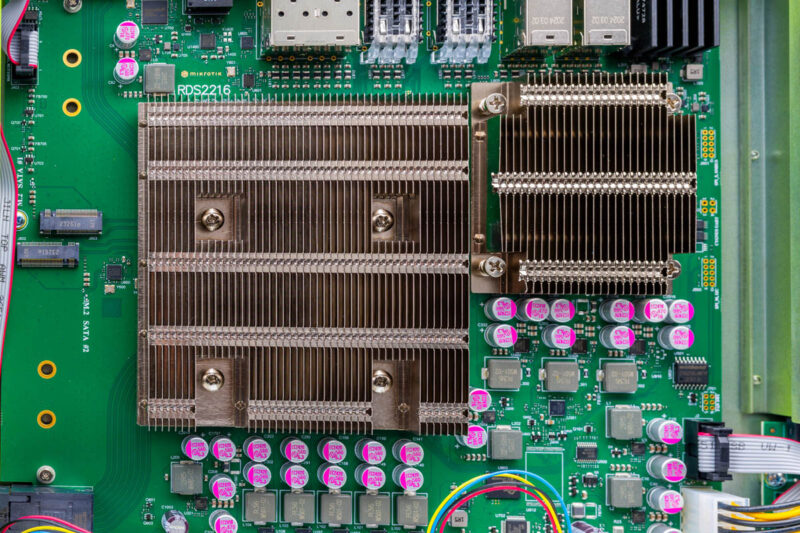

The more impactful features are the two heatsinks that cover the Annapurna Labs AL73400 16-core Arm CPU and the Marvell 98DX4310 switch chip.
The Annapurna Labs AL73400 is a 16-core 2.0GHz Arm CPU, which is quite strong for a networking and storage platform like this.

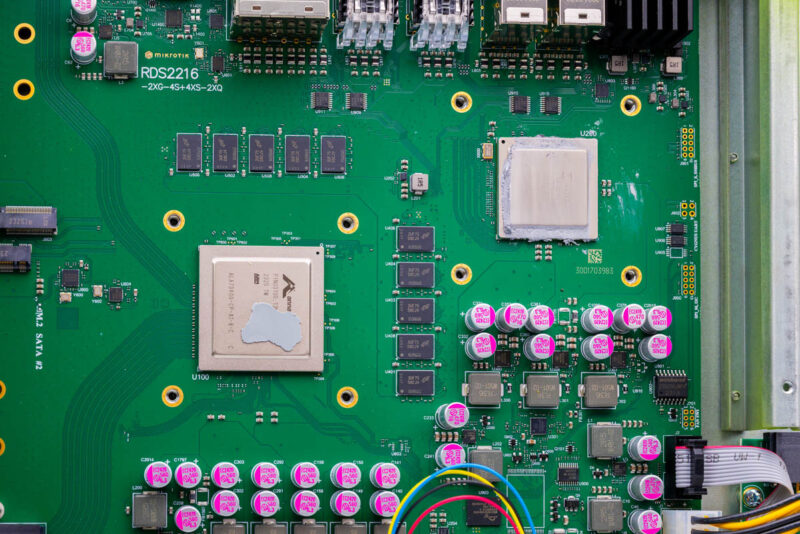

Next to that, we have ten DRAM packages in sets of five. This is only 32GB of memory, and it is soldered. That means, this is only a 32GB platform. We wish there was DIMM/ SODIMM memory expansion instead. That usually costs more to implement, but if you want to really have a server, then 64GB or 128GB would be nice to have.
Since there are ten packages 5+5, our sense is that this is two channels of 16GB, and likely ECC. We could not test the ECC feature, but usually that is why you see 5 or 9 DIMM packages instead of 4 or 8 in a channel.
The smaller heatsink covers the Marvell 98DX4310 switch chip. This is a chip that is used in switches like the MikroTik CRS504-4XQ-IN.
Here is the quick spec sheet on that switch chip:

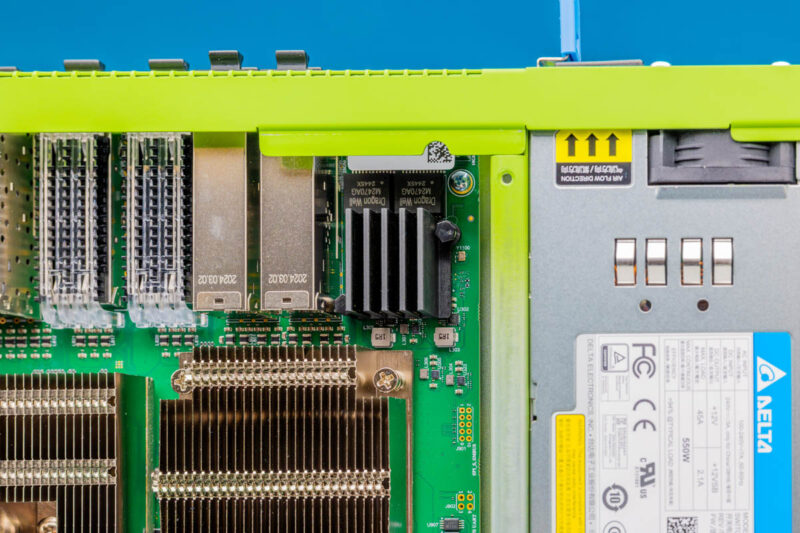

The two 10Gbase-T ports require a PHY that has its own heatsink.

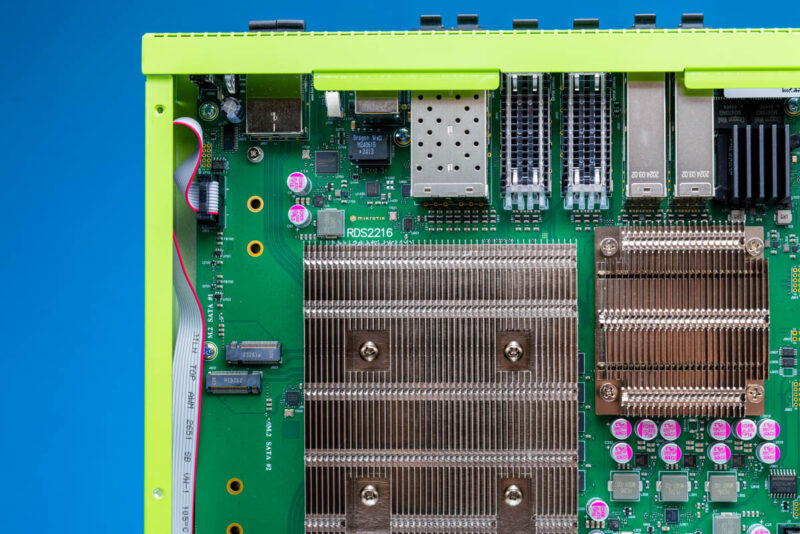

The other ports are just pluggable module cages. One difference is that the two SFF-8644 ports you can see the traces that lead to the Annapurna Labs CPU not the Marvell switch chip.

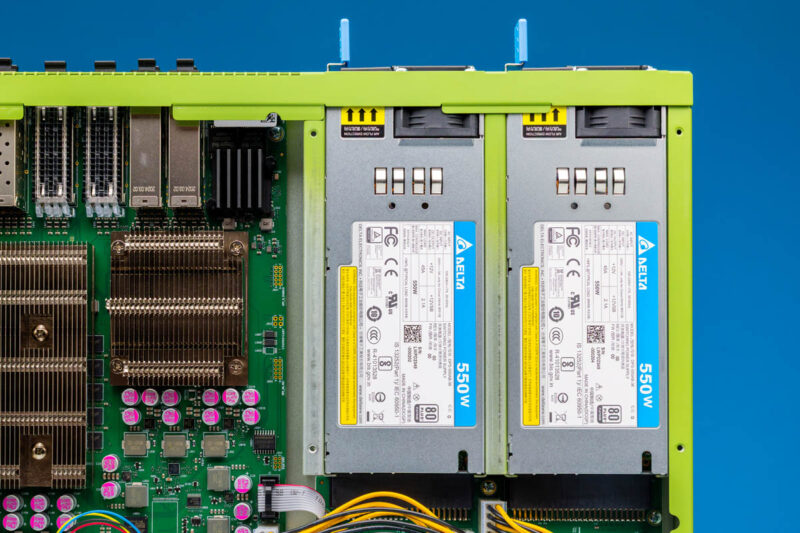

Here is where the redunant Delta power supplies slot in.

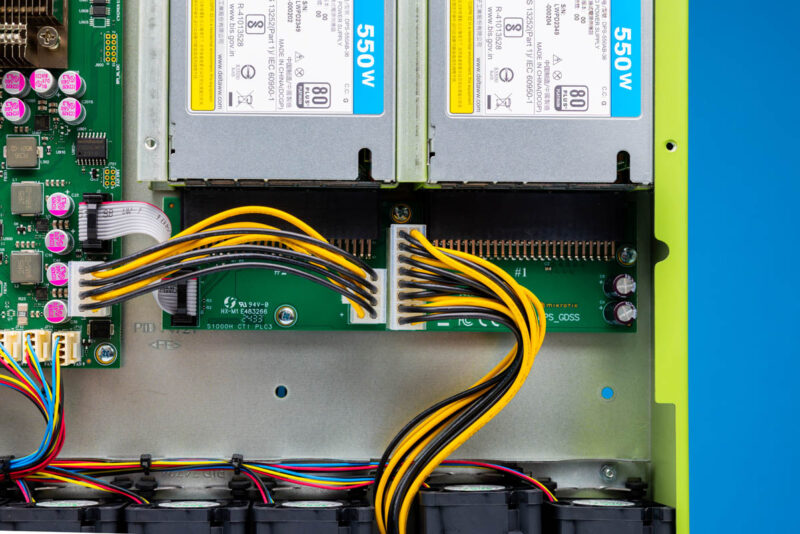

Here is the power distribution board.
A small but fun feature you can see is that the cable connector powering the NVMe backplane sticks out a bit, so one of the fans has to be offset slightly to accomodate that connector.
Next, let us get to the block diagram, performance, and the software.
