Intel Xeon Bronze 3206R Benchmarks and Review Low-End Refresh

5

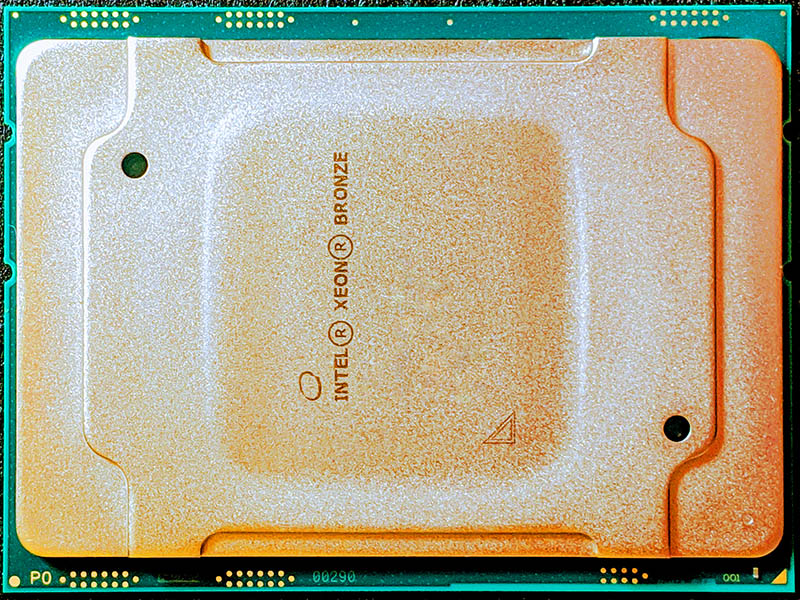

Intel Xeon Bronze 3206R Cover
Intel Xeon Bronze 3206R Cover

There are some CPU reviews we do that show off an amazing performance. The Intel Xeon Bronze 3206R is not one of them. Instead, this is a SKU that is part of the Big 2nd Gen Intel Xeon Scalable Refresh but could have been launched with the original SKUs. This is a low-power and low-cost SKU that has two primary purposes. First, it is designed to “light the platform” SKU. This enables servers that either simply need to exist to provide basic services or potentially to attach hard drives to the network in a server. Here CPU performance is not overly important. Second, they are designed so that large OEMs have inexpensive parts to put in servers and call them “complete systems” instead of barebones units. Still, in our review, we are going to take a look at what this processor offers.

Intel Xeon Bronze 3206R Overview

Key stats for the Intel Xeon Bronze 3206R: 8 cores / 8 threads with a 1.9GHz base clock and no turbo boost. There is 11MB of onboard cache. The CPU features an 85W TDP. These are $306 list price parts. Here is the ARK page with the feature set.

Here is the lscpu output for the Intel Xeon Bronze 3206R:

Intel Xeon Bronze 3206R Lscpu Output
Intel Xeon Bronze 3206R Lscpu Output

We took a fairly comprehensive overview of this segment in our piece: A Look at 7 Years of Advancement Leading to the Xeon Bronze 3204. Although this is being labeled a “refresh” part, and offers around 33% more compute than the Bronze 3204, it could just as easily have been a 2nd Gen Intel Xeon Scalable Launch part. Effectively, it adds the same Bronze 3104 to Bronze 3204 update to the 8-core Intel Xeon Bronze 3106. We get the updated feature set of the Bronze 3204 which includes the 200MHz clock speed bump as well as Intel DL Boost (VNNI.) We still have one and two-socket only support. We still do not get turbo boost nor Hyper-Threading.

This is the SKU equivalent to a relic of a past age pre-AMD EPYC 7002 series “Rome” competition. That is primarily because AMD is only tangentially competing in this space. We are going to discuss this competitive dynamic in our market analysis section on the final page.

Intel Xeon Bronze 3206R Test Configuration

For our 2nd Generation Intel Xeon Scalable CPU single-socket reviews, we are using the following configuration:

  • System: HPE ProLiant DL360 Gen10
  • CPU: Intel Xeon Bronze 3206R
  • RAM: 6x 32GB DDR4-2133 ECC RDIMMs
  • Storage: 1x Intel DC S3700 400GB
  • PCIe Networking: Mellanox ConnectX-3 HPE FlexLOM dual-port 40GbE

We covered the test system in more detail in our article A New STH 1P 2nd Gen Intel Xeon Scalable Test Platform including the process we went through to select the heatsinks and fans.

HPE ProLiant DL360 Gen10 1P High Performance Standard Configuration
HPE ProLiant DL360 Gen10 1P High-Performance Standard Configuration

One will notice that we are using the high-performance heatsink here with the high-performance fans. That is to ensure that even though we are using a 1U server, we have enough cooling capacity for our testing. If you purchase a new ProLiant DL360 Gen10 you will likely get a standard heatsink which is more than ample to cool a low-power part like this. You can see the difference between the high-performance and standard HPE ProLiant DL360 Gen10 heatsinks here:

HPE ProLiant DL360 Gen10 High Performance And Standard Heatsinks
HPE ProLiant DL360 Gen10 High Performance And Standard Heatsinks

Next, we are going to take a look at our Intel Xeon Bronze 3206R benchmarks. We are then going to conclude with our market comparison and final words on the processors.
