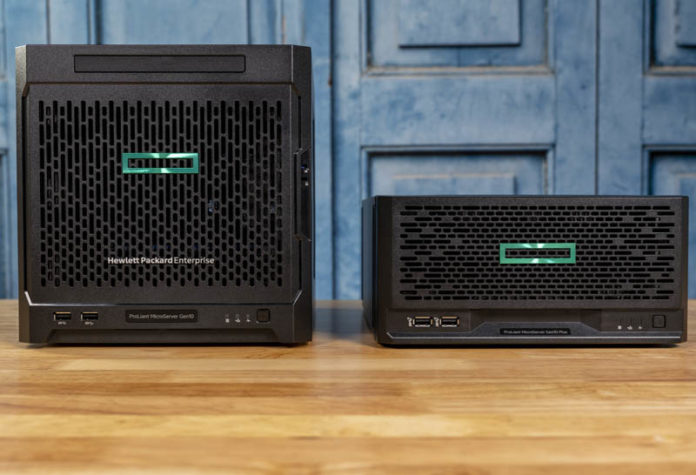

HPE ProLiant MicroServer Gen10 Plus And Gen10 Front
HPE ProLiant MicroServer Gen10 Plus And Gen10 Front

Our HPE ProLiant MicroServer Gen10 Plus review is coming. We recently did a HPE ProLiant MicroServer Gen10 Plus first look via the specs. Since the review is taking some time because we want to be thorough, we wanted to still show off some of the major hardware changes versus the MicroServer Gen10. HPE did a massive hardware overhaul and some users of the MicroServer Gen8 are going to see familiar features come back. We had the older model from our HPE ProLiant MicroServer Gen10 Review, so we decided to do a teardown side-by-side to show the differences our readers need to know about. Our review of the MicroServer Gen10 Plus will instead focus mostly on that unit instead of a side-by-side comparison, so we wanted to tell this story as well.

HPE ProLiant MicroServer Gen10 Plus v Gen10 Hardware Overview Video

We have a 12-minute video talking about some of the highlights in this more comprehensive article.

Of course, we are going into more detail in this article, but for those on the go who prefer to listen, or those who want to see a few more angles, we have the video version available. If you have not already, subscribe to us on YouTube to see more content we are coming out with this year.

HPE ProLiant MicroServer Gen10 Plus v Gen10 Hardware Overview

We are going to focus on some of the different parts of the HPE ProLiant MicroServer Gen10 Plus. If you are interested in a specific area, feel free to skip ahead scrolling through pictures and subheadings. We are going to keep the MicroServer Gen10 on the left side of these photos and the MicroServer Gen10 Plus on the right side.

MicroServer Gen10 Plus v Gen10 Front

The first thing you will notice is that the ProLiant MicroServer Gen10 Plus has a similar footprint but is half the size of the MicroServer Gen10. That should tell you that a lot has changed, and mostly for the better.

HPE ProLiant MicroServer Gen10 Plus And Gen10 Front
HPE ProLiant MicroServer Gen10 Plus And Gen10 Front

The other key feature we wanted to point out is with the two USB Type-A ports on the front of both units. The new MicroServer Gen10 Plus upgrades these to USB 3.2 Gen2 ports which means they are capable of 10Gbps operation.

MicroServer Gen10 Plus v Gen10 Rear

On the rear of the unit, a whole lot has changed.

HPE ProLiant MicroServer Gen10 Plus And Gen10 Rear With DC PSU
HPE ProLiant MicroServer Gen10 Plus And Gen10 Rear With DC PSU

Instead of one large and one small fan we see a single medium-sized fan due to the power supply, a 180W unit, being moved to an external DC LiteOn power brick.

HPE ProLiant MicroServer Gen10 Plus Rear
HPE ProLiant MicroServer Gen10 Plus Rear

The two NICs on the Gen10 have been upgraded to 4 NICs in this generation. This was a big upgrade that we are going to cover later.

On the Gen10 we had two USB 3 and two USB 2 ports, with the Gen10 Plus, they are all USB 3.2 on the rear of the Gen10 Plus. That is a nice upgrade.

HPE ProLiant MicroServer Gen10 Plus PCIe And ILO Riser Installed
HPE ProLiant MicroServer Gen10 Plus PCIe And ILO Riser Installed

You can see the PCIe expansion slots have moved from vertical to horizontal. In the Microserver Gen10 there was a x8 and an x1 low profile slot combination. In the Gen10 Plus, this is a PCIe gen3 x16 slot on the riser and the top slot is for a dedicated iLO enablement kit.

HPE ProLiant MicroServer Gen10 Plus Rear IO View
HPE ProLiant MicroServer Gen10 Plus Rear IO View

Another change is that on the Gen10 HPE used the AMD Opteron SoC with an integrated GPU wired to the two DisplayPorts output. These could be used for digital signage or similar applications. The VGA was a management output. With the Gen10 Plus, both the VGA and DisplayPort are destined for management duties.

MicroServer Gen10 Plus v Gen10 Drive Bays

The new ProLiant MicroServer Gen10 Plus still has four 3.5” hard drive bays. The bays utilize the same tray-less mechanism and the studs used for each drive are still stored on the front of the chassis which is a feature we absolutely love since it means you do not lose them.

HPE ProLiant MicroServer Gen10 Plus And Gen10 Front Drive Bays
HPE ProLiant MicroServer Gen10 Plus And Gen10 Front Drive Bays

While the latching mechanism is the same, instead of one row of four vertical drives, the Gen10 Plus has a 2×2 configuration with horizontal drives. This helps keep the unit more compact.

HPE ProLiant MicroServer Gen10 Plus Hard Drive In Bay
HPE ProLiant MicroServer Gen10 Plus Hard Drive In Bay

Previous MicroServer owners may notice that there is no optical drive bay on the new Gen10 Plus. That optical bay was often used with an extra SSD. While the Gen10 had an extra fifth internal SATA port and a Molex power connector which could be used to add an extra SSD, the Gen10 plus does not have these features. We already gave the feedback to HPE’s product team and I think we have a solution that we will show in the full review we will publish for the MicroServer Gen10+.

HPE ProLiant MicroServer Gen10 Plus And Gen10 Top No Optical Bay
HPE ProLiant MicroServer Gen10 Plus And Gen10 Top No Optical Bay

The other big change here is that by moving to an Intel-based solution, HPE can use its S100i firmware and integration with its management tools instead of using the Marvell SATA RAID solution. That is still software RAID for those using VMware, however, it also means one can use HPE’s provisioning tools with the Intel PCH-based RAID. One can also use the PCIe Gen3 x16 slot to add a higher-end hardware RAID controller.

MicroServer Gen10 Plus v Gen10 Side Views

One will notice that the Gen10 plus has an internal locking mechanism to help prevent the unwanted removal of the front bezel which keeps drives safe.

HPE ProLiant MicroServer Gen10 Plus And Gen10 Expansion Slot Side
HPE ProLiant MicroServer Gen10 Plus And Gen10 Expansion Slot Side

The DIMMs and expansion slots have swapped sides between the MicroServer Gen10 and Gen10 Plus. You can see how the density has increased significantly.

HPE ProLiant MicroServer Gen10 Plus And Gen10 Ram Side
HPE ProLiant MicroServer Gen10 Plus And Gen10 Ram Side

We are showing the LiteOn 180W power brick because while the Gen10 Plus is about half the size of the previous Gen10, it now has a substantial external power supply which one needs to make space for. On these side shots, you can also see the cabling impact due to not using a standard ATX power supply.

HPE ProLiant MicroServer Gen10 Plus LiteOn External Power Supply
HPE ProLiant MicroServer Gen10 Plus LiteOn External Power Supply

One of the interesting aspects is that HPE includes a small holder for the external power supply you may have seen on the rear. Even the shipping box has a notch added to the foam insert to protect this PSU retention clip.

HPE ProLiant MicroServer Gen10 Plus In The Box
HPE ProLiant MicroServer Gen10 Plus In The Box

You can see the notch on the upper left side of the foam insert in the photo above. Moving the power supply to an external unit allowed HPE to increase the component density, clean up the cabling, and remove a fan from the assembly.

MicroServer Gen10 Plus v Gen10 Motherboards

The MicroServer Gen10 and Gen10 Plus have similar yet slightly different trays due to the design of the units. While the Gen10 Plus has an extra screw here, one can also remove the motherboard tray by removing three cables from one side of the chassis. On the MicroServer Gen10 there are cables on both sides that need to be removed. In either case these are super easy to service even for non-technical folks who may be onsite at the ROBO or SMB office.

HPE ProLiant MicroServer Gen10 And Plus Motherboards Out Of Chassis
HPE ProLiant MicroServer Gen10 And Plus Motherboards Out Of Chassis

The ProLiant MicroServer Gen10 Plus has a nice touch by adding some service labels. Service labels help those unfamiliar with the hardware perform maintenance in the field. We see these on HPE’s higher-end ProLiants and from some of the higher-end server vendors. This is a nice new feature that the MicroServer Gen10 does not have and one you will not see on many lower-end SMB servers either.

HPE ProLiant MicroServer Gen10 Plus Rear Top Removed
HPE ProLiant MicroServer Gen10 Plus Rear Top Removed

A new piece with this generation is the PCIe and iLO riser which we removed to get to the motherboard on the Gen10 Plus.

HPE ProLiant MicroServer Gen10 And Plus Motherboards Out Of Chassis Riser Removed On Plus
HPE ProLiant MicroServer Gen10 And Plus Motherboards Out Of Chassis Riser Removed On Plus

Here are the motherboards side-by-side. We already discussed the PCIe expansion slot change, as well as the removal of an extra SATA port with the Gen10 Plus. What you will notice is that the Gen10 Plus motherboard is significantly denser.

HPE ProLiant MicroServer Gen10 And Plus Motherboards Riser Removed
HPE ProLiant MicroServer Gen10 And Plus Motherboards Riser Removed

We wanted to point out a few key features. There is still a USB 2.0 Type-A internal port. We wish this could have been a USB 3 port but this is the same as the previous generation.

HPE ProLiant MicroServer Gen10 Plus Internal USB Type A
HPE ProLiant MicroServer Gen10 Plus Internal USB Type A

One still gets two DDR4 ECC Unbuffered DIMM slots. These have moved up from DDR4-2400 to DDR4-2666 in this generation adding a bit more bandwidth. The MicroServer Gen10 comes standard with 8GB or 16GB of memory but can take two 16GB ECC DIMMs for 32GB total. The Xeon E-2200 series can take up to two DIMMs per channel for four DIMMs but in smaller form factors like this, a two DIMM solution is popular to save on space and cost.

HPE ProLiant MicroServer Gen10 Plus ECC UDIMM
HPE ProLiant MicroServer Gen10 Plus ECC UDIMM

Let us get into some of the bigger platform changes.

MicroServer Gen10 Plus v Gen10 Networking

One of the biggest changes is in networking. HPE has moved away from the dual-port Broadcom NetXtreme NIC in the Gen10 and to an Intel i350-am4 NIC. This is a higher-end 1GbE NIC that is supported by every major OS out of the box since it is popular on mainstream rackmount servers.

HPE ProLiant MicroServer Gen10 Plus Intel I350 Am4 NIC
HPE ProLiant MicroServer Gen10 Plus Intel I350 Am4 NIC

We like that HPE did not go with the lower-cost i340 here nor did HPE use the lower-cost i210’s. While network bandwidth has doubled, and HPE is using a higher quality NIC, one will have to use the expansion slot for 10GbE connectivity. Technically with a PCIe x16 slot, one can even use higher-speed adapters.

As you may start to notice, the single PCIe x16 slot is great but if one wants to expand storage or networking, there is an obvious conflict.

MicroServer Gen10 Plus v Gen10 iLO 5

Then perhaps the most significant change with the Gen10 Plus, we now have iLO 5 included, with some caveats. This is a big change as it requires not just the iLO 5 management controller, but also DRAM and flash memory onboard to make it work which adds cost and power consumption over the Gen10 model. But it is a huge feature. One of the major points of feedback on the Gen10 was a lack of iLO 5 which meant that organizations that invested in HPE features such as InfoSight were unable to use them to manage the MicroServers at their remote branch offices. With the Gen10 Plus, this is possible.

HPE ProLiant MicroServer Gen10 Plus ILO5 Controller
HPE ProLiant MicroServer Gen10 Plus ILO5 Controller

Standard on the unit, one gets a minimal iLO 5 experience. All management is in-band as standard which means no out of band NIC nor shared NIC. You are not managing the MicroServer Gen10 Plus remotely directly through iLO out of the box.

HPE ProLiant MicroServer Gen10 Plus ILO Enablement Kit P13788 B21
HPE ProLiant MicroServer Gen10 Plus ILO Enablement Kit P13788 B21

Instead, one needs to add an “iLO enablement kit” to the riser slot. This is an add-on that adds a dedicated NIC to the package. HPE is bundling the iLO enablement kit with an iLO Essentials and iLO Standard experience with features such as a remote console and e-mail alerts.

HPE ProLiant MicroServer Gen10 Plus ILO Enablement Kit In Its Riser Slot
HPE ProLiant MicroServer Gen10 Plus ILO Enablement Kit In Its Riser Slot

One can upgrade this further to iLO Advanced and get all of the security features that the higher license level provides. With iLO enablement, one can manage the server in a remote branch office just like a rack of ProLiants in the data center and use features like HPE InfoSight with the MicroServer Gen10 Plus.

HPE ProLiant ILO 5
HPE ProLiant ILO 5

We are going to focus more on this in our formal MicroServer Gen10 Plus review.

MicroServer Gen10 Plus v Gen10 CPU Changes

On the topic of bombshells, one may have noticed the heatsink difference. The new MicroServer Gen10 Plus has a much larger heatsink with copper heat pipes to aid in cooling. While the Gen10 used an AMD Opteron SoC with up to 35W TDP, the new MicroServer Gen10 Plus uses Intel CPUs with TDPs up to 71W officially.

HPE ProLiant MicroServer Gen10 And Plus Heatsinks
HPE ProLiant MicroServer Gen10 And Plus Heatsinks

On the topic of CPUs, we are going to have benchmarks of the MicroServer with both the Pentium G5420 and the Intel Xeon E-2224 but we can say the CPU performance is several times that of the older MicroServer Gen10. This is a huge upgrade.

HPE ProLiant MicroServer Gen10 And Plus Motherboards Side By Side
HPE ProLiant MicroServer Gen10 And Plus Motherboards Side By Side

Speaking of upgrades, HPE has brought back socketed processors with the Gen10 Plus. That means one can potentially upgrade the CPUs although the official spec sheet says only up to 71W.

HPE ProLiant MicroServer Gen10 Plus Socketed
HPE ProLiant MicroServer Gen10 Plus Socketed

For those who are thinking that they can use the Pentium G5420 with its integrated GPU to drive output, we are sorry to disappoint you. That requires OEMs to do some extra and more costly work since Intel made some changes with this generation. As a result, the MicroServer Gen10 Plus does not have that feature.

Final Words

Adding iLO 5 as well as significantly higher performance CPU options means that power consumption and cost are up with this generation. We are going to show the impacts of these in our review and compare them to the Opteron-based Gen10 system. That review has so much going into it that it is taking a lot of time but we wanted to show off some of the side-by-side hardware advancements made on the new ProLiant MicroServer Gen10 Plus in the meantime. Overall, HPE did a great job with the new MicroServer.

Stay tuned to STH for more.

Update: you can now read our formal ProLiant MicroServer Gen10 Plus Review.
