Gigabyte B343-C40-AAJ1 Block Diagram

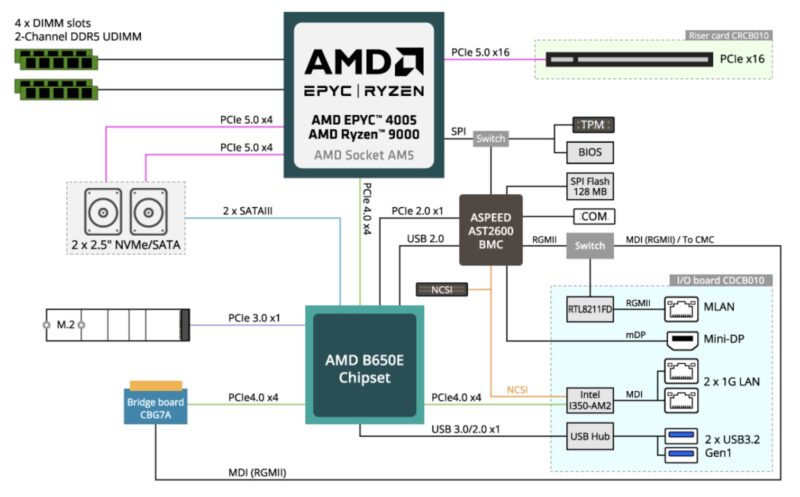

Here is the block diagram for the node:
The block diagram is interesting because there are two PCIe Gen5 x4 lanes going to the 2.5″ bays. There are also two SATA III lanes from the chipset to the 2.5″ side. Another interesting takeaway is the PCIe Gen3 x1 to the M.2 slot. This is really for boot media. We can also see the edge connector board being connected with PCIe Gen4 x4.
Gigabyte B343-C40-AAJ1 Management
On the management side, we get fairly standard web management. That is less interesting. What is more interesting is how these are connected.

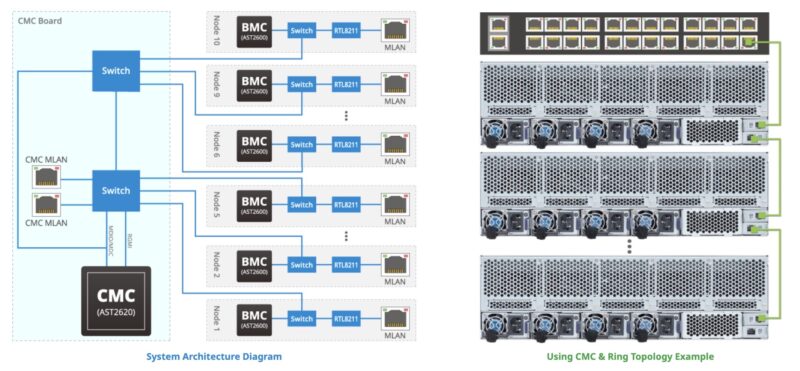

Instead of needing one management port per server, the chassis management function allows for the nodes to be managed from a single interface. You will see two ports on the back, and that is for another interesting feature.
Gigabyte has the ability to use these ports to daisy chain. That means you can pack these 3U 10-node chassis into a rack and then daisy chain those together. That means many of these chassis can be serviced by a single management network port.
This may seem like a small feature, but instead of needing an entire management switch for 9-12U of systems, one only needs a single port on a switch.
Gigabyte B343-C40-AAJ1 Performance
On the performance side, we have gone over this a few times already during the past few months. Namely in our AMD EPYC 4005 Grado is Great and Intel is Exposed piece.
These days, the performance of the AMD EPYC 4005 series is really good. Up to sixteen Zen 5 cores at high clock speeds really help with performance.
For the lower-end hosting segment, the AMD EPYC 4005 allows for more performance per node versus previous generation multi-node designs. That means either using higher-power 16-core parts for more performance or using lower-power designs for lower costs.
One valid take would be why not just use a dual socket Turin Dense server and have even more cores per U. On the other hand, the dedicate hosting market is always one where customers want their own servers. That is really the point of this type of node.
I can totally see a server like this being filled with 9800X3D’s for hosting top-performance Minecraft servers.
