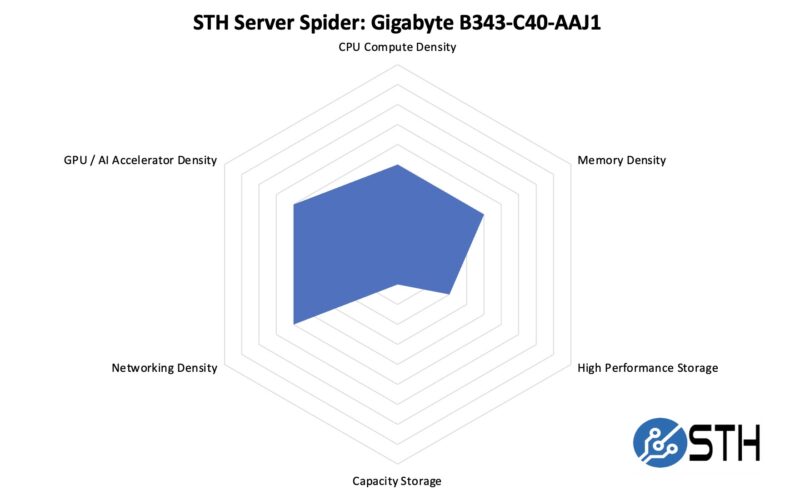

In the second half of 2018, we introduced the STH Server Spider as a quick reference to where a server system’s aptitude lies. Our goal is to start giving a quick visual depiction of the types of parameters that a server is targeted at.
This is a really interesting server. On the one hand, we get a lot of node density. On the other, we do not get the maximum density per U since technically 1U dual socket EPYC 9005 servers are denser. That means we do not get the most networking, storage, cores, or memory per U. What we get instead is a lot of nodes.
Some might compare these to traditional blade servers. Perhaps the biggest difference is that this does not have the built-in network switches usually found in traditional blade servers. Many of those blade chassis, however, have pass-through modules and so this would behave more similar to those types of blade systems.
Key Lessons Learned
That is not really this market however. We did a Gigabyte R113-C10 Review earlier this year. In many ways, this review and that one are related. That is a 1U server designed for the dedicated hosting market.

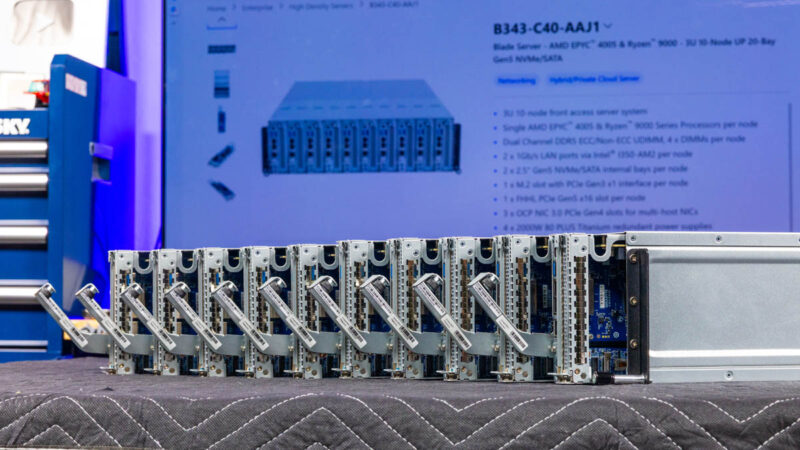

What this server does is packs ten of these into a single 3U space. That may seem insignificant, but it matters.
Just as a recap, if you had ten 1U servers with redundancy that would take:
- 10U of rack space
- 20x power supplies
- 20x PDU ports
- 10x management ports on a management switch
- 10x high-speed NICs
- 10x high-speed NIC ports on switches
While that may not seem like a lot, consider this solution:
- 3U of rack space
- 4x power supplies
- 4x PDU ports
- 1x management port
- 3x high-speed NICs
- 3-6 high-speed NIC ports on switches
There is an added benefit of the compute sleds being easier to pop out of the chassis than 1U servers from a rack since the cabling would be, at most, on one side of the rack. If you only used the CMC ports and the OCP multi-host adapters, then that would mean it would all be cabled from the rear making service easy.
That is really the point of a server like this. Making higher-density dedicated servers available at lower-costs.
Final Words
This is one of those systems that was particularly neat since we reviewed the Gigabyte R113 earlier this year. It really put into focus the difference between the lower-density and low-cost 1U servers and this shared-chassis design. There is a reason that in the dedicated hosting market, this type of system has become very popular.
The AMD EPYC 4005 is the top CPU for these single-socket dedicated hosting nodes right now, and it makes sense why. With up to 16 cores and 3D V-Cache, these nodes offer a lot of performance really maximizing the performance per core.
Overall, the Gigabyte B343-C40-AAJ1 makes a lot of sense for those organizations looking to provide high-performance cores in dedicated hosting nodes. We are looking at the 1GbE onboard networking version here, because we can also use the multi-host adapters in the rear. Gigabyte also has designs with higher-speed onboard networking, although we did not look at those models. Still, this is a really neat system for those looking to drive down the costs of providing AMD EPYC 4005 nodes while increasing rack density.
I can totally see a server like this being filled with 9800X3D’s for hosting top-performance Minecraft servers.
