The Dell PowerEdge R6715 liquid-cooled edition is something different. The system evacuates heat from its AMD EPYC processor using liquid cooling, which sets it apart. In our review, we will examine the system and Dell’s efforts to create a compelling platform for those adopting liquid-CPU compute racks.
Dell PowerEdge R6715 External Hardware Overview
The PowerEdge R6715 is a 1U server at just over 815mm or 32in deep.
While we are reviewing the direct liquid cooling (DLC) version, the model number is the same as the air cooled R6715. Most of the system is very similar. The R6715 has many options beyond just the cooling, so keep in mind that this is just one configuration.
This configuration has eight 2.5″ bays. There is another option for ten 2.5″ bays, and then other options for EDSFF. There is even an option for 3.5″ bays.
The rear of the chassis also has a lot of options.
Something interesting is that there are power supplies on both sides of the chassis. We have 80Plus Titanium 1.5kW PSUs in this test system which is more than ample for this configuration.
In the center Dell has a very configurable set of options for risers and even rear storage. Here we have our VGA port, two USB 3 ports, and the iDRAC out-of-band management port. There is also a PCIe Gen5 x16 riser above.
Int he center section we have an OCP NIC 3.0 slot and two SSDs for boot. Some other vendors focus on internal M.2 for boot drives given the order of magnitude better reliability of SSDs over hard drives. Still, having a rear/ externally servicable option is nice.
On the right center, we get another PCIe Gen5 x16 slot and another OCP NIC 3.0 slot. There are a lot of options here for up to three 75W GPUs, multiple 400GbE (or dual 200GbE) NICs, here.

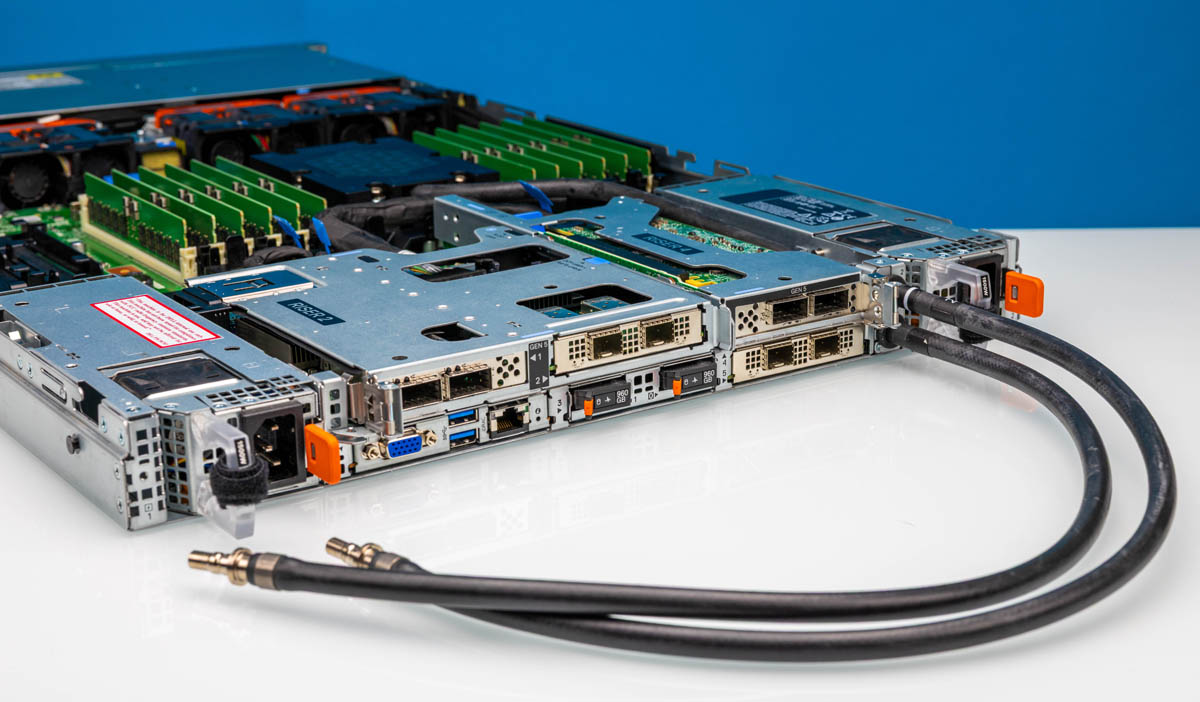

Also, exiting the rear are the liquid cooling nozzles. Here we have Staubli connectors with the blue for the cooler incoming fluid and the red for the exiting liquid going to the warmer manifold. In newer OCP racks like the ones we saw in the awesome tour Inside the Dell Factory that Builds AI Factories the liquid cooling manifolds and node nozzles are standardized and built into the racks. This is designed for a more traditional hot and cold manifold setup.
As one would expect, Dell’s rear riser designs are really slick.
The top center one is particularly neat with both an OCP NIC 3.0 as well as a low profile PCIe Gen5 x16 slot.
This is a super small detail, but there is an OCP latch on the top of the riser that lets you remove the OCP NIC without having to take the entire assembly apart.
Next, let us get inside the server to see how it works.
