The ASRock Rack SIENAD8UD3 is the company’s newest motherboard, and it has a neat trick. Instead of just hosting a power-optimized single socket AMD EPYC 8004 “Siena” CPU, it is also built to use an EPYC feature we do not see often: SATA support. The new motherboard has four of its MCIO x8 connectors that can be used for PCIe Gen5 or SATA via breakout cables. That makes this motherboard quite interesting. Let us get to it.

ASRock Rack SIENAD8UD3 Hardware Overview

The motherboard itself is an extended mATX size. ASRock Rack has been building slightly larger motherboards for years. Instead of 9.6″ x 9.6″, this is 9.6″ x 10.5″. That extra room gives enough space to have more features on the motherboard. At the same time, it is not a strictly mATX size motherboard which is important for chassis selection.

ASRock Rack SIENAD8UD3 Overview
ASRock Rack SIENAD8UD3 Overview

Another benefit of this larger form factor is that it gives a bit more space for things like the AMD SP6 CPU socket and memory.

ASRock Rack SIENAD8UD3 Empty CPU Socket And Memory 2
ASRock Rack SIENAD8UD3 Empty CPU Socket And Memory 2

AMD SP6 is similar in size to the SP3 socket used for the AMD EPYC 7001-7003 series. SP6, however, houses the single-socket AMD EPYC 8004 “Siena” processors. These new processors are power-optimized for single-socket applications and up to 64 cores/ 128 threads per CPU.

ASRock Rack SIENAD8UD3 With AMD EPYC 8534P 3
ASRock Rack SIENAD8UD3 With AMD EPYC 8534P 3

The EPYC 8004 platform has six DDR5 memory channels, but the SIENAD8UD3 has eight DIMM slots. That is because the motherboard runs two of the channels in 2 DIMM per channel mode (1DPC.) Our advice is to populate the blue slots first and only use the black slots if you need extra memory capacity. That eight slot design aligns with 1DPC in dual socket Xeon E5-2600 or single socket 4th Gen Intel Xeon Scalable.

ASRock Rack SIENAD8UD3 Emptry CPU Socket And Memory
ASRock Rack SIENAD8UD3 Emptry CPU Socket And Memory

While many think of mATX as a workstation form factor, the airflow is front to back intended to be used in servers. The connectors, slots, sockets, and so forth are oriented for that airflow direction.

ASRock Rack SIENAD8UD3 Airflow 1
ASRock Rack SIENAD8UD3 Airflow 1

Even with the extended form factor, ASRock Rack is using its newer power design using 8-pin power connectors instead of a traditional ATX 24-pin power input.

ASRock Rack SIENAD8UD3 Power Inputs
ASRock Rack SIENAD8UD3 Power Inputs

To use a standard ATX power supply, one hooks up the CPU power connectors, then there is an adapter to get the power on signal and so forth from a 24-pin power connector.

ASRock Rack SIENAD8UD3 Power Adapter
ASRock Rack SIENAD8UD3 Power Adapter

In terms of expansion, there are two PCIe Gen5 x16 slots, but the focus is not just on traditional PCIe slots.

ASRock Rack SIENAD8UD3 PCIe Slots
ASRock Rack SIENAD8UD3 PCIe Slots

First off, there are two PCIe Gen5 x4 M.2 slots for boot drives.

ASRock Rack SIENAD8UD3 M.2
ASRock Rack SIENAD8UD3 M.2

If you are wondering what that bottom forest of connectors is, that includes front panel connectors, USB connectors, and a really cool array of fan headers. At the very bottom, there is an Oculink PCIe Gen3 connector.

ASRock Rack SIENAD8UD3 ASRock Rack SIENAD8UD3 M.2 Fan
ASRock Rack SIENAD8UD3 ASRock Rack SIENAD8UD3 M.2 Fan

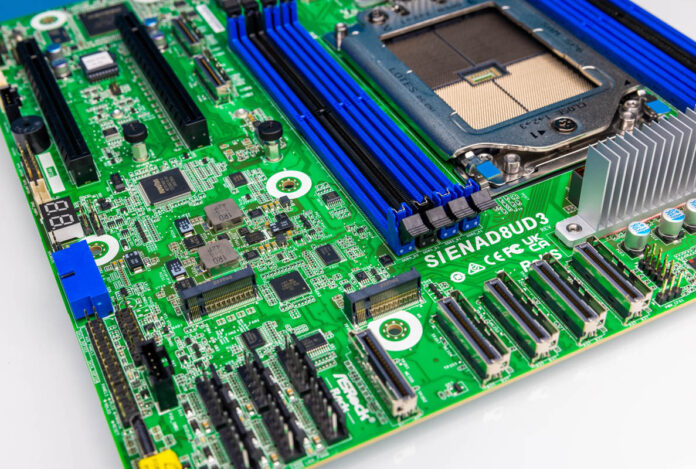

The main expansion, however, is via 7x PCIe Gen5 x8 MCIO connectors. That is enough for 14x PCIe Gen5 x4 drives, or for things like PCIe Gen5 x8 or x16 risers.

ASRock Rack SIENAD8UD3 M.2 Fan MCIO 4
ASRock Rack SIENAD8UD3 M.2 Fan MCIO 4

Four of these seven MCIO connectors have a second interesting feature. Instead of exposing eight lanes of PCIe Gen5, they can instead be used as very low speed SATA III 6.0Gbps lanes. Four x8 lane connectors means that this motherboard can support up to 32 SATA drives. This is accomplished using breakout cables, and the motherboard we got came with a single MCIO to 8x SATA breakout as well as a power cable for six drives that utilizes the bottom corner power connector.

ASRock Rack SIENAD8UD3 With SATA Data And Power
ASRock Rack SIENAD8UD3 With SATA Data And Power

In terms of onboard networking, there is not a lot. This is because ASRock Rack is routing the PCIe lanes to connectors and slots. Instead, we are using some of the lower-speed lanes for a pair of Intel i210-AT 1GbE network adapters.

ASRock Rack SIENAD8UD3 Intel 1GbE
ASRock Rack SIENAD8UD3 Intel 1GbE

These power the two 1GbE network ports on the rear I/O. Other than that, there are two USB 3 ports, a VGA port, and an IPMI management port.

ASRock Rack SIENAD8UD3 Rear IO
ASRock Rack SIENAD8UD3 Rear IO

Since there is a lot here, let us next get to the block diagram.
