Xsight Labs X1 25.6T Switch Chip for the 800Gbps Era

5

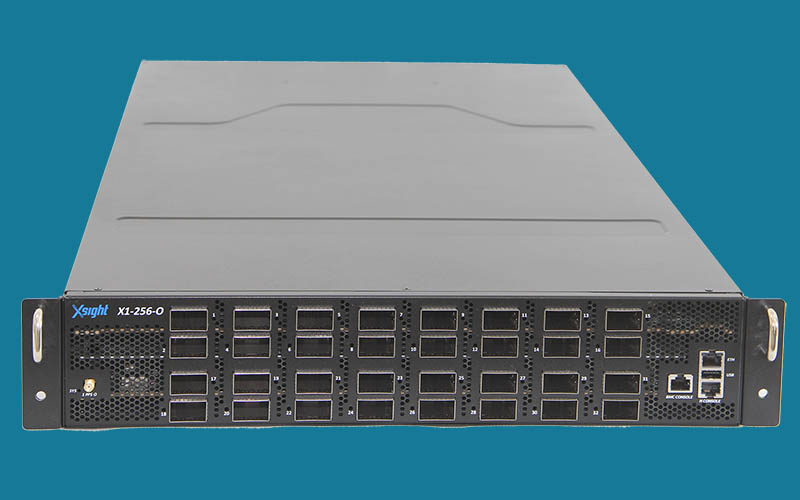

Xsight X1 256 O Cover
Xsight X1 256 O Cover

Xsight Labs is a new networking startup with well over $100M in funding that is trying to break into the next-gen data center switch market. The company is betting on its new 7nm chip design and hyper-scale/ Tier 1 wins to bring its vision of a newly imagined network switch core to market. I had the opportunity to speak with the folks about their new X1 chip that is already sampling to customers.

Xsight Labs X1 25.6T Switch Chip

First off, the Xsight Labs X1 is a 25.6T switch. While there are others in the market saying they are sampling this next-generation of data center switch chip, Xsight says the X1 is the world’s first using 100G PAM4 LR SerDes in the 25.6T generation. This allows, for example, a 32x 800GB switches. In the STH lab, we are still using 32x100Gbps switches from several vendors making these about 8x the speed of what we are using.

Xsight X1 Chip Introduction
Xsight X1 Chip Introduction

Another key feature is that the switches can support DACs for in-rack connectivity. At some point, as connection speeds increase DACs do not have the range to reach the full rack. At the same time, using DACs lowers power consumption and cost considerably so being able to use DACs is very important for many data center architectures. Xsight Labs is looking beyond the Top-of-Rack switch and looking at how it can service high-performance clusters as well as spine, leaf, and core networks all with a common architecture. Our sense after speaking with the company is that the X1 is the first in the company’s roadmap of products.

Xsight X1 Single Architecture For Many Markets
Xsight X1 Single Architecture For Many Markets

While incumbents have the luxury of supply chains, customer relationships, and years of practical deployment, newcomers have another advantage that Xsight is looking to exploit: a different entry point. By entering the market in the 12.8T/ 25.6T switch space, the company was able to specifically design its chips for these higher data rates rather than iterating on a several generation old design.

Xsight X1 Key Features
Xsight X1 Key Features

These days, it is no longer enough to product switch silicon. Instead, one needs to have a multi-layer software stack that can interface with major NOS ecosystems and development communities.

Xsight X1 Software
Xsight X1 Software

One of the biggest headline features is that the company says its switch is the lowest power. We asked, and the X1 is built as a monolithic die on TSMC 7nm process. This combined with the new architecture means that the X1 is producing sub 300W of power consumption at 25.6T while its competitors are using around 350W at half the speed or 12.8T speeds. This lower power consumption is set to lower operational costs for large customers. By using less power and generating less heat, another impact is that the company will also be launching 1U 32x 800G form-factor switches. The lower power chip helps cooling efforts which in turn means more compact switches.

Xsight X1 Low Power Chip
Xsight X1 Low Power Chip

While the 1U form factor is coming, currently the company has Alpha customers on 2U 32x OSFP and 32x QSFP-DD switch platforms.

Xsight X1 2U Alpha Evaluation Platforms
Xsight X1 2U Alpha Evaluation Platforms

One of the big takeaways from the discussion is that this is not a design on someone’s laptop. Instead, there is working silicon being sampled to large customers today.

Final Words

Over the years, Broadcom has built a massive lead in the merchant switch silicon space. As with many markets, consolidating that much market share means that a lot of competition is brewing both large and small. We have covered¬†Intel-Barefoot,¬†NVIDIA-Mellanox,¬†Innovium TERALYNX 8 25.6Tbps, and will cover Marvell’s latest efforts later this week. We asked Xsight about the competition and it thinks that its new design starting from a higher-performance starting point along with its features (such as switch silicon telemetry to predict failures) and low power consumption will lead to wins.

I also asked my favorite question. Namely, when we were going to see co-packaged optics, especially after I had Hands-on with the Intel Co-Packaged Optics and Silicon Photonics Switch earlier this year. From Xsight it sounds like they are thinking the 51.2T generation we will start to see co-packaged optics more and then the generation or two after that it will become commonplace. Xsight confirmed they have a plan for that transition which is important since it will be a massive operational and industry shift.

Overall, it is great to see innovation and competition in the switch market as having one company with too dominant of a position leads to less innovation and market concentration.
