Supermicro X10DAi Workstation Motherboard Review

7
Supermicro X10DAi Overview
Supermicro X10DAi Overview

The Supermicro X10DAi is a new workstation motherboard that provides a solid base for a dual processor Intel Haswell-EP workstation. Using our model name decoder ring we see the “X10” series (socket LGA2011-3 generation), “D” dual socket, with “A”udio. There are several other motherboards in the X10DA series but the motherboard we are reviewing today is the cost optimized version. At $365-$400 it is certainly in-line with other dual socket motherboards with similar capabilities.

Test Configuration

We used a fairly typical DP workstation setup for this type of platform and what we have used previously in our Intel Xeon E5-2600 V3 coverage.

The test platform was rather expansive due to the enhanced SSD capacity of the motherboard.

Supermicro X10DAi Overview

The Supermicro X10DAi is an EATX motherboard measuring 13″ x 12″. That is fairly standard these days for motherboards of this caliber. With the initial Intel Xeon E5 introduction, EATX became an extremely popular as a form factor, especially with dual socket designs. The EATX form factor can be fit into everything from 4U style cases to smaller mid towers such as the Supermicro SC732i. When dealing with smaller chassis, one does need to ensure they fit an EATX motherboard and large enough coolers.

Supermicro X10DAi Overview
Supermicro X10DAi Overview

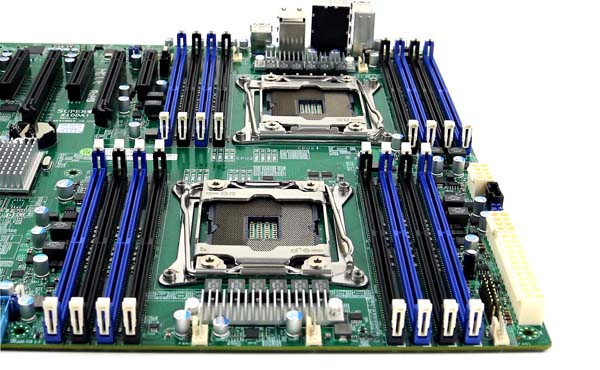

Looking at the CPU and memory layout, one can see that the DIMM slots and sockets are aligned for front-to-back cooling. Supermicro’s workstation chassis and most rackmount chassis are built with this layout as it is very efficient. One should take care to note though that some consumer cases have exhaust vents atop the chassis and therefore some other workstation motherboards have their DIMM slots aligned top-to-bottom. This is not a huge deal either way, but it is something to keep in mind when selecting a chassis.

Supermicro X10DAi CPU and Memory Airflow
Supermicro X10DAi CPU and Memory Airflow

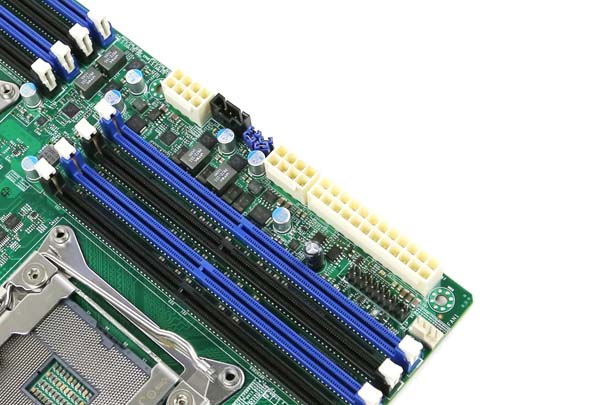

The CPU and ATX power connectors are along the top side of the motherboard which works very well with cases that follow traditional server/ workstation layouts. Some consumer workstation cases mount the PSU on the bottom instead. For these, one just needs to ensure that PSU cables are long enough to route through the chassis. Using a Supermicro chassis one is unlikely to run into an issue with cable lengths.

Supermicro X10DAi CPU and ATX Power
Supermicro X10DAi CPU and ATX Power

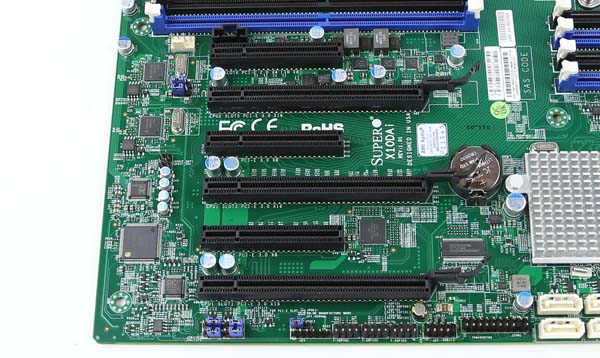

In terms of PCIe expansion, one can see a solid set of slots. There are three PCIe 3.0 x16 slots for GPUs or MICs. These slots are spaced for double-width coolers which are prevalent on higher powered cards. There are two PCIe 3.0 x8 slots which are excellent for HBAs and other cards. Finally there is a PCIe x8 slot that runs at PCIe 2.0 x4 electrical. Seven very usable slots onboard give lots of room for expansion.

Supermicro X10DAi PCIe Slots
Supermicro X10DAi PCIe Slots

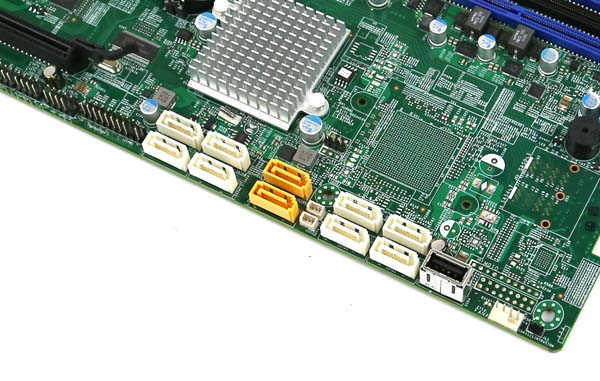

With the onboard Intel C612 PCH, the Supermicro X10DAi has ten SATA III ports. Using drives like the Intel S3500 800GB or the SanDisk Cloudspeed 1000E 800GB we recently tested there is room for 8TB or more of SSD space, or even more storage using traditional rotating disks. Previous generations of workstation motherboards would have required an extra HBA or RAID controller to get 10x 6.0gbps ports. The integration of 10x SATA 3 slots onboard provides plenty of storage flexibility for those using the Supermicro X10DAi.

Supermicro X10DAi SATA Ports
Supermicro X10DAi SATA Ports

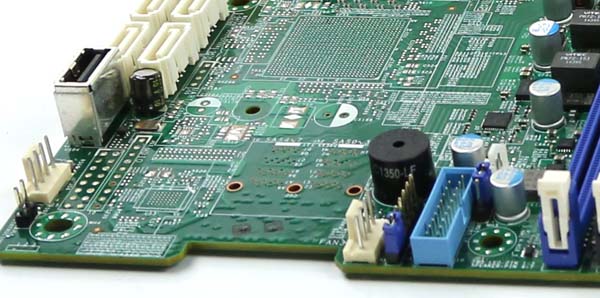

Supermicro provides both an internal USB 2.0 Type-A header as well as a front panel USB 3.0 header. There are still many workstation applications that utilize a USB hardware key so having those keys deployed inside the chassis is a preferable method. Most higher-end server and workstation motherboards have these features so it is good to see that they are included with the Supermicro X10DAi.

Supermicro X10DAi Internal USB Headers
Supermicro X10DAi Internal USB Headers

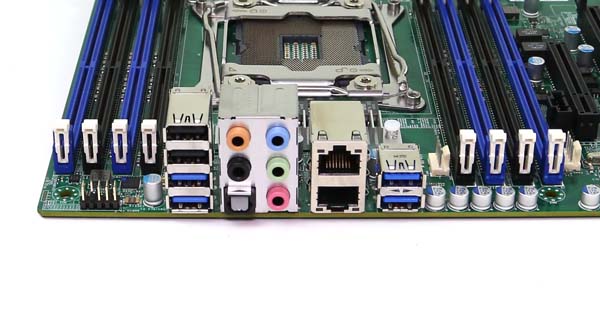

Moving to the rear I/O panel one can see 7.1 audio outputs with an optical S/PDIF ouput. Audio is provided by the Realtek ALC888. In terms of onboard audio this is sufficient for most purposes. An audio engineer is going to use an add-in card solution and for most other applications, the ALC888 is going to be overkill. Along with the audio ports we can see four USB 3.0 ports and two USB 2.0 ports. This should be plenty for most applications.

Supermicro X10DAi Rear IO
Supermicro X10DAi Rear IO

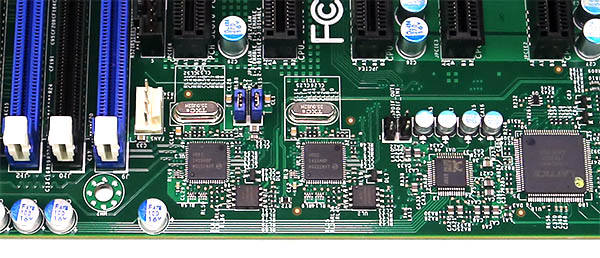

The dual gigabit Ethernet ports are powered by Intel i210 network controllers. The Intel i210 is the newer replacement for the Intel 82754L network controller and is what we see these days.

Supermicro X10DAi Intel i210 NICs
Supermicro X10DAi Intel i210 NICs

Supermicro’s choice of using the Intel i210 adds cost, but it is a significantly higher quality NIC than the Realtek alternatives.

Thermal Results

To capture these images we utilize our FLIR Ex series professional thermal imaging camera and turn on FLIR’s MSX enhancements so we can see components outlined clearly. We put the system under 100% CPU load for a period of 24 hours to let “heat soak” set in prior to taking the images.

Supermicro X10DAi Thermal Imaging
Supermicro X10DAi Thermal Imaging

The Intel C612 platform runs very cool. One can see the impact of the in-line CPU configuration with more heat centered around the second heatsink. This is to be expected given this configuration and temperatures were still extremely cool. We did use our lower power GT610 video card just to ensure a proper comparison with other workstation motherboards we have tested.

Conclusion

Overall one can tell that the Supermicro X10DAi is a solid server platform. For the vast majority of workstation users, Intel’s change with the C612 chipset’s 10x SATA III ports means that an add-on HBA is no longer required for most applications. The combination of dual sockets with 8 DDR4 DIMMs per socket, dual Intel gigabit LAN, a solid number of PCIe slots, audio onboard and USB 3.0 makes the X10DAi a great motherboard for those looking to build a solid high-end workstation.
