Supermicro A1SRi-2758F Review – Hello Rangeley

Supermicro A1SRi-2758F FLIR Load
Supermicro A1SRi-2758F FLIR Load

The Supermicro A1SRi-2758F is perhaps one of the more highly anticipated platforms of the last year. It combines an 8 core Intel C2758 series Rangeley processor with a platform that is built to handle more workloads than any previous generation Atom. The onboard 8-core C2758 we have found to be many times faster than previous generation Atom processors. The Rangeley C2758 trades Turbo Boost for QuickAssist. Other than performance, Rangeley is expected to have a much longer production run as it is meant for embedded Telecom customers. The platform is largely similar, save the processor, to the Supermicro A1SAi-2750F we reviewed in October 2013.

Oh, and as a teaser, this is officially our first review with FLIR imaging so readers can now see what kind of cooling is required for these platforms.

Test Configurations

We had two main test configurations which is not something we always get to do. Due to the SoC design, the Intel Atom C2758 platform is very compact and requires very little to get up and running. We took this opportunity to validate both Micron and SK Hynix memory working with the Supermicro platforms:

Test Configuration #1 (used for power testing and performance testing):

  • Motherboard/ CPU: Supermicro A1SRi-2758F with Intel C2758 Rangeley 8C/ 8T SoC
  • SSD: Intel S3700 100GB SSD
  • Memory: 16GB (4x 4GB) 1600MHz 1.35v SK Hynix HMT451A7AFR8A and Micron MT18KSF51272HZ-1G6K2ZF DDR3 SODIMMs
  • OS: Ubuntu 13.10
  • Power supply: 1U 200w 80+ Gold PWS-203-1H

Overall, both memory configurations worked well. We also had additional time with this review so we were able to test add-in cards such as a Mellanox ConnectX-3 VPI Infiniband/ 40GbE card with the motherboard.

Supermicro A1SRi-2758F with Mellanox ConnectX-3
Supermicro A1SRi-2758F with Mellanox ConnectX-3

The combination of the onboard NICs plus the 40GbE/ FDR Infiniband networking was impressive to say the least.

The Supermicro A1SRi-2758F

The Supermciro A1SRi-2758F is a very compact server motherboard. It utilizes the mini ITX form factor. That means it is approximately 6.75″ by 6.75″ and makes most standard ATX and larger motherboards look enormous in comparison.

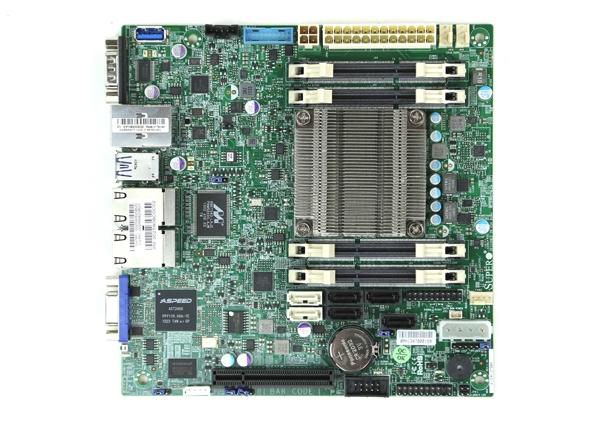

Supermicro A1SRi-2758F Overview
Supermicro A1SRi-2758F Overview

Here is a shot with the heatsink removed so one can see the very small CPU package. These motherboards have fixed processors, so there is no large socket mechanism and the processors are not replaceable (or at least “easily” replaceable.) Overall, this is a densely packed motherboard and the lack of a socket helps in this regard. It is also a contributing reason that we see four memory slots in most mini ITX Intel Atom C2000 designs.

Intel Rangeley Avoton CPU Package
Intel Rangeley Avoton CPU Package

Unlike our Supermicro A1SAi-2750F sample, the A1SRi-2758F came with the standard passive heatsink. Realistically, the Intel Atom C2758 is a 20w maximum TDP chip so with the generously sized heatsink there is a fairly minimal airflow requirement. Thermals are excellent even with minimal airflow due to the low TDP of the parts involved.

Supermicro A1SRi-2758F FLIR Load
Supermicro A1SRi-2758F FLIR Load

Since the Rangeley platform is very well integrated, this small mITX platform comes pre-installed with virtually everything needed for a working system. One major required component are the DDR3 SODIMMs that the motherboard takes. Kingston sent eight of their 1.35v low power 8GB DDR3-1600MHz ECC memory modules for our testing. One thing that we certainly noticed was that our ECC SODIMMs worked with the motherboard while standard non-ECC SODIMMs were causing issues. The bottom line here is to check manufacturer compatibility lists and use ECC SODIMMs with these server platforms.

Supermicro A1SRi-2758F Power Connectors
Supermicro A1SRi-2758F Power Connectors

The top of the motherboard there is a standard 24-pin ATX power connection and a 4-pin CPU power connector. Other very interesting features are both a front panel USB 3.0 connector along with an internal Type-A USB 3.0 header. This is a major upgrade to previous generation Atom (and even Xeon) platforms as it allows for fast USB 3.0 sticks to be added inside the server chassis. Perfect for boot images. It should be noted, several other Intel Atom C2000 series platforms do not have USB 3.0 ports so this is a significant point of differentiation.

The Marvell Ethernet transceiver sits just behind the quad Gigabit Ethernet ports. It is one of the key components to get the Avoton / Rangeley quad Intel i354 NIC working. This is considered the “premium” LAN configuration as some manufacturers have gone a less expensive route and integrated lower-end Intel i210 controllers. The key to getting the Intel i354 gigabit network controller working is having the appropriate Intel (not Marvell) drivers. New OS versions such as CentOS 6.5 and Ubuntu 13.10 have the new igb drivers in the basic installation. Older OS versions will likely require drivers from Intel. Other distributions such as pfsense are working to get drivers to their distribution using the A1SRi-2758F as a development platform.

Supermicro A1SRi-2758F USB 3 Marvell Aspeed
Supermicro A1SRi-2758F USB 3 Marvell Aspeed

The bottom side of the motherboard had several interesting features. We see the ASpeed AST2400 chip displayed prominently which runs the BMC for IPMI 2.0 functionality.

The two white 7-pin SATA ports are SATA III 6.0gbps ports while the four black 7-pin SATA II ports provide additional storage flexibility. Overall, six onboard ports is ample for many applications. One other interesting feature is a 4-pin molex connector so that a hard drive can be powered directly from the motherboard. In theory, one can have an entire system powered solely by the ATX power connector.

Supermicro A1SRi-2758F SATA Ports
Supermicro A1SRi-2758F SATA Ports

As for PCIe connectivity the Supermicro A1SRi-2758F has a PCIe x8 slot. This gives the platform a lot of flexibility in terms of being able to add additional controllers. We tested using both the newer LSI 9300-4i4e card, 9207-8i, and 9240-8i HBA/ RAID cards and they worked fine. Moving to a 16 port card would provide 22 drives worth of connectivity along with the platform’s existing quad Ethernet solution. We also utilized our Mellanox QDR and FDR Infiniband cards in the slot successfully (see above.) Unlike the previous generation Atom S1260, the new Avoton / Rangeley platform is much more robust and having an extra PCIe x8 slot adds much flexibility to the platform.

The rear I/O panel follows the standard Supermicro X9 and X10 series I/O panel design. One can, for example, see a similar layout in our Supermicro X10SL7-F review. There are legacy VGA and serial ports. Peripherals can be connected using two USB 3.0 and two USB 2.0 ports on the rear panel.

Supermicro A1SRi-2758F Rear IO Panel
Supermicro A1SRi-2758F Rear IO Panel

Networking is provided by a dedicated IPMI port (above the USB stack). The quad Intel Ethernet ports can be found on the rear panel as well. The Intel Atom C2758 has a quad port Intel i354 gigabit controller built-in. The built-in Rangeley MAC is a 4x 1GbE/ 2.5Gig Ethernet design so this is essentially a high-quality built-in quad port NIC. From those ports the general decision manufacturers must make is to connect them directly to a chassis switch chip or use a Marvell based PHY. Supermicro utilizes the 1GbE Marvell chip as we saw in earlier board shots.

Software and Management

Supermicro’s IPMI and KVM-over-IP as described a few times on this site, allows for a lot of deployment flexibility. Things such as fan speeds, chassis intrusion sensors, thermal sensors, and etc. can be monitored remotely. Alerts can be setup to notify the admins of issues. Beyond this, the functionality also allows for remote power control. You can do remote power up, power down, and reset of the server in the event that it becomes unresponsive. In fact, the test system has never had a keyboard, mouse, CD/DVD ROM, or monitor hooked up to it, even after multiple BIOS tweaks and operating system/ hypervisor installations.

Supermicro Mount Images on IPMI 2.0
Supermicro Mount Images on IPMI 2.0

Another important feature is the ability to remotely mount CD images and floppy images to the machine over the dedicated management Ethernet controller. This keeps maintenance traffic off of the primary Intel NICs. At the same time it removes the need for an optical disk to be connected to the Supermicro motherboard. Combined with the onboard Type-A USB 3.0 header, mounting OS installation or recovery images remotely is a very simple affair.


Overall, the Rangeley based Supermicro A1SRi-2758F is poised to be a very popular platform in 2014. The opportunities for both the Supermicro A1SRi-2758F here and the A1SAi-2750F we reviewed previously are much expanded due to the new Rangeley/ Avoton architecture. We already looked at the performance of the platform reviewed here and it was very strong. As we look to update our colocation infrastructure, this Rangeley motherboard is certainly being tested to use in roles ranging from a firewall appliance to a load balancer to even a primary web/ virtualization server.
