Norco ITX-S4 – Review and Build

4

Today we’re taking a look at the newly released Norco ITX-S4, a $99 Mini-ITX based server case with four hot swap bays, an internal 2.5” bay and full height PCI expansion slot.  While the primary market for this case is undoubtedly Home Theater PC (HTPC) and NAS appliance scenarios, I wanted to go beyond simple NAS or HTPC with the capabilities that Intel’s Avoton offerings now provide.  I have put together a low power, high capacity “flex” server build as a proof of concept for the ITX-S4,  to see just how much functionality I could cram into this little box.

Test Configuration

For this test we decided to use a fairly standard Intel Avoton platform. This is likely the direction many of the larger NAS players are going in the next year so this is significantly ahead of the older Atom chips in terms of utility.

  • Norco ITX-S4 NAS Chassis
  • ASRock C2750D4I Mini ITX Motherboard (8 Core)
  • SanDisk Extreme II 240GB SSD
  • Seagate 4TB ST4000DM000 (x4) 5900RPM
  • 32GB Micron 8GB DDR3-1600 DIMMS (x4)
  • Apevia ITX-AP250W 250W FlexATX Power Supply

Norco ITX-S4 Installation

Installation consisted of Windows Server 2012 R2 Standard, which includes 2 free Hyper-V virtual machines.  The VM files were stored on the SSD (Drive C:), and configuration of the four 4TB disks consisted of Stablebit DrivePool for pooling disks 1 – 3 into a single 12TB volume (Drive D:), and disk 4 configured as a parity disk with the excellent and free SnapRAID software.  It’s worth noting I’ve been very happy with the DrivePool + SnapRAID combo, this coming from someone that’s been a hardware RAID diehard.  This combination really excels at protecting large media libraries – data that typically changes only very infrequently.  The nuts and bolts of configuring this software is beyond the scope of this review – and more in formation is available here in the forums – but suffice to say it has been working perfectly during the week evaluating this build.

The front of the Norco ITX-S4 has 4x 3.5″ hot swap drive trays hidden behind a locking screen. This helps keep the drives secure against unwitting prying fingers. Two front USB ports are blocked when the door is closed but can still be used to hook up a keyboard and mouse if needed.

Norco ITX-S4 Front Open

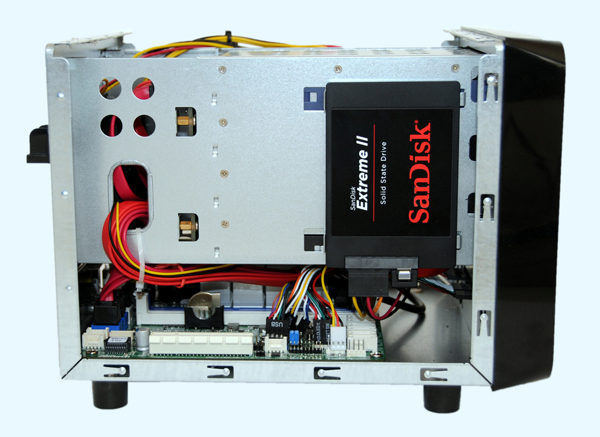

The fifth drive spot is for a 2.5″ SSD. This can be used either as a cache disk or a boot drive depending on the configuration. Unlike the 3.5″ drives, this is not a hot-swap drive slot.

Norco ITX-S4 2.5 in bay

One can see there is adequate clearance and the mounting is fairly straightforward. One can also see that the mITX expansion slot can be utilized with a full-height card, although depth may limit some applications.

Norco ITX-S4 SSD Three Quarter

The FlexATX power supply is mounted on the other side of the chassis. To keep the form factor compact, a smaller power supply is used. One of the benefits of low power builds is that power supplies tend to be cooler and quieter than larger builds.

Norco ITX-S4 Rear Three Quarter

The power supply sits above the motherboard. One can see that on the ASRock motherboard the ATX power connector is still accessible from the side of the case.

Norco ITX-S4 PSU Side Open

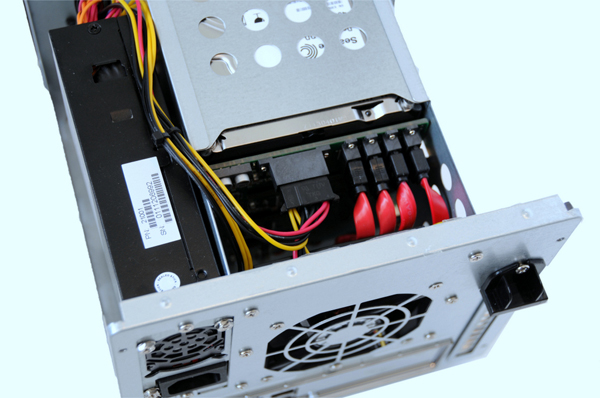

Looking above at the power and SATA connectors, one can see that there is a PCB backplane that provides hot-swap capability in the chassis. Overall this is a simple and clean design.

Norco ITX-S4 Top Connectors

One minor complaint was the stock cooling fan is on the noisy side because it is high CFM, the same fan employed in Norco’s rackmount server cases.  So I installed a Zalman fan controller to dial it back a bit.  Drive temps were still fine.  An alternative would be to replace it with something like a Silverstone SUSCOOL81.

  • Usage:  This server handled multiple 30MBps media streams to several client nodes, media transcoding, parity generation, and two Virtual Machines all without breaking a sweat and being nearly inaudible.
  • Power Consumption:  22 Watts at idle with drives spun down, and 58 Watts during a CPU intensive operation with all disks working.

Conclusion

The ITX-S4 marks a great entry into Norco’s small form factor offerings, and a good value at the $99 pricepoint.  I like the fact the drive trays are identical to those in Norco’s higher density rackmount based cases, which allowed me to swap drives back and forth easily as I was populating data.

Going forward I hope to see Norco add an 8 bay offering to its lineup, as I’ve been urging them to consider both 4 and 8 bay offerings for some time now, given the growth in the home server and HTPC segments.  It is worth noting that Norco has done a lot to revolutionize this segment, as prior to the release of the Norco RPC-4020 case way back in June of 2008,  the only alternative for people building servers for large media collections was noisy  and expensive  enterprise class cases, or “5-in-3” drive modules that installed in plain old tower cases and were generally cumbersome.
