4x 2.5GbE and 2x 10GbE Intel Core Firewall and Virtualization Appliance Performance

The performance section is one where we find another quirk. Here is the quick topology of this system. Our best guess is that the reason the 10th Gen Core U-series is being used here instead of Alder Lake-N is that the Core i5 and Core i7 have 16 PCIe lanes instead of just 9. If four lanes go to the riser, and one each to the 2.5GbE NICs, that is 8 lanes before even getting to the SSD or other components.

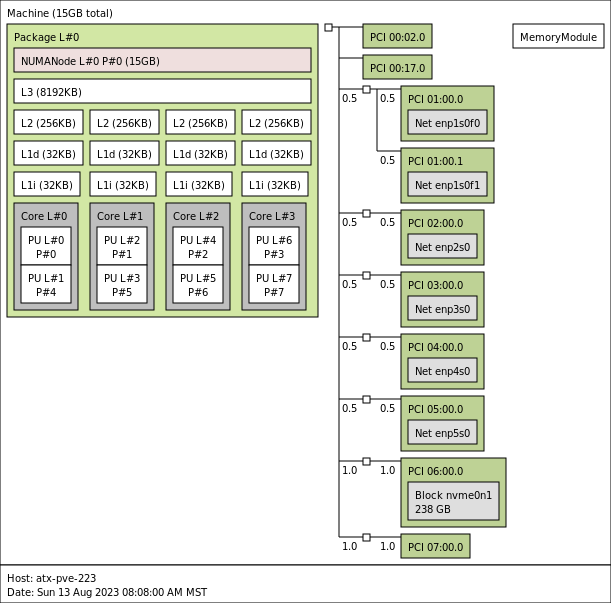

AliExpress 4x 2.5GbE And 2x 10GbE Topology
AliExpress 4x 2.5GbE And 2x 10GbE Topology

Next, we are going to use our standard Linux Bench results and Geekbench 5 to discuss the performance of this compared to some of the systems that we have reviewed.

Python Linux 4.4.2 Kernel Compile Benchmark

This is one of the most requested benchmarks for STH over the past few years. The task was simple, we have a standard configuration file, the Linux 4.4.2 kernel from kernel.org, and make the standard auto-generated configuration utilizing every thread in the system. We are expressing results in terms of compiles per hour to make the results easier to read:

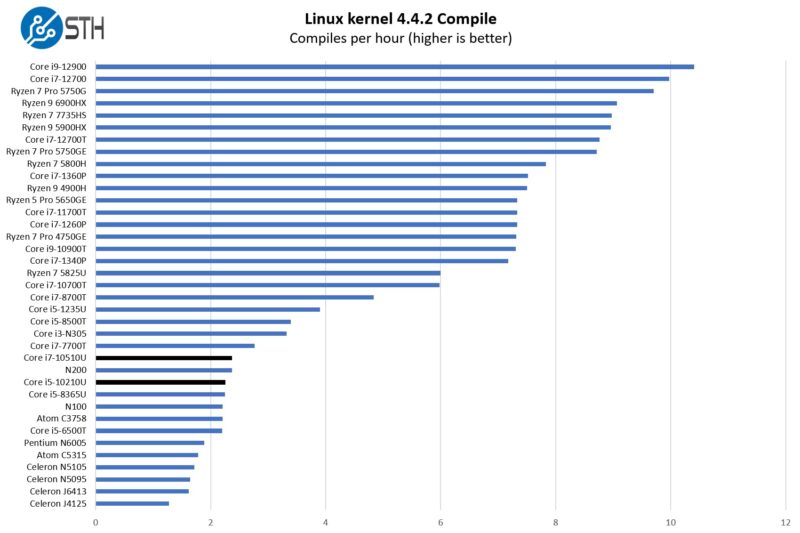

Intel Core I7 10510U And Core I5 10210U Linux Kernel Compile Benchmark
Intel Core I7 10510U And Core I5 10210U Linux Kernel Compile Benchmark

On these charts, we have not just the Intel Core i7-10510U, but also the Core i5-10210U highlighted. Since we have both CPUs in the two systems it felt like we should put the results on the same chart since they are both options. While they are Core i5 and Core i7 CPUs, do not be fooled. They are 10th gen Core processors and low-power ones at that.

7-zip Compression Performance

7-zip is a widely used compression/ decompression program that works cross-platform. We started using the program during our early days with Windows testing. It is now part of Linux-Bench.

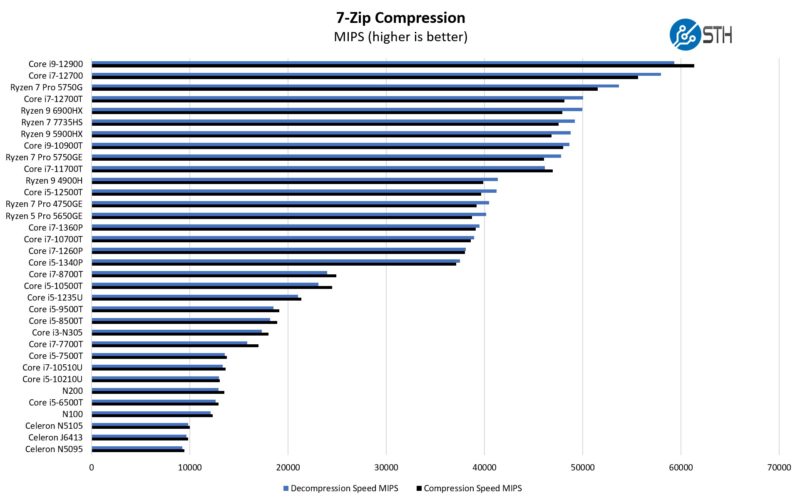

Intel Core I7 10510U And Core I5 10210U 7zip Compression Benchmark
Intel Core I7 10510U And Core I5 10210U 7zip Compression Benchmark

The CPUs generally are close to the quad-core Intel N200 which is not what we were expecting. Part of that is due to the fact that these systems get up to around 73-75C with the cooling that is offered.

OpenSSL Performance

OpenSSL is widely used to secure communications between servers. This is an important protocol in many server stacks. We first look at our sign tests:

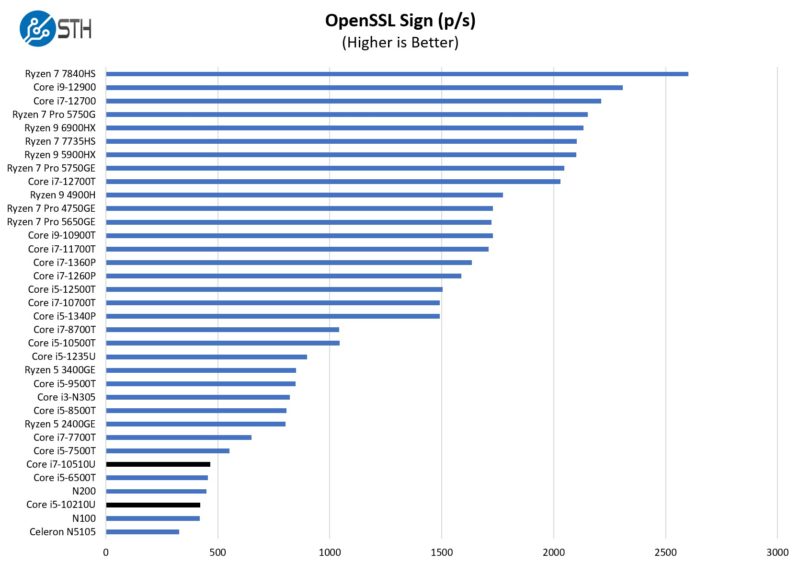

Intel Core I7 10510U And Core I5 10210U OpenSSL Sign Benchmark
Intel Core I7 10510U And Core I5 10210U OpenSSL Sign Benchmark

Here are the verify results:

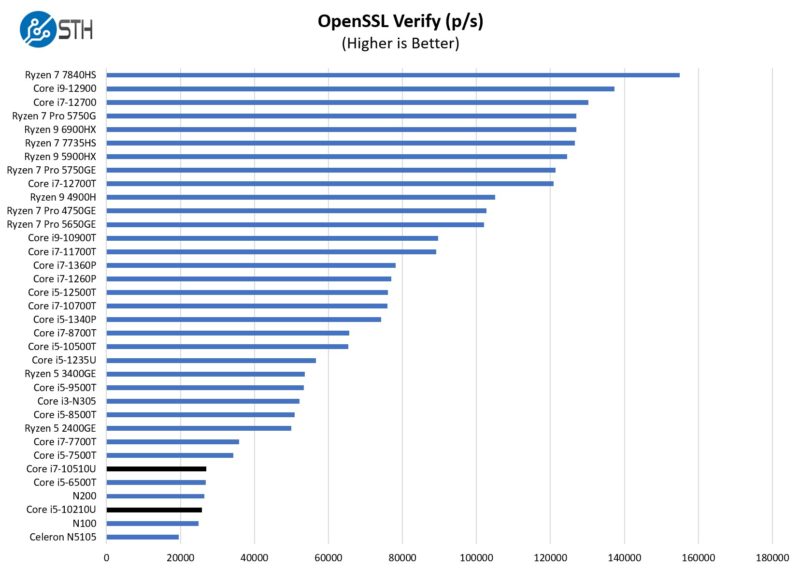

Intel Core I7 10510U And Core I5 10210U OpenSSL Verify Benchmark
Intel Core I7 10510U And Core I5 10210U OpenSSL Verify Benchmark

Again, we have results closer to the new Alder Lake-N parts that are closer than we were expecting. This is a reason that the upcoming 144-core Sierra Forest CPU with all E-cores is promising. Here we are seeing newer E-cores compete with previous-generation P-cores on a 1:1 basis.

Intel Core i5-10210U and Intel Core i7-10510U Geekbench Results

On the Geekbench side, things got strange. First, the Core i5-10210U and Core i7-10510U Geekbench 5 comparison:

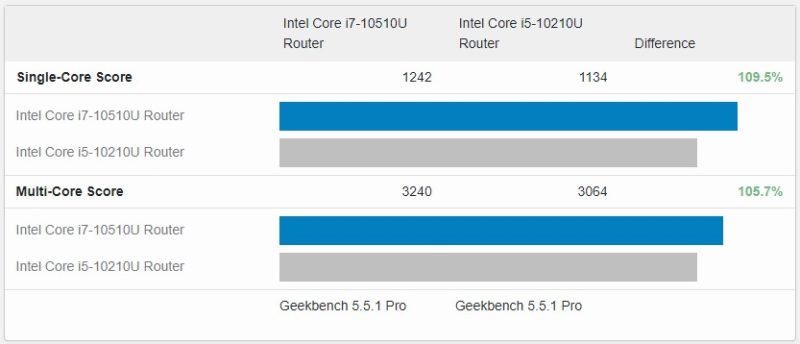

Intel Core I7 10510U And Core I5 10210U GeekBench 5
Intel Core I7 10510U And Core I5 10210U GeekBench 5

The takeaway here is that there is a gain with the Core i7, but it is not an enormous one by any means. When we instead look at the Core i5 to the Alder Lake-N here is what we get:

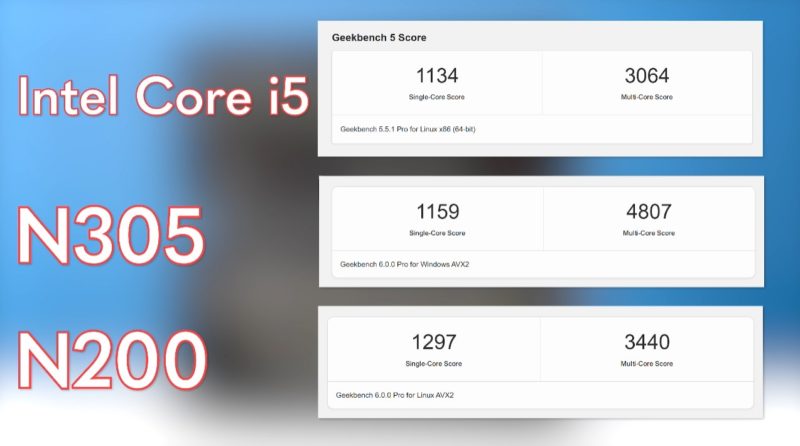

Intel Core I5 10210U GeekBench 5 Vs Core I3 N305 And N200
Intel Core I5 10210U GeekBench 5 Vs Core I3 N305 And N200

The 10th Gen Intel Core i5 and Core i7 are no match for the Alder Lake-N, especially the 8-core Intel Core i3-N305.

What was extra strange was what happened when we ran Geekbench 6. We had the Core i7 unit running a long-term stress-ng stability test, and it passed. We thought it would fail at some point, but it kept running, albeit hot for weeks on end. We were running benchmarks on the Core i5 in the 8x 2.5GbE system in the meantime and when it got to Geekbench 6, it just quit and the system rebooted.

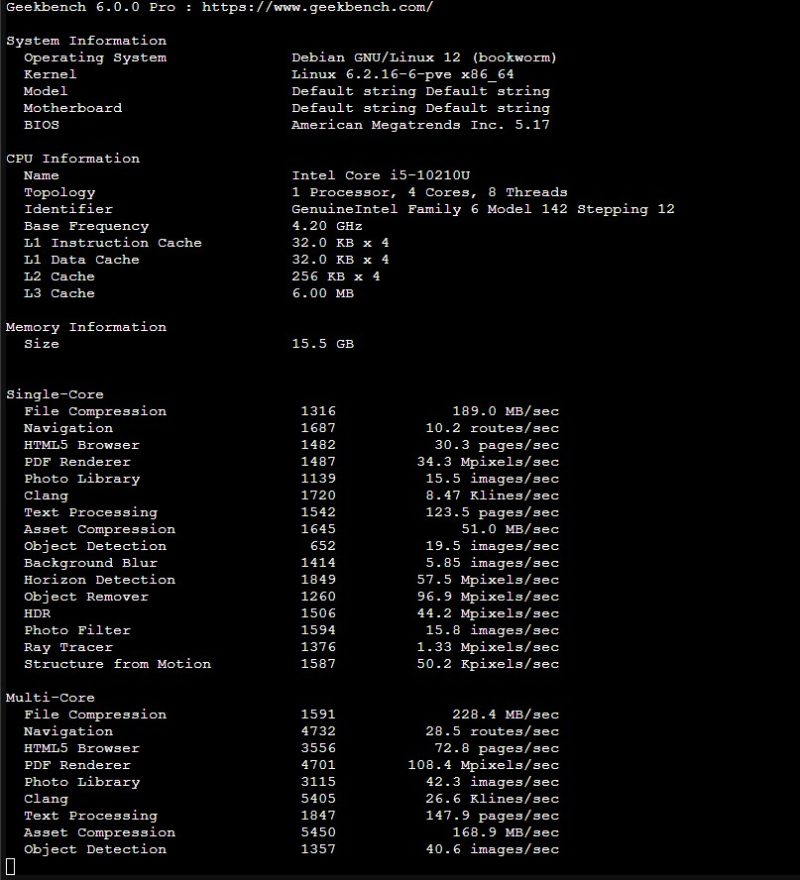

Intel Core I5 10210U Geekbench 6 Fail Point
Intel Core I5 10210U Geekbench 6 Fail Point

We then tried the Core i7 system after it was done with weeks of stress-ng, and it failed Geekbench 6 as well. We did multiple tests, and it happened several times at different parts of the Geekbench 6 (6.0 and 6.10) multi-core tests. We are not sure why this happens, and it is really a black mark on these systems. It did not happen in other benchmarks, but it was consistent on both systems.

Next, let us get to the power consumption and noise.
