New 4x 2.5GbE and 2x 10GbE Intel Core Firewall and Virtualization Appliance

30

4x 2.5GbE and 2x 10GbE Intel Core Firewall and Virtualization Appliance Internal Hardware Overview

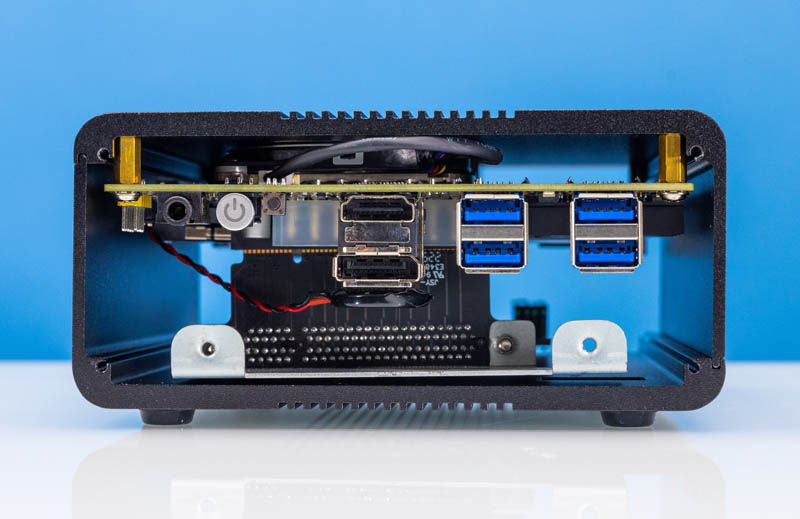

Getting inside the system requires pulling off the sides as we saw in some of the older systems.

Topton 4x 2.5GbE 2x 10GbE NAS Chassis Sides Removed Ports 1
Topton 4x 2.5GbE 2x 10GbE NAS Chassis Sides Removed Ports 1

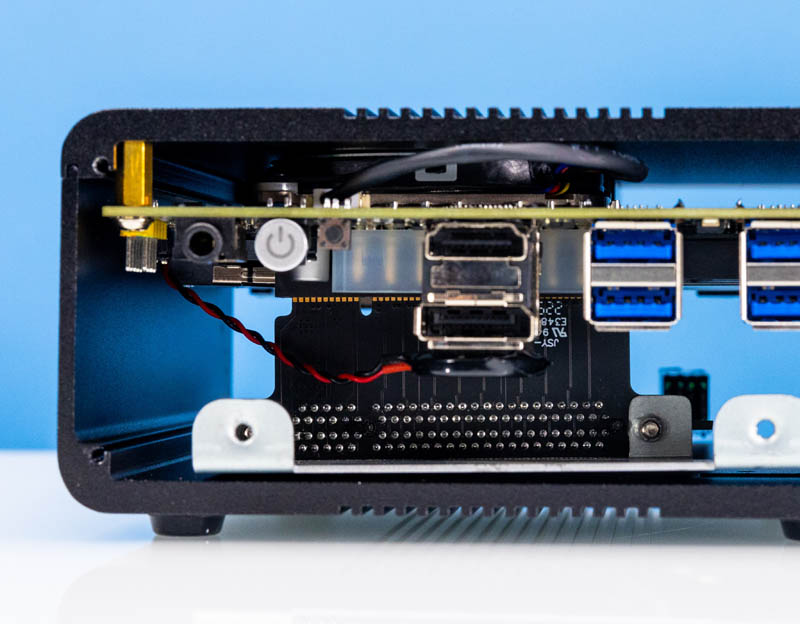

At this point, the trick is revealed. There is a riser inside the system.

Topton 4x 2.5GbE 2x 10GbE NAS Chassis Sides Removed Internal Riser 1
Topton 4x 2.5GbE 2x 10GbE NAS Chassis Sides Removed Internal Riser 1

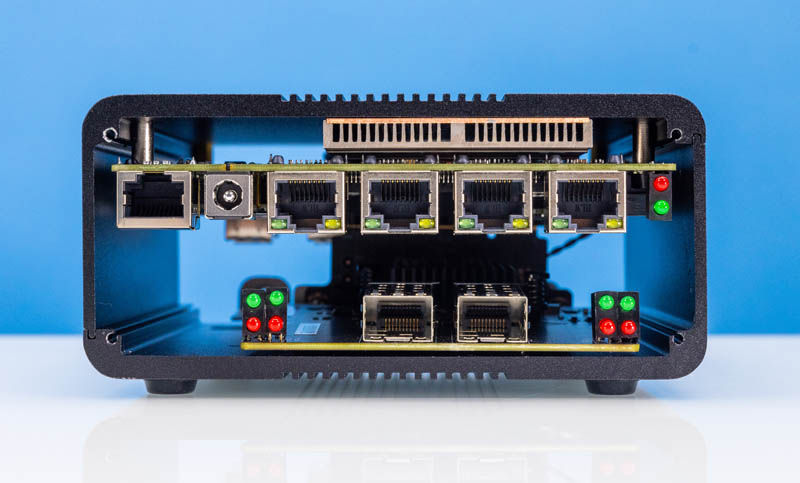

Here is the other side where we can see the main motherboard and the 10GbE NIC.

Topton 4x 2.5GbE 2x 10GbE NAS Chassis Sides Removed CPU Heatsink Network Ports 1
Topton 4x 2.5GbE 2x 10GbE NAS Chassis Sides Removed CPU Heatsink Network Ports 1

That 10GbE NIC is not just an off-the-shelf unit. Instead, these are custom CWWK-made 10GbE SFP+ modules that have ports in line with the PCIe slot insertion direction.

Topton 4x 2.5GbE 2x 10GbE Router Firewall Intel X520 Adapter With Heatsink
Topton 4x 2.5GbE 2x 10GbE Router Firewall Intel X520 Adapter With Heatsink

The NIC is the Intel 82599ES / Intel X520 that has been added to this custom card. The NIC is at an interesting point in its lifecycle. It was widely deployed years ago and is several generations old. For most OSes that means these have great compatibility. For VMware ESXi, support stopped at ESXi 7 so ESXi 8 does not support these NICs. If you run Proxmox VE, Ubuntu, or another similar OS, support is out-of-the-box.

Topton 4x 2.5GbE 2x 10GbE Router Firewall Intel X520 NIC 1
Topton 4x 2.5GbE 2x 10GbE Router Firewall Intel X520 NIC 1

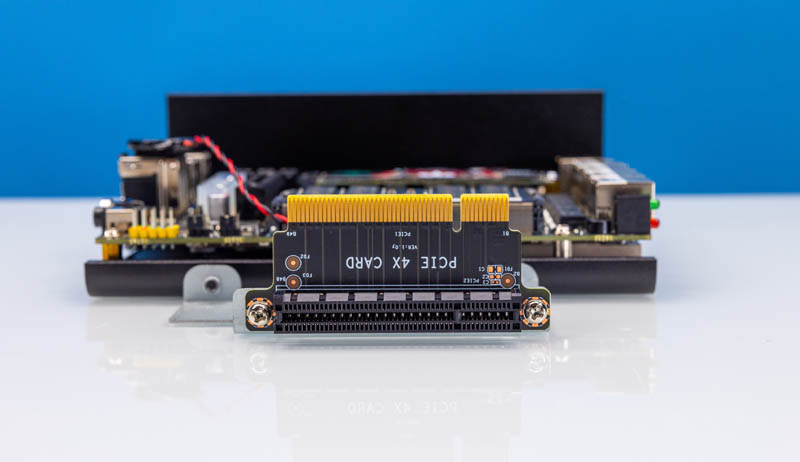

That custom NIC is connected to the main system via a PCIe x4 riser.

Topton 4x 2.5GbE 2x 10GbE NAS And 8x 2.5GbE Router Firewall PCIe X4 Riser
Topton 4x 2.5GbE 2x 10GbE NAS And 8x 2.5GbE Router Firewall PCIe X4 Riser

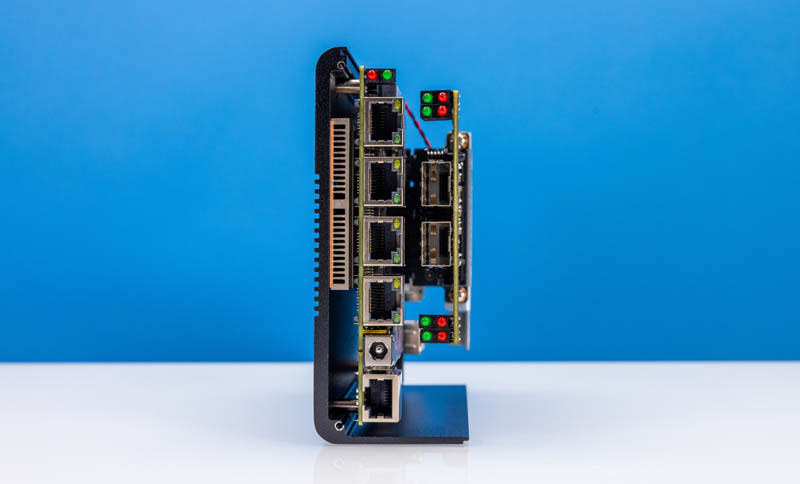

That riser connects to the motherboard but there is something else on the other side of the motherboard that is more intriguing.

Topton 4x 2.5GbE 2x 10GbE Router Firewall Network Port Side Top Off
Topton 4x 2.5GbE 2x 10GbE Router Firewall Network Port Side Top Off

The other side of the motherboard is the Intel Core i7-10510U heatsink and fan. The cooling solution is really different. There is a little heatsink and a fan unit that covers the CPU that has a copper plate on the top. That same unit then has thermal paste to have a thermal interface to the chassis. The chassis gets very hot under load, so it is certainly working to some degree.

Topton 4x 2.5GbE 2x 10GbE Router Firewall Heatsink And Fan Removed From Top
Topton 4x 2.5GbE 2x 10GbE Router Firewall Heatsink And Fan Removed From Top

On the other side, we get the main system.

Topton 4x 2.5GbE 2x 10GbE Router Firewall 10GbE NIC Away
Topton 4x 2.5GbE 2x 10GbE Router Firewall 10GbE NIC Away

The top has two DDR4 SODIMM slots. The bottom has a M.2 slot for NVMe.

Topton 4x 2.5GbE 2x 10GbE Router Firewall Motherboard Configured
Topton 4x 2.5GbE 2x 10GbE Router Firewall Motherboard Configured

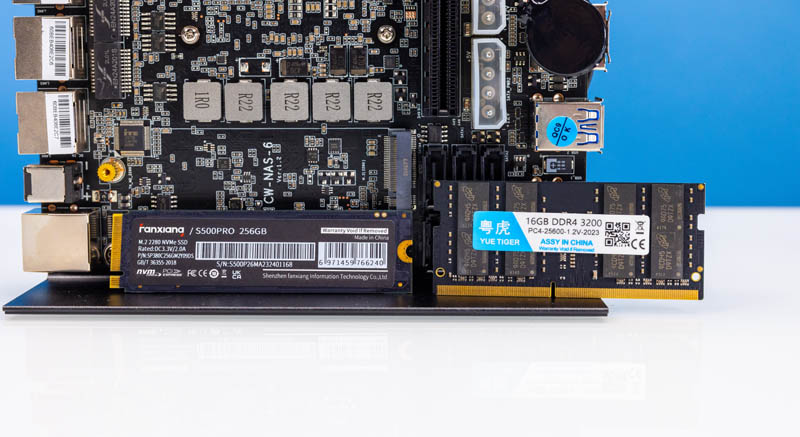

We got the Fanxiang S500 Pro 256GB that we have seen a few times now. We also have our 16GB Yue Tiger RAM. These systems usually come with a single SODIMM. Something you may have noticed is that there is no fan on this side of the system so airflow is very poor. If building a barebones, take that into account and optimize for low power and heat.

Topton 4x 2.5GbE 2x 10GbE Router Firewall Fanxiang S500 Pro 256GB And Yue Tiger 16GB DDR4 SODIMM
Topton 4x 2.5GbE 2x 10GbE Router Firewall Fanxiang S500 Pro 256GB And Yue Tiger 16GB DDR4 SODIMM

Then things get really strange. Not only do we have a middle motherboard PCIe slot for the riser, but there are also two 4-pin Molex power connectors and six 7-pin SATA ports. This is the CW-NAS-6 motherboard which seems to point to a CWWK NAS platform.

Topton 4x 2.5GbE 2x 10GbE Router Firewall Molex And SATA
Topton 4x 2.5GbE 2x 10GbE Router Firewall Molex And SATA

So if you are keeping tabs, this is a NAS motherboard with a funky cooling solution, that uses an old 10GbE NIC on a new custom form factor NIC, with new 2.5GbE NICs, and with ports that could also make it a mini PC. To say we were shocked at this solution would be an understatement.

Next, let us take a look at performance.

30 COMMENTS

  1. I’d honestly love to see the 10Gb units as Debian kubernetes hosts.

    Or even better, find a compatible 4-6 bay SSD chassis (making use of those onboard SATA ports). With how cheap second-hand ~250-500G enterprise SATA drives are, this is potentiallu looking like the most cost effective way to make a strongly perfirmant cephfs cluster.

    I’m thinking the x520 would get the latency values low enough that one could realistically deploy high performance distributed storage in a home lab, without having to sacrifice their firstborn… I might have to give this a shot!!

  2. As i read this article I thought I was reading another installment of “What’s absurd to you is totally normal for us” on the “Fanless tech” website.

    So this device has SATA ports that you may or may not be able to use. That’s a waste of a Dollar or more in costs. And those Molex ports – more waste.

    And those “over the top” CPUs that make the case hot. Does the case get as hot as a Texas concrete road at the peak of summer heat when it doubles as a frying pan?

    Ok, interesting product but…a perfect case of how to stuff 10 pounds of stuff in a 2 ounce baggie.

    No thanks.

  3. This is an excellent little box, add a bunch of SATA drives for bulk storage, and you got yourself an all-in-one node. Get 3 nodes, and now you have a Ceph cluster, and you can use DAC to have each node connect to two other nodes, not even going to need a switch. 2.5G for some inter-node communication and you’re essentially ready for Proxmox and Ceph or Rancher HCI.

  4. @Patrick Did you try ESXi 8/8U1 during your testing? The VMware HCL lists a handful of X520-based NICs as compatible with 8, using the ixgben driver. Wondering if it could be coaxed into working if it’s not out of the box.

  5. The review states, “We then tried the Core i7 system after it was done with weeks of stress-ng, and it failed Geekbench 6 as well. We did multiple tests, and it happened several times at different parts of the Geekbench 6 (6.0 and 6.10) multi-core tests.”

    Since the system is not stable enough to complete one of the tests, how is this going to work as a server? Would extra cooling make it stable? Would down clocking the RAM fix the crashes? What about CPU speeds?

    Without knowing why the system is unstable and how to fix it, I don’t see how the conclusions could be anything other than doesn’t work stay away.

  6. Earlier today, the Youtube thumbnail was nauseatingly positive about these little units, faulty as they were. Then the article says We don’t like the heat, the noise, the TDP, the stability, the chosen components…

  7. Hey guys running around today. Eric – we literally had stress-ng and iperf3 running on this unit for 30 days straight. The only thing that crashed it was Geekbench 6, but not 5. All we can do is say what we found. Steve – we tried 8. I usually try staying safe on VMware since the HCL is so much pickier than other OSes.

    MOSFET – I can tell you that is completely untrue. This was scheduled to go-live at 8AM Pacific. I was heading to go film something in Oregon so everything was scheduled. The thumbnail only says 10GbE 2.5GbE and that is all it has said. The title has not changed either. I am not sure what is “nauseatingly positive” when it is just factually the speed of the ports.

  8. Man, I literally just bought (and had delivered) a Moginsok N100 solution with 4 x 2.5Gbit ports. Not sure how I missed this, as it would have completely changed my calculus.

  9. Since Geekbench crashes at different places each run, this points to a hardware malfunction. My suspicion is continuous stress-ng creates too predictable a load to crash the system.

    If I were to guess, the on-board DC-to-DC power regulators aren’t able to handle sudden changes of load when a fast CPU switches back and forth from idle to turbo boost (or whatever Intel calls it). Such power transients likely happen again and again during Geekbench as it runs each different test.

    Repeated idle followed by all cores busy may not happen frequently in real-world use, but crashing at all is enough to ruin most server deployments I’d have in mind.

    I wonder if the system would be stable after decreasing the maximum CPU clock speed.

  10. @Chrisyopher – Your N100 is great.

    @Eric – we did not see it on the Linux-Bench scripts either. Those are pounding workloads over 24 hours. We only show a very small portion of those scripts here but those would be more short duration bursts and long bursts. There is something amiss, I agree, but it does not seem to be a simple solution.

  11. I wonder if Geekbench is doing something with the iGPU that stress-ng doesn’t touch.

    This whole thing looks like an interesting platform in completely the wrong case and cooling solution.

    It also reinforces that Intel (or someone) needs a low cost low power chip with a reasonable number of PCI lanes. Ideally ECC too, although that’s getting close to Xeon-D and its absurd pricing.

  12. The X520 dual port on PCI-E x4 with 2.0 interface is actually not able to run at full speed (can only perform ~14Gbps when both ports pulling traffic together), the older R86S with Mellanox is OK because the card is running at v3.0. This is a downgrade

  13. @Michael, normally it is the transceiver which takes care of that – most 10GBaseT transceivers can do 2.5 and 5 GbE besides 10GbE.

  14. Oh if only it had SFP28!

    (just kidding)

    Very interesting device with two SFP+ ports. I wonder if they have a new Alder Lake based NAS board coming out, so getting rid of the old stock.

  15. Topton has been having issues with these with the barebones customers. Customers are putting in off the shelf components and they struggle in the heat and hang. I am not sure Topton’s supplied RAM/SSD arent any better than anyones personal depot of parts, but these do run hot and the SSD should probably have a heat sink along with adding a Noctua fan.
    You have to admit, Topton and others have their ears to the home server/firewall market by adding the 10GbE ports. But to keep the prices down they are going through the back of the supplier warehouses looking for the right combination to complete the checklist.
    With as hot as they run, I would surmise they don’t have a very long useful life.

  16. I’d be interested in seeing packet per second benchmarks on these devices running pfsense or opnsense. Having an understanding of how well the platforms perform with a standardized routing or NAT workflow would be interesting.

  17. Something I’m missing in this review are detailed routing tests, since this device is clearly intended to be used as router.
    This means that many people would buy this to put pfsense on it, so it’s nice that you would include stats on that too.
    pfsense lan -> lan (2.5 and 10gbit), lan->wan (both 2.5 and 10gbit with firewall), vpn (ipsec, wireguard etc) speeds.
    More technical people will understand that due to 4x on pci-e 2.0 the 10gbit expierence will be mediocre at best, but non technicial people must also get this kind of info 🙂

  18. What units support Coreboot? What is the purpose of having a firewall that can be accessed at the chip level and defeated by a powerful adversary?

  19. I bought many small PCs for PFSense installations. All the rackmounts have failed after 4 years (PSU or SSD). The fanless were much more reliable but not recommended for non technical users because you never know if the unit is ON or OFF due to the LEDs sometimes inverted betweek disk and power ! It also by default try to boot on a not installed Windows with secure boot instead of PFSense. If you have customers using it on a remote location, it’s an issue. Also, too many PFBlocker rules can lead the unit to be too hot and to crash especially when stupid users put the unit in a closed cabinet !
    My policy is to use second hand DELL servers R210, R220, R230 with the IDRAC Enterprise option and a new SSD. You just have to choose a CPU with AES hardware acceleration in order to imrove OpenVPN and IPSEC speeds. The IDRAC option allows you to repair everything when a software update goes wrong: just ask to the user to plug his mobile phone in usb share connexion mode on a PC in the same LAN and you are done.
    Yes, a rackmount server is much more bulky than a mini pc but these DELL have half the depth of other models like R610 and the 3 Mhz or 3,5 Mhz CPU performs much better on single core tasks than the more expensive models.

  20. I try to order from AliExpress, and my order was canceled, the i7 is out of stock and they informe me that “it is expected that we will launch an 11th generation cost-effective CPU in mid-September, you can buy it at that time.”

  21. I wonder how hard it would be to put this thing in a little NAS case with 6×2.5″ bays and some fans… it’s pretty much ideal, but I definitely like the NAS option.

  22. @Noobuser

    Do you have any updates about this model? I’m looking for a future router with 10GbE SFP ports for home.
    Is stable? Is crashing as the previous ones in tests? Is getting hot?
