MokerLink 2G05110GS is another low-cost, fanless switch pushing 2.5GbE networking to new affordability brackets. This new 5-port 2.5GbE and 1-port SFP+ 10GbE switch generally sells on Amazon for $65-75 so we wanted to give it a try. If you saw our earlier Sodola SL-SWTG015AS 5-port 2.5GbE 1-port 10GbE switch review the short version of this is that it is very similar.
MokerLink 2G05110GS Overview
We featured this video in our September 2023 mini-round-up of fanless 2.5GbE switches that you can find here:
We have also added this switch to the Ultimate Cheap Fanless 2.5GbE Switch Buyer’s Guide where we have now listed 32 models and we already have 5 more switches tested, but not on that list. Bookmark that page to get the latest, we will like all of these reviews from that page.
![MokerLink 2G05110GS And Sodola 5 Port 2.5GbE 1 Port 10GbE Switches Together](https://www.servethehome.com/wp-content/uploads/2023/09/MokerLink-2G05110GS-and-Sodola-5-Port-2.5GbE-1-port-10GbE-Switches-Together.jpg)
This was a late addition to the recent round-up, but we wanted to cover the additional port configuration.
MokerLink 2G05110GS Hardware Overview

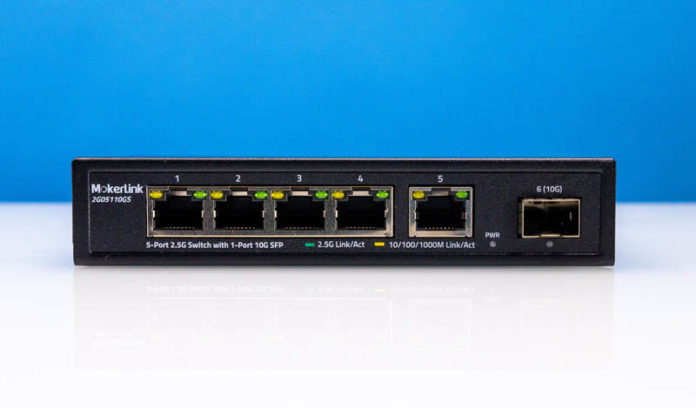

On the front of the switch, one can see four 2.5GbE ports and a SFP+ ports. Port 5 sits away from the first four ports slightly.
![MokerLink 2G05110GS Front](https://www.servethehome.com/wp-content/uploads/2023/09/MokerLink-2G05110GS-Front.jpg)

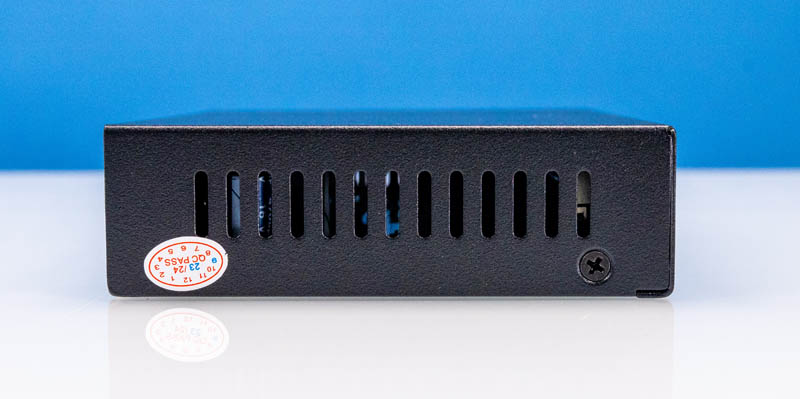

On the side, we get a QC sticker and a vent.
![MokerLink 2G05110GS Side 2](https://www.servethehome.com/wp-content/uploads/2023/09/MokerLink-2G05110GS-Side-2.jpg)
On the other side, we get another vent. This is a fanless switch so we expect vents.
![MokerLink 2G05110GS Side 1](https://www.servethehome.com/wp-content/uploads/2023/09/MokerLink-2G05110GS-Side-1.jpg)

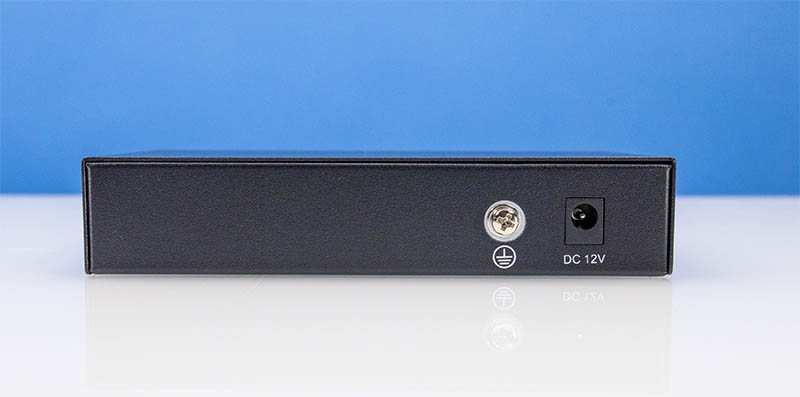

The rear has a DC power input and a grounding point.
![MokerLink 2G05110GS Rear](https://www.servethehome.com/wp-content/uploads/2023/09/MokerLink-2G05110GS-Rear.jpg)

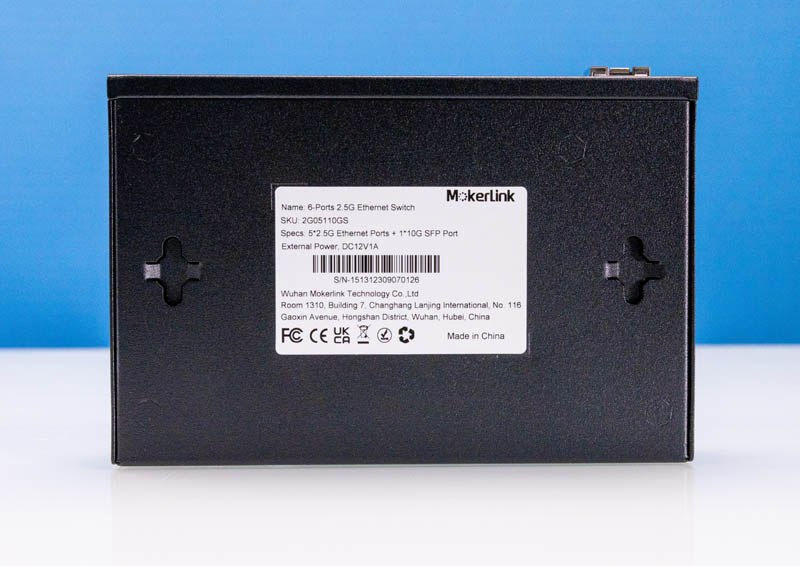

On the bottom, we get a label. We also get mounting holes so one can use two screws to mount the switch to a desk, wall, or elsewhere. There is a bit more here than some of the labeling laggards likeĀ YuanLey andĀ Davuaz.
![MokerLink 2G05110GS Bottom](https://www.servethehome.com/wp-content/uploads/2023/09/MokerLink-2G05110GS-Bottom.jpg)
Inside the switch, we can see the ports and a relatively simple design. This is very similar to the Sodola design as well.
![MokerLink 2G05110GS Internal Ports](https://www.servethehome.com/wp-content/uploads/2023/09/MokerLink-2G05110GS-Internal-Ports.jpg)

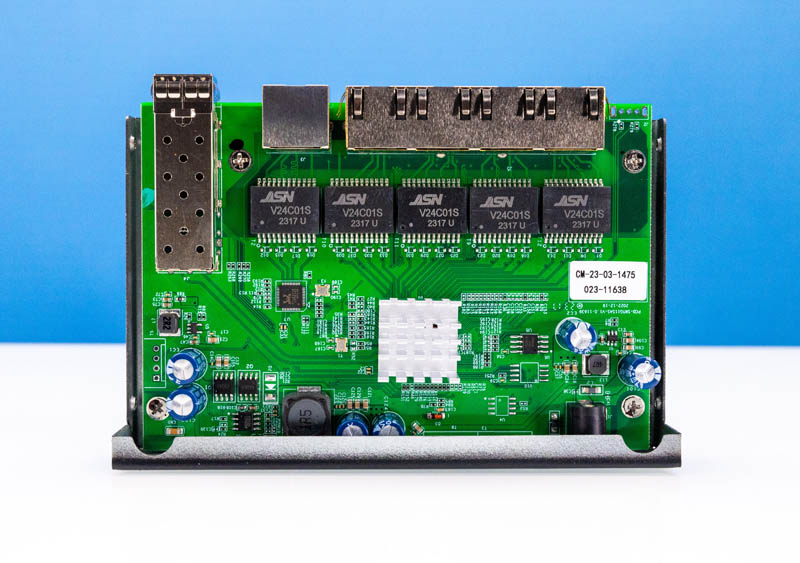

Here is the internal overview of the switch which is relatively neat. One can see that there is a main switch chip then a small Realtek PHY for Port 5.
![MokerLink 2G05110GS Internal Overview](https://www.servethehome.com/wp-content/uploads/2023/09/MokerLink-2G05110GS-Internal-Overview.jpg)
Still there is not much to the inside of this switch.
Next, let us get to performance and power consumption.
