HPE ProLiant MicroServer Gen11 Topology

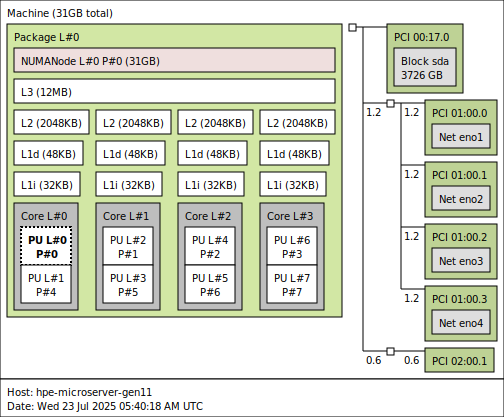

Here is the quick topology of the system. This is one of the smaller systems that we review these days.

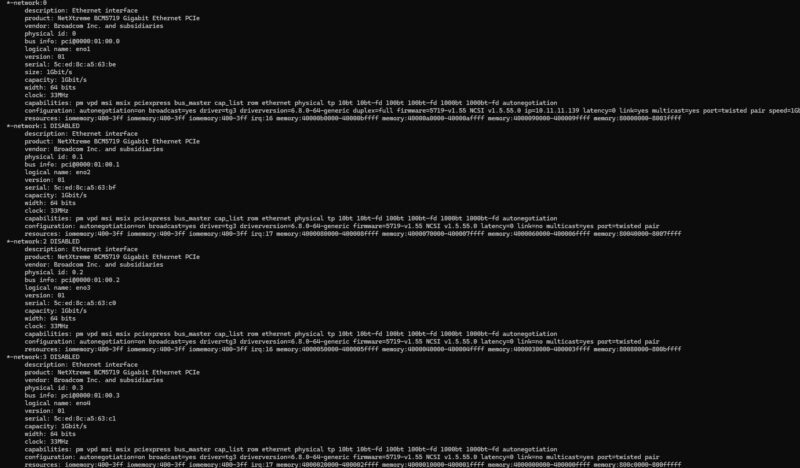

Here we can see the four Broadcom NICs that are based on the Broadcom BCM5719 controller.
These are certainly a step up from having something like four Intel i210-at NICs, but it is still 1GbE which is starting to feel slow at this point.
HPE ProLiant Microserver Gen11 Management

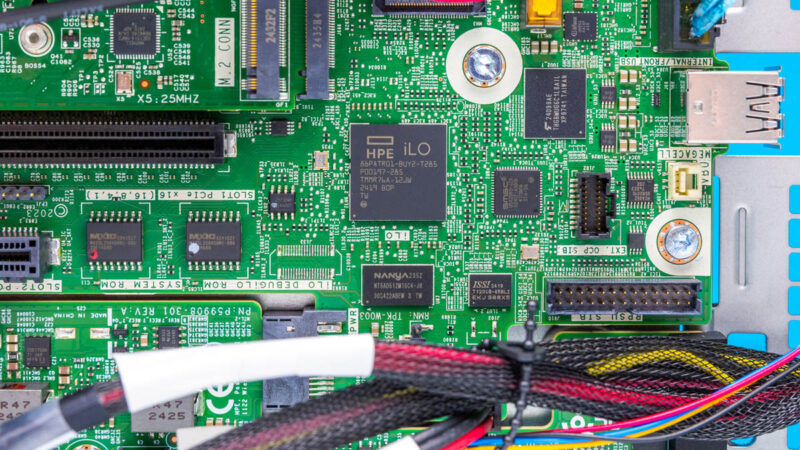

Management is provided by HPE iLO. We can see the iLO chip on the motherboard. HPE makes its own iLO controllers instead of using something like an ASPEED AST2600 BMC.

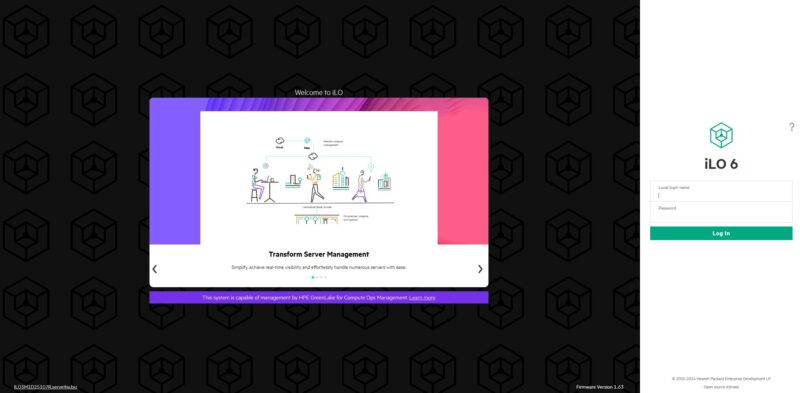

Once you log in, it is a familiar iLO experience. The default password is on the bottom of the unit which is a good idea to grab a phone photo of before you get the system running.

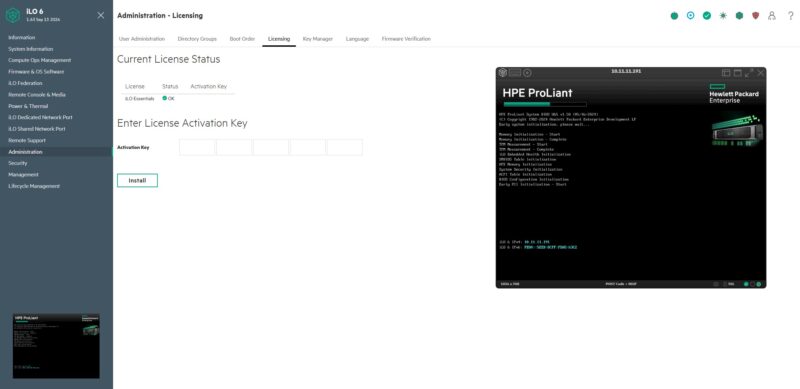

Onboard, our system came with an iLO 6 Essentials license, but you can get higher license levels if you need them.
For many organizations, this is just about the best feature of this entire system. If your company is built around iLO management, then having that continuity between the data center platforms and edge platforms like this is great. If you are accustomed to smaller server vendors, then you might also find this a bit frustrating since instead of having something like a standard MegaRAC SP-X or OpenBMC interface with all of the features available, HPE has perhaps more features, but they are behind higher levels of iLO Advanced licensing.
A part of me wishes that HPE just gave the full iLO experience here. It is not like someone is going to take these 2-8 core platforms and build massive server farms endangering HPE’s mainstream iLO business. At the edge, remote management is key. For small businesses with perhaps 1-3 of these deployed on site, having to get an iLO Advanced license key and input it into the servers is a bit of a pain.
HPE ProLiant MicroServer Gen11 Performance
On the performance side, there are probably going to be two sets of folks. First, if you are coming from an older MicroServer platform, the Intel Xeon E-2400 or Intel Xeon 6300 series is going to be an enormous upgrade. At launch, these systems came with the Intel Xeon E-2400 series in 2-4 core configurations. HPE adopted SKUs up to the Intel Xeon 6369P (8 cores/ 16 threads) after the Xeon 6 launch.

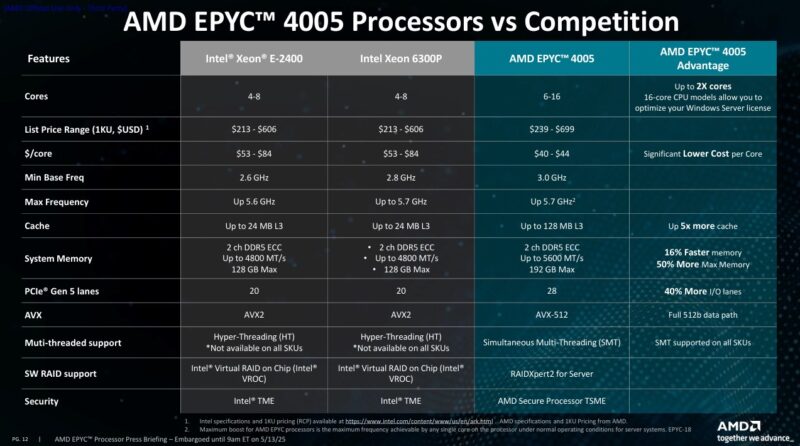

I have made it fairly clear where I stand with pieces like Intel Xeon 6300 Launched for Entry Servers with 2019 Core Counts and then once the AMD EPYC 4005 Grado launched the gap between AMD and Intel in this market widened significantly.

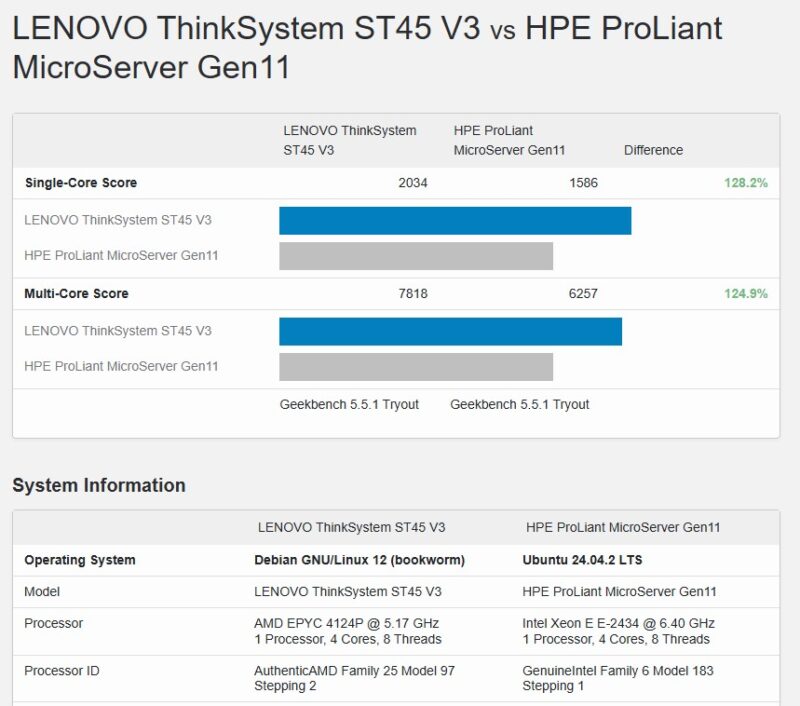

Just to give you some sense, here is the Xeon E-2434 in our MicroServer Gen11, the top-of-the line of the 4-core parts at launch, versus the older AMD EPYC 4124P part in the Lenovo ThinkSystem ST45 V3 we reviewed. That EPYC 4124P is a lower-end part than the Xeon from a pricing perspective at closer to half the 1kU MSRP, yet it is signifiantly faster than the Xeon E.

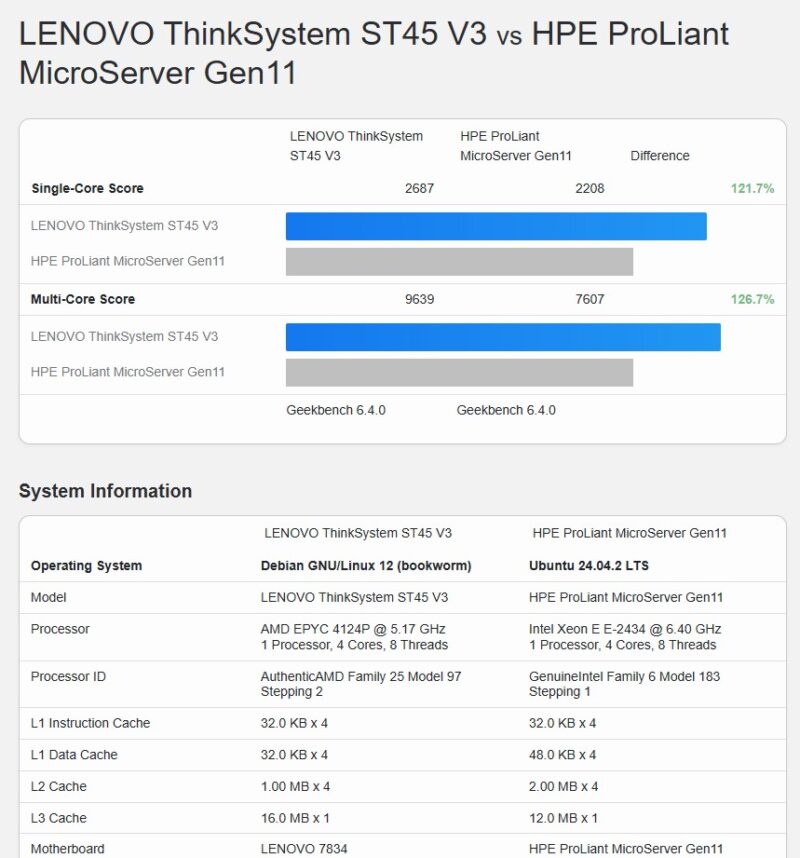

Here is the Geekbench 5 result that scales with higher core counts better:
While the Xeon E-2400 to Xeon 6300 transition was adding a 100MHz or a few hundred MHz bumps in the line, the AMD EPYC 4005 update added 15%+ performance from the Zen 5 bump, but also introduced parts like the 16 core 65W TDP parts that align with Windows Server license packs.
Further, the AMD Zen 4/ Zen 5 parts use the same instruction sets as the bigger socket Zen 4/ Zen 5 counterparts, so you can live migrade between the big EPYC CPUs and these entry server CPUs. Intel claims that the Xeon E-2400/ Xeon 6300 are P-core designs, but they do not support features like AVX-512, so you do not have the same instructions between the Xeron 6900P, 6700P, and 6500P, nor the E-core parts like the Xeon 6700E.
For the edge, as one other small one, the EPYC 4000 series has a weak, but present integrated GPU with media engines. Using the EPYC 4000 series would have allowed HPE to do things like support 4K digital signate at the edge as an example.
This was one area where if HPE used AMD EPYC 4004/ 4005 it would have had a much more robust platform. The Xeon E/ Xeon 6300P CPUs are a weak point of the MicroServer Gen11.
