Gigabyte Launches four new Intel Xeon D motherboards

5

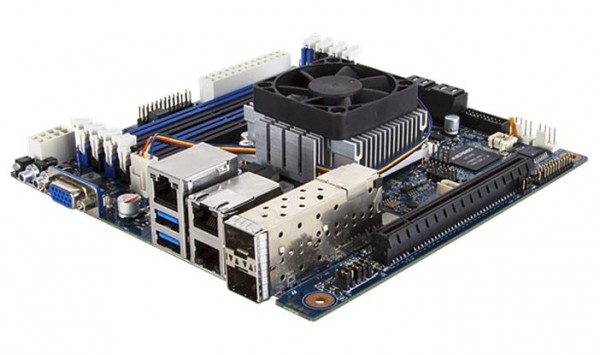

Gigabyte MB10-DS4 three quarter view
Gigabyte MB10-DS4 three quarter view

We just received word that Gigabyte has launched four new Intel Xeon D motherboards. All four are based on the newer revision chips launched by Intel in November. We have heard that the new Xeon D parts are starting to make their way to manufacturers and so we should see platforms ship soon. Xeon D supply was limited during the initial launch, but we expect to have a review of our first Gigabyte Xeon D platform soon. No word on pricing or retail availability yet, but we will update you as soon as we have more on that.

[Update 1] We have word that US distributors have placed orders but the boards have not shipped yet. Expected availability is “soon.” We are still confirming pricing.

Four new Gigabyte Xeon D motherboards

The four Gigabyte Xeon D motherboards launched today use the new Intel Xeon D-15×1 processors. Gigabyte is using two different models across the four platforms: the Intel Xeon D-1521 (4 core / 8 thread) and the Intel Xeon D-1541 (8 core / 16 thread). All four motherboards are mITX form factors. Two of the motherboards have dual 10GbE SFP+ networking, which has been requested by STH forum members for a long time, along with dual 1GbE. The other two motherboards have dual 1GbE only without 10GbE.

Gigabyte MB10-DS4 three quarter view
Gigabyte MB10-DS4 three quarter view

Here are the quick specs for each motherboard:

MB10-DS4 Server Motherboard

  • Mini-ITX form factor
  • Intel Xeon D-1521 processor (4 cores, 8 threads)
  • Dual 10GbE SFP+ LAN ports + Dual GbE LAN ports
  • Up to 128GB of ECC DDR4 memory @ 2133MHz
  • 6 x SATA III 6Gb/s ports
  • Integrated Easy BIOS update utility
  • Complete remote management functions via IPMI 2.0 web interface and iKVM

MB10-DS3 Server Motherboard

  • Mini-ITX form factor
  • Intel Xeon D-1541 processor (8 cores, 16 threads)
  • Dual 10GbE SFP+ LAN ports + Dual GbE LAN ports
  • Up to 128GB of ECC DDR4 memory @ 2133MHz
  • 6 x SATA III 6Gb/s ports
  • Integrated Easy BIOS update utility
  • Complete remote management functions via IPMI 2.0 web interface and iKVM

MB10-DS1 Server Motherboard

  • Mini-ITX form factor
  • Intel Xeon D-1521 processor
  • Dual GbE LAN ports
  • Up to 128GB of ECC DDR4 memory @ 2133MHz
  • 6 x SATA III 6Gb/s ports
  • Integrated Easy BIOS update utility
  • Complete remote management functions via IPMI 2.0 web interface and iKVM

MB10-DS0 Server Motherboard

  • Mini-ITX form factor
  • Intel Xeon D-1541 processor
  • Dual GbE LAN ports
  • Up to 128GB of ECC DDR4 memory @ 2133MHz
  • 6 x SATA III 6Gb/s ports
  • Integrated Easy BIOS update utility
  • Complete remote management functions via IPMI 2.0 web interface and iKVM

We are hoping to see these soon as we have heard Xeon D supply constraints have been improving.

SHARE
Previous articleReal-world NVMe performance gains: STH Web Hosting Case Study
Next articleSupermicro X11SBA-LN4F Review – Sweet!
Patrick has been running STH since 2009 and covers a wide variety of SME, SMB, and SOHO IT topics. Patrick is a consultant in the technology industry and has worked with numerous large hardware and storage vendors in the Silicon Valley. The goal of STH is simply to help users find some information about server, storage and networking, building blocks. If you have any helpful information please feel free to post on the forums.

5 COMMENTS

  1. I hoped, but unfortunately still not good enough.
    Supermicros board is missing 10G SFP+ but Gigabytes is missing m.2!!

    I’d like a D-1541 board with m.2 PCIe 3.0 x4 and 10G SFP+ w/SR-IOV. And of course full support for VM.

  2. I want a comparison of this vs supermicro X10SDV-TLN4F.
    Gigabyte: 1541, Supermicro 1540, so gigabyte has sr-iov, supermico not.
    Gigabyte: 10g sfp+ (fiber), Supermicro 10g rj45
    Gigabyte – no m.2, supermicro has m.2

    Supermicro available (see info at tinkertry.com). gigabyte unknown till first availability.

    Is that it? I don’t want fiber 10gig at my house.
