FS S5860-48SC Review 48x 10GbE SFP+ and 8x 100GbE SFP28 Switch

4

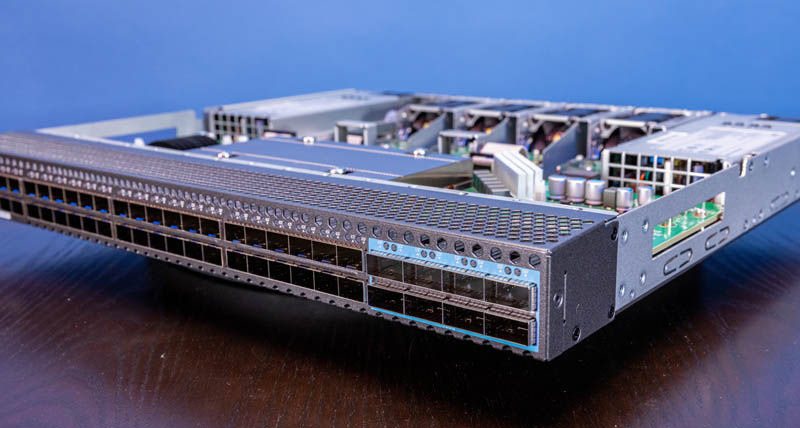

FS FS S5860 48SC Front QSFP28 Side Cover
FS FS S5860 48SC Front QSFP28 Side Cover

We have been reviewing a number of higher-end switches for years, and this is one that is certainly beyond intriguing. The FS.com S5860-48SC is a switch that offers a unique value proposition in the market, especially in the current switch market. Specifically, it costs a lot less than many of its competitors, even more after optics are included. In this review, we are going to take a look at the switch and the performance and features it offers.

FS S5860-48SC Hardware Overview

As we have been doing in our reviews lately, we are splitting the hardware overview section into external and internal hardware views. We will also cover the pluggable modules that we used later in this piece after we cover management.

FS S5860-48SC External Hardware Overview

The switch itself is a 1U switch, but there is something quite different about this unit: it is shorter in depth than many of the other switches we have reviewed with the same switch chip. The entire unit is 15.24” or 387mm deep meaning it is less deep than it is wide.

FS FS S5860 48SC Front
FS S5860 48SC Front

Perhaps the biggest reason to get this switch is the array of 48x SFP+ ports. This is an interesting switch since there is more uplink bandwidth than the primary port type. Although we say it is a 10GbE switch because over 85% of the ports are SFP+, less than 38% of the bandwidth of the switch flows through those ports.

FS FS S5860 48SC SFP Side
FS S5860 48SC SFP Side

Perhaps then, this should be a 100GbE switch because it has 8x QSFP28 100GbE ports. These ports can be used for stacking (up to two switches) or to connect devices like storage servers that will service the 10GbE ports.

FS FS S5860 48SC QSFP28 Side
FS S5860 48SC QSFP28 Side

Something that we will note on this switch is that the QSFP28 ports all have single status LEDs. Many 100GbE ports we see on switches have four sets of status LEDs. Q in QSFP28 stands for quad and some vendors have four sets of status LEDs to be used if the QSFP28 ports is broken out into four 25GbE ports. These ports are rated at 40GbE or 100GbE speeds.

FS FS S5860 48SC Eight QSFP28 100G Ports
FS S5860 48SC Eight QSFP28 100G Ports

Later in this article, we will discuss some of the modules for these ports since FS.com sells optics. A big part of the value proposition is not just the switch hardware, but it is also the ability to save on optics.

FS QSFP28 SR4 100G And QSFP28 IR4 100G In Switch
FS QSFP28 SR4 100G And QSFP28 IR4 100G In Switch

There is something else very different about this switch. That is a large perforation array to help cool the switch. This part is actually on a slight slope as can be seen below to help ensure it gets airflow instead of being blocked by gear above the switch in a rack. It reminds me a lot of the Cisco Nexus N9K-C9372xX models that one sees often.

FS FS S5860 48SC Top Vent
FS S5860 48SC Top Vent

The rear of the switch has a fairly standard layout, similar to many of the Dell EMC switches we have reviewed recently.

FS FS S5860 48SC Rear
FS S5860 48SC Rear

A big similarity is the management block. Here we get a management 1GbE port, a serial console port (9600 baud rate, 8 data bits, no parity, 1 stop bit), and a USB port. Generally, we prefer these ports to be on the same side as the primary data ports just to ease cabling and access.

FS FS S5860 48SC Rear Management Console USB Service Tag
FS S5860 48SC Rear Management Console USB Service Tag

The power supplies are FS-branded 550W units. Something we hope FS does in the future is starting to use power supplies with an 80Plus rating. Most higher-end switches we review these days use 80Plus Platinum power supplies. Datacenter buyers care about efficiency, so that is something that can be improved.

FS FS S5860 48SC 550W PSU
FS S5860 48SC 550W PSU

In terms of fans, we get dual-fan modules that are swappable using thumbscrews. The chassis itself is a Front-to-Back airflow design. To be more clear on that, the airflow is from the ports to the rear with the fans and power supplies. In the industry, most vendors have a clear notation on airflow direction. Perhaps “FB” or the small icon in the corner of the fan units is supposed to tell someone the airflow direction, but most other vendors use blue/red or have some very easy-to-understand airflow direction indicator.

FS FS S5860 48SC Fans
FS S5860 48SC Fans

Something that is a bit hard is that almost all of the reviews on the FS website are 5-stars and almost all of the reviews on the FS website for this switch have some form of:

  • Great for stacking
  • Fans
  • Power supplies

It is just strange that none of these reviews mention simple things like the lack of clear airflow indicators, efficiency ratings for power supplies, or the fact that stacking is supposed to be for two switches per the specs (we only had one to test.)

Next, let us move to the interior of the switch as we continue our hardware overview.
