Fortinet FortiGate FG-60F Internal Hardware Overview

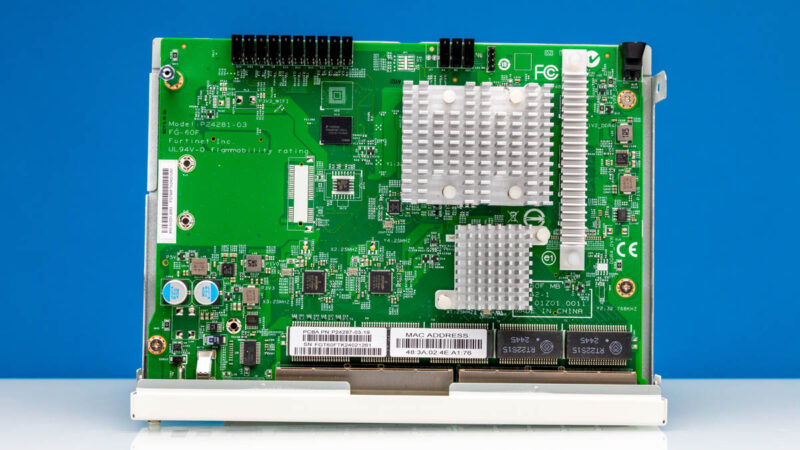

Removing the cover reveals a neat custom board.

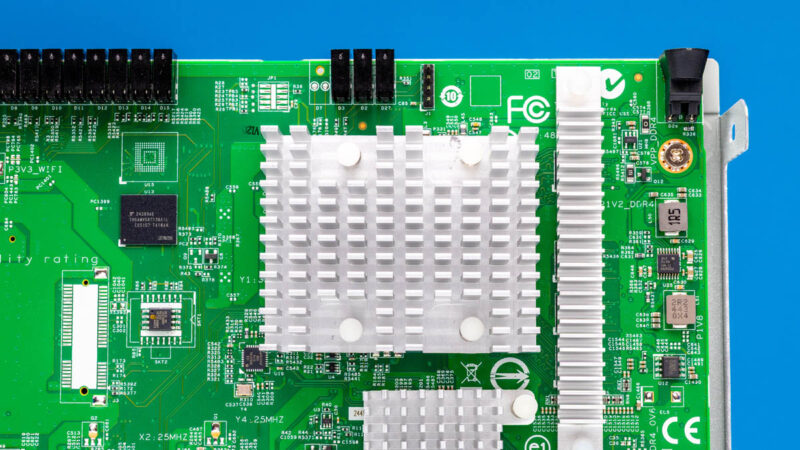

First, we can see a large heatsink.

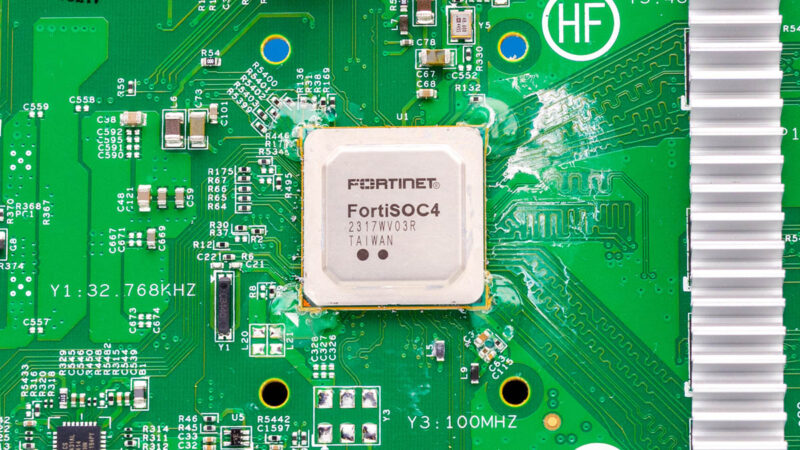

Under that one is the Fortinet FortiSOC4. Fortinet makes its own ASIC to accelerate its networking, which is just neat. We could not find real photos of these before we did the FG-40F review.

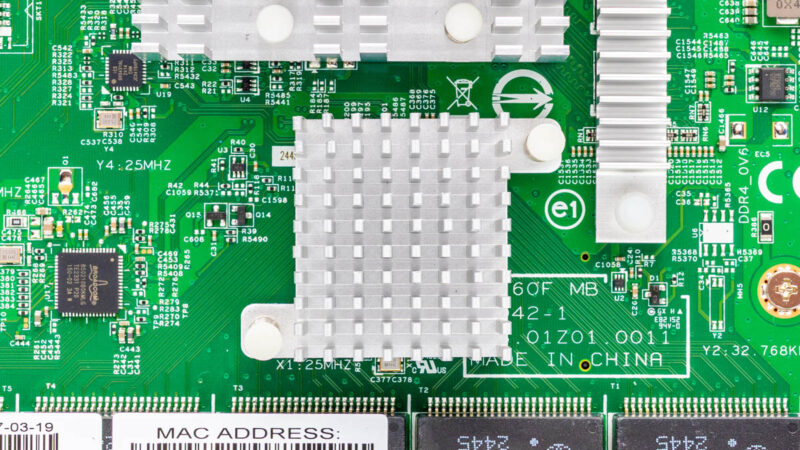

Next, there is another big heatsink that hides something fascinating underneath.

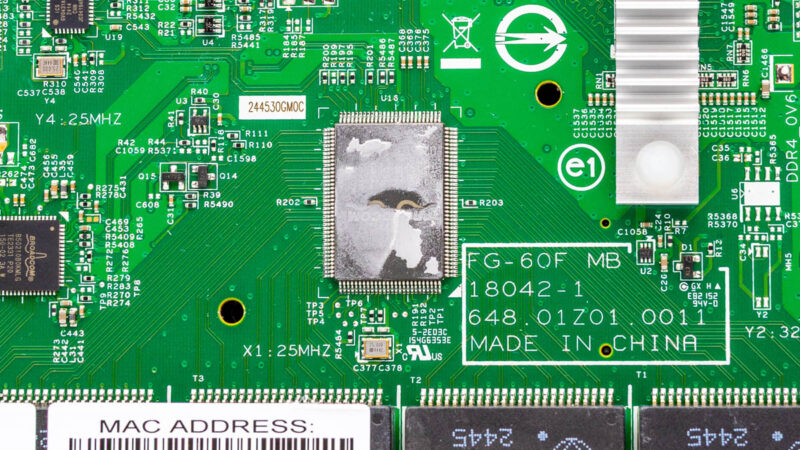

Pulling this off, we get a Broadcom PHY.

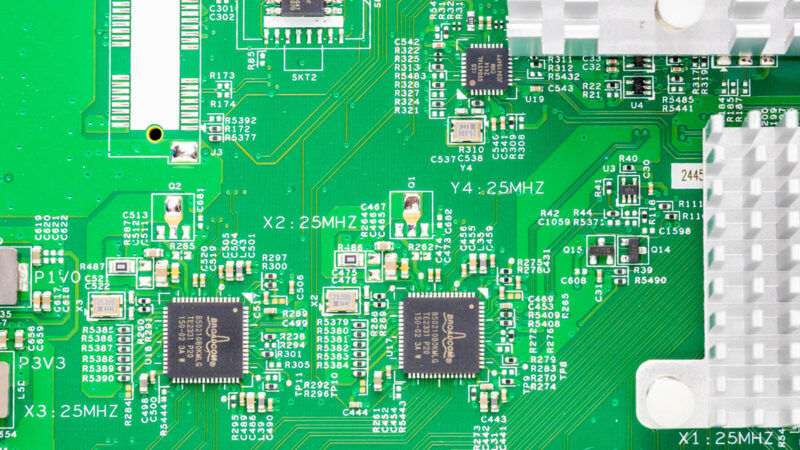

You can also see Broadcom chips next to it. The reason this is so interesting because the FG-40F used Marvell chipsets.

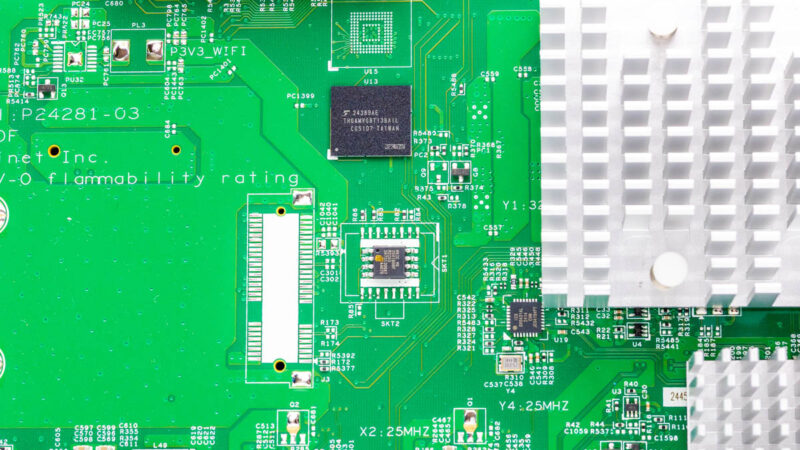

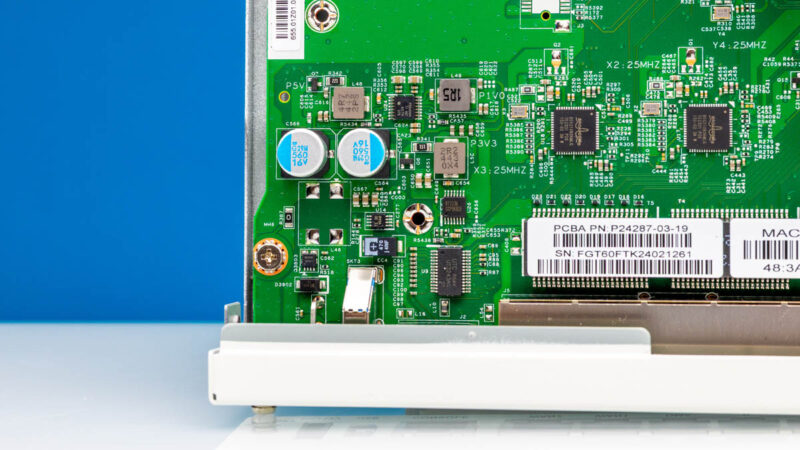

There are a few more components we are not going to go through, but figured we would show.
There are missing components likely for a WiFi version.

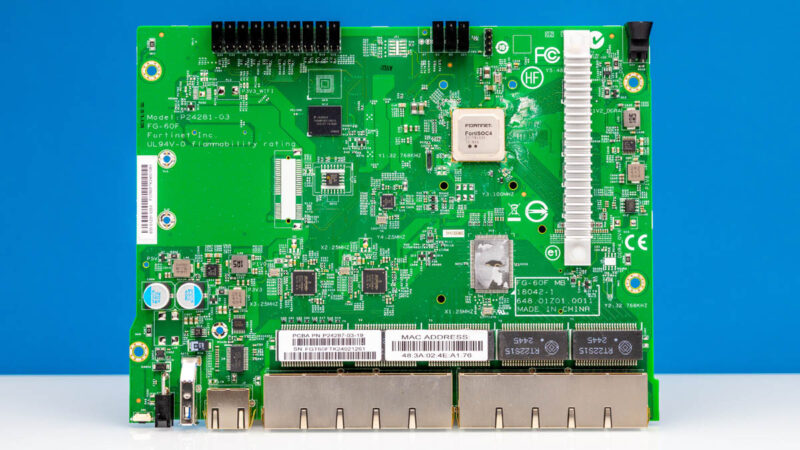

Here is the board with the two big heatsinks off.

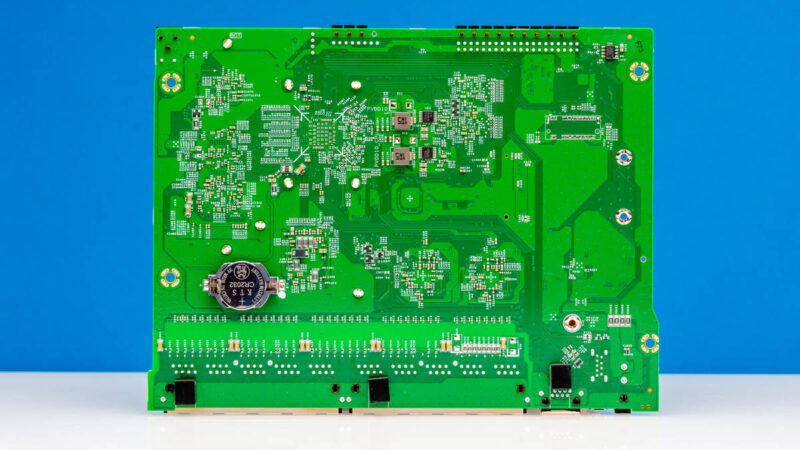

Since we had the board out, here is the other side.

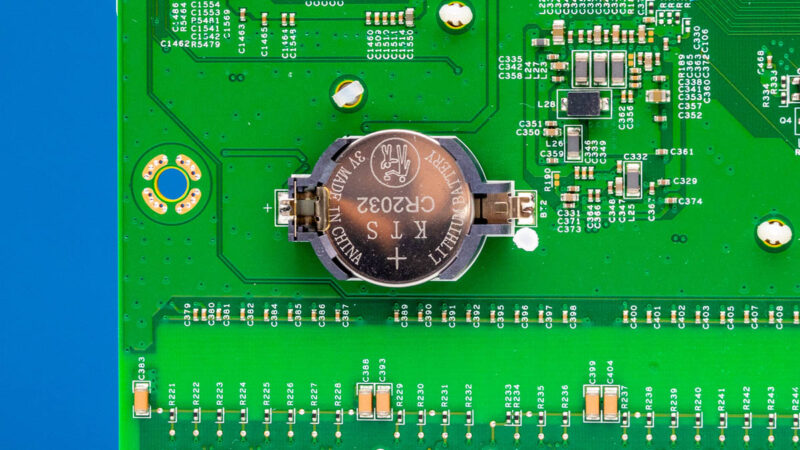

If you were wondering where the battery is, it is on the other side of the PCB.
Next, let us get to the software experience.
