Dell PowerEdge R6715 Internal Hardware Overview
Let us now move from the front to the rear of the interior of the chassis.

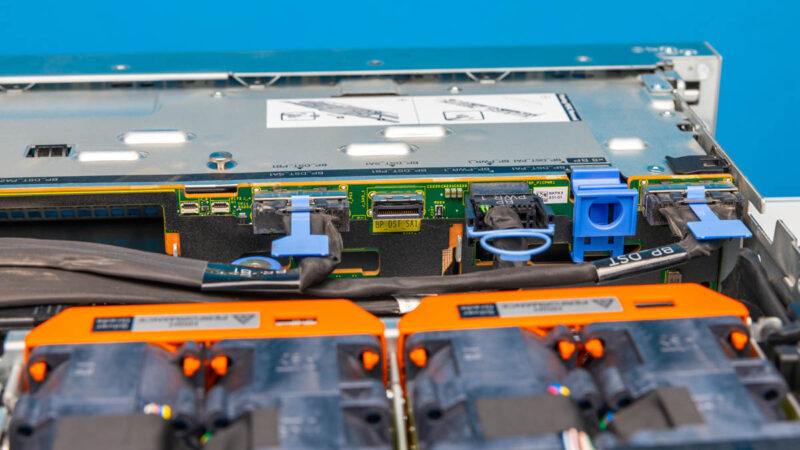

Here are the front storage backplane with the MCIO connections to the front drives.

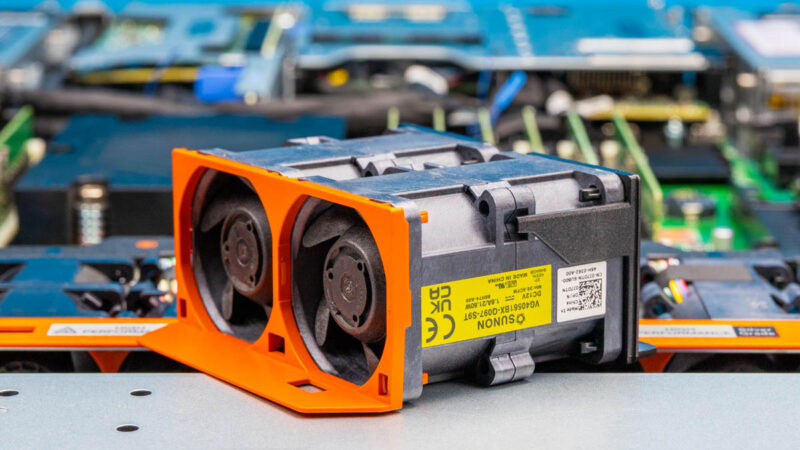

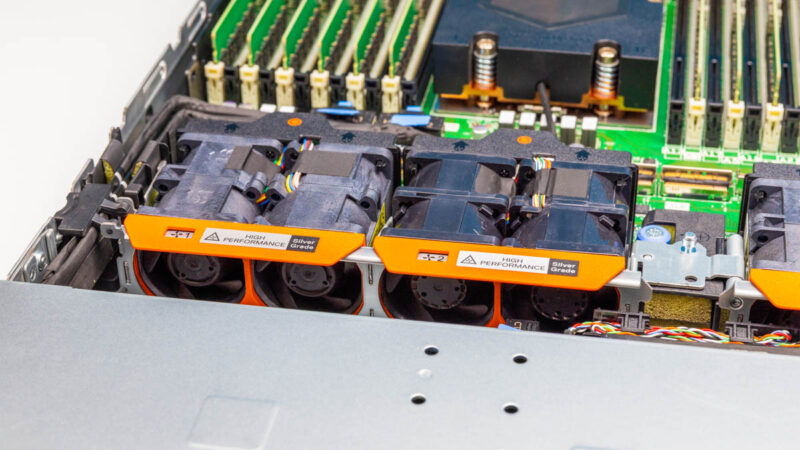

Behind the storage backplanes there are 1U fan modules.
The fan modules Dell uses are a big step up from many whitebox servers since they are easy to swap. This is small but nice feature.

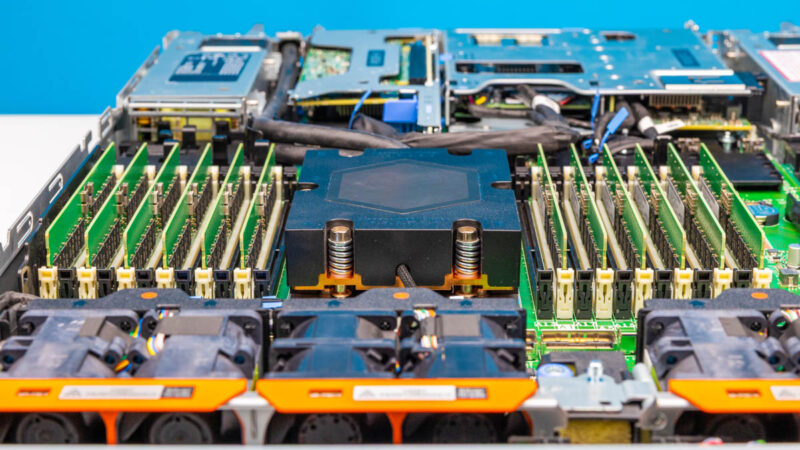

At the heart of the system is a single AMD Socket SP5. That is for a single AMD EPYC 9004/ 9005 series processor, and Dell supports up to 160 cores in the server. Something else neat with this platform is that there are 24 DDR5 RDIMM slots which is 12 channels and 2 DIMMs per channel (2DPC.) That is a lot of cores and memory for a single socket server.

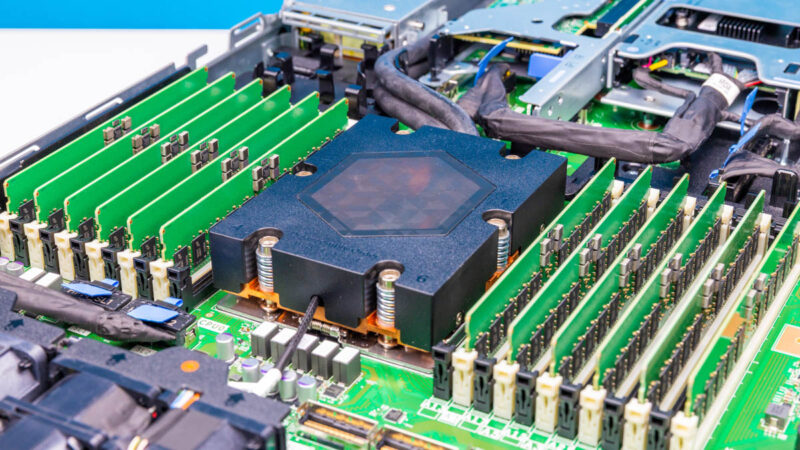

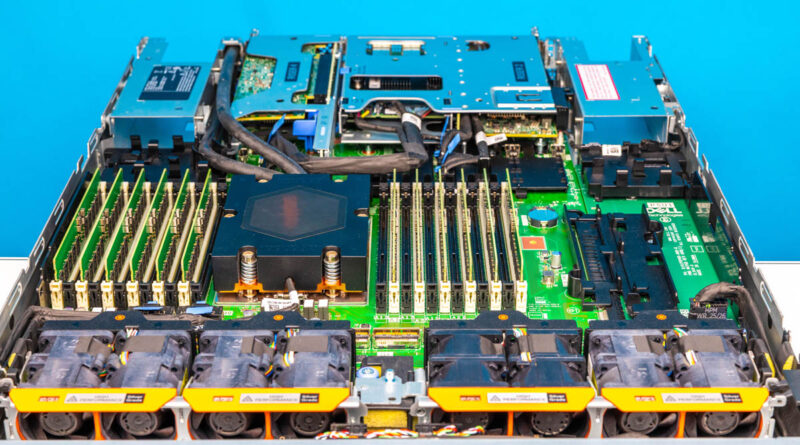

The big difference with this platform is that the CPU is liquid cooled. While there are still fans in the system, those fans are for the other components. The CPU is cooled via this liquid cooling block.

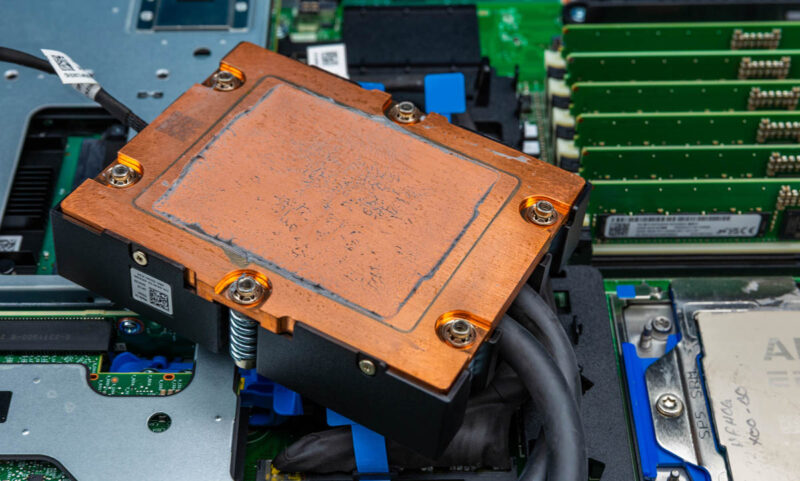

Here is a quick look at the bottom of the cooling block.
As a quick aside, with the AMD Socket SP5 and 24x DDR5 RDIMMs there is not enough room in a 19″ rack chassis for a second CPU next to the first one.

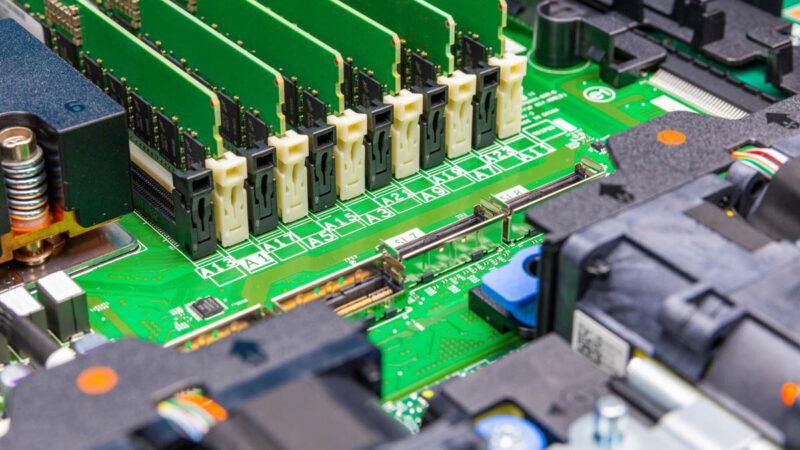

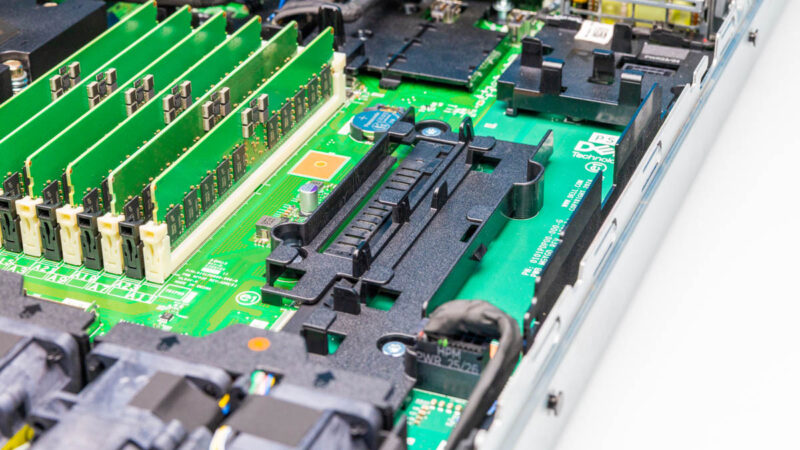

Providing connectivity is an array of MCIO connectors onboard.

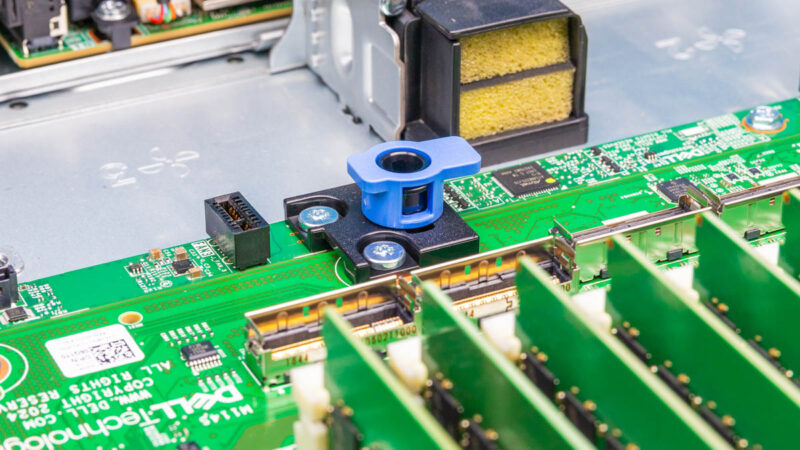

Another small but nice feature are the quick release latches on the motherboard.

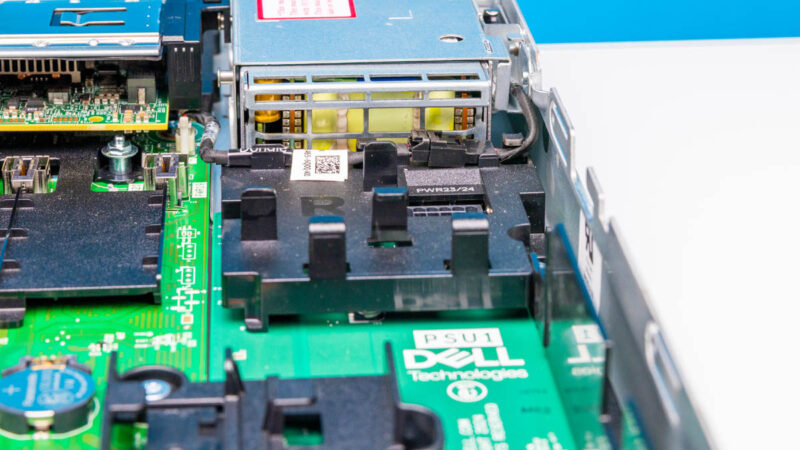

Here is the other side of the power supply connecting into the server.

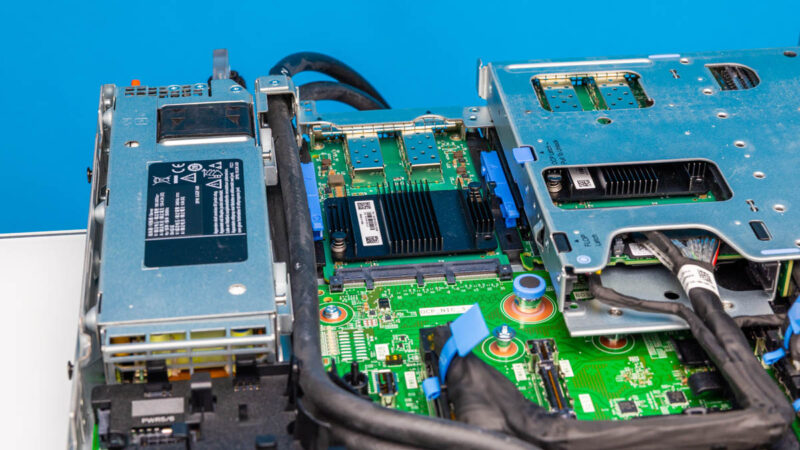

Here is the motherboard’s onboard OCP NIC 3.0 slot.

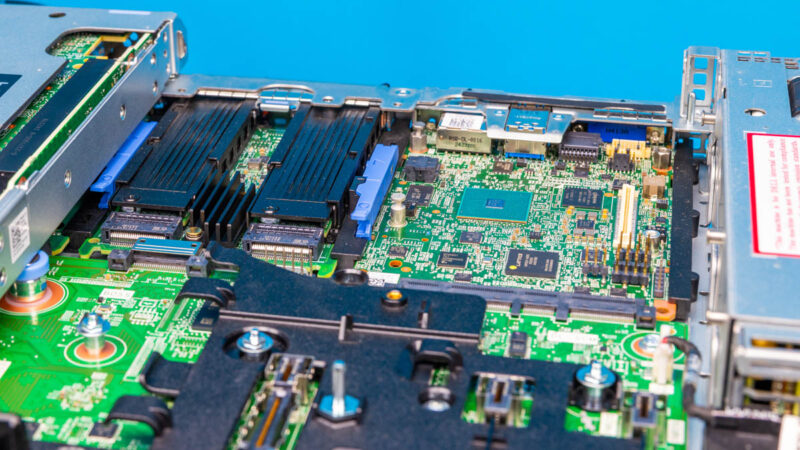

Here is another look at the center below that large riser complex. We can see the two boot SSDs and the iDRAC card here.
Next, let us get the system up and running.
