ROG Zenith II Extreme Motherboard SPECworkstation 3.0.2

SPECworkstation 3 has been updated to 3.0.2 which measures the 3D graphics performance of systems running under the OpenGL and Direct X application programming interfaces. As a result of the new update, we cannot compare between past version 3 results so we will show the screenshot of the results here and graph them in later reviews.

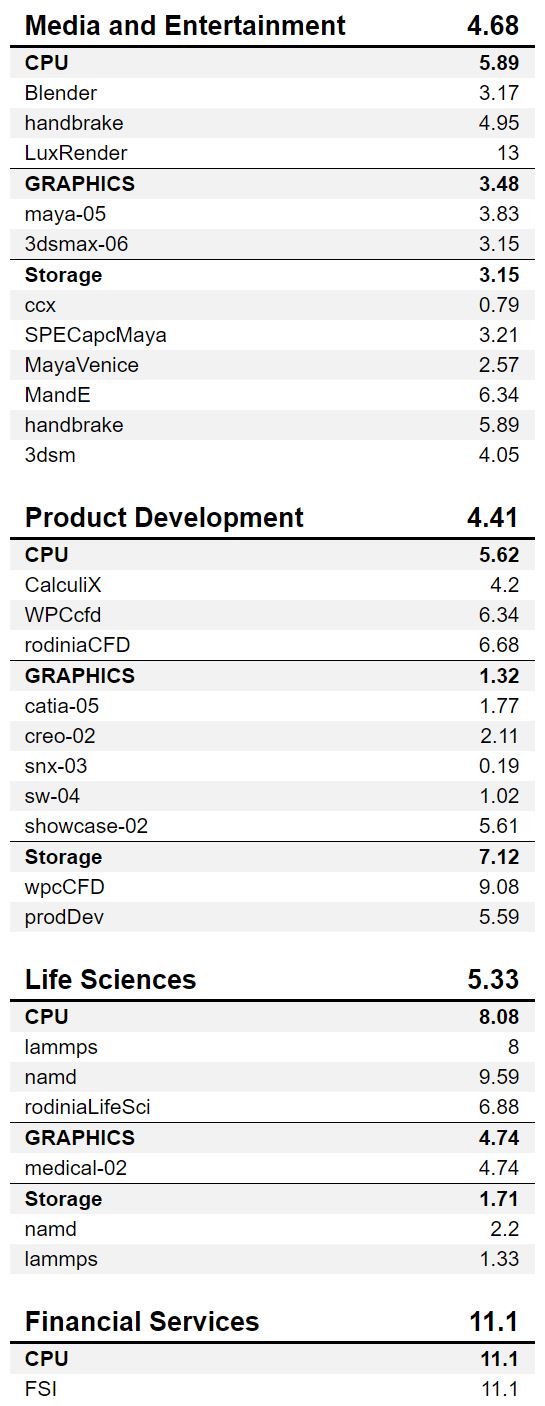

ASUS ROG Zenith II Extreme SPECworkstation 1
ASUS ROG Zenith II Extreme SPECworkstation 1

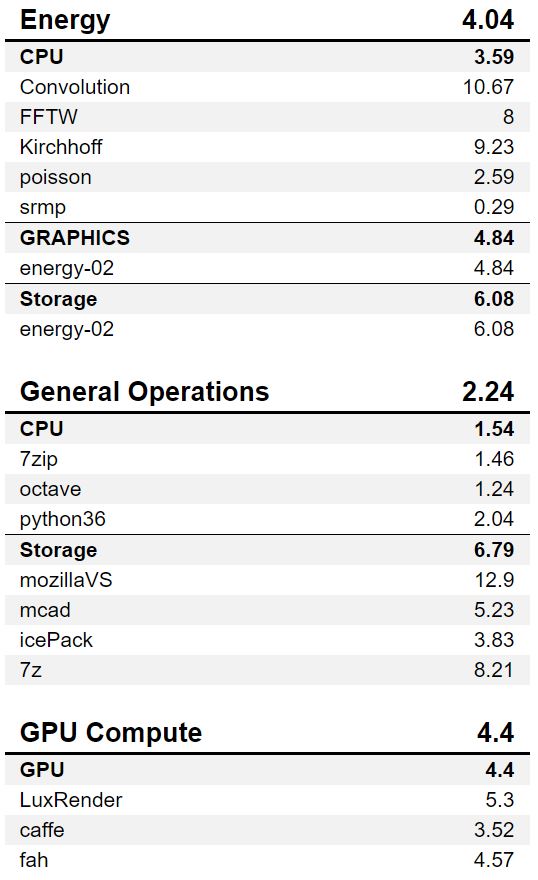

ASUS ROG Zenith II Extreme SPECworkstation 2
ASUS ROG Zenith II Extreme SPECworkstation 2
ASUS ROG Zenith II Extreme SPECworkstation Part 1
ASUS ROG Zenith II Extreme SPECworkstation Part 1

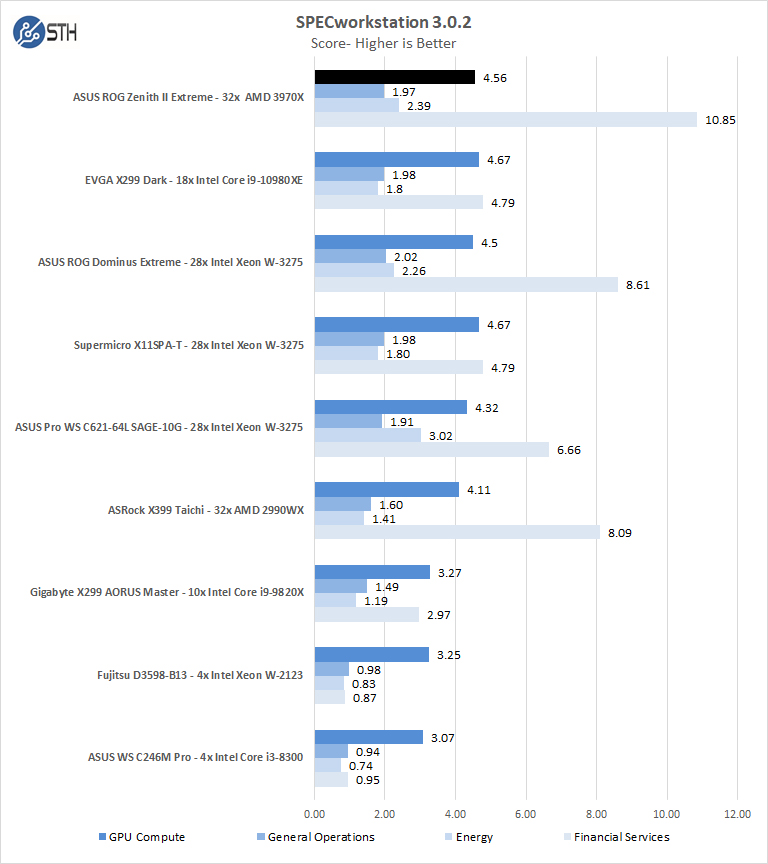

ASUS ROG Zenith II Extreme SPECworkstation Part 2
ASUS ROG Zenith II Extreme SPECworkstation Part 2

In SPECworkstation 3.0.2 the ROG Zenith II Extreme Motherboard and AMD Ryzen Threadripper 3970X show off this powerful platform. There are a few cases where the Intel Xeon W-3275 can keep pace, but overall, this is a very fast combination.

ROG Zenith II Extreme Motherboard PassMark 9

PassMark Performance Test allows you to benchmark a PC using a variety of different speed tests; it tests the entire PC and all its components.

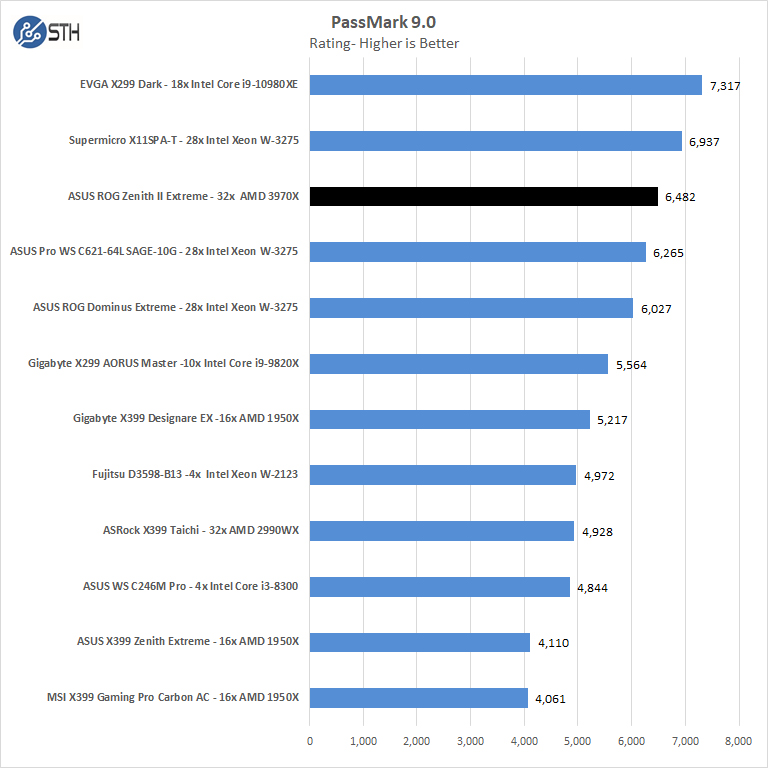

ASUS ROG Zenith II Extreme PassMark
ASUS ROG Zenith II Extreme PassMark

Passmark 9 was a benchmark that prefers Intel-based processors, even higher core count AMD processors do not generate good results.

ROG Zenith II Extreme Motherboard PCMark 10

PCMark 10 is another system benchmark that we just started running and will start including in future reviews.

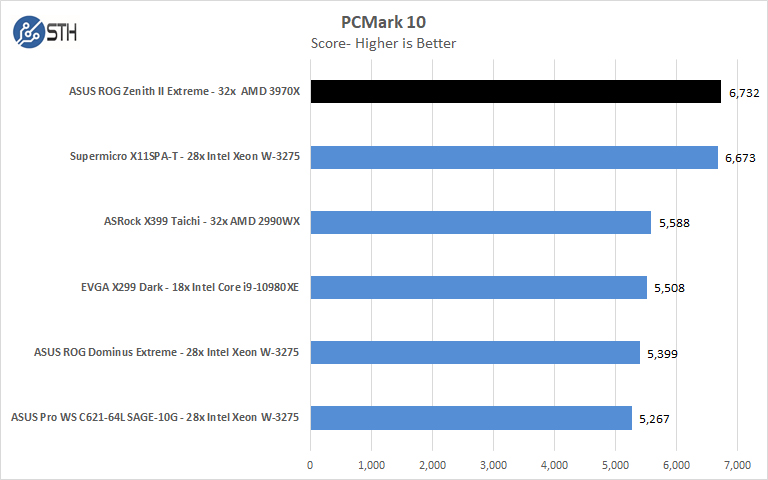

ASUS ROG Zenith II Extreme PCMark 10
ASUS ROG Zenith II Extreme PCMark 10

With ROG Zenith II Extreme motherboard and AMD Ryzen Threadripper 3970X surpasses the Intel W-3275 platforms if only by a small amount.

ROG Zenith II Extreme Motherboard Blender Benchmark

The benchmark consists of two parts: a downloadable package which runs Blender and renders on several production files, and the Open Data portal on blender.org, where the results will be (optionally) uploaded.

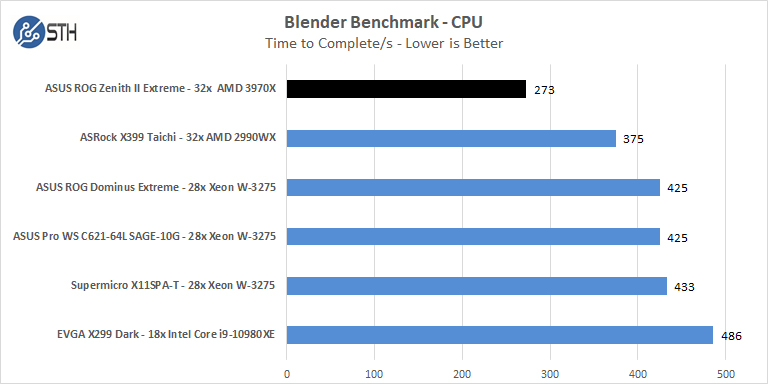

ASUS ROG Zenith II Extreme Blender Benchmark
ASUS ROG Zenith II Extreme Blender Benchmark

With Blender Benchmark, we have not seen a faster platform until the ROG Zenith II Extreme Motherboard and AMD Ryzen Threadripper 3970X which smashes the scores.

Next, we are going to look at AIDA64 CPU Benchmarks.

19 COMMENTS

  1. For my use (video & audio editing) I would need at least 6 PCIe slots (2 x GPUs, 40GbE NIC, pro audio card, SDI video card, storage HBA). I also need Thunderbolt 3, or else I’ll have to replace some costly TB3 components with something else. I really, really want to upgrade from my Dual Xeon E5 workstation to Threadripper, but I can’t until somebody makes a motherboard that actually uses all those PCIe lanes for PCIe slots. Seems rather counter-intuitive that we’re seeing 4-slot solutions.

  2. Tyler. what about some of Epyc based solution(s)? For example MZ32-AR0 made by gigabyte seems to offer your number of slots… Also I can’t quite believe that you need 40GigE and HBA in memory constrained environment like TR is. Remember it supports only ECC UDIMMs and since 32GB modules are nowhere to find, then you will be able to put only 128GB RAM there!

  3. I’ve had overheating issues with m.2 SSDs located below a GPU. Do you suppose the “shield” will make thermals better or worse for the m.2’s between the PCIe slots??

  4. I’d agree with others. HBA and 40G is redundant. Your 40G network speed is about the same as the HBA. If you need fast you’ve also got PCIe4 SSDs which will blow any other storage you have out of the water.

    2 double-width GPUs for AV? Premiere Pro, AE, and DaVinci at least really use 1 GPU at most?

    Quadro or Titan RTX in the first slot, SDI, Audio, 40G, and you’re still short a card for TB3.

  5. “you have a 40GbE, a HBA and TB3 for storage”

    Yes and it’s not that uncommon. 40GbE connects to the NAS which has all the bulk storage, 10GbE isn’t enough to keep up with 4K EXR files, etc. used for VFX or final masters. HBA is for connecting to internal U.2 NVMe drives striped in RAID0 that server as local cache, because 40GbE reliable enough to do guaranteed realtime playback of 4K EXR files, etc., so for hero systems we need to cached locally. TB3 is because clients often bring bulk storage on TB3 external RAIDs that we want to quickly connect and ingest files. Workaround is that we could have an ingest station do this, but it adds another step.

    We also use TB3 for KVM extension as it is much more full-featured and affordable than other solutions. Some of our pro audio devices are also wanting a TB connection and the alternatives are either less featured and/or more expensive. So far I haven’t seen TB3 with Epyc/Threadripper.

  6. “Tyler. what about some of Epyc based solution(s)? For example MZ32-AR0”

    That’s an interesting board because we could probably use the 4 x “SlimSAS” connectors to control our U.2 cache drives, and the OCP for 40GbE, leaving plenty of PCI slots left over.

    “I can’t quite believe that you need 40GigE”
    “HBA and 40G is redundant…40G network speed is about the same as the HBA. If you need fast you’ve also got PCIe4 SSDs which will blow any other storage you have out of the water.”

    I explained in another reply, but yes we need both because 40GbE is not reliable for realtime performance in video/VFX at the datarates we are working with. One uncompressed stream of 4K EXR files is 1.3GBps (gigaBYTES). Now imagine you’re typically using 2-4 streams at a time. The math will tell you that 40GbE cold maybe be enough, but in the real world you’ll run up against protocol limitations and high CPU usage. Getting even one stream is tough with most protocol stacks.

    PCIe SSDs is what we’re using, but U.2 variants because we need about 40TB local cache, which you can’t get in M.2 form factor. I suppose we could try connecting U.2 drives with adapter cables to the M.2 slots. In theory it should work…

    “2 double-width GPUs for AV? Premiere Pro, AE, and DaVinci at least really use 1 GPU at most?”

    The two main apps we use that leverage this level of hardware are DaVinci Resolve (color grading) and V-Ray Next (3D rendering). While Premiere and After Effects don’t leverage multiple GPUs effectively, Resolve very much does and most Hollywood shops using it have at least two GPUs if not 4 or even 8. V-Ray Next scales almost linearly, so two GPUs is barely scratching the surface (a render node would usually have 8 GPUs but that is a different build than this).

    I point all this out because the article is about a workstation board, not a server board, and we need lots of slots.

  7. Well, hopefully Supermicro or Tyan or somebody comes out with a 6-slot Threadripper 2 mainboard, and bonus if there’s a TB3 option that works with it. I can wait a few months.

  8. Can somebody tell me please why this is being marketed as a gaming motherboard?
    Okay, okay, no need to answer. Back in the day i was playing Crysis on a HP Z800 with two Quadro 5800 (i don’t recall the CPU it was using, but it was obviously some Xeon variant). Why HP did not market the Z800 as a “gaming PC” is a mystery… Also, i heard that physical exercises are beneficial to health, so lets do some eye-rolling for about 15 minutes.

  9. @Madness

    I think they are positioning it more as an enthusiast board. Threadripper is kind of in this weird limbo between gaming and workstation segments though. It excels at workstation workloads more than gaming, yet all of the boards available are just hopped up gamer boards. And then on the EPYC end of things there are so few boards at all, and the ones that ARE out there are server oriented.

  10. @Tyler: I would wait a month for TRX80; Those will be the more workstation orientated systems.
    TRX40 seems to target more the game streamers, enthusiasts and less the professional work station crowd like you are.
    It is a bit sad that AMD did not provide a clear roadmap on Threadripper V3. And the infos on TRX80 are still only rumors or educated guesses. But by now they seem to be right, so wait till AMD will reveal TRX80 in January (the current likely launch/paper launch).

  11. Thx for the advice Steven, I think I’ll do that.

    I also wish we’d see some TR3 workstations from HP, Supermicro, Dell, etc. We’ll build our own if we have to, though.

  12. I’m hoping a mobo manufacturer will use pcie 4 ->3 switches on TR boards to go from 8x 4.0 to 16x 3.0 so they can put 4+ non-over-subscribed 16x 3.0 slots on a board with plenty of lanes left over for other IO. Would make for a great DL workstation.

  13. Ryan, I second that! Although I’d be happy with a PCIe expansion chassis that broke out the lanes as well. Something that takes your x16 4.0 and gives you 4 x x8 3.0 slots would be so nice.

  14. Any one got a good explanation on why TR need a chipset and not epic? Was it mostly for moving some power usage off chip? Anyone know if it is the same io chiplet in both?

  15. @STH

    Can You kindly let Me know if this motherboard can support EPYC cpu, even if no tlisted on ASUS website?!
    I don’t need all those cores but I do need the GPU slots, that AM4 dooesnt offer, so id be more than glad to drop in an 8 core 500 dollar EPYC cpu, and keep the extra cash to buy DDR5 systems this summer, as these DDR4 Motherboards and CPUs are end of life.
