AMD Radeon RX 6800 16GB GPU Review

10

SPECviewperf 13

SPECviewperf 13 measures the 3D graphics performance of systems running under the OpenGL and Direct X application programming interfaces. We have now broken down our SPECviewperf graphs into separate categories for ease of viewing performance results.

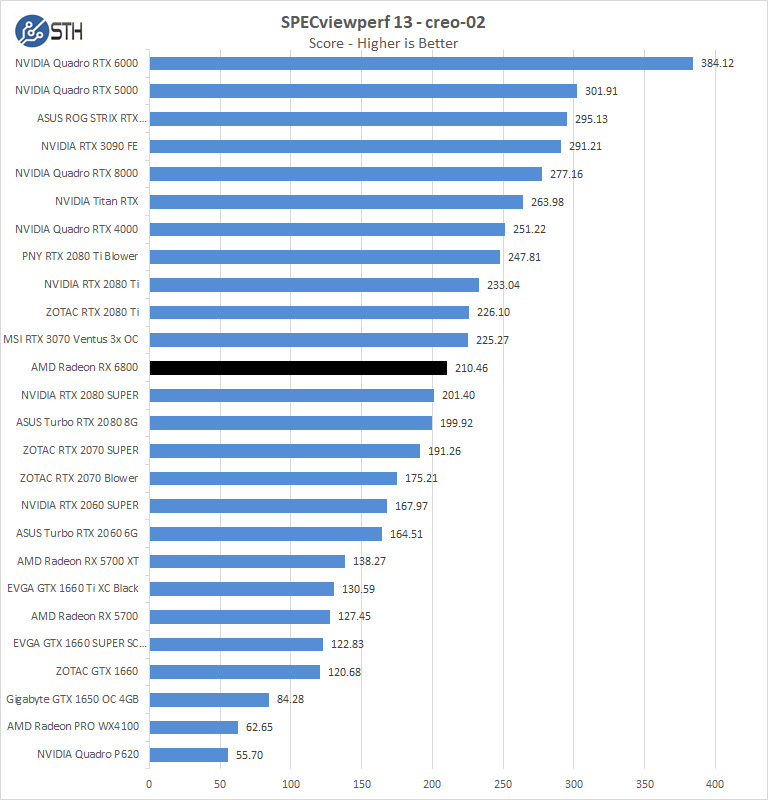

AMD Radeon RX 6800 SPEVviewperf Creo 02
AMD Radeon RX 6800 SPEVviewperf Creo 02
AMD Radeon RX 6800 SPEVviewperf Catia 05
AMD Radeon RX 6800 SPEVviewperf Catia 05

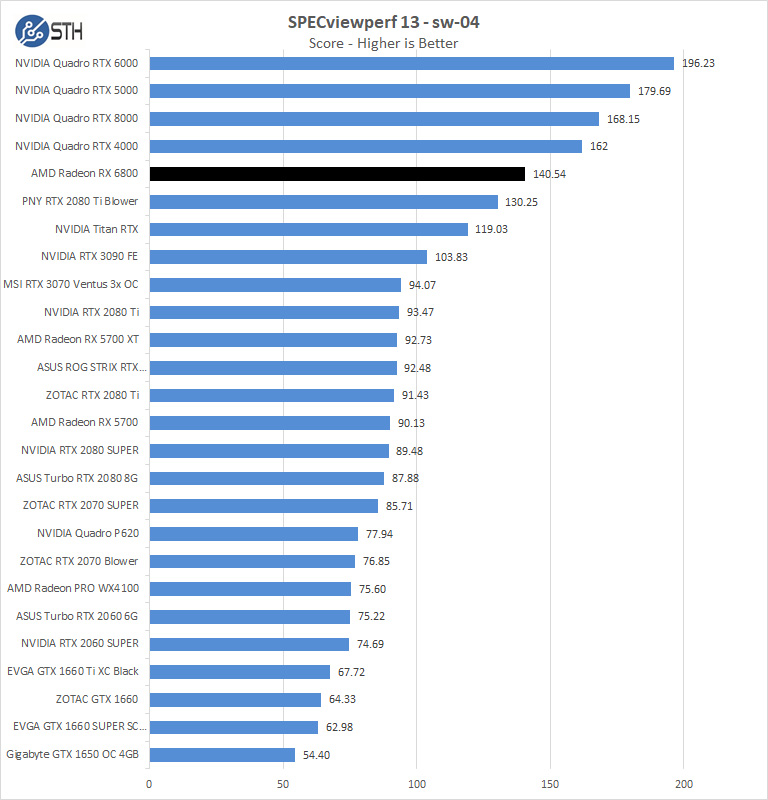

AMD Radeon RX 6800 SPEVviewperf Sw 04
AMD Radeon RX 6800 SPEVviewperf Sw 04

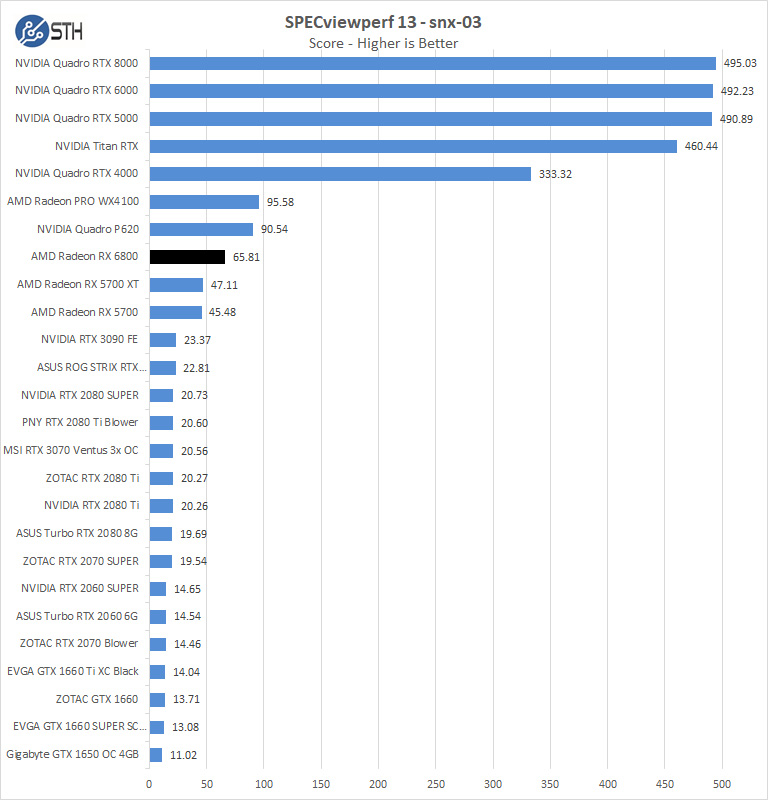

AMD Radeon RX 6800 SPEVviewperf Snx 03
AMD Radeon RX 6800 SPEVviewperf Snx 03

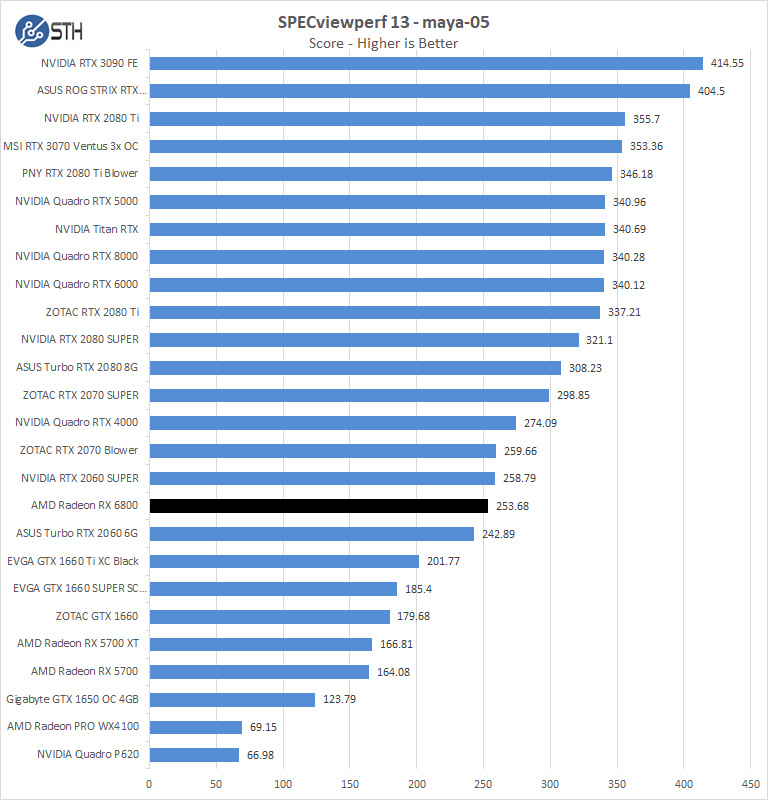

AMD Radeon RX 6800 SPEVviewperf Maya 05
AMD Radeon RX 6800 SPEVviewperf Maya 05

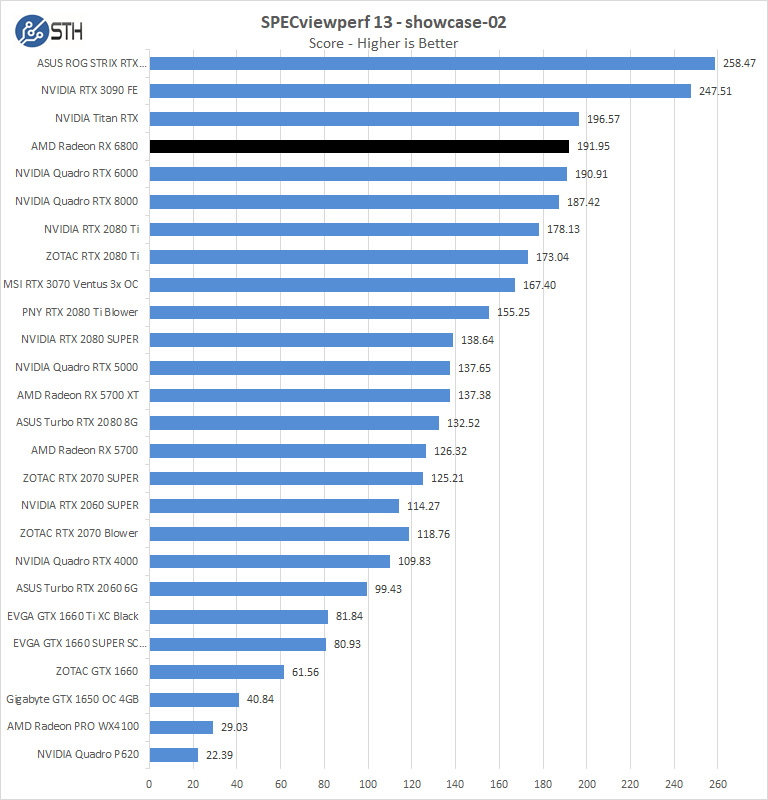

AMD Radeon RX 6800 SPEVviewperf Showcase 02
AMD Radeon RX 6800 SPEVviewperf Showcase 02

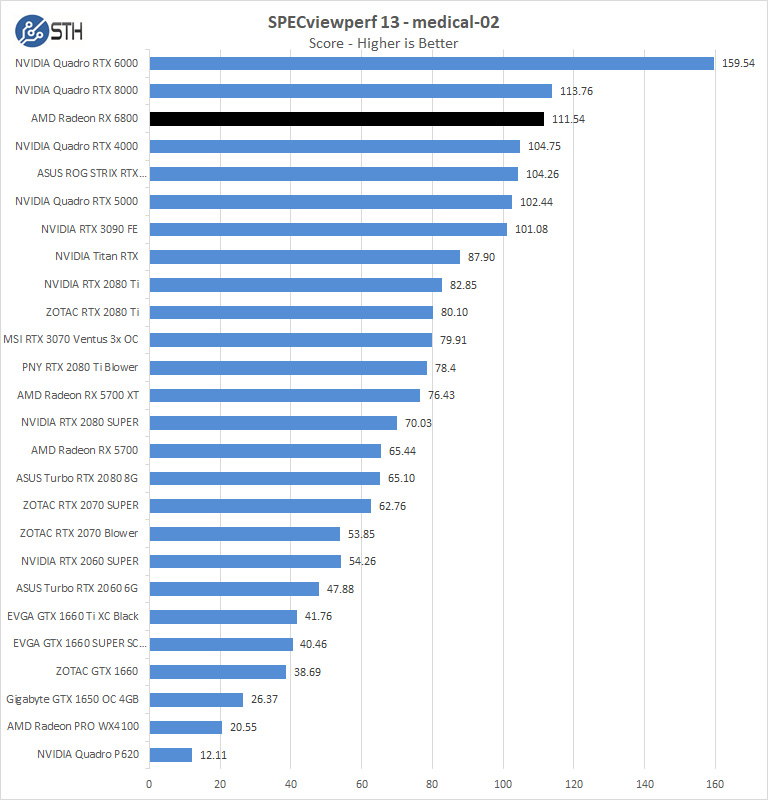

AMD Radeon RX 6800 SPEVviewperf Medical 02
AMD Radeon RX 6800 SPEVviewperf Medical 02

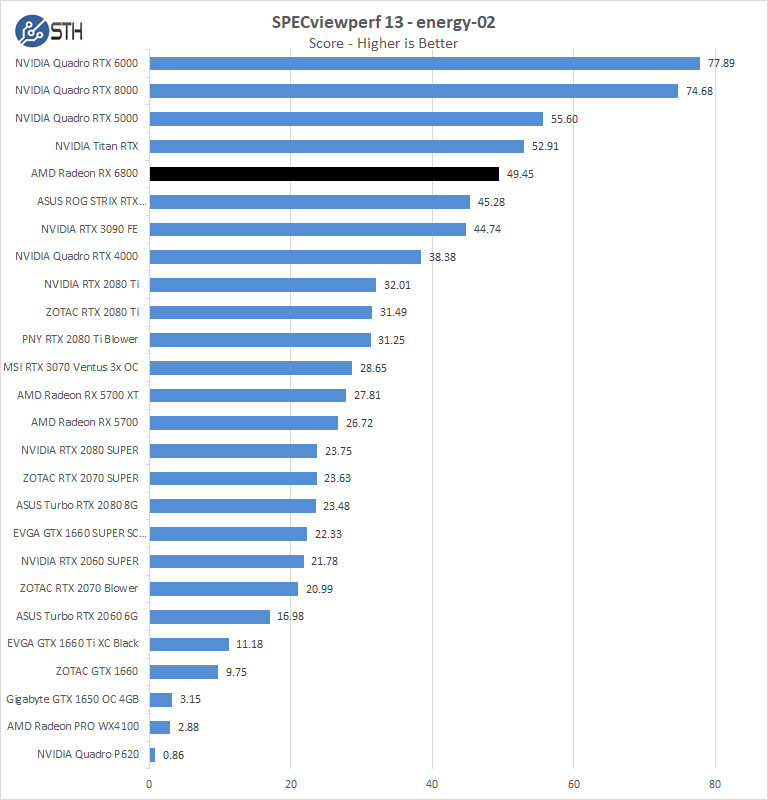

AMD Radeon RX 6800 SPEVviewperf Energy 02
AMD Radeon RX 6800 SPEVviewperf Energy 02

As drivers improve, we should see continued performance increases in this benchmark. In the first chart for SPECviewperf, we find the AMD Radeon RX 6800 performance is generally good with performance levels at, or above the RTX 3000 series in many tests. In others, NVIDIA was significantly ahead.

Charting everything on the same graphic became too busy. Where that distinction would have been lost. Hopefully, this helps a bit with making the charts more readable.

Next, we will have 3DMark results before moving on to power consumption, thermals, and our final thoughts.
