Toshiba PX03SNB160 1.6TB SAS 3 SSD – Quick Benchmarks

0
Toshiba PX03SNB160 - ATTO Read Benchmark Comparison
Toshiba PX03SNB160 - ATTO Read Benchmark Comparison

The Toshiba PX03SNB160 1.6TB SAS 3 SSD is meant for higher capacity storage platforms that endure heavy read workloads. Based on 19nm eMLC NAND these drives are rated at 1 DWPD for 5 years which is still a fairly impressive figure. The read optimized nature means that the use case for these drives are often file servers and media servers where data will be stored once then accessed many times. We already looked at the higher endurance Toshiba PX02SMU080 800GB SAS 3 SSD which is Toshiba’s higher endurance offering and we will add that to the list of competitive offerings in the benchmark charts.

Test Configuration

Since we are going to assume the use of already released hardware, we are using a legacy system for testing across the test suite:

  • Motherboard: Gigabyte GA-7PESH3
  • Processors: Dual Intel Xeon E5-2690 (V2)
  • SAS Controller: LSI SAS 3008
  • RAM: 64GB DDR3L-1600MHz ECC RDIMMs
  • OS SSD: Kingston V300 240GB

We are using a SAS controller so one cannot compare results directly to consumer-driven setups where a SATA SSD is connected to an Intel PCH port. There is a latency penalty for going over the PCIe bus to a controller to SAS. It also is a reason NVMe is going to be a game changer in the enterprise storage space.

Toshiba PX03SNB160 1.6TB SSD Quick Benchmarks

For our quick tests during this part of the series we will just provide the quick benchmarks with only a bit of commentary. The results should be fairly straightforward and we have added a few results for comparison purposes.

AS SSD Benchmark

AS SSD is a solid benchmark that does not write compressible data to drives. The result is perhaps one of the best workstation SSD benchmarks available today.

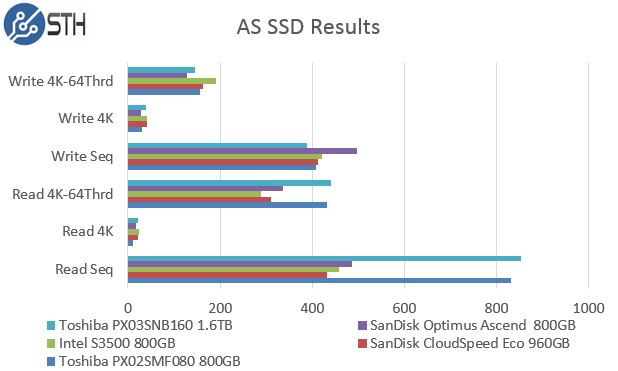

Toshiba PX03SNB160 - AS SSD Benchmark Comparison
Toshiba PX03SNB160 – AS SSD Benchmark Comparison

As we can see, highly threaded and sequential reads are the Toshiba PX03SNB160’s hot spot. The drives clearly show their ability to scale performance beyond 6.0gbps offerings even on a single port configuration like we use. The Seagate 1200 drives were unable to do the same despite being 12gbps products.

CrystalDiskMark

CrystalDiskMark is another benchmark which gives non-compressible read/write numbers. This is in contrast to the ATTO Benchmark used by LSI/ Sandforce and its partners when they market a given solid state drive.

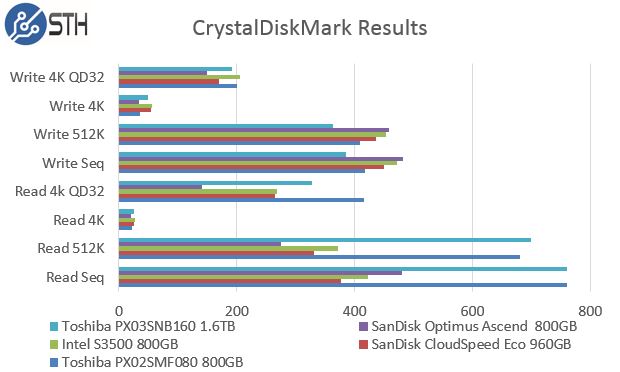

Toshiba PX03SNB160 - CrystalDiskMark Benchmark Comparison
Toshiba PX03SNB160 – CrystalDiskMark Benchmark Comparison

CrystalDiskMark shows similar patterns emerging. Write performance is clearly good, but not best in class. The read side is completely different with the only real competition in the chart coming from the other Toshiba SAS 3 offering.

ATTO Benchmark

The value of the ATTO benchmark is really to show the best-case scenario. ATTO is known to write highly compressible data to drives, which inflates speeds of controllers that compress data like LSI/ SandForce does prior to writing on a given solid state drive.

Toshiba PX03SNB160 - ATTO Read Benchmark Comparison
Toshiba PX03SNB160 – ATTO Read Benchmark Comparison

On the read side, we see excellent performance in ATTO touching the 1 GB/s mark. For higher-end SAS 3 drives, queue depths often need to be cranked up to around 128 in order to keep the controllers fed, and ATTO stops short of that.

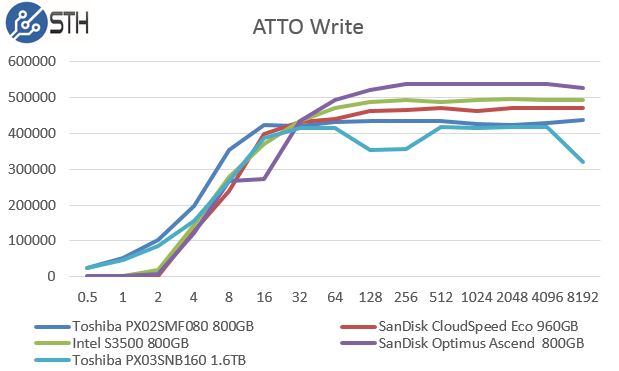

Toshiba PX03SNB160 - ATTO Write Benchmark Comparison
Toshiba PX03SNB160 – ATTO Write Benchmark Comparison

On the write side, we can see excellent performance at very low transfer sizes, much like the other Toshiba offering. The charts clearly show the read focus of these drives.

Conclusion

Overall, the Toshiba PX03SNB160 is a strong offering. The fact that one can fit one of these 1.6TB drives in a 2.5″ bay makes it very competitive with nearline SAS 2.5″ storage in terms of storage density. For applications which are density constrained read optimized scenarios, these SSDs can provide much needed performance boots and high density.
